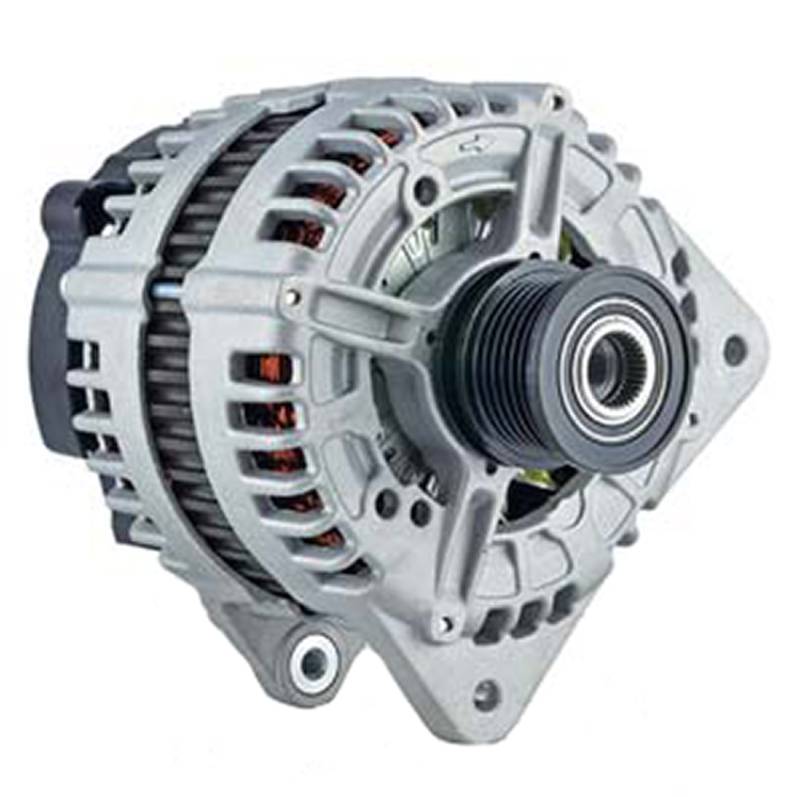

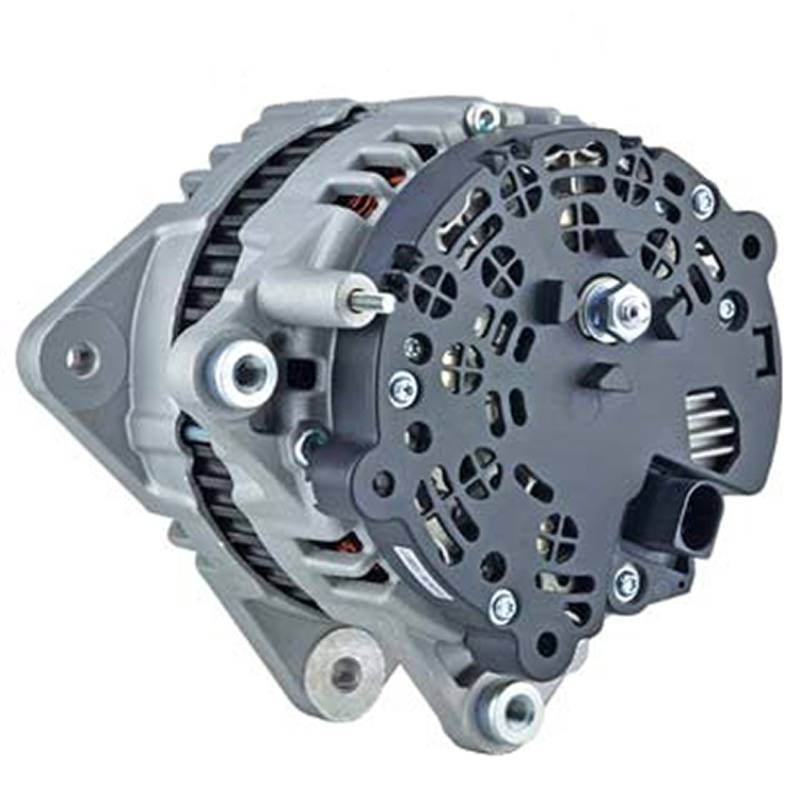

New 12V 180A Alternator Fits Audi Europe A3 A4 2015-2017 03G-903-016L 0121715077

AUDI, VOLKSWAGEN: 03G-903-016L
BOSCH: 0 121 715 077 0121715077 0 121 715 177
BOSCH SERVICE EUROPE: 0 986 081 920 0986081920
HELLA: 8EL-738-213-411
LUCAS: LRA03152

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: BOSCH
VOLTAGE: 12
AMPERAGE: 180
FAN: INTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 6
PULLEY TYPE: CLUTCH
PULLEY OD: 2.102IN / 53.4MM
SERPENTINE GROOVES OD: 1.949IN / 49.5MM
MOUNTING EAR 1 HOLE: 8.5MM UNTHREADED
MOUNTING EAR 2 HOLE: M8-1.25 THREADED
MOUNTING EAR 3 HOLE: 8.5MM UNTHREADED
MOUNTING EAR 4 HOLE: M8-1.25 THREADED
MOUNTING EAR 1 THICKNESS: 0.559IN / 14.2MM
MOUNTING EAR 2 THICKNESS: 0.787IN / 20MM
MOUNTING EAR 3 THICKNESS: 0.559IN / 14.2MM
MOUNTING EAR 4 THICKNESS: 0.787IN / 20MM
B+ TERMINAL: M8-1.25
LIN TERMINAL: SPADE
N/C TERMINAL: SPADE
WEIGHT: 16.85 LBS / 7.66 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
