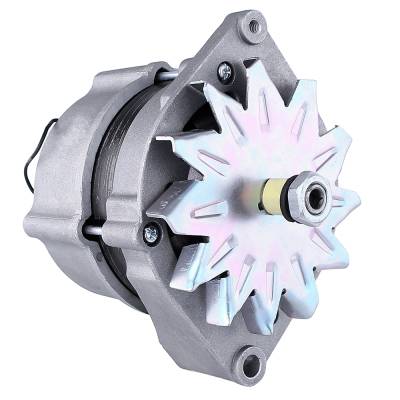

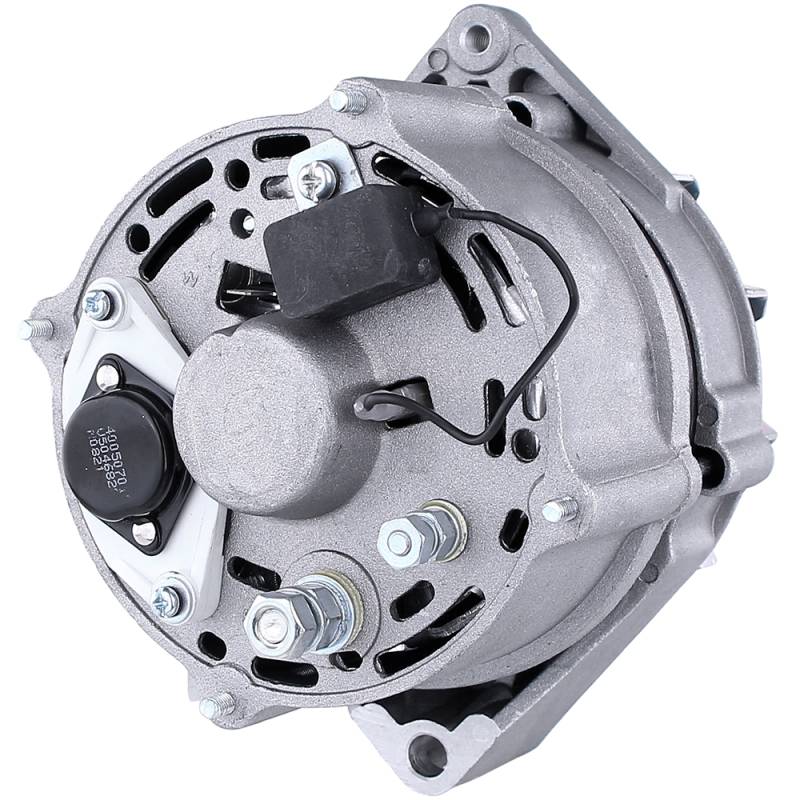

12V 65A Alternator Compatible With 1986-1994 Case Loader 480E 480F 580K 580Se 4-390 Diesel

OEM PART NUMBERS:
• : 0120489475 / 0-120-489-475
• Reman: AL9959X
• Case: A187873
• Cummins: 3604480RX
• Hella: 8EL737217001 / 8EL-737-217-001
• IHC / Navistar: A181873
• John Deere: 69X56677B
• Letrika (Iskra): 11204382 / 11201935 / IA0727 / IA0595 / AAK1363

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65A
• Fan: External
• Regulator: Internal
• Grooves: 5
• Shaft OD: 0.669in / 17mm
• Shaft Threads: M16-1.5
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Mounting Ear 1 Thickness: 0.65in / 16.5mm
• Mounting Ear 2 Thickness: 2.008in / 51mm
• Mount Type: Spool
• B+ Terminal: M6-1.0
• D+ Terminal: Spade
• W Terminal: Spade
• Weight: 10.54 lbs / 4.79 kg
• Condition: New

APPLICATION:
• Case Loader 480E/480F/580K/580SE/680K/680L/780C/780D (1983-1994)
• Case Crawler 450C-650K 4-390 Diesel (1983-2007)
• Case Crawler 750H-850K/855D/1150H/1550 (1985-2007)

12V 65A Alternator — Case Loaders / Crawler Tractors
Direct replacement -type 12V 65A alternator for Case backhoe loaders and crawler tractors (1983-2007). Spool mount with 5-groove pulley. Replaces 0120489475, AL9959X, Case A187873, Cummins 3604480RX, Hella 8EL737217001, IHC A181873, JD 69X56677B, Letrika 11204382.
