HELLA: 8EL 730 135-001 8EL730135001
MOTOROLA: 10446 10-297 8LHA3025 8LHA3025PA 8LHA3071P
ONAN: 191-1926-02
PERKINS: OD20382
PRESTOLITE: 110-296 110-446 110297

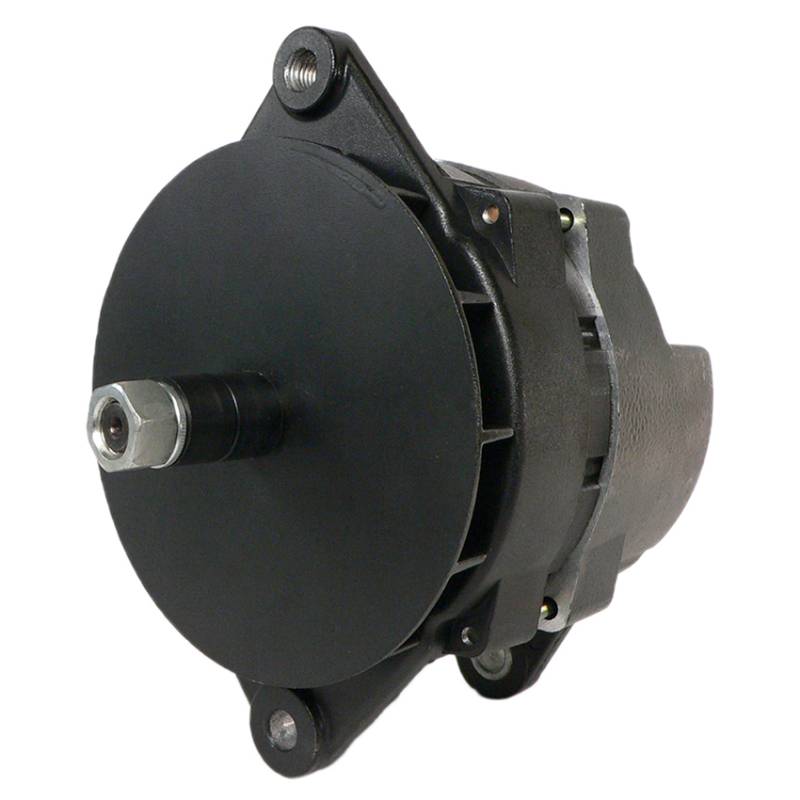

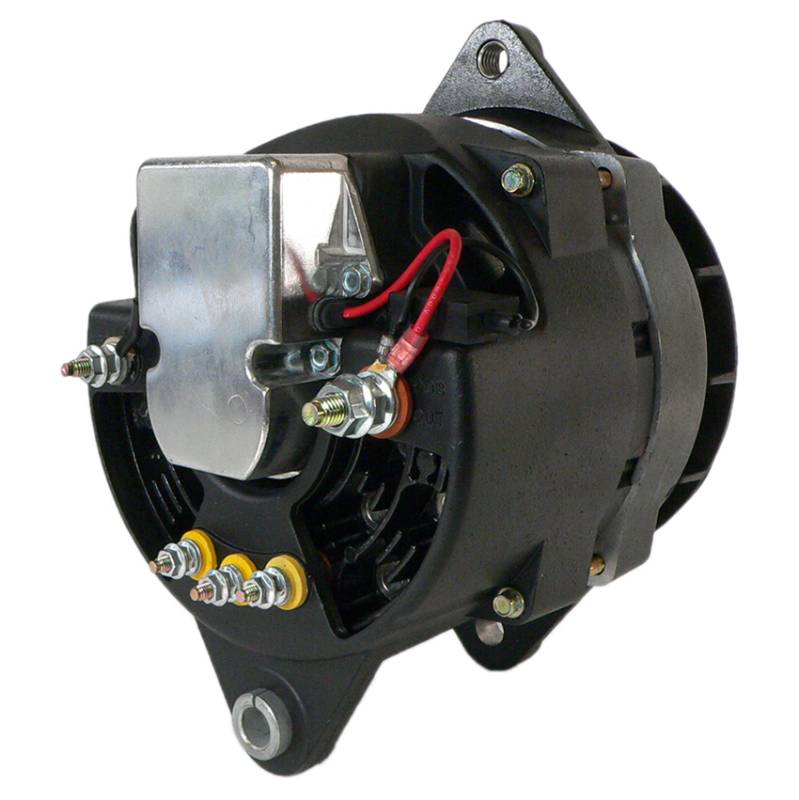

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: LEECE NEVILLE
VOLTAGE: 24
AMPERAGE: 75
FAN: EXTERNAL
REGULATOR: INTERNAL
MOUNT TYPE: J180
J180 HINGE LENGTH: 8.5IN / 215.9MM
MOUNTING EAR 1 HOLE: 1/2-13 THREADED
MOUNTING EAR 2 HOLE: 12.8MM UNTHREADED
MOUNTING EAR 3 HOLE: 12.8MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.571IN / 14.5MM
MOUNTING EAR 2 THICKNESS: 0.571IN / 14.5MM
MOUNTING EAR 3 THICKNESS: 0.787IN / 20MM
POLARITY: NEGATIVE
SHAFT OD (PULLEY): 0.875IN / 22.22MM
SPECIFICATIONS: ADJUSTABLE REGULATOR
WEIGHT: 23.51 LBS / 10.69 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
