OEM PART NUMBERS:
• Motorola: 8SC3018VA / 8SC3018V
• Motorola: 10-576 / 10576
• 110-576 / 110576
• Thermo King: 4125D55G02
• Thermo King: 44-63 / 4463 / 44-6368 / 446368
• Blue Bird: 8312266
• AMO0045
• J & N: 400-16070
• 8634 / 8634N
SPECIFICATIONS:
• Type: Alternator — 8SC Series Brush Design
• Voltage: 24V
• Amperage: 150A
• Rotation: Clockwise (CW)
• Fan: External (EF)
• Regulator: Internal (IR)
• Mount Type: J180 Long Hinge
• J180 Hinge Length: 8.5 in / 215.9 mm
• B+ Terminal: 5/16-24
• Polarity: Negative
• Excitation: 12 Volt Excite
• Weight: 27.7 lbs / 12.59 kg
• ⚠️ BATTERYLESS SYSTEMS ONLY
• ⚠️ NEGATIVE GROUND ONLY
• ⚠️ 12 VOLT EXCITE REQUIRED
• Condition: New
APPLICATIONS (VERIFY PART NUMBER BEFORE ORDERING):
• Thermo King Truck Refrigeration Units — 24V Batteryless Systems with 12V Electrical
• Thermo King Bus A/C Units — Transit Bus A/C with 12V Electrical / 24V Alternator
• Thermo King Agricultural & Industrial Batteryless Systems
• Blue Bird Bus — Batteryless 24V Charging System (P/N 8312266)
• Toro Equipment — Batteryless 24V Alternator Applications
⚠️ CRITICAL INSTALLATION REQUIREMENTS:
• BATTERYLESS SYSTEMS ONLY — DO NOT use on systems with a battery
• NEGATIVE GROUND ONLY — Positive ground systems incompatible
• 12 VOLT EXCITE REQUIRED — Must have 12V excitation circuit

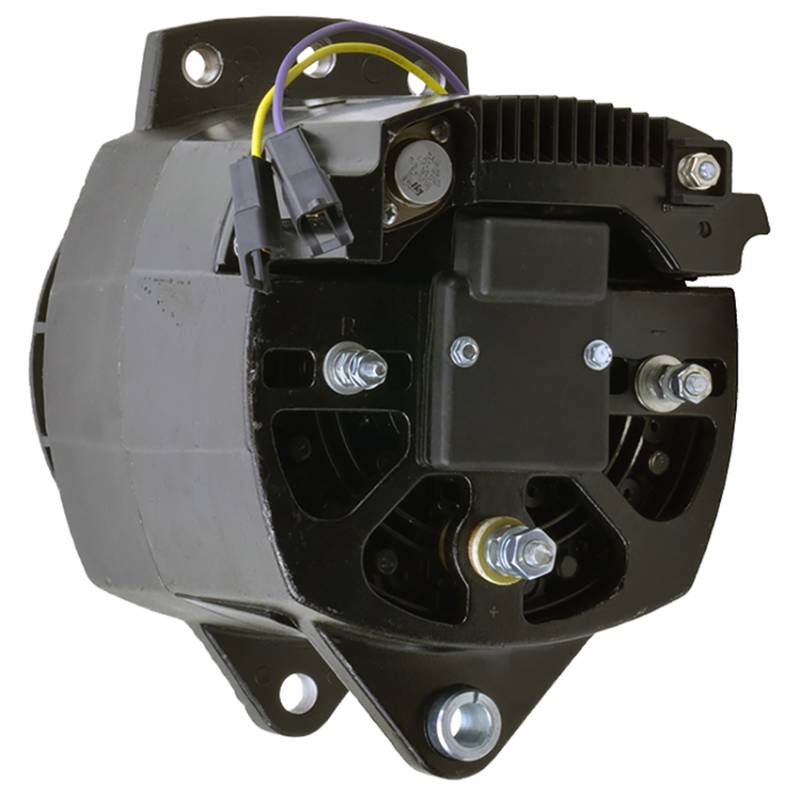

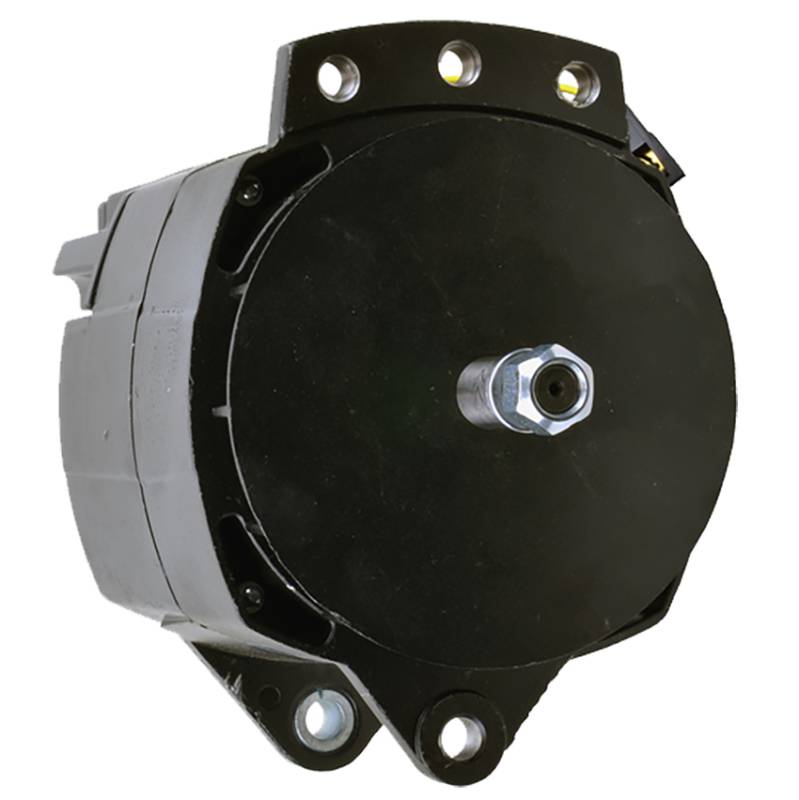

ALTERNATOR — Thermo King Truck Refrigeration Bus A/C 24V 150A 8SC3018VA 110-576:
New 24V 150A 8SC brush alternator for Thermo King truck unit and bus A/C systems with 12V electrical systems, and Blue Bird bus batteryless applications. External fan, internal regulator, CW, J180 long hinge (8.5 in / 215.9 mm), 5/16-24 B+, negative polarity, 27.7 lbs. Replaces 8SC3018VA / 8SC3018V / 10-576 / 10576, 110-576 / 110576, Thermo King 4125D55G02 / 44-6368, AMO0045, 400-16070, 8634 / 8634N.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
