12V 140 Amp Alternator Compatible With 2007-2012 Seat Leon Altea 1.8 Tsi Exeo 2.0 Tfsi Alhambra Cw

OEM PART NUMBERS:
• Audi/VW: 06B-903-016AF / 06B903016AF
• Audi/VW: 06J-903-023C / 06J903023C
• Audi/VW: 06D-903-016AX / 06D903016AX
• Bosch: 0-986-046-180 / 0986046180
• Hella: 8EL 738 194-001 / 8EL738194001
• Hella: 8EL 012 429-231 / 8EL012429231
• Valeo: SG14B016
• Valeo: 2542494, 2543369

SPECIFICATIONS:

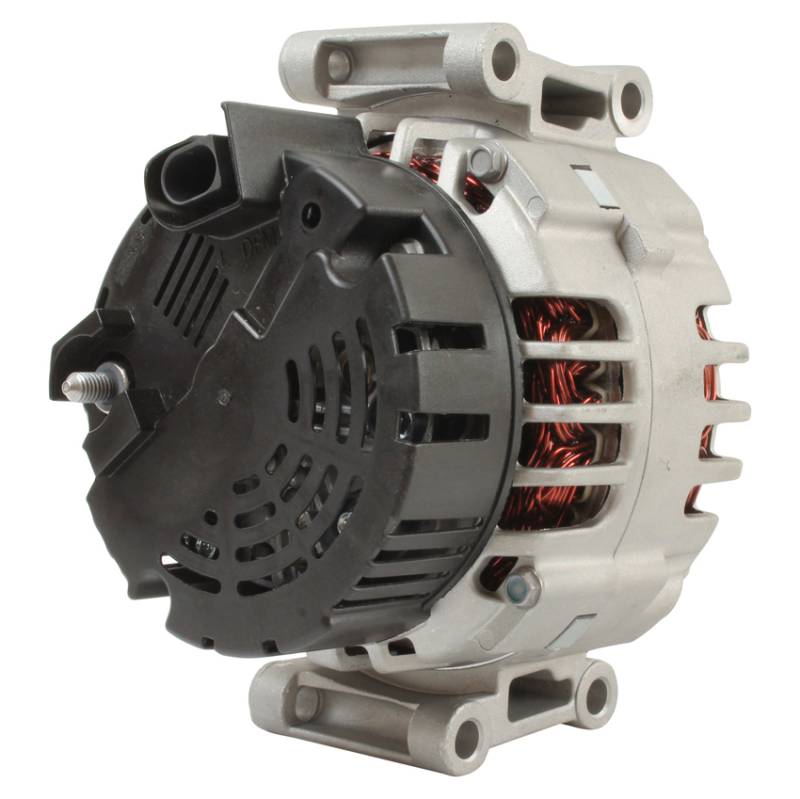

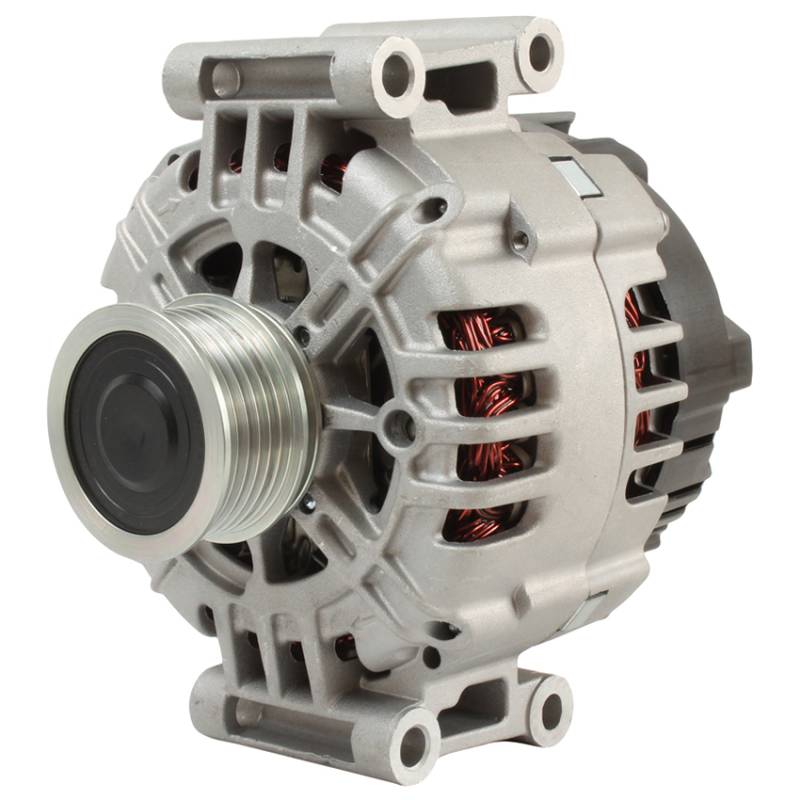

• Type: Valeo • Voltage: 12V / Amperage: 140A • Rotation: CW (Clockwise) • Regulator: Internal (IR) / Fan: Internal (IF) • Pulley: 6-Groove Serpentine (56mm OD) • Mount Type: Pad • Mounting Ears: 4x Unthreaded (8.5mm/9.5mm holes, 70mm thick) • B+ Terminal: M8-1.25 / Plug: Two Pin (L-DFM) • Polarity: Negative Ground • Weight: 15.44 lbs / 7.02 kg • Condition: New

APPLICATION:
• Seat Alhambra/Altea/Exeo/Leon/Toledo Europe (2007-2012)
• VW Passat 1.8T/2.0T China (2011-2014)
• VW Tiguan 1.4T/1.8T/2.0T China (2009-2013)

DESCRIPTION:
12V 140 Amp Alternator - Seat Leon, Altea, Exeo, Alhambra, and Toledo Europe
New Valeo SG14B016 alternator for European Seat models. Fits Leon (1P1) with 1.8 TSI BZB/CDAA 118kW (2007-2012), Altea XL 1.8T BYT/BZB (2007-2012), Toledo III (5P2) 1.8 TFSI BYT/BZB/CDAA 118kW (2007-2009). Exeo sedan (3R2) with 1.6L ALZ (75kW, 2009-2010), 2.0 TFSI BWE (147kW, 2009), 1.8T CFMA (110kW, 2008-2010). Exeo ST wagon (3R5) same engines (2009-2010). Alhambra (710/711) with 2.0 TSI CCZA 147kW (2010) and 1.8 TSI CDAA 118kW (2012). Also fits VW China Passat 1.8T/2.0T (2011-2014) and Tiguan 1.4T/1.8T/2.0T (2009-2013). 140 amp 12 volt clockwise rotation with 6-groove 56mm serpentine pulley. Replaces 06B-903-016AF, 06J-903-023C, 06D-903-016AX, Bosch 0-986-046-180, Hella 8EL738194001.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
