OEM PART NUMBERS:
• Delco: 1113334, 1113353, 1113369
• Delco: 1113371, 1113407
• Delco: 1113481, 1113534, 1113541
• Delco: 1993742, 1993910, 1993953
• Delco: 10479175
SPECIFICATIONS:
• Unit Type: Delco
• Series: 37MT
• Starter Type: DD (Direct Drive)
• Voltage: 24V
• Rotation: CW (Clockwise)
• Tooth Count: 12
• Gear OD: 1.815 in / 46.1mm
• Solenoid Position: 308 Degrees
• Mounting Hole 1: 0.660" ID Unthreaded
• Mounting Hole 2: 0.660" ID Unthreaded
• Mounting Hole 3: 0.660" ID Unthreaded
• Wet Clutch Seal: Yes
• Specification: 1/2" Reducers Installed Into Mounting Holes
• Weight: 50.5 lbs / 22.95 kg
• Condition: New
APPLICATION:
• Champion Grader 730/730A/736A Cummins 8.3L (1992-1998)

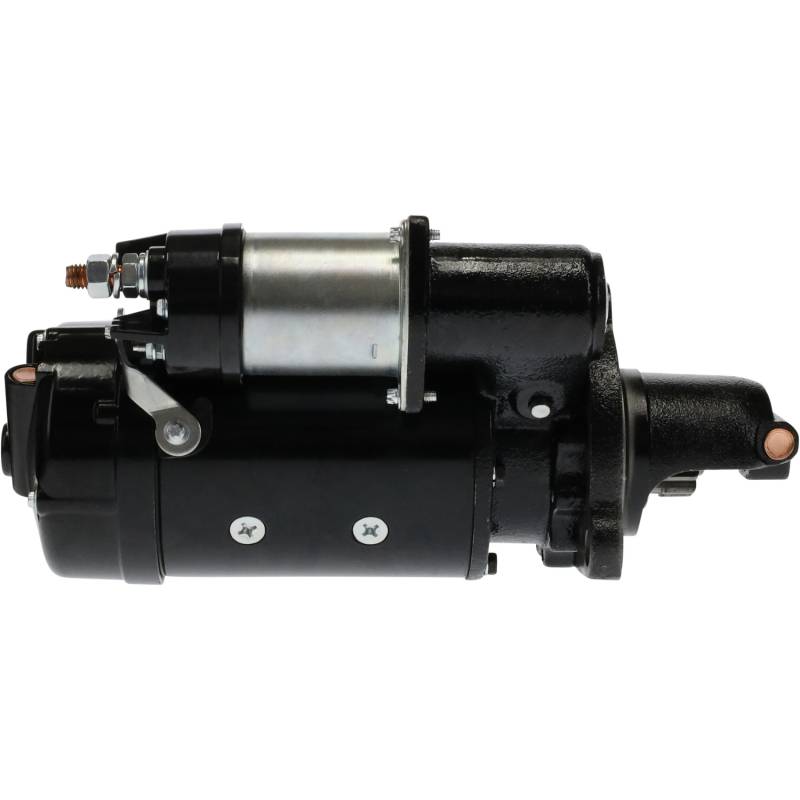

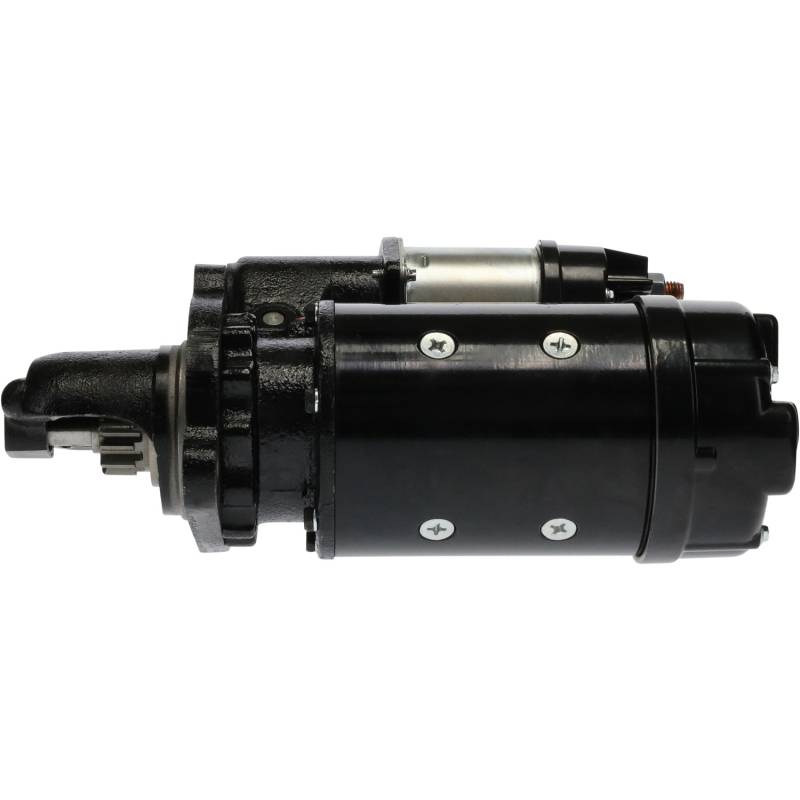

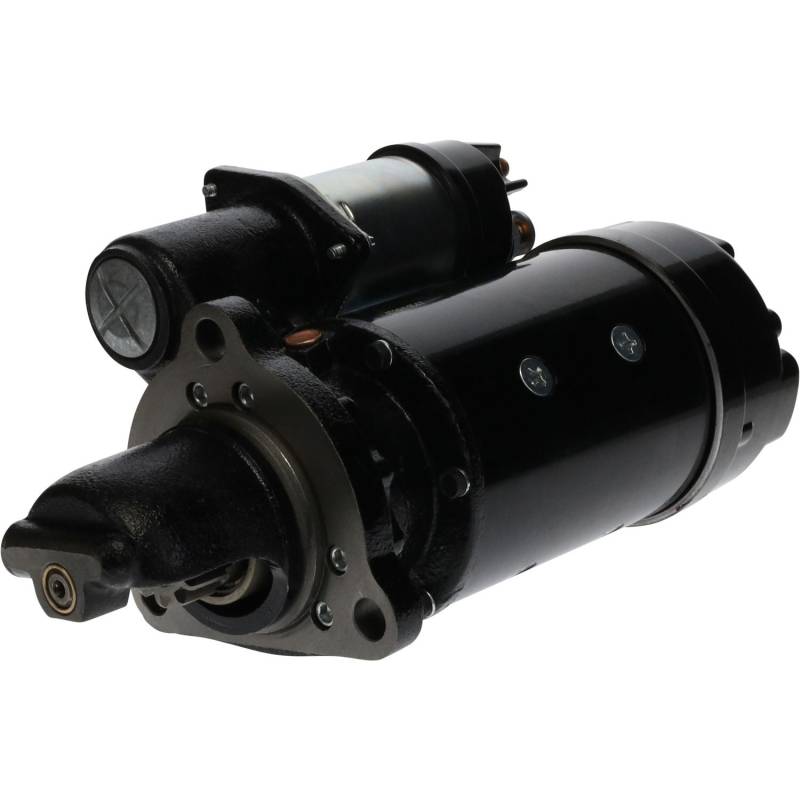

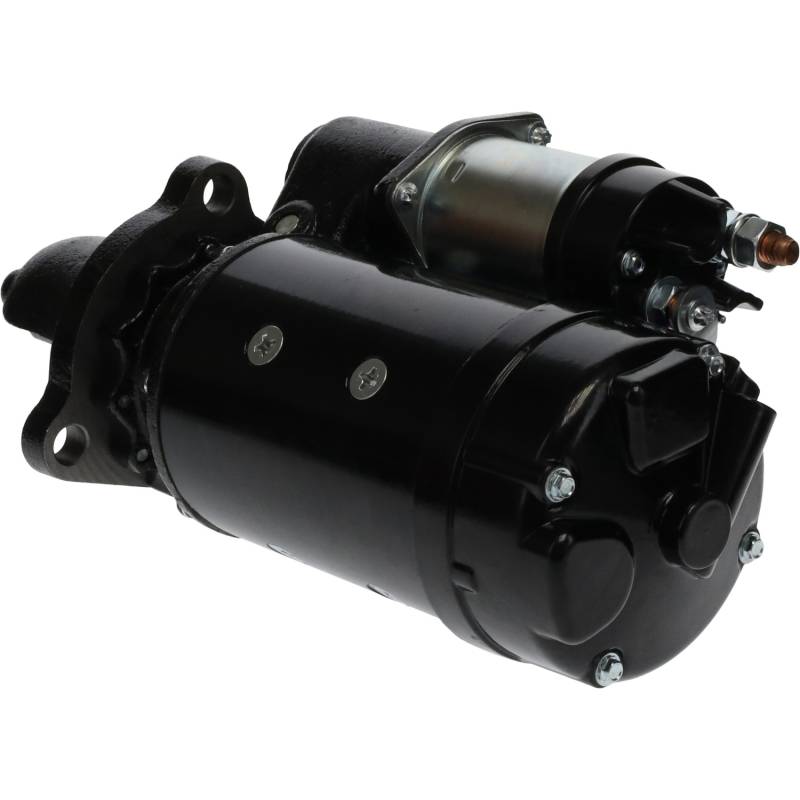

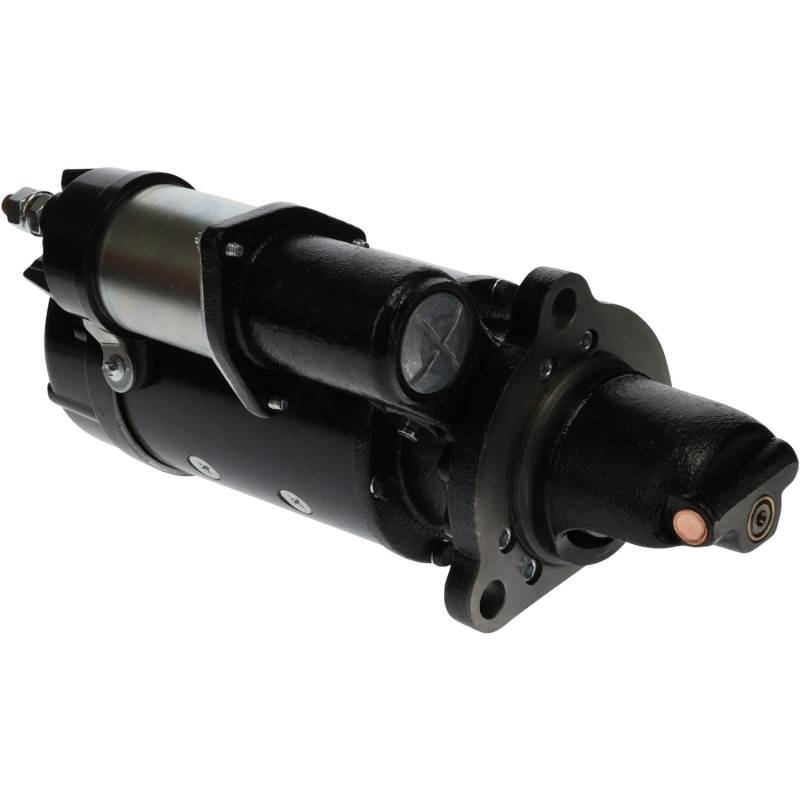

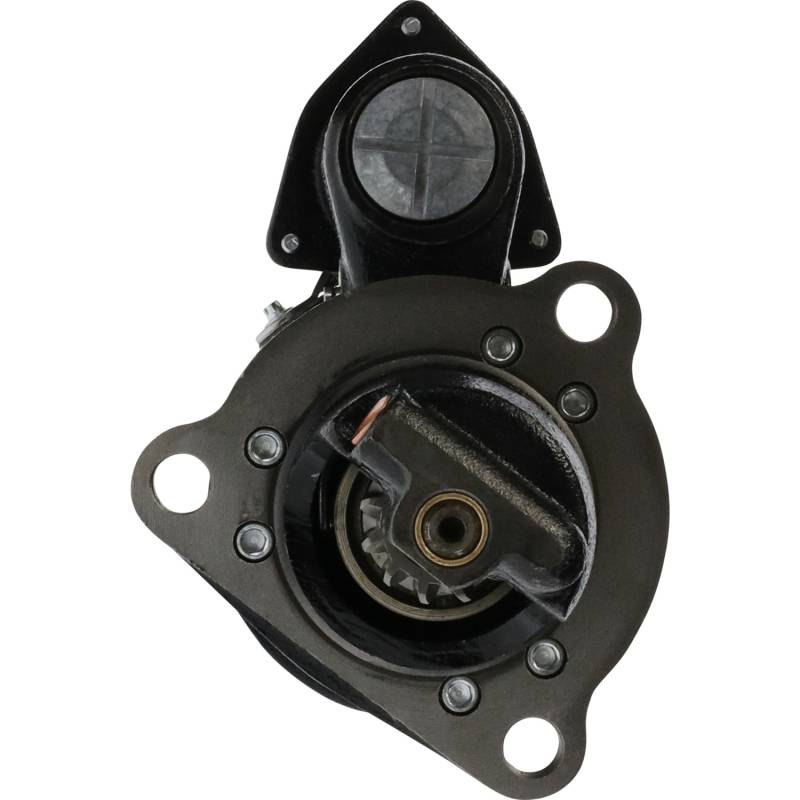

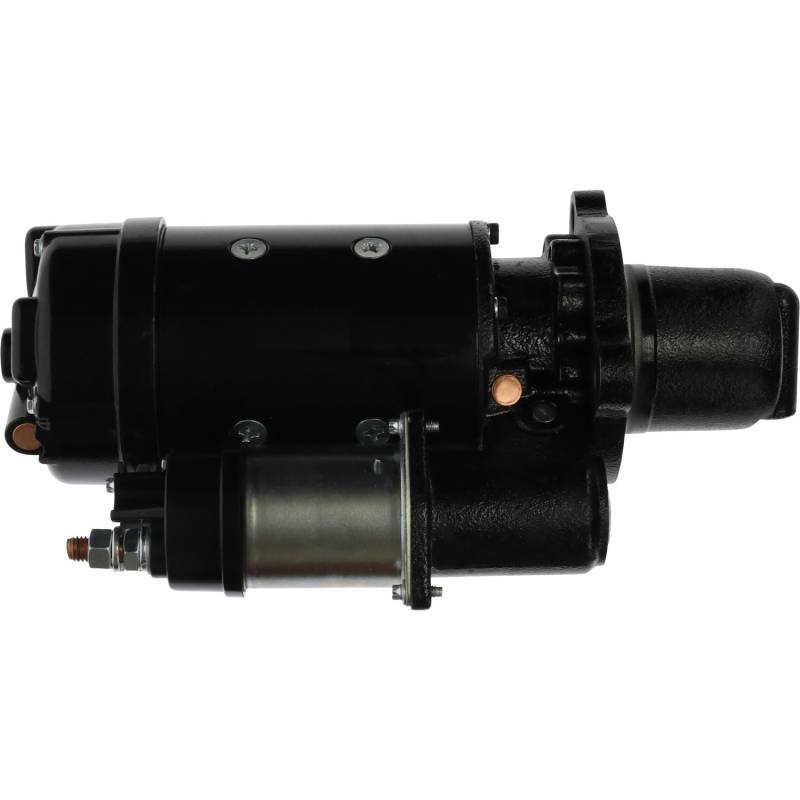

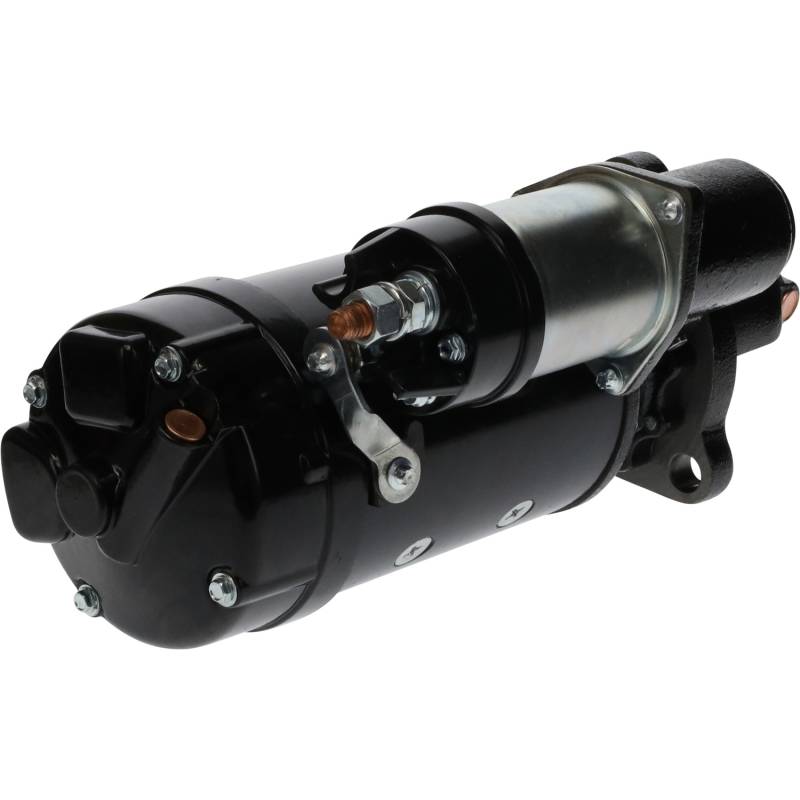

This heavy-duty 24-volt Delco 37MT direct drive starter is a direct OEM replacement for Champion 730, 730A, and 736A motor graders equipped with the Cummins 6CT8.3 turbocharged diesel engine. Features wet clutch seal, 308-degree solenoid position, 12-tooth clockwise engagement with 46.1mm pinion OD, and 1/2" reducers pre-installed in the three 0.660" unthreaded mounting holes.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
