OEM PART NUMBERS:
• Lucas: LRA02356
• Magneton: 443-113-516-061 / 443113516061
• Magneton: 443-113-516-184 / 443113516184
• Magneton: 9516051
• Zetor: 93-9950 / 939950
SPECIFICATIONS:
• Voltage: 12V
• Amperage: 55A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal
• Regulator Clock: 2:00
• Pulley Grooves: 1 (V-Belt)
• Pulley OD: 3.902" / 99.1mm
• Mounting Type: Spool
• Mounting Ear 1: 8.5mm Unthreaded (Thickness: 0.457" / 11.6mm)
• Mounting Ear 2: 10.1mm Unthreaded (Thickness: 0.457" / 11.6mm)
• Mounting Ear 3: 10.2mm Unthreaded (Thickness: 1.969" / 50mm)
• B+ Terminal: M6-1.0
• D+ Terminal: Spade
• Polarity: Negative
• Weight: 11.62 lbs / 5.28 kg
• Condition: New
APPLICATION:
• Zetor Tractor 8111 / 8145 / 8211 / 8245
• Zetor Tractor 9111 / 9145 / 9211 / 9245
• Zetor Tractor 10111 / 10145 / 10211 / 10245
• Zetor Tractor 12011 / 12045 / 12111 / 12145
• Zetor Tractor 14145 / 14245 / 16145 / 16245

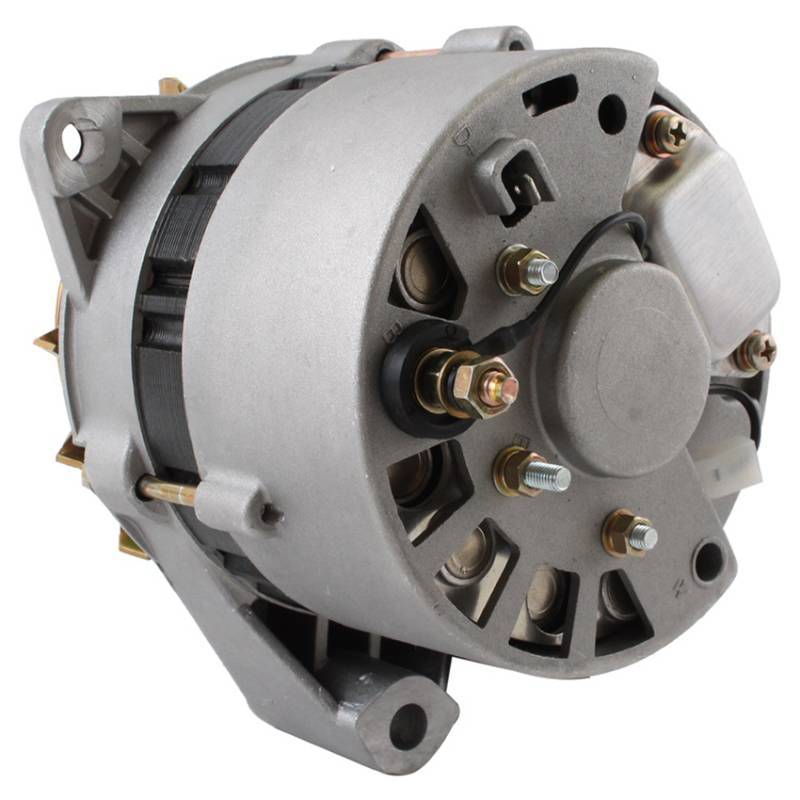

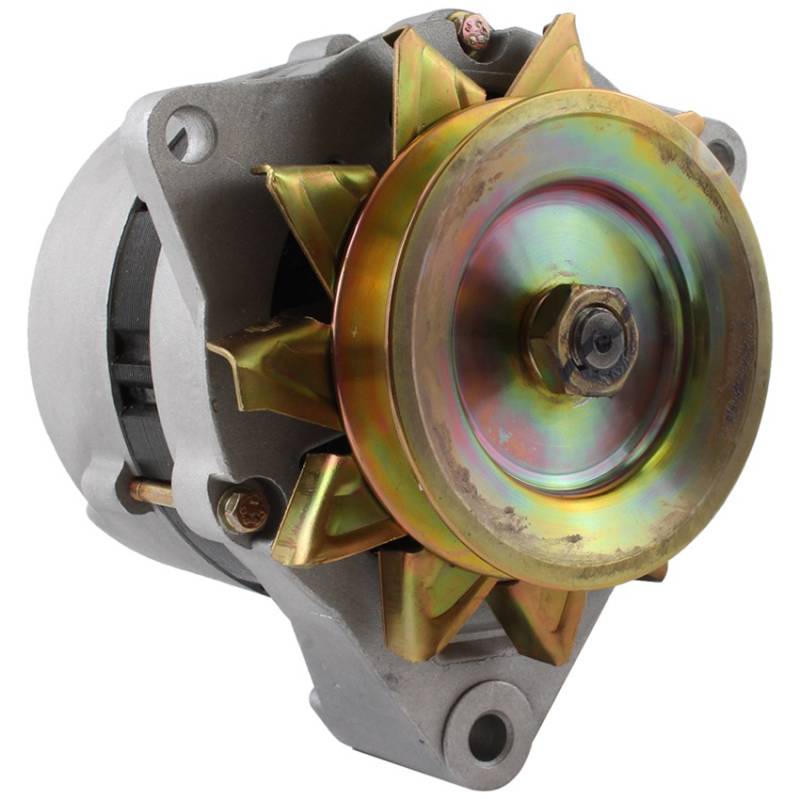

12V 55A Alternator - Zetor 8000/9000 Series
New 12V 55A Magneton-type alternator. Internal regulator, external fan, CW rotation, 1 groove V-belt, spool mount. Replaces Magneton 443-113-516-061, Lucas LRA02356, Zetor 93-9950. Verify OEM part number before ordering.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
