OEM PART NUMBERS:
• Ford: 1741221
• Ford: CJ5T-10300-CB / CJ5T10300CB
• Ford: CJ5Z-10346-C / CJ5Z10346C
• Bosch: 0-986-UR6-206 / 0986UR6206
• Mitsubishi: A002TX2581ZC
• Mitsubishi: A2TX2581
CROSS-REFERENCE:
• 23024, GL-8669, AL7696X
SPECIFICATIONS:
• Type: Mitsubishi Hairpin
• Voltage: 12V
• Amperage: 150A
• Rotation: CW (Clockwise)
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 4-Groove Decoupler (SC4)
• Pulley OD: 59mm (2.323 in)
• B+ Terminal: M8 x 1.25
• N/C Terminal: Spade
• LIN Terminal: Spade
• Plug Clock: 6
• Polarity: Negative
• Mounting: 3 Ears (20mm thick)
• Weight: 14.38 lbs (6.54 kg)
• Condition: New
APPLICATION:
• Ford Europe Focus 2.0L / 2.3L / 2.5L
• Ford Europe Escape 2.0L / 2.5L
• Ford Europe Transit Connect LCV 2.0L / 2.5L
• Ford China Kuga 2.0L Turbo
DESCRIPTION:

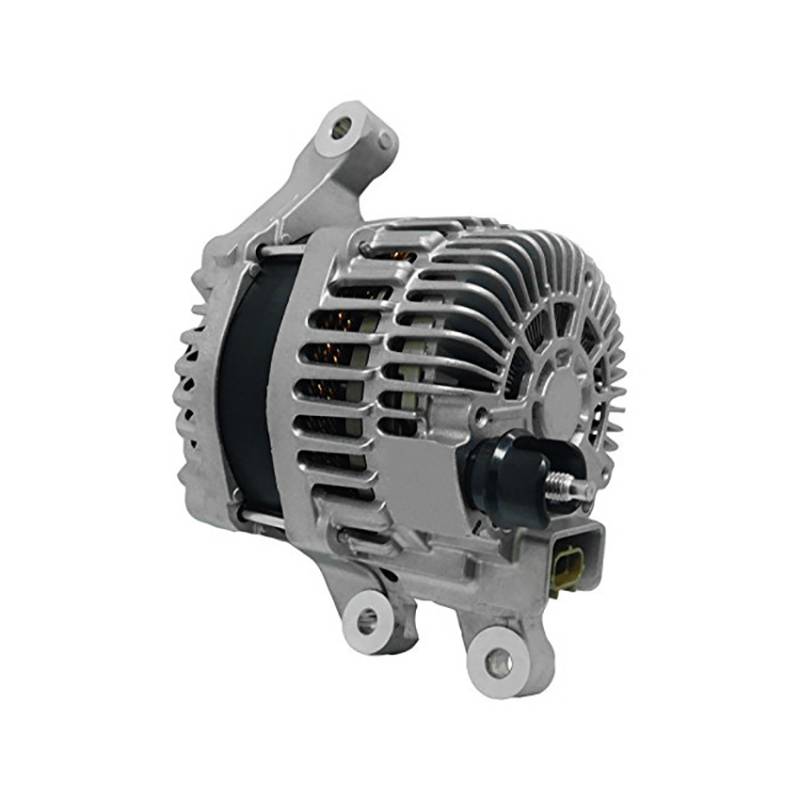

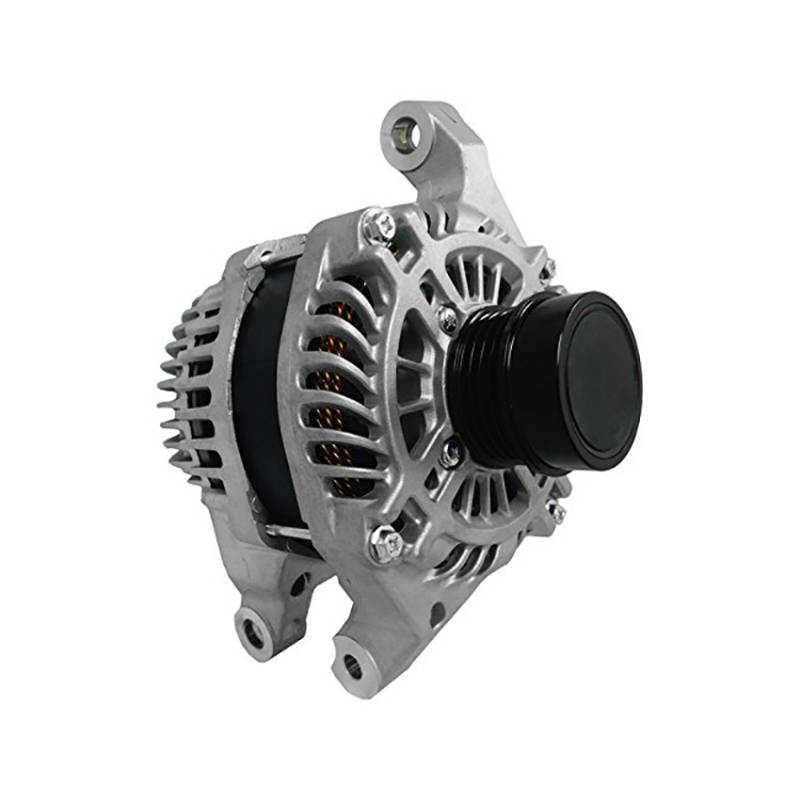

150 Amp Alternator - Ford Europe Focus GTDI / Escape / Transit Connect / China Kuga 2.0L L4
Brand new Mitsubishi hairpin alternator for Ford Europe and China market vehicles with the 2.0L GTDI, 2.3L RS, or 2.5L L4 engine. This charging system delivers 150 amps at 12 volts with clockwise rotation and a 4-groove decoupler pulley (SC4) measuring 59mm OD for precise belt alignment. Internal regulator and internal fan (IR/IF) design ensures reliable operation across all driving conditions and temperature ranges. Fits Ford Europe Focus 2.0L GTDI and 2.5L, Focus III 2.3L RS (257kW), Escape 2.0L GTDI and 2.5L, Transit Connect LCV, and China Kuga 2.0L Turbo. Replaces Ford 1741221, CJ5T-10300-CB, CJ5Z-10346-C, Mitsubishi A002TX2581ZC, A2TX2581, and Bosch 0-986-UR6-206. M8x1.25 B+ terminal. Spade N/C and LIN terminals. Plug clock 6. Negative polarity. 14.38 lbs. Sold individually with documentation.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
