BOSCH PART NUMBERS: • 0 001 368 001, 0001368001
• 0 001 368 007, 0001368007
• 0 001 360 030, 0001360030
• 0 001 360 035, 0001360035
• 0 986 011 270, 0986011270
• SR913X, SR 913 X
MAHLE / LETRIKA (ISKRA) PART NUMBERS: • MS386, MS 386
• 11.130.491, 11130491
• IS0491, IS 0491
• AZJ3132
DEUTZ / KHD PART NUMBERS: • 1172099, 117-2099
• 01173820, 117-3820, 1173820
• 01179586, 117-9586, 1179586
• 1302023, 130-2023
LIEBHERR PART NUMBERS: • 6200662, 620-06-62
• 42488477, 4248-8477
OTHER PART NUMBERS: • Bomag 057-109-03, 05710903
• Hella 8EA 726 149-001, 8EA726149001
• Hella 8EA 726 170-001, 8EA726170001
• Valeo 455516, 455 516
• Ahlmann 4188195A, 6929014

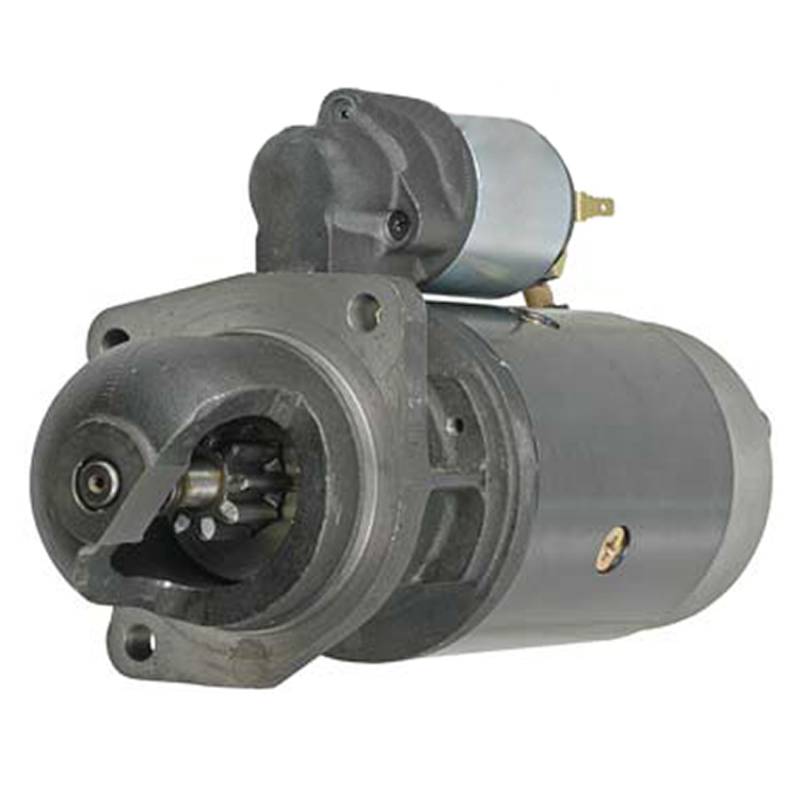

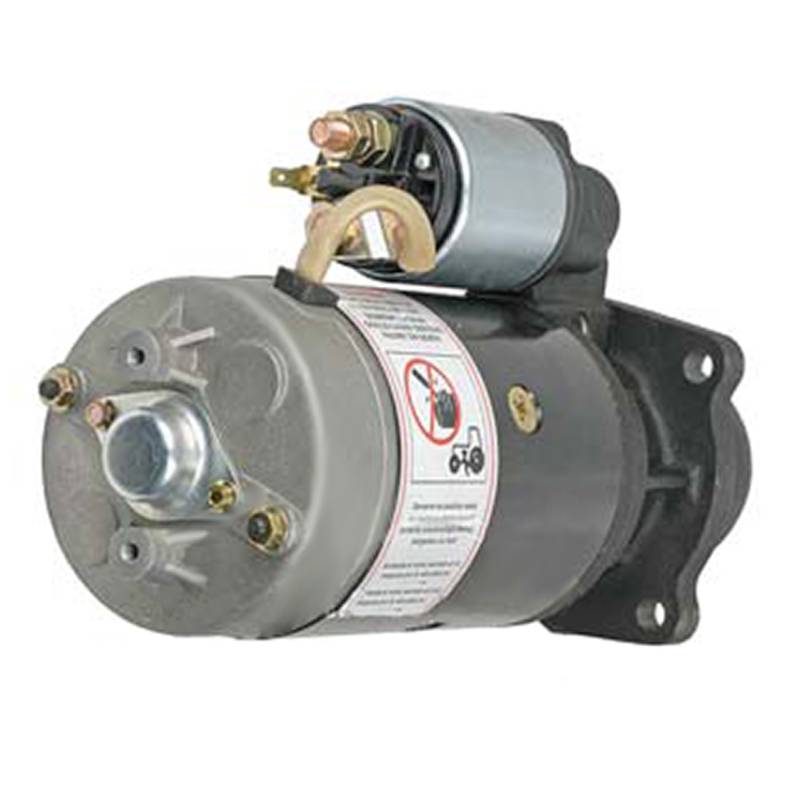

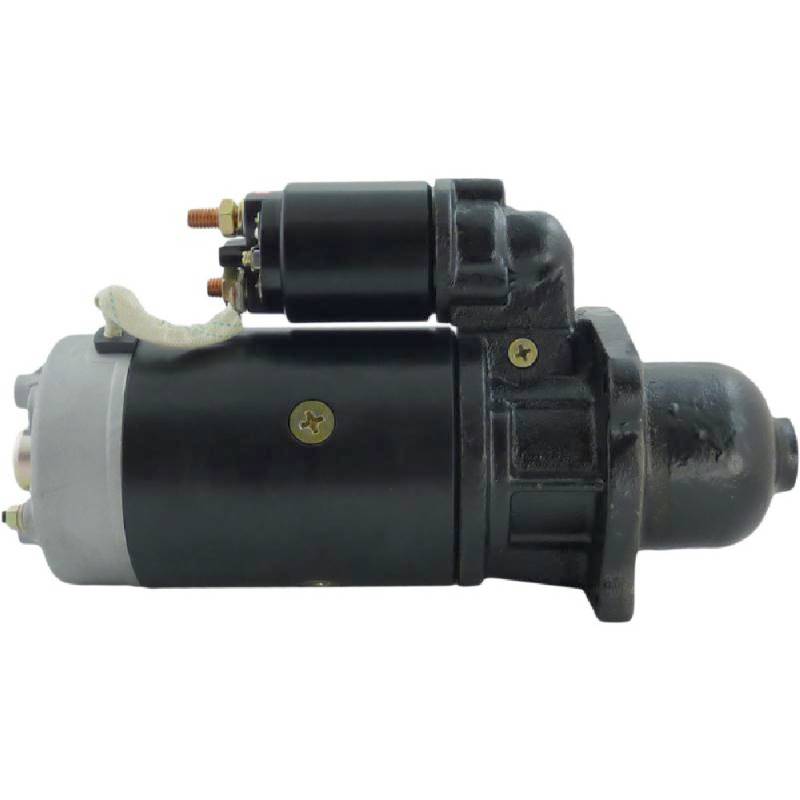

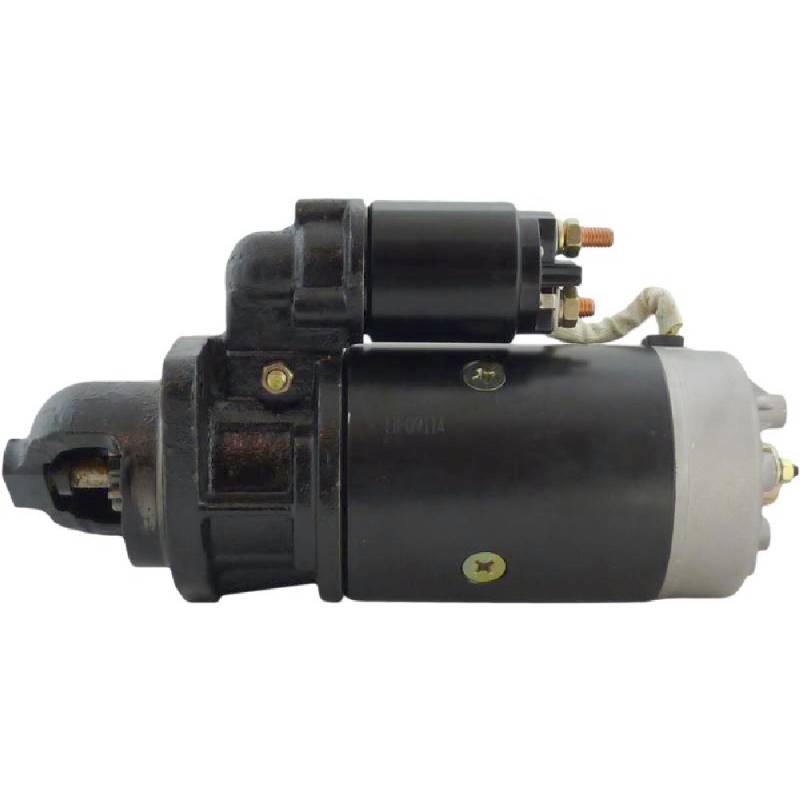

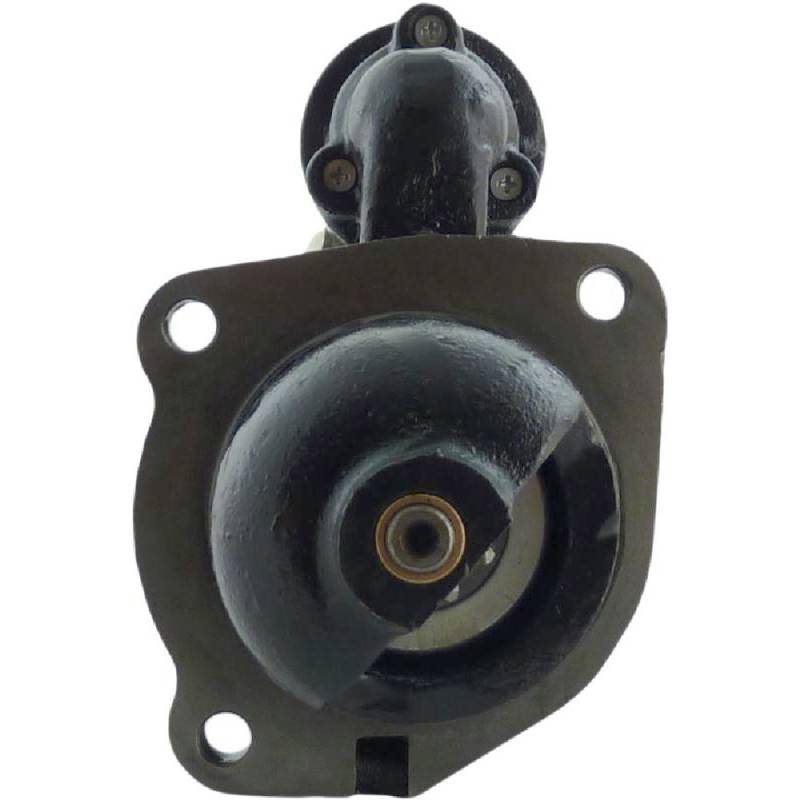

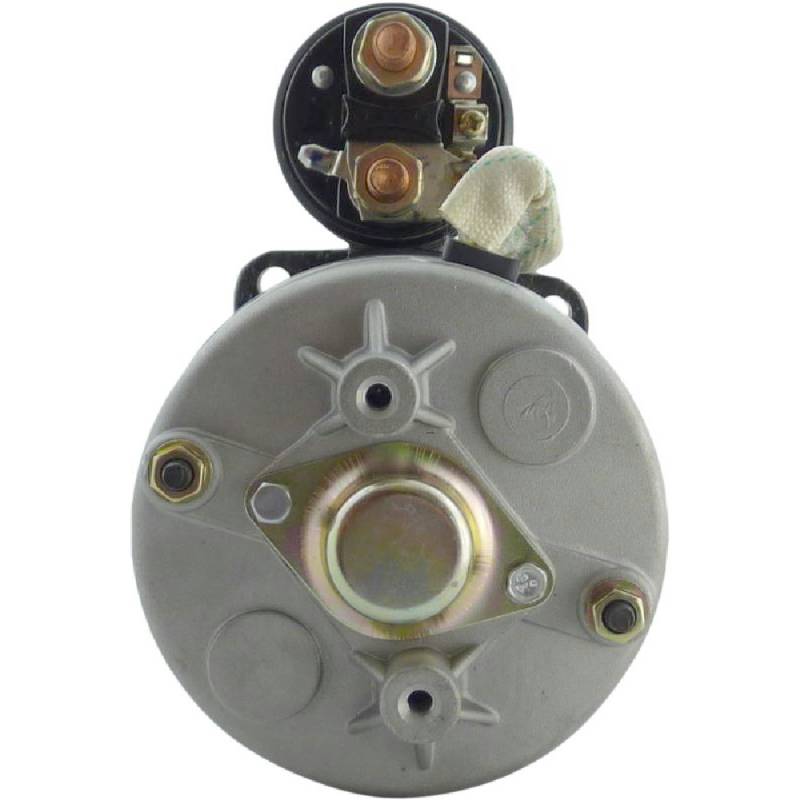

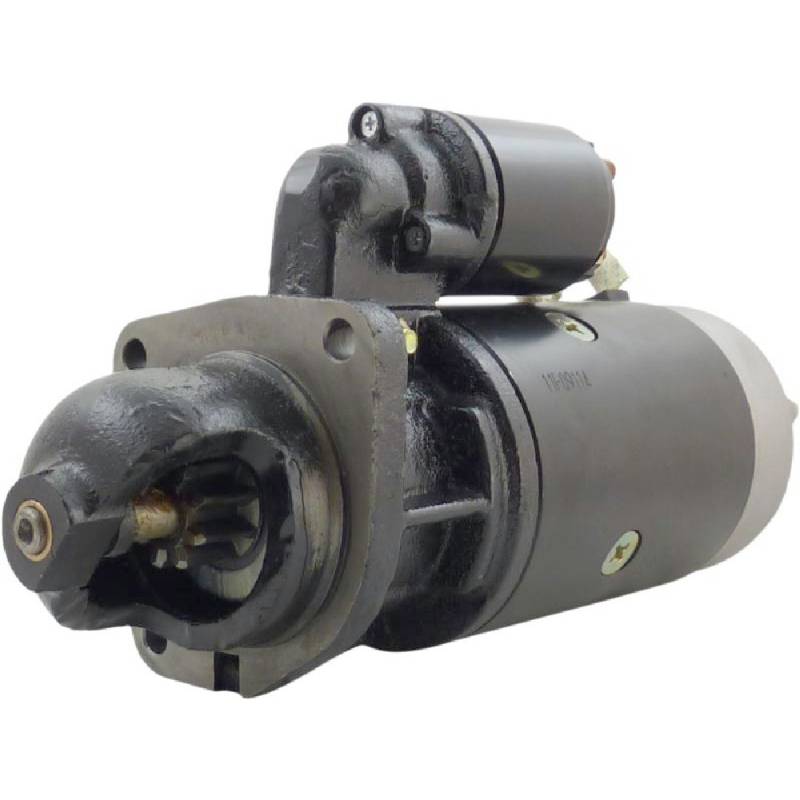

SPECIFICATIONS: • Type: Bosch 368 series direct drive (DD)
• Voltage: 24 Volt
• Power: 4.0 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 34.1 mm (1.343 in) OD, module 3
• Flange: 89 mm
• Mounting: 3 holes, 11 mm unthreaded, 90 / 90 / 127 mm spacing
• Pinion rest position: 28 mm
• Battery terminal: M10
• Weight: 31.7 lb (14.4 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
