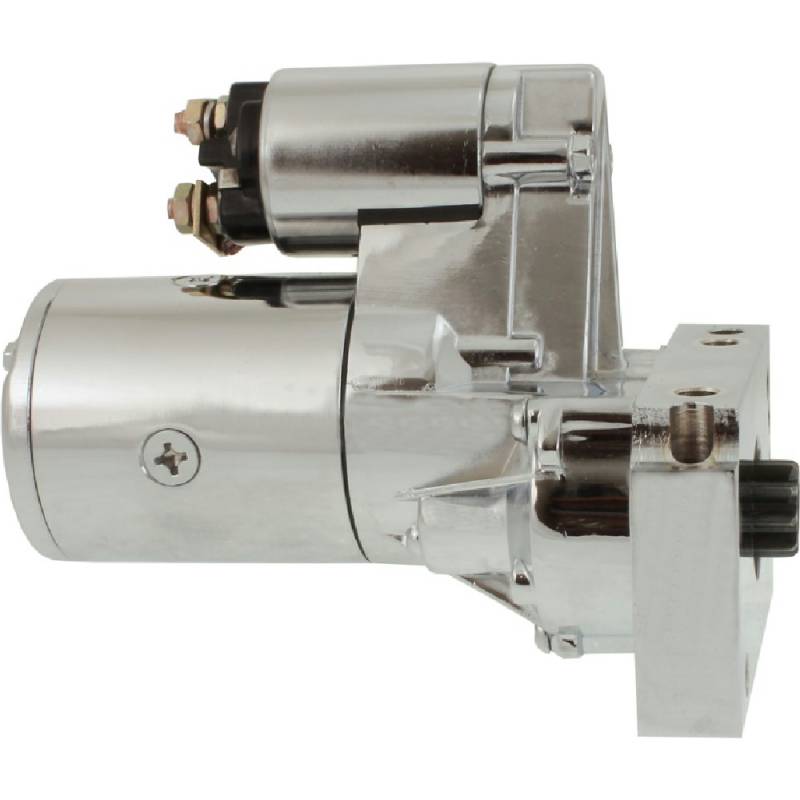

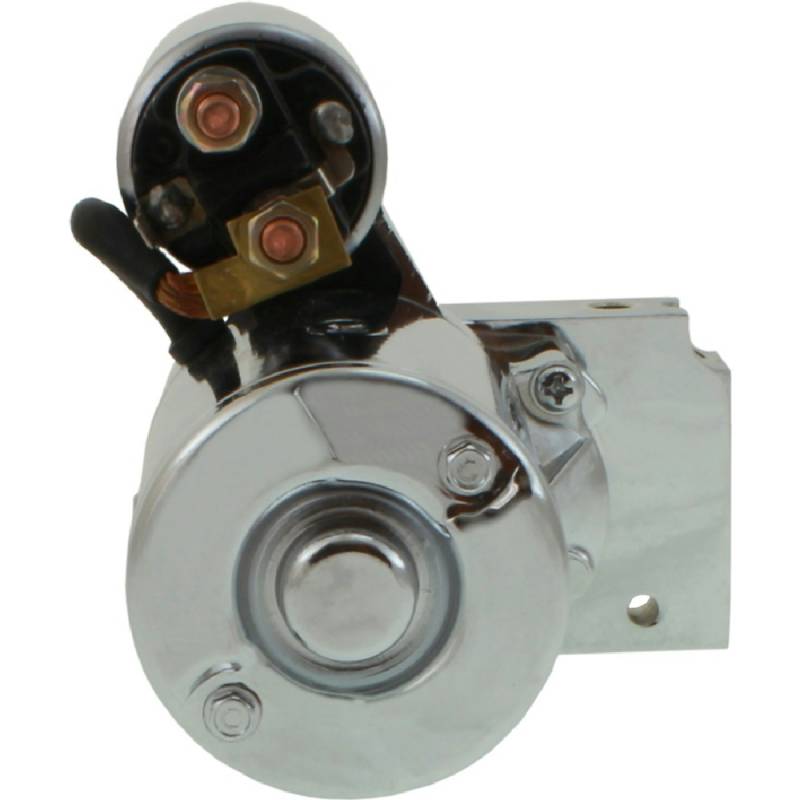

New 12V Chrome Starter Fits Chevrolet C20 Pickup Suburban 7.4L 6.6L Sd114-254S1

18492CHB1
HITACHI PART NUMBERS:
• S114-823SBX, S114823SBX
• SD114-254S1, SD114254S1
• PP106, PP-106
• S114-254S1BX, S114254S1BX

WILSON PART NUMBERS:
• 91-25-1122, 91251122
• 91-25-1122N, 91251122N

POWERMASTER PART NUMBERS:
• 19000 PowerMax Plus (PP106 Hitachi style)

SPECIFICATIONS:
• Type: Hitachi PP106 type offset gear reduction (OSGR), 3.73:1
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Flywheel: Chevrolet 153 tooth (12-3/4 in) or 168 tooth (14 in)
• Mounting: pad mount block, 4 bolt holes, 10 mm unthreaded, straight and staggered patterns
• Clocking: 3 positions
• Case: grounded
• Nose: open nose
• Length: 210.2 mm (8.276 in)
• Compression: up to 14:1
• Finish: chrome
• Weight: 11.77 lb (5.35 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $363.81
Sale: $207.89
Save: 43%
Save: $155.92
Qty:
Free Shipping!

Description

⚠️ CHROME 1.4 KW 9 TOOTH CW HITACHI PP106 TYPE OSGR STARTER, CHEVROLET IMPALA, K10, K20, G20, G30:
• 12V, 1.4 kW (1.9 HP), clockwise, Hitachi offset gear reduction (OSGR) 3.73:1, 9 tooth pinion, 25.1 mm (0.988 in) gear OD
• Pad mount block with 4 bolt holes (10 mm unthreaded) for the straight 153 tooth and staggered 168 tooth Chevrolet patterns, 3 clocking positions
• Grounded case, open nose, chrome finish, 210.2 mm (8.276 in) long, 11.77 lb (5.35 kg), rated to 14:1 compression, new
• Chevrolet-built V8 and V6 only, automatic or manual; Pontiac, Oldsmobile and Buick-built V8s use a 166 tooth flywheel and a different starter

CHEVROLET IMPALA:
• Chevrolet Impala 4.6L 283 V8 1958-1967, 5.4L 327 V8 1962-1969, 7.0L 427 V8 1963-1969, 6.5L 396 V8 1965-1969, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1969-1985, 6.6L 400 V8 1970-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1970-1974, 5.0L 305 V8 1977-1985, 4.4L 267 V8 1980-1982, 1975-1976 (Chevrolet V8)

CHEVROLET K10 4X4 PICKUP AND SUBURBAN:
• Chevrolet K10 5.7L 350 V8 1975-1986, 6.6L 400 V8 1975-1980, 7.4L 454 V8 1976-1980, 5.0L 305 V8 1977-1986
• Chevrolet K10 Pickup 4.6L 283 V8 1960-1967, 5.4L 327 V8 1966-1969, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• Chevrolet K10 Suburban 4.6L 283 V8 1967, 5.4L 327 V8 1967-1969, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1986, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974, 6.6L 400 V8 1975-1979, 5.0L 305 V8 1977-1986

CHEVROLET K20 4X4 PICKUP AND PANEL:
• Chevrolet K20 5.7L 350 V8 1975-1986, 6.6L 400 V8 1975-1980, 7.4L 454 V8 1976-1980, 5.0L 305 V8 1977-1985
• Chevrolet K20 Panel 4.6L 283 V8 1967, 5.4L 327 V8 1967
• Chevrolet K20 Pickup 4.6L 283 V8 1960-1967, 5.4L 327 V8 1966-1969, 5.0L 307 V8 1968-1973

CHEVROLET G20 / G30 VAN:
• Chevrolet G20 7.4L 454 V8 1976
• Chevrolet G20 Van 4.6L 283 V8 1967, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1970-1974, 7.4L 454 V8 1973-1974
• Chevrolet G30 5.7L 350 V8 1975-1986, 6.6L 400 V8 1975-1980, 7.4L 454 V8 1975-1976, 5.0L 305 V8 1978-1985
• Chevrolet G30 Van 5.7L 350 V8 1970-1974, 7.4L 454 V8 1973-1974
