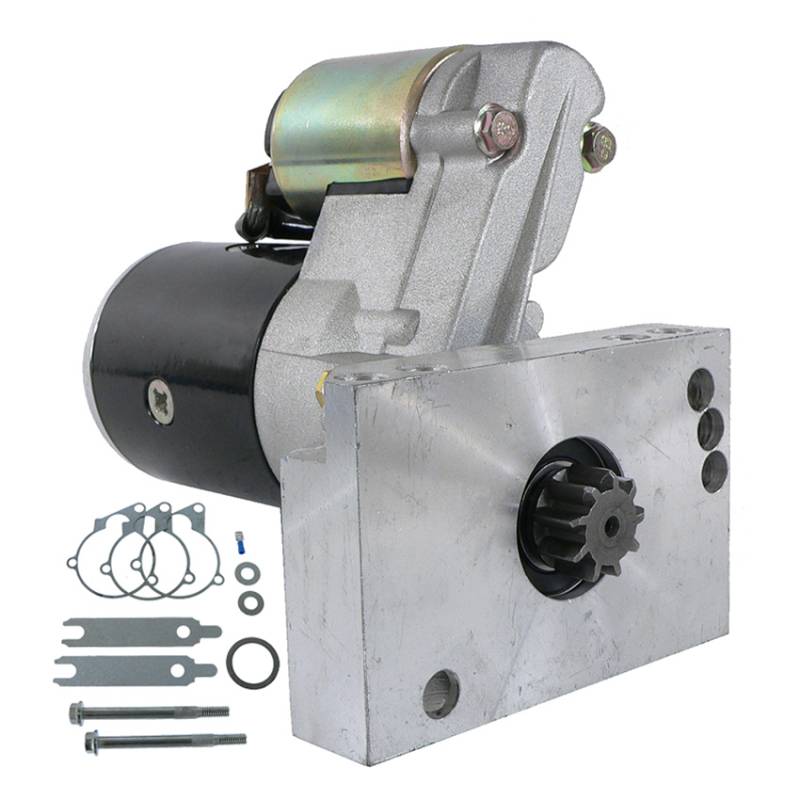

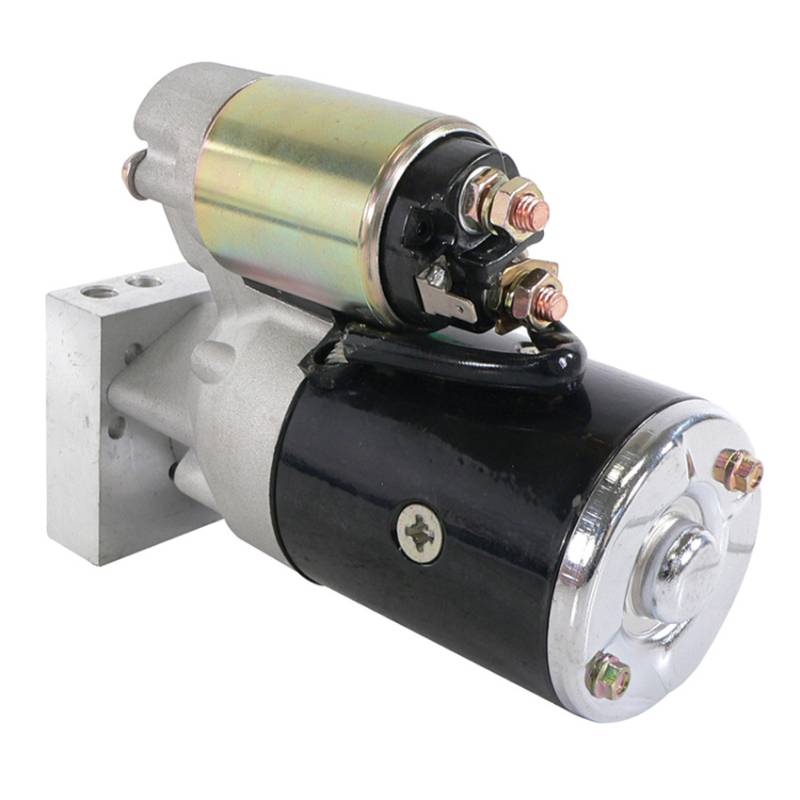

New 12V Starter Fits Chevrolet K30 K20 Pickup 5.7L 6.6L 6.5L 7.4L S114-254S1bx

18492F1
WILSON PART NUMBERS:
• 91-25-1122N, 91251122N
• 91-25-1122, 91251122

INTERCHANGE NUMBERS:
• SD114-254S1, SD114254S1
• S114-823SBX, S114823SBX
• S114-254S1BX, S114254S1BX

HITACHI PART NUMBERS:
• PP106, PP-106

GM (CHEVROLET PERFORMANCE) MINI STARTER NUMBERS:
• 12363128
• 12361146

SPECIFICATIONS:
• Type: mini offset gear reduction (OSGR) starter
• Voltage: 12 Volt
• Power: 1.4 kW
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 25.1 mm / 0.988 in
• Flywheel: 153 or 168 tooth ring gear
• Mounting: 3 unthreaded 10 mm holes, rotatable block, 3 clocking positions
• Length: about 210 mm / 8.28 in
• Weight: about 11.8 lb / 5.35 kg
• Used on: Chevrolet G10, G20, G30 vans and P10, P20, P30 chassis 1961-1986
• Condition: New aftermarket, not a Hitachi, GM or Delco Remy branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $324.78
Sale: $185.59
Save: 43%
Save: $139.19
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET MINI GEAR REDUCTION (OSGR) STARTER, 12V 1.4 KW, 9 TOOTH, CW:
• Offset gear reduction (OSGR), 12 volt, 1.4 kW, clockwise (CW)
• 9 tooth pinion, gear OD 25.1 mm (0.988 in), for 153 and 168 tooth flywheels
• Three 10 mm unthreaded mounting holes, rotatable mounting block with 3 clocking positions
• About 210 mm (8.28 in) long, about 11.8 lb (5.35 kg)
• Listed for Chevrolet built V8 engines; Pontiac, Buick and Oldsmobile built engines, inline 6 and diesel engines are not listed

CHEVROLET G10 / G20 / G30 VANS:
• Chevrolet G10 with the 5.0L 307 V8 1968-1973
• Chevrolet G10 (Sportvan) with the 5.7L 350 V8 1970-1985
• Chevrolet G10 with the 7.4L 454 V8 1973-1974
• Chevrolet G10 with the 6.6L 400 V8 1976
• Chevrolet G10 (Beauville, Bonaventure, Chevy Van, Sportvan) with the 5.0L 305 V8 1977-1985
• Chevrolet G20 with the 4.6L 283 V8 1967
• Chevrolet G20 with the 5.0L 307 V8 1968-1973
• Chevrolet G20 with the 5.7L 350 V8 1970-1986
• Chevrolet G20 with the 7.4L 454 V8 1973-1974, 1976
• Chevrolet G20 with the 6.6L 400 V8 1975-1980
• Chevrolet G20 with the 5.0L 305 V8 1977-1986
• Chevrolet G30 with the 5.7L 350 V8 1970-1986
• Chevrolet G30 with the 7.4L 454 V8 1973-1976
• Chevrolet G30 with the 6.6L 400 V8 1975-1980
• Chevrolet G30 with the 5.0L 305 V8 1978-1985

CHEVROLET P10 / P20 / P30:
• Chevrolet P10 with the 4.6L 283 V8 1961-1962
• Chevrolet P10 with the 5.0L 307 V8 1973
• Chevrolet P10 with the 5.7L 350 V8 1973, 1975-1978
• Chevrolet P10 with the 7.4L 454 V8 1973
• Chevrolet P10 with the 6.6L 400 V8 1977
• Chevrolet P10 with the 5.0L 305 V8 1979
• Chevrolet P20 with the 4.6L 283 V8 1961-1962
• Chevrolet P20 with the 5.0L 307 V8 1968-1973
• Chevrolet P20 with the 5.7L 350 V8 1970-1986
• Chevrolet P20 with the 7.4L 454 V8 1970-1973, 1976-1979
• Chevrolet P30 with the 4.6L 283 V8 1961-1962
• Chevrolet P30 with the 5.0L 307 V8 1968-1973
• Chevrolet P30 with the 5.7L 350 V8 1970-1986
• Chevrolet P30 with the 7.4L 454 V8 1970-1985
• Chevrolet P30 with the 6.6L 402 V8 1972
• Chevrolet P30 with the 6.6L 400 V8 1976

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.2 lbs.
  • W7.0000” x H7.0000” x L11.0000”
  • Free Shipping!
