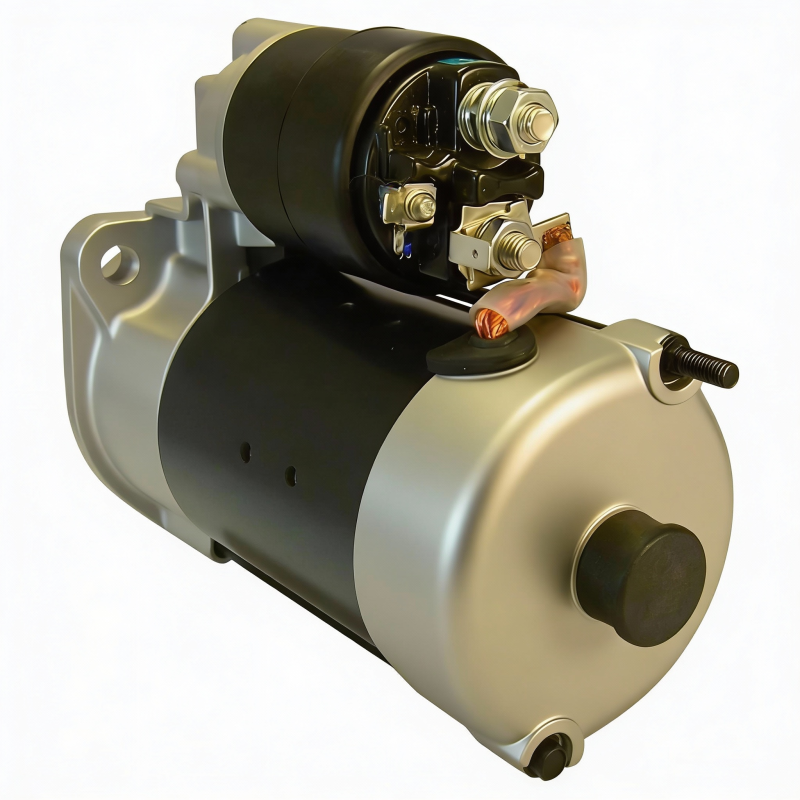

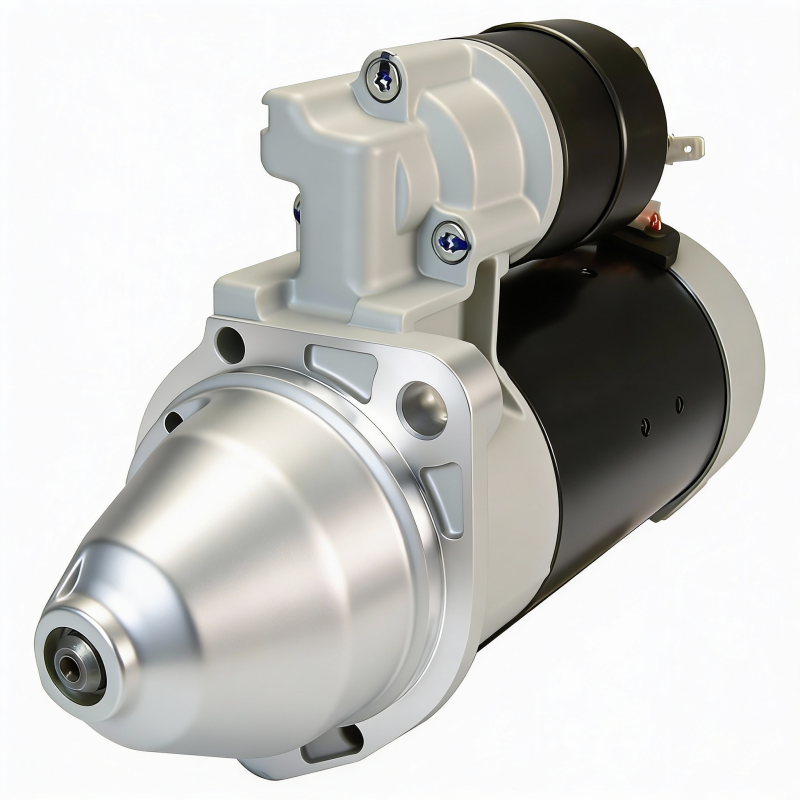

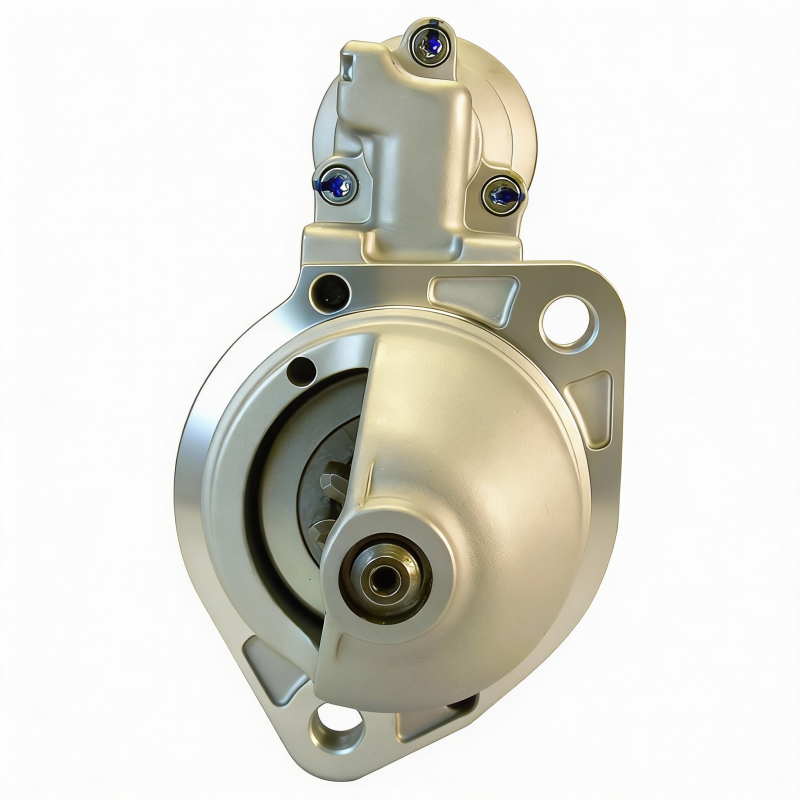

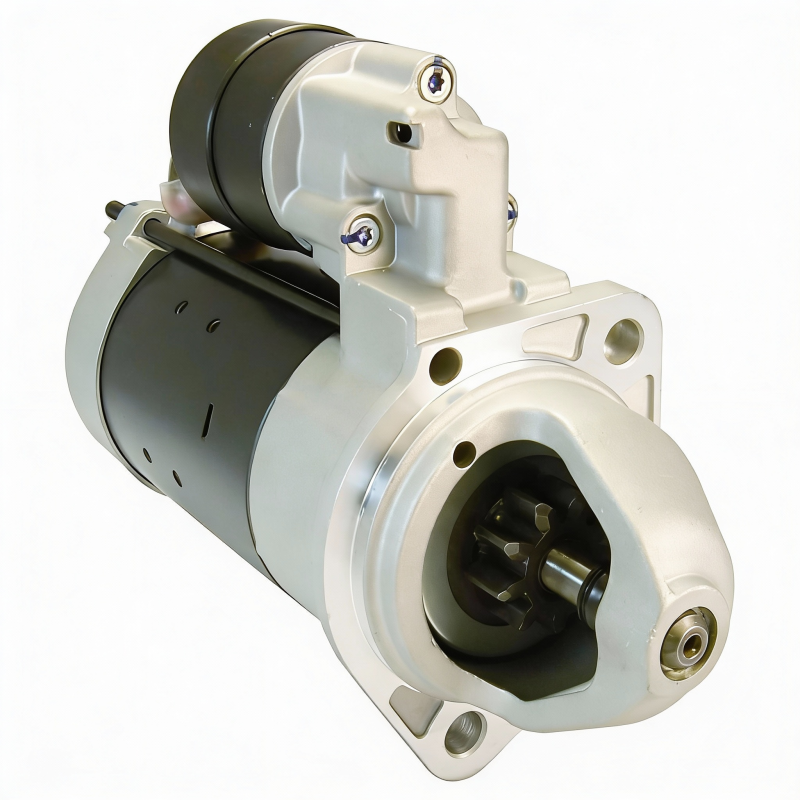

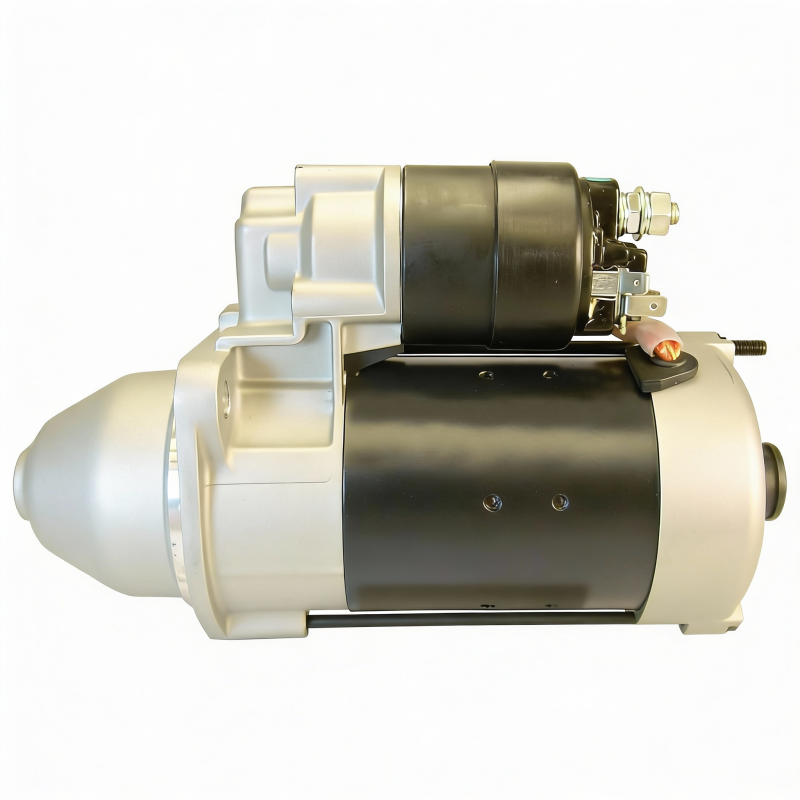

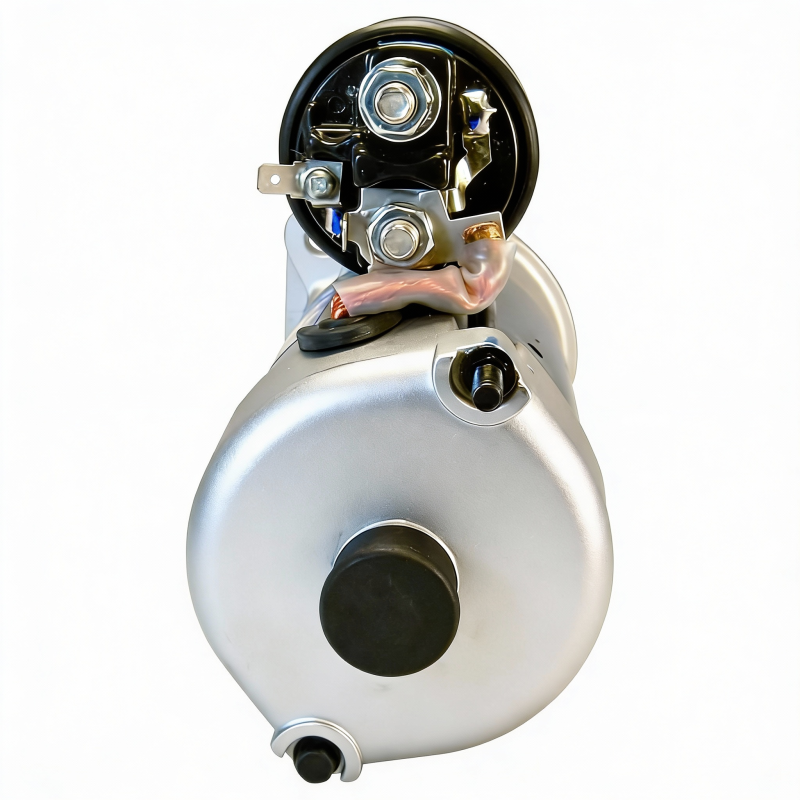

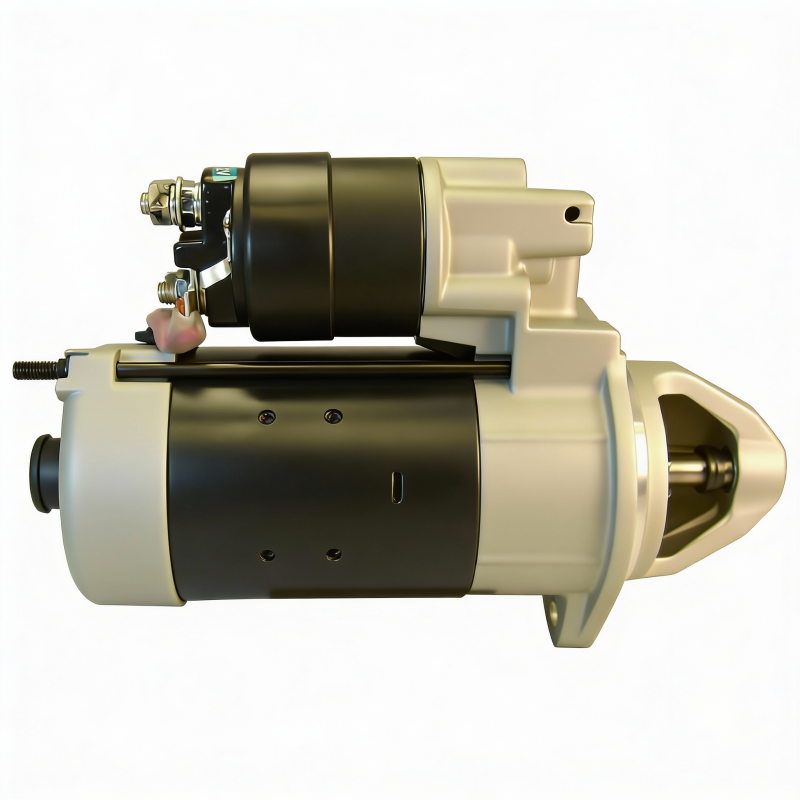

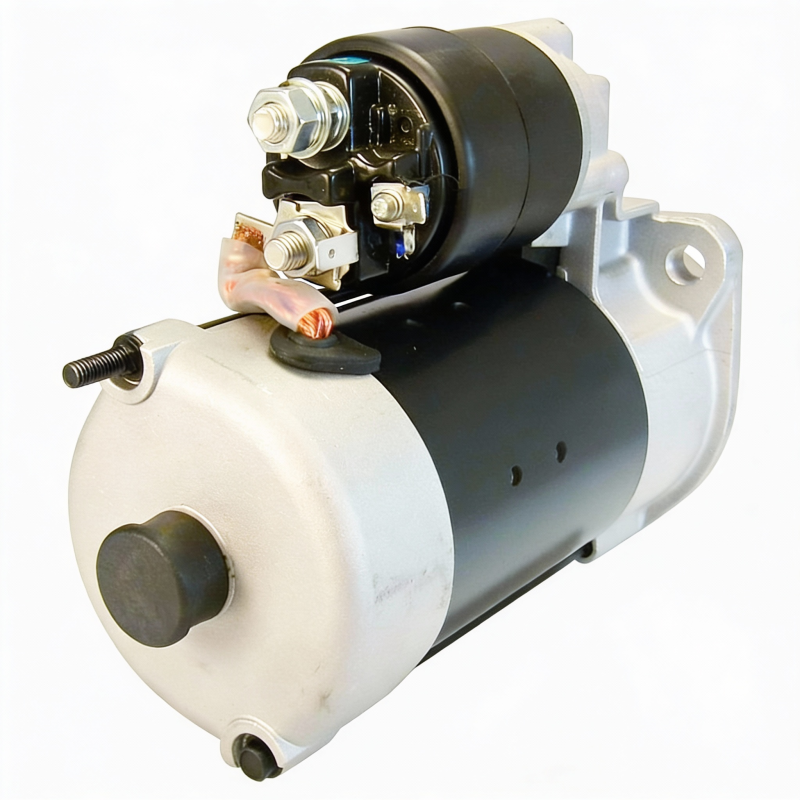

12V Starter Motor Compatible With 2004-2009 4640 4640E 4840 4840E 5640 5640E 6640 6640E Skid Steer

(0) Reviews: Write first review
0-001-109-460A1
OEM PART NUMBERS:
• 0001223016 (Bosch)
• 0001109369 (Bosch)
• 0001109460 (Bosch)
• 01181751 / 1181751 / 181751 (Deutz/KHD)
• 01182124 / 1182124 / 118-2124 (Deutz/KHD)
• 01182382 / 1182382 (Deutz/KHD)
• 4300007 (KHD)
• 2908534 (Volvo)

SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Power: 2.3 KW (3.08 HP)
• Rotation: Clockwise (CW)
• Teeth: 9 Spline
• Gear OD: 1.327 in / 33.7mm
• Mounting: 2x 11mm Unthreaded Ears
• Ear Spacing: 4.094 in / 104mm Center to Center
• Unit Series: 223
• Clutch Type: Dry
• Weight: 9.88 lbs / 4.49 kg

FITS ENGINES:
• F3M2011 - 3-Cylinder Deutz Diesel (46 HP)
• F4M2001 - 4-Cylinder Deutz Diesel (60 HP)
• BF4M2001 - 4-Cylinder Turbocharged Deutz Diesel (82 HP)
• F4M1011F - 4-Cylinder Deutz Diesel
• BF4M1011F - 4-Cylinder Turbocharged Deutz Diesel

FITS SKID STEER LOADERS:
• 4640 / 4640E - F3M2011 Diesel - 2004-2009
• 4840 / 4840E - F4M2001 Diesel - 2004-2009
• 5640 / 5640E - F4M2001 Diesel - 2004-2009
• 6640 / 6640E - BF4M2001 Diesel - 2004-2009
• SL5635 / SL5635DXT / SL5635SXT / SL5636DXT - 1997-1998
• 6635DXT / 6635SXT - BF4M1011F Diesel - 1996-1997

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $281.19
Sale: $160.68
Save: 43%
Save: $120.51
Qty:
Free Shipping!

Description

SKID STEER LOADERS:

4640:
• 4640 Skid Steer Loader - F3M2011 Deutz Diesel - 2004, 2005
• 46 HP, Rated Operating Capacity: 1,500 lbs, Operating Weight: 6,200 lbs

4640E:
• 4640E Skid Steer Loader - F3M2011 Deutz Diesel - 2006, 2007, 2008, 2009
• 46 HP, Rated Operating Capacity: 1,550 lbs, Operating Weight: 6,200 lbs

4840:
• 4840 Skid Steer Loader - F4M2001 Deutz Diesel - 2004, 2005
• 60 HP, Rated Operating Capacity: 1,700 lbs, Operating Weight: 6,480 lbs

4840E:
• 4840E Skid Steer Loader - F4M2001 Deutz Diesel - 2006, 2007, 2008, 2009
• 60 HP, Rated Operating Capacity: 1,900 lbs, Operating Weight: 6,200 lbs

5640:
• 5640 Skid Steer Loader - F4M2001 Deutz Diesel - 2004, 2005
• 60 HP, Rated Operating Capacity: 2,000 lbs, Operating Weight: 7,380 lbs

5640E:
• 5640E Skid Steer Loader - F4M2001 Deutz Diesel - 2006, 2007, 2008, 2009
• 82 HP, Rated Operating Capacity: 2,050 lbs, Operating Weight: 7,380 lbs

6640:
• 6640 Skid Steer Loader - BF4M2001 Deutz Diesel - 2004, 2005
• 82 HP, Rated Operating Capacity: 2,400 lbs, Operating Weight: 7,800 lbs

6640E:
• 6640E Skid Steer Loader - BF4M2001 Deutz Diesel - 2006, 2007, 2008, 2009
• 82 HP, Rated Operating Capacity: 2,600 lbs, Operating Weight: 7,800 lbs

SL5635:
• SL5635 Skid Steer Loader - F4M1011F Deutz Diesel - 1997, 1998
• SL5635DXT Skid Steer Loader - BF4M1011F Deutz Diesel - 1997, 1998
• SL5635SXT Skid Steer Loader - BF4M1011F Deutz Diesel - 1997, 1998

SL5636DXT:
• SL5636DXT Skid Steer Loader - F4M1011F Deutz Diesel - 1997, 1998

6635:
• 6635DXT Skid Steer Loader - BF4M1011F Deutz Diesel - 1996, 1997
• 6635SXT Skid Steer Loader - BF4M1011F Deutz Diesel - 1996, 1997

NOTE:
• All models equipped with Deutz diesel engines
• Verify OEM part number from your original unit before ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.2 lbs.
  • W8.0000” x H8.0000” x L14.0000”
  • Free Shipping!
