THIS CONVERSION KIT **MAY** REPLACE THE FOLLOWING GENERATOR PART NUMBERS:
DELCO: 10459524 10459523
LUCAS: 22256 22756 22756A 22756B 22756C 22756D 22756E 22756F 22756G 22756H 22758 22758A 22758B 22758C 22758D 22761 22762 22762E 22764 22764A 22764B 22764C 22764D 22764E 22769 22769B 22769C 22769D 22783 22783A 22792 22792A G4018 LRD103
VALEO: G15027
CONVERSION KIT PART NUMBERS:
REPLACES: NAA10300ALT-LR NAA10300ALTLR
ITEM DESCRIPTION: ALTERNATOR CONVERSION KIT
UNIT TYPE: FORD
VOLTAGE: 12
AMPERAGE: 63
FAN: EXTERNAL
REGULATOR: INTERNAL
REGULATOR CLOCK: 0.125
GROOVES: 1
PULLEY OD: 2.48IN / 63MM
MOUNTING EAR 1 HOLE: 5/16-18 THREADED
MOUNTING EAR 2 HOLE: 10MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.709IN / 18MM
MOUNTING EAR 2 THICKNESS: 2.008IN / 51MM
SPECIFICATIONS: PULLEY AND SPACER INCLUDED
SPECIFICATIONS: 2 MOUNTING BRACKETS INCLUDED
SPECIFICATIONS: 1 7-WIRE HARNESS INCLUDED
SPECIFICATIONS: 1 RESISTOR INCULDED
SPECIFICATIONS: 3 BOLTS INCLUDED
SPECIFICATIONS: 2 NUTS INCLUDED
SPECIFICATIONS: 6 WASHERS INCLUDED
WEIGHT: 14.6 LBS / 6.63 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
REPLACES 6V AND 12V GENERATORS ON FORD TRACTORS
FORD 600-4000 SERIES 4 CYL ENGINES
FORD NAA SERIES TRACTORS

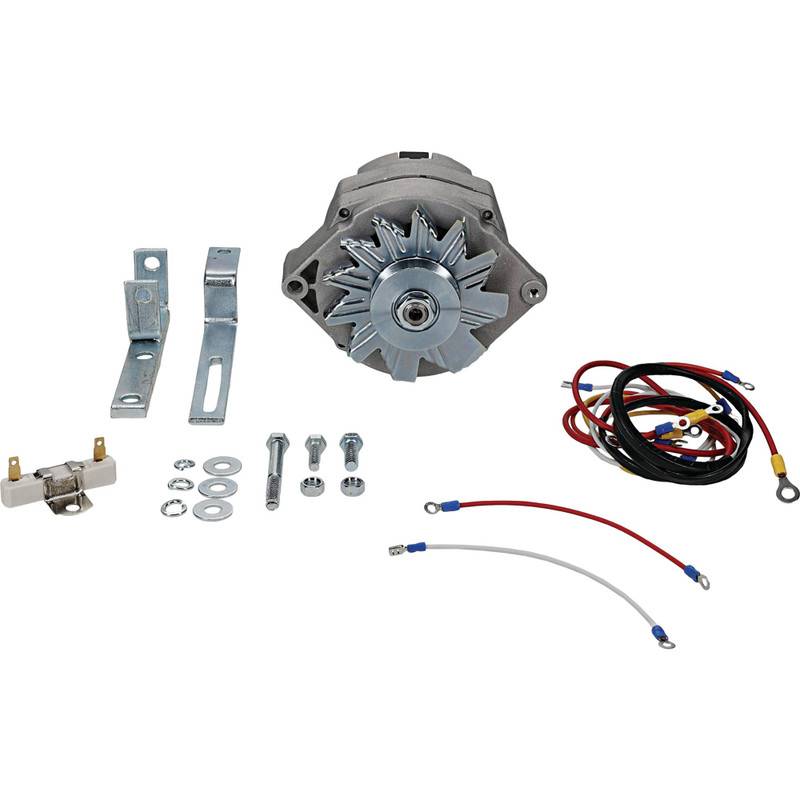

COMPONENTS INCLUDED:

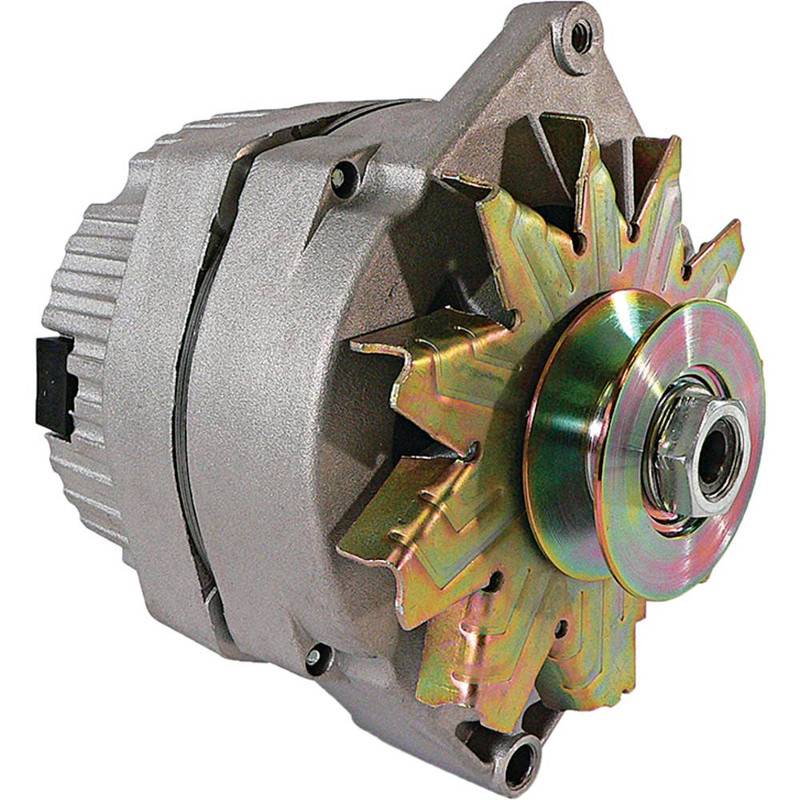

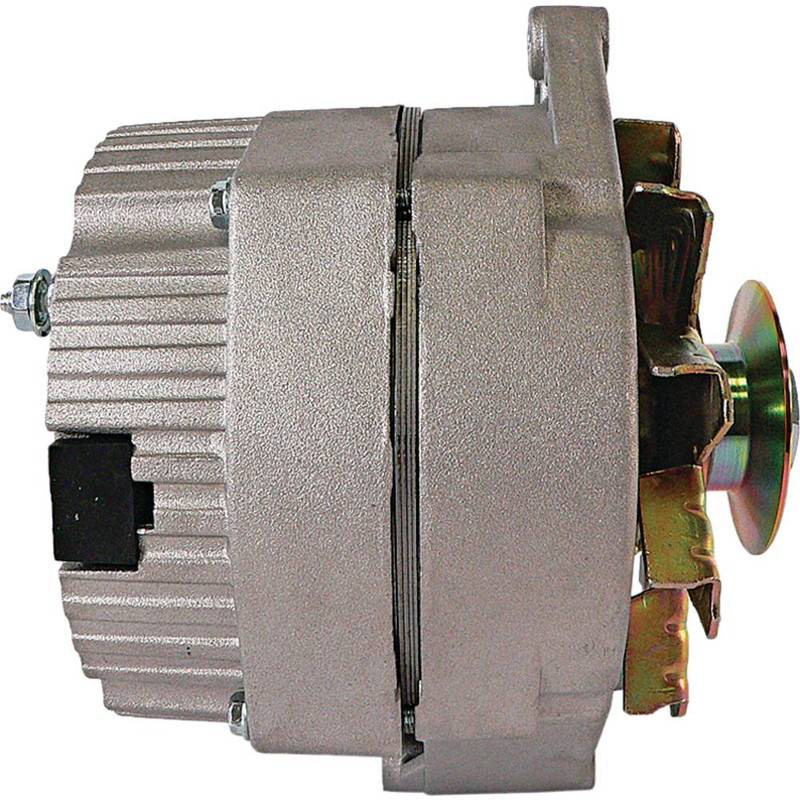

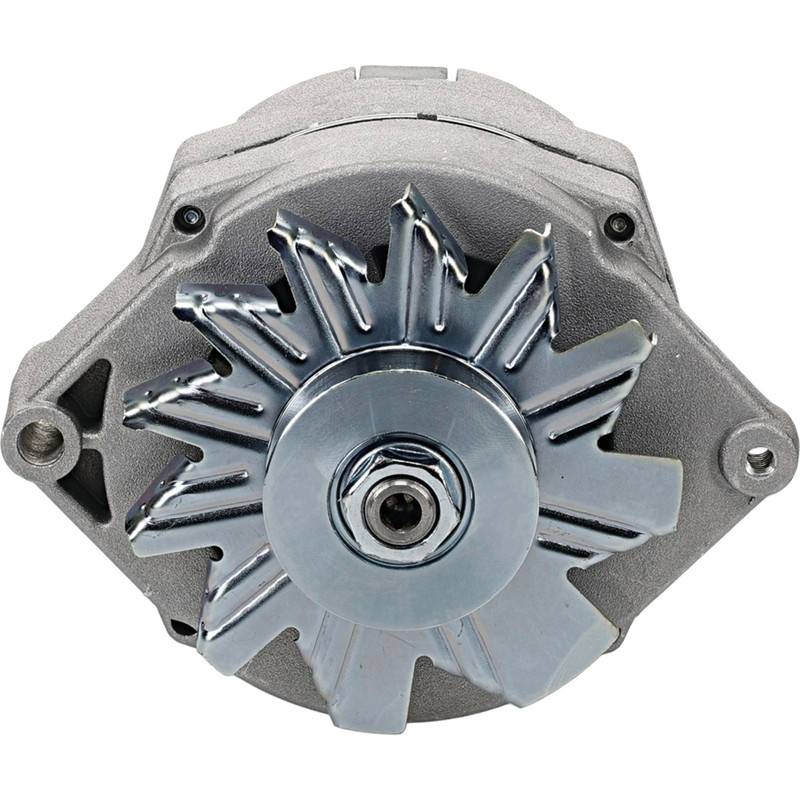

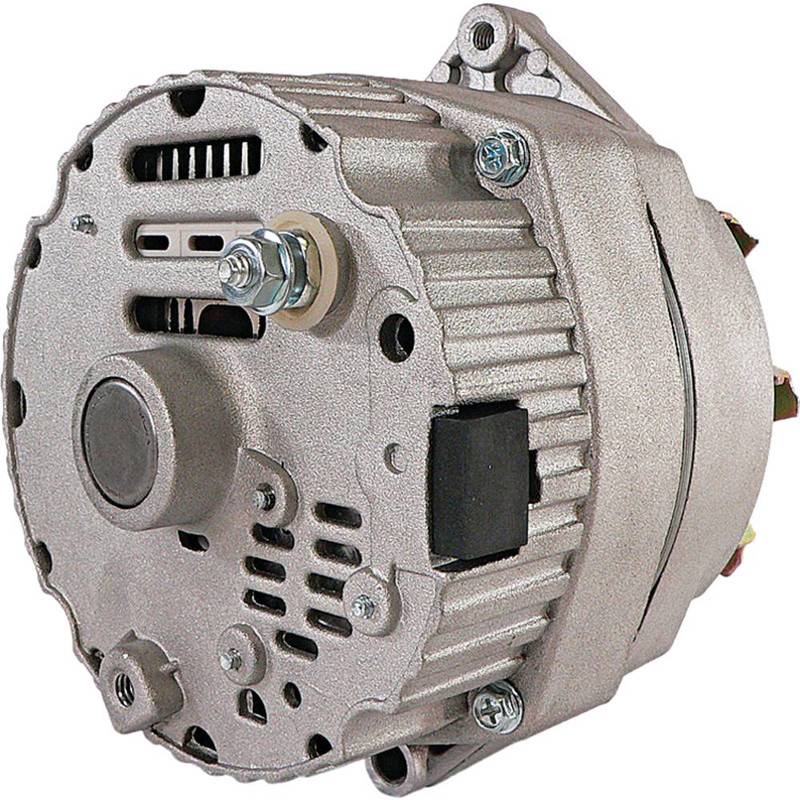

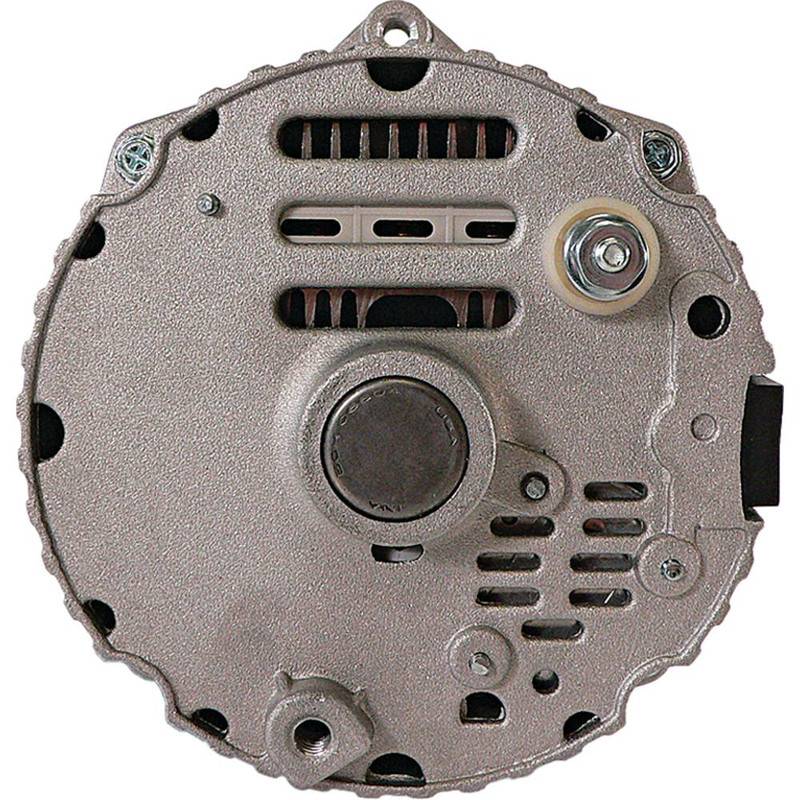

ALTERNATOR: 12V, 63 AMP
PULLEY: 17MM ID, 63MM OD, 15MM BELT WIDTH, 1 GROOVE, WITH SPACER

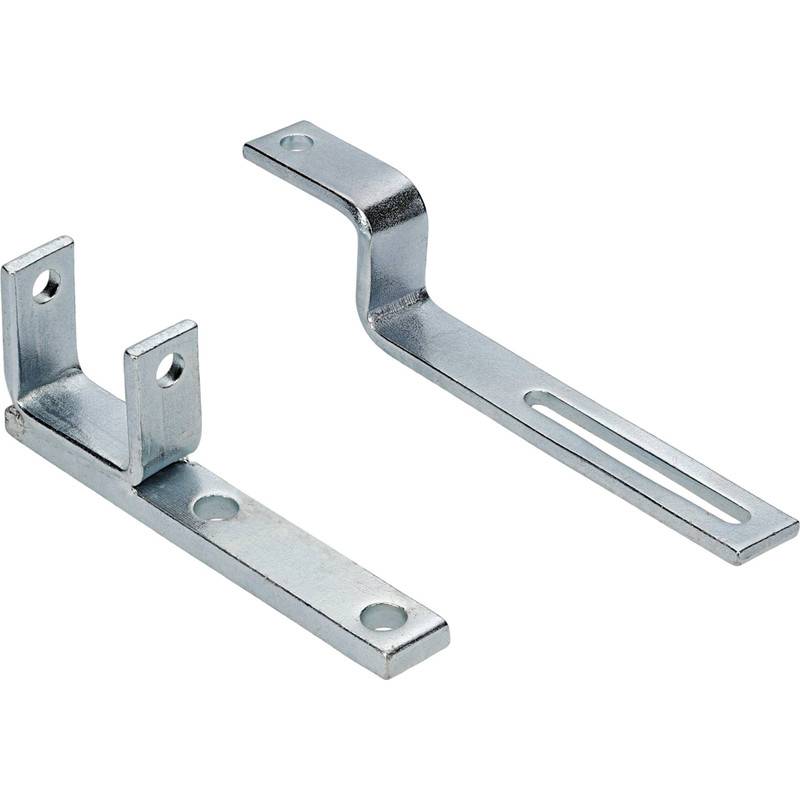

BRACKET 1: 6MM THICK, 10.7MM UNTHREADED HOLE
BRACKET 2: 9.5MM THICK, TWO 13MM UNTHREADED HOLES, TWO 10MM UNTHREADED HOLES

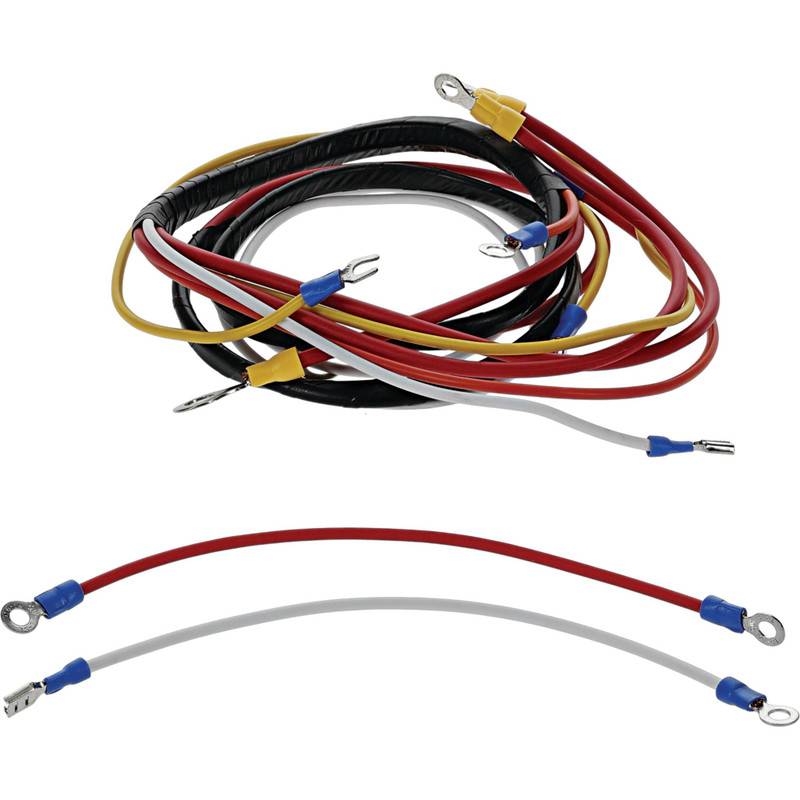

WIRE HARNESS: 7 WIRE
RESISTOR: 0.6 OHMS
ONE BOLT: 3/8-16 X 3"
ONE BOLT: 3/8-16 X 1"
ONE BOLT: 5/16-18 X 1"
TWO NUTS: 3/8-16
ONE LOCK WASHER: 5/16
TWO LOCK WASHERS: 3/8
THREE FLAT WASHERS: 3/8
