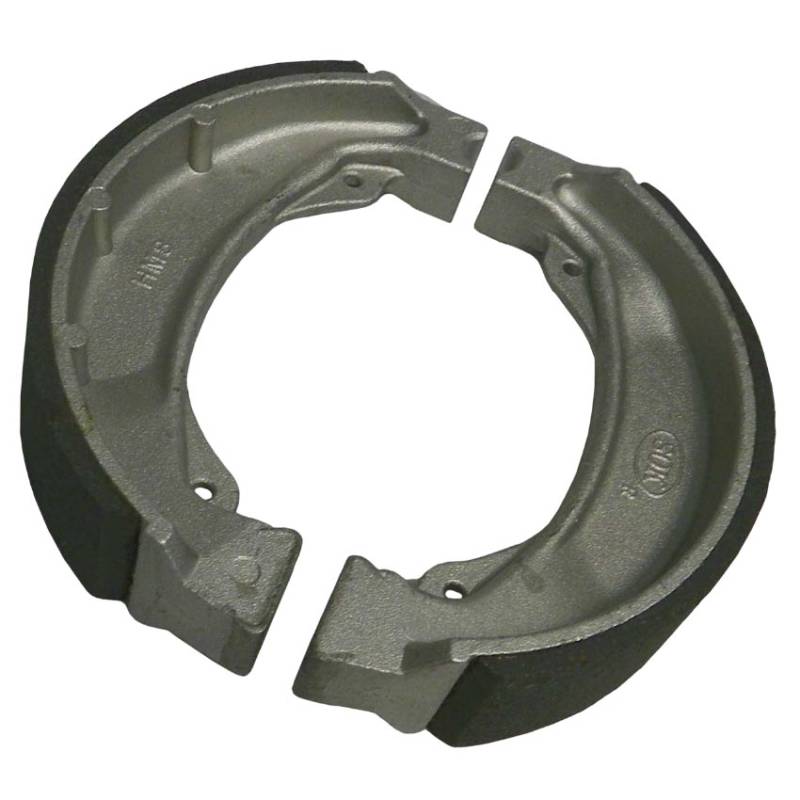

OEM Grade Rear Brake Shoes Compatible With 1997-2018 Honda Trx 250 Recon Trx-Ex 250 Sportrax Atv

Manufacturer Part Number:
09-2029E

Cross-Reference OEM Part Numbers:
Honda: 06430-HM8-A10

Specifications:
• Position: Rear
• Type: Drum brake shoes — bonded friction material
• Material: High-temperature organic compound
• Weight: 1 lb

Notes:
• Rear drum brake shoes — sold as a set for one wheel
• TRX-EX (Sportrax) is the sport model; TRX-TM/TE (Recon) is the utility model
• All models listed share the same rear brake shoe dimensions

Features:
• Direct OEM replacement — matches factory dimensions and arc radius
• Bonded friction material — no rivets to score drum surface
• High-temperature compound resists fade during extended braking
• Pre-ground to specification — no bedding-in period required
• Sold as a complete set for one wheel

When to Replace:
• Friction material worn to minimum thickness (less than 2mm)
• Brake drum scored, grooved, or glazed
• Reduced braking performance or longer stopping distances
• Squealing or grinding noise during braking
• Uneven wear pattern indicating drum out-of-round

Installation Notes:
• Inspect brake drum for wear — machine or replace if scored beyond specification
• Clean all brake dust from drum and backing plate before installation
• Check wheel cylinder for leaks — replace seals if fluid is present
• Adjust brake shoes after installation for proper drum-to-shoe clearance
• Test brakes at low speed before returning to normal riding
