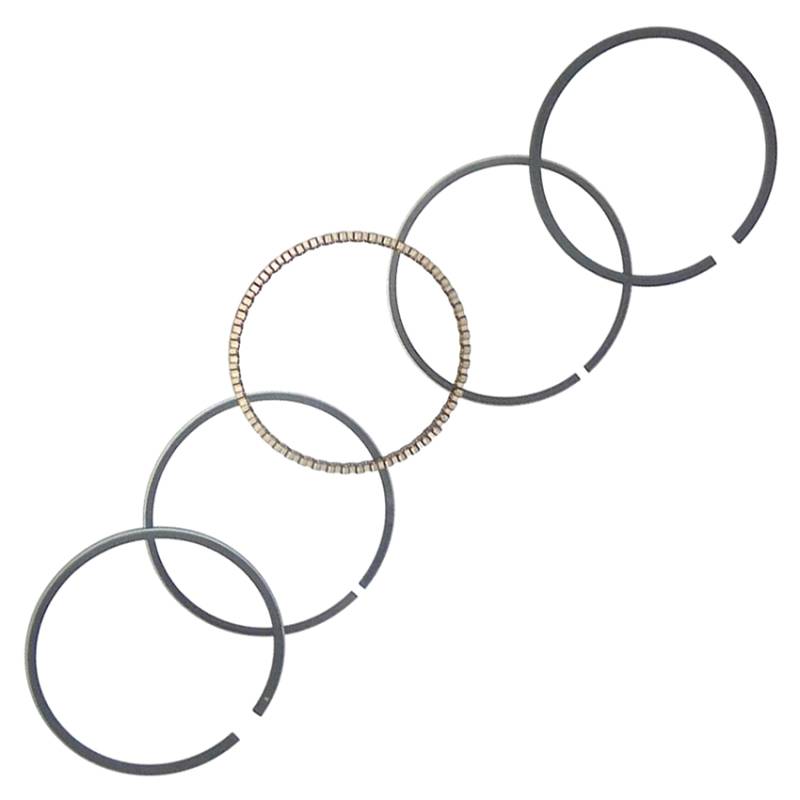

Piston Ring Set .50Mm Over 47.5Mm Compatible With Yamaha Raptor 80 Grizzly 80 Badger 80 Moto-4 80

(0) Reviews: Write first review
51-536-05*1
OEM PART NUMBERS:
• Yamaha Piston Ring Set .50mm Over: 55X-11610-20-00 / 55X116102000
• Yamaha Piston Ring Set Standard (reference): 55X-11610-00-00 / 55X1161000
• Yamaha Standard Piston (reference): 55X-11631-00-96 / 55X116310096
• Yamaha Cylinder (reference): 22K-11311-02-00 / 22K113110200

SPECIFICATIONS:
• Type: Piston Ring Set (Rings Only — NOT a Full Piston Kit)
• Bore Specification: .50mm Over (.020" Oversize)
• Outside Diameter: 47.5mm (.50mm Over Standard 47mm Bore)
• Bore × Stroke: 47mm × 45.6mm (79cc)
• Displacement: 79cc
• Engine Type: 4-Stroke Air-Cooled SOHC Single-Cylinder
• Compression Ratio: 9.6:1
• Condition: New

APPLICATIONS:
• Yamaha Badger 80 YFM80 79cc 4-Stroke (1985-1988, 1992-2001) — no production 1989-1991
• Yamaha Moto-4 80 YFM80 79cc 4-Stroke (1986-1987)
• Yamaha Raptor 80 YFM80W/YFM80R 79cc 4-Stroke (2002-2008)
• Yamaha Grizzly 80 YFM80G 79cc 4-Stroke (2005-2008)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $62.39
Sale: $35.65
Save: 43%
Save: $26.74
Qty:
Free Shipping!

Description

YAMAHA BADGER 80 YFM80 — 79cc 4-Stroke SOHC Air-Cooled Single-Cyl:
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1985)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1986)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1987)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1988)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1992)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1993)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1994)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1995)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1996)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1997)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1998)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1999)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2000)
• Badger 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2001)

YAMAHA MOTO-4 80 YFM80 — 79cc 4-Stroke SOHC Air-Cooled Single-Cyl:
• Moto-4 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1986)
• Moto-4 80 YFM80 Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (1987)

YAMAHA RAPTOR 80 YFM80W / YFM80R — 79cc 4-Stroke SOHC Air-Cooled Single-Cyl:
• Raptor 80 YFM80W Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2002)
• Raptor 80 YFM80W Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2003)
• Raptor 80 YFM80W Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2004)
• Raptor 80 YFM80R Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2005)
• Raptor 80 YFM80R Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2006)
• Raptor 80 YFM80R Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2007)
• Raptor 80 YFM80R Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2008)

YAMAHA GRIZZLY 80 YFM80G — 79cc 4-Stroke SOHC Air-Cooled Single-Cyl:
• Grizzly 80 YFM80G Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2005)
• Grizzly 80 YFM80G Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2006)
• Grizzly 80 YFM80G Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2007)
• Grizzly 80 YFM80G Yamaha 79cc 4-Stroke SOHC Air-Cooled Single-Cyl 47mm × 45.6mm (2008)
