Piston Ring Set Compatible With Kawasaki Brute Force 750 4X4i 2005-2011 Teryx 750 4X4 2008-2011

(0) Reviews: Write first review
51-258
KAWASAKI OEM PART NUMBERS:
• 13008-0008
• 130080008

PISTON RING SPECIFICATIONS:
• Type: Piston Ring Set
• Manufacturer: Kawasaki
• Bore Size: 85.0mm (3.346 in) - STANDARD
• Application: 749cc V-Twin Engine
• Ring Configuration: 2 Compression + 1 Oil Control
• Condition: New

ENGINE SPECIFICATIONS:
• Engine Type: 4-stroke, V-twin, SOHC
• Displacement: 749cc
• Bore: 85.0mm (3.3 in)
• Stroke: 66.0mm (2.6 in)
• Compression Ratio: 9.3:1
• Cooling: Liquid-cooled
• Cylinder Configuration: 90-degree V-twin
• Valvetrain: SOHC, 4-valve
• Maximum Torque: 42.7 lb-ft @ 4,750 rpm

COMPATIBLE KAWASAKI MODELS:
Brute Force 750 4x4i ATV (2005-2011):
• 2005 - Brute Force 750 4x4i
• 2006 - Brute Force 750 4x4i (KVF750A6F, KVF750B6F)
• 2007 - Brute Force 750 4x4i (KVF750C7F)
• 2008 - Brute Force 750 4x4i (KVF750D8F, KVF750E8FA NRA)
• 2009 - Brute Force 750 4x4i (KVF750D9F, KVF750E9F Camo)
• 2010 - Brute Force 750 4x4i (KVF750EAF Camo, KVF750FAF)
• 2011 - Brute Force 750 4x4i (KVF750DBF)

Teryx 750 4x4 Side by Side (2008-2011):
• 2008 - Teryx 750 4x4 (KRF750A8F, KRF750B8F, KRF750C8F LE)
• 2009 - Teryx 750 4x4 (KRF750A9F, KRF750B9F, KRF750C9F LE)
• 2010 - Teryx 750 4x4 (KRF750AAF, KRF750BAF, KRF750CAF LE)
• 2011 - Teryx 750 4x4 (KRF750ABF, KRF750BBF, KRF750CBF LE)

⚠️ CRITICAL COMPATIBILITY:
• FOR STANDARD 85mm BORE ONLY
• NOT for oversized or bored cylinders
• Verify part number 13008-0008 from original
• Check bore measurement before ordering

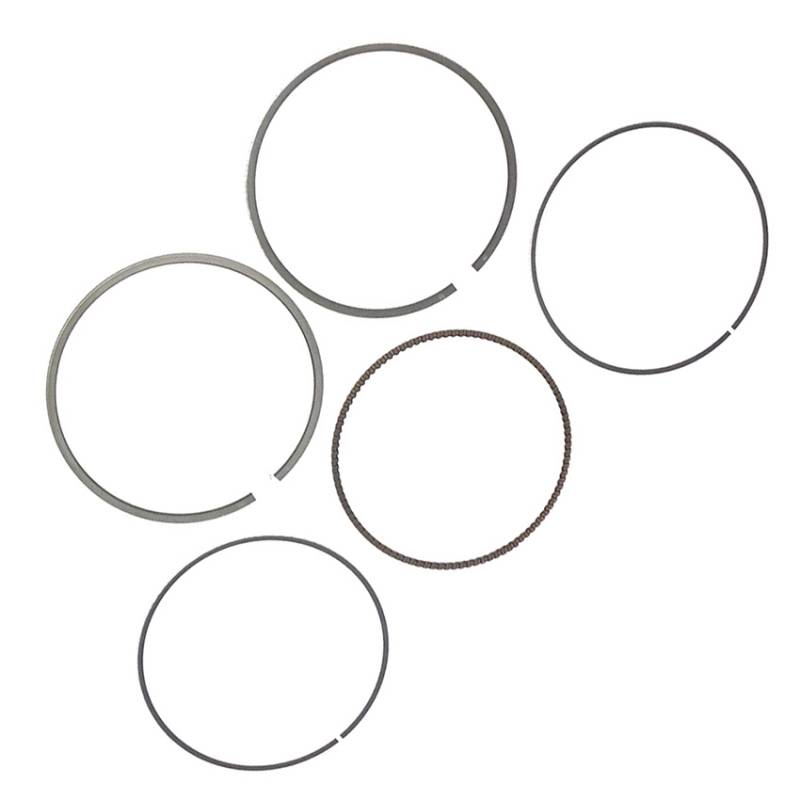

RING SET INCLUDES:
• Top compression ring
• Second compression ring
• Oil control ring assembly
• Oil ring scraper rails (2)
• Enough rings for ONE piston
• Order 2 sets for complete V-twin rebuild

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $79.71
Sale: $45.55
Save: 43%
Save: $34.16
Qty:
Free Shipping!

Description

KAWASAKI BRUTE FORCE 750 4x4i ATV (2005-2011):
Model Designations:
• KVF750A6F (2006) - Base model
• KVF750B6F (2006) - Special edition
• KVF750C7F (2007) - Base model
• KVF750D8F (2008) - Base model
• KVF750E8FA (2008) - NRA Outdoors edition
• KVF750D9F (2009) - Base model
• KVF750E9F (2009) - Hardwoods Green HD Camo
• KVF750EAF (2010) - Realtree APG HD Camo
• KVF750FAF (2010) - Base model
• KVF750DBF (2011) - Base model

Brute Force 750 Features:
• 749cc liquid-cooled V-twin engine
• 4-stroke, SOHC, 4-valve
• Digital fuel injection (DFI®)
• Automatic CVT transmission (H, L, N, R)
• Selectable 2WD/4WD with variable front differential lock
• Independent double wishbone suspension (front/rear)
• 1,250 lb towing capacity
• 264 lb total cargo capacity (88 lb front, 176 lb rear)
• Electric Power Steering (EPS models)

Performance Specifications:
• Maximum Torque: 42.7 lb-ft @ 4,750 rpm
• Compression Ratio: 9.3:1
• Bore x Stroke: 85.0 x 66.0mm
• Fuel System: DFI® with two 36mm throttle bodies
• Weight: 688-699 lbs (curb weight)

KAWASAKI TERYX 750 4x4 SIDE BY SIDE (2008-2011):
Model Designations:
• KRF750A8F (2008) - Standard
• KRF750B8F (2008) - Special edition
• KRF750C8F (2008) - LE (Limited Edition)
• KRF750A9F (2009) - Standard
• KRF750B9F (2009) - Special edition
• KRF750C9F (2009) - LE
• KRF750AAF (2010) - Standard
• KRF750BAF (2010) - Special edition
• KRF750CAF (2010) - LE
• KRF750ABF (2011) - Standard
• KRF750BBF (2011) - Special edition
• KRF750CBF (2011) - LE

Teryx 750 Features:
• Same 749cc V-twin engine as Brute Force
• 2-passenger recreational utility vehicle
• CVT automatic transmission
• 4-wheel independent suspension
• Full roll cage protection
• Tilt steering wheel
• 1,000 lb towing capacity

PISTON RING SET CONTENTS:
• (2) Compression rings - Top and second ring
• (1) Oil control ring assembly
• (2) Scraper rings - Oil ring rails
• Standard 85mm bore specification

ENGINE REBUILD APPLICATIONS:
• Complete engine overhaul
• Cylinder rebuild and re-ring
• Performance restoration
• High-mileage maintenance
• Compression loss repair
• Oil consumption reduction
• Engine freshening

USES & TERRAIN:
• Trail riding - Forest trails, mountain paths
• Work/utility - Farm, ranch, property maintenance
• Hunting - Game retrieval, backcountry access
• Recreation - Off-road adventure, exploring
• Mudding - Wet terrain, swamp riding
• Rock crawling - Technical terrain
• Towing - Trailers, equipment transport

⚠️ INSTALLATION NOTES:
• Standard bore only (85mm)
• Verify bore size before ordering
• Proper ring gap required
• Use ring compressor for installation
• Follow torque specifications
