Piston Kit 1.0Mm Over Compatible With Honda Trx500 Foreman 500 4X4 Fe Fm Fpe Fpm Tm 475Cc Ohv

OEM PART NUMBERS:
• Honda (1.0mm Over): 13105-HP0-A00 / 13105HP0A00
• Honda (Standard): 13101-HP0-A00 / 13101HP0A00

SPECIFICATIONS:
• Type: Piston Kit — 1.0mm Oversize (93mm Bore)
• Standard Bore: 92mm (91.96mm Piston) / Oversize: 1.0mm Over (93mm)
• Bore x Stroke: 92mm x 71.5mm
• Engine: Honda 475cc Air-Cooled OHV Longitudinal Single-Cylinder 4-Stroke
• Compression Ratio: 8.5:1
• Induction: Keihin 36mm CV Carburetor
• Configuration: ATV Utility Quad
• Quantity: 1 Piston Per Kit (1 Required Per Motor — Single Cylinder)

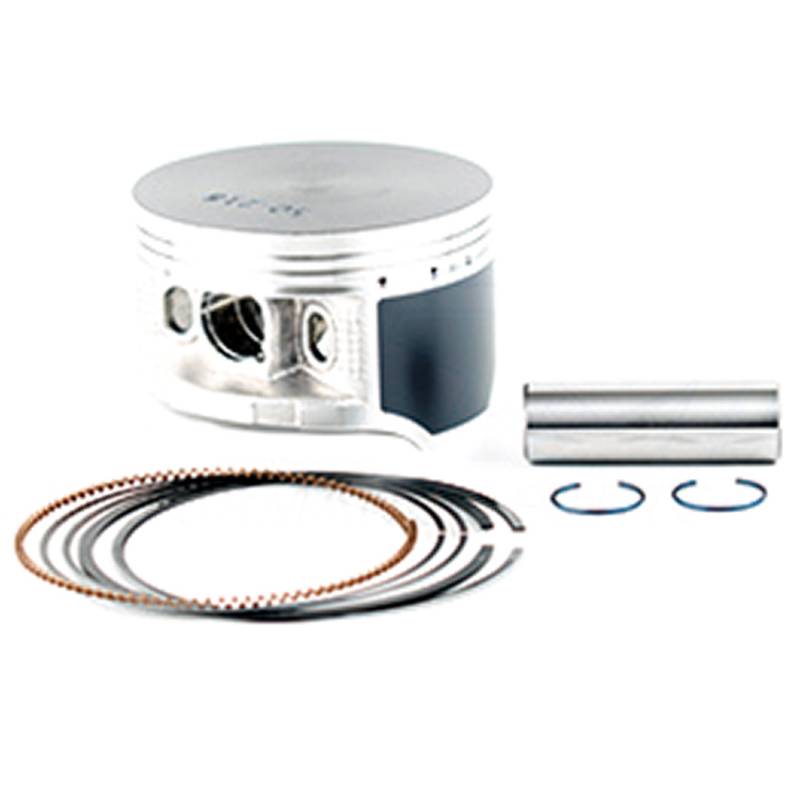

• Kit Includes: 1 Piston, 1 Ring Set, 1 Wrist Pin, 2 Circlips
• Weight: 2 lbs / Condition: New

HONDA TRX500 FOREMAN APPLICATIONS:
• TRX500FE Foreman 4X4 ES (2005-2011)
• TRX500FM Foreman 4X4 (2005-2011)
• TRX500FPE Foreman 4X4 ES w/EPS (2007-2011)
• TRX500FPM Foreman 4X4 w/EPS (2008-2011)
• TRX500TM Foreman 2X4 (2005-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
