OEM PART NUMBERS (Supersession Chain):
• Kawasaki: 13001-1654 / 130011654 (original)
• Kawasaki: 13001-1655 / 130011655 (superseded by 13001-1663)
• Kawasaki: 13001-1663 / 130011663 (current revision)
• Kawasaki Ring Set: 13008-1209 / 130081209
• Kawasaki Wrist Pin: 13002-1004 / 130021004
• Kawasaki Circlip: 92033-1161
• Kawasaki Cylinder: 11005-1965
SPECIFICATIONS:
• Type: Piston Kit (Standard Bore)
• Standard Bore: 69mm (2.717")
• Stroke: 61mm
• Displacement: 228cc
• Compression: 8.9:1
• Piston Type: Cast
• Engine: Single-Cylinder 4-Stroke Air-Cooled
• Carburetor: Mikuni VM24SS
• Weight: 2 lbs / Condition: New

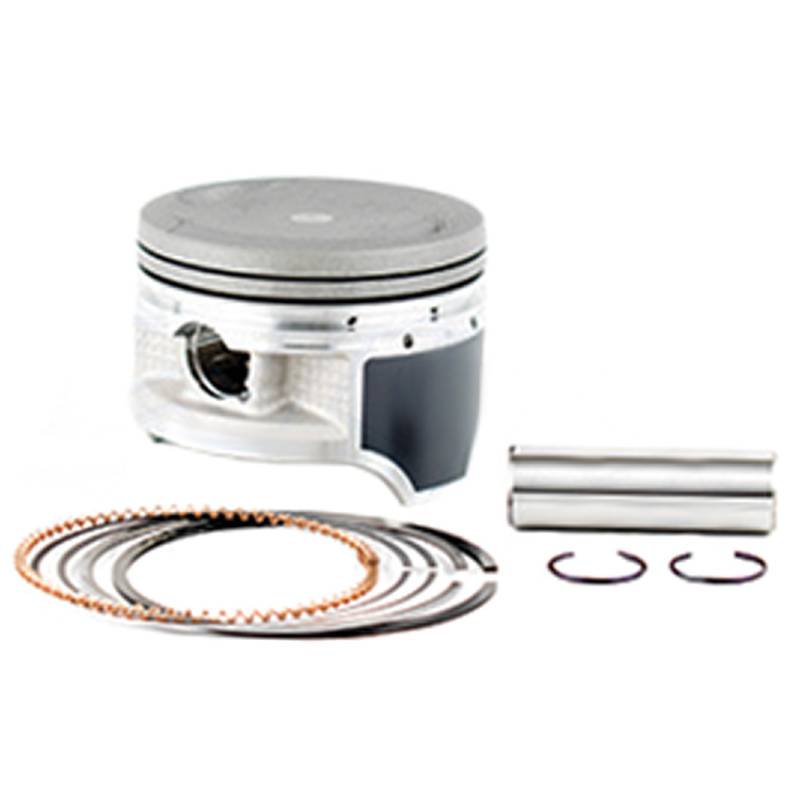

KIT CONTENTS (Single Cylinder):
• (1) Cast Piston — Standard Bore 69mm
• (1) Ring Set / (1) Wrist Pin / (2) Circlips
• Single cylinder engine — one kit completes rebuild
BORE SIZE CHART (Kawasaki Bayou 250 228cc):
• Standard: 69.0mm (50-252K) — THIS KIT
• 0.50mm Over: 69.5mm (50-252-05K)
• 1.00mm Over: 70.0mm (50-252-07K)
APPLICATIONS:
• Kawasaki Bayou 250 KLF250A 228cc (2003-2011)
PRODUCT NOTICE:
