OEM PART NUMBERS:
• Yamaha: 1S3-11603-10-00 / 1S3116031000
• Yamaha: 2MB-E1603-00-00 / 2MBE16030000
• Yamaha: 1S3-11603-00-00 / 1S3116030000
SPECIFICATIONS:

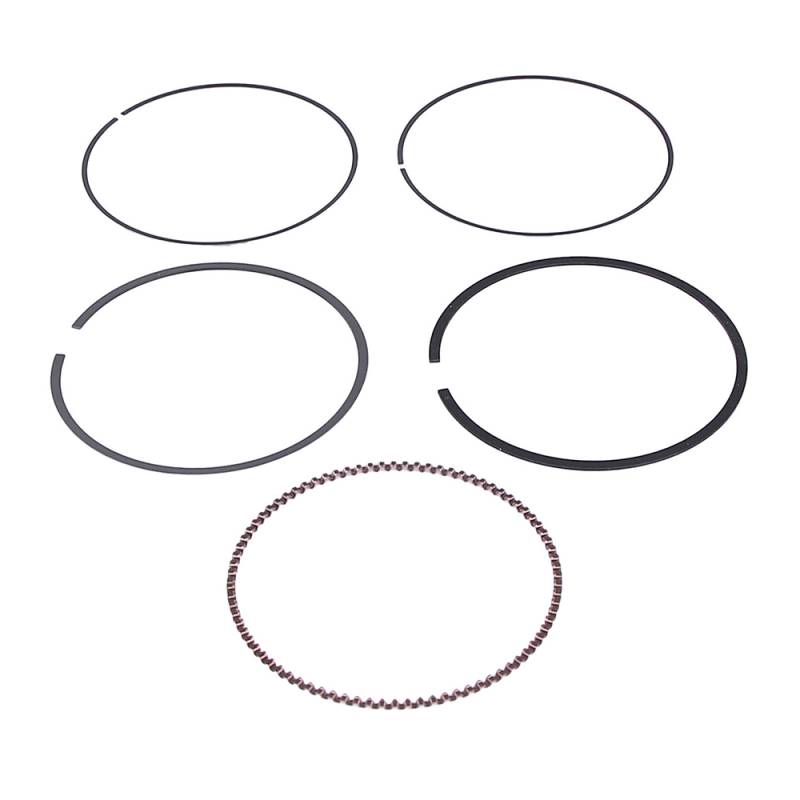

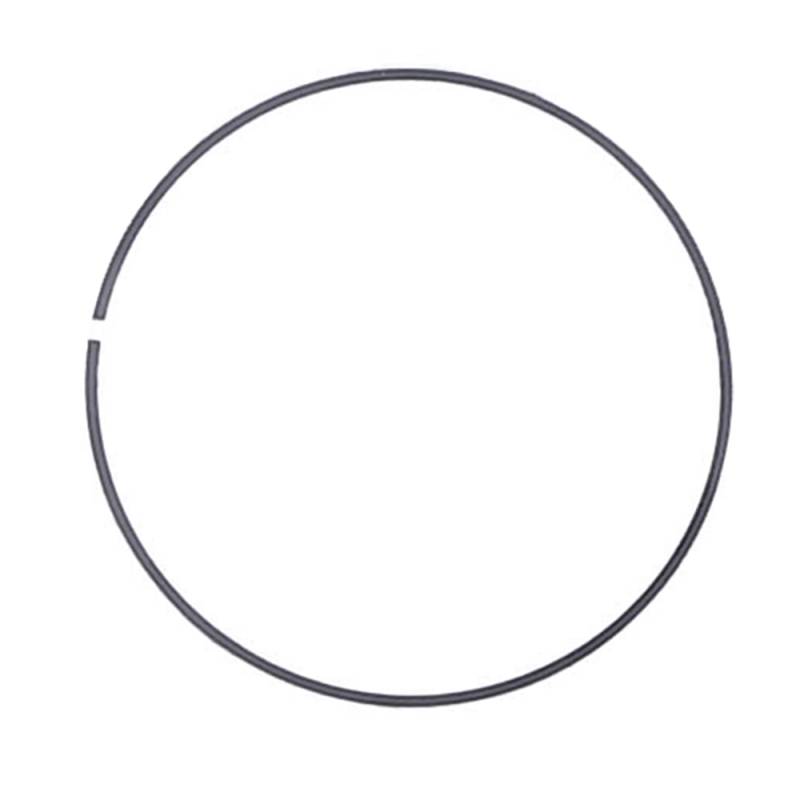

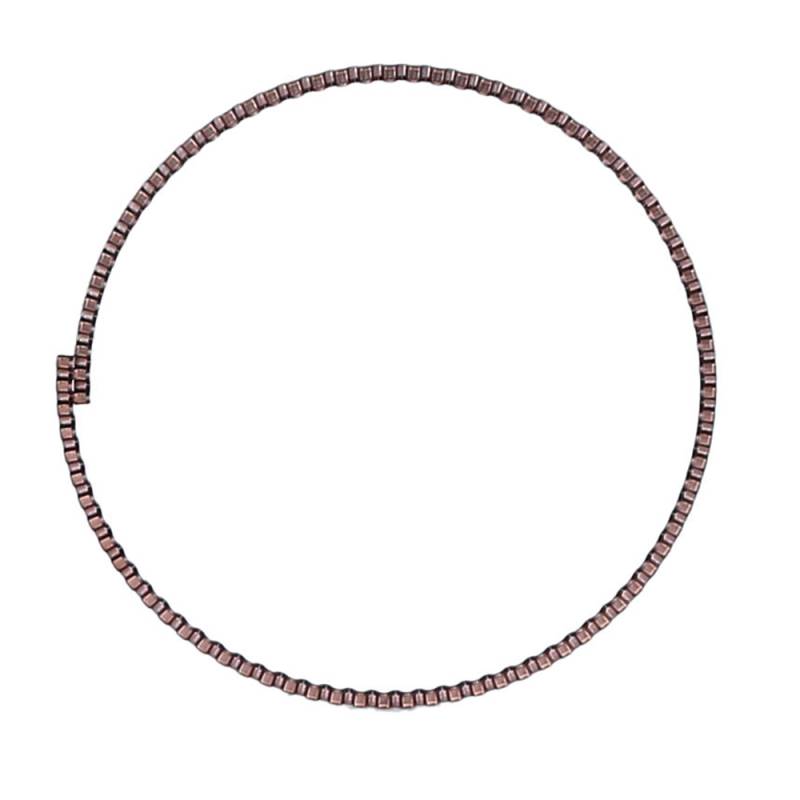

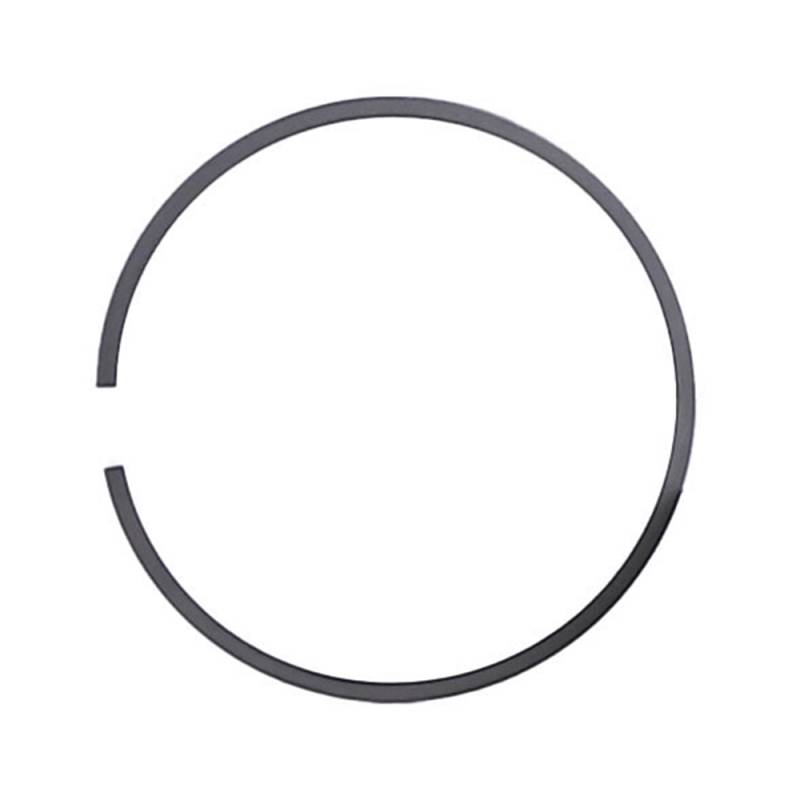

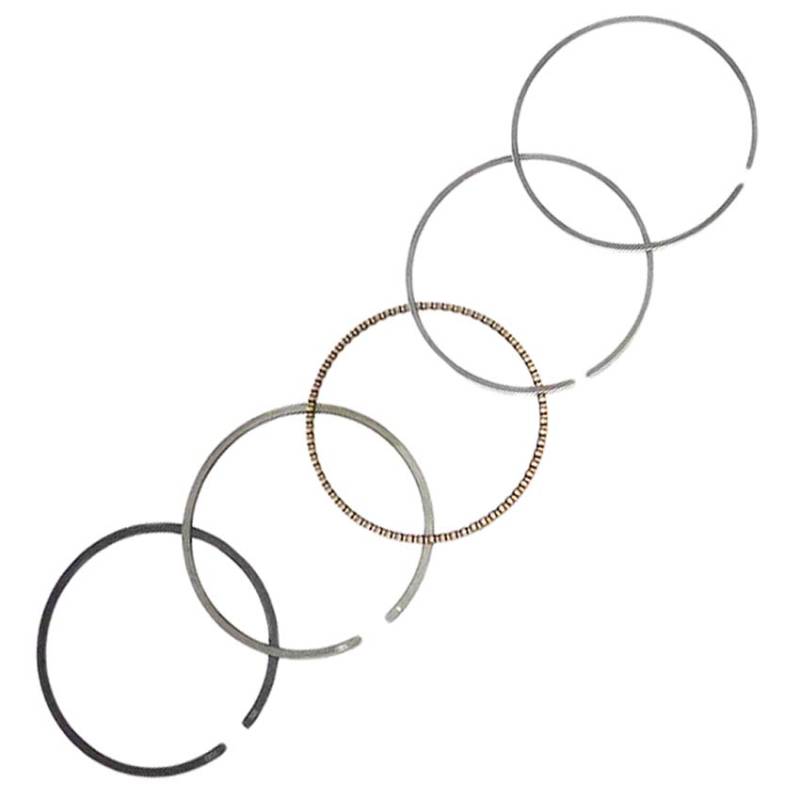

• Product Type: Piston Ring Set
• Bore Size: 102mm (Standard)
• Stroke: 84mm
• Engine Type: 4-Stroke SOHC Liquid-Cooled Single-Cylinder
• Engine Displacement: 686cc
• Compression Ratio: 10:1
• Fuel System: EFI (44mm Throttle Body)
• Condition: New
YAMAHA ATV APPLICATIONS:
• Raptor 700 / 700R (2006-2024)
• Grizzly 700 FI 4X4 / EPS (2007-2024)
YAMAHA UTV / SIDE-BY-SIDE APPLICATIONS:
• Kodiak 700 FI 4X4 / EPS (2016-2024)
• Viking 700 YXM700 (2014-2021)
• Viking VI YXC700 (2015-2021)
• Rhino 700 YXR700 (2008-2009, 2011-2013)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
