Big Bore Forged Piston Kit 4.50Mm Over 68.5Mm Compatible With 1987-2006 Yamaha Banshee 350 Yfz350

OEM PART NUMBERS:
• Yamaha: 2GU-11636-00-00 / 2GU116360000

SPECIFICATIONS:
• Type: Piston Kit (4.50mm BIG BORE Oversize)
• Standard Bore: 64mm
• Big Bore: 68.5mm (4.50mm Over)
• Stroke: 54mm
• Displacement: 347cc (stock)
• Compression: 6.5:1
• Piston Type: Forged — MOS2 Skirt Coating
• Engine: Twin-Cylinder 2-Stroke Liquid-Cooled Reed Valve
• Horsepower: 34HP (stock)
• Weight: 2 lbs / Condition: New

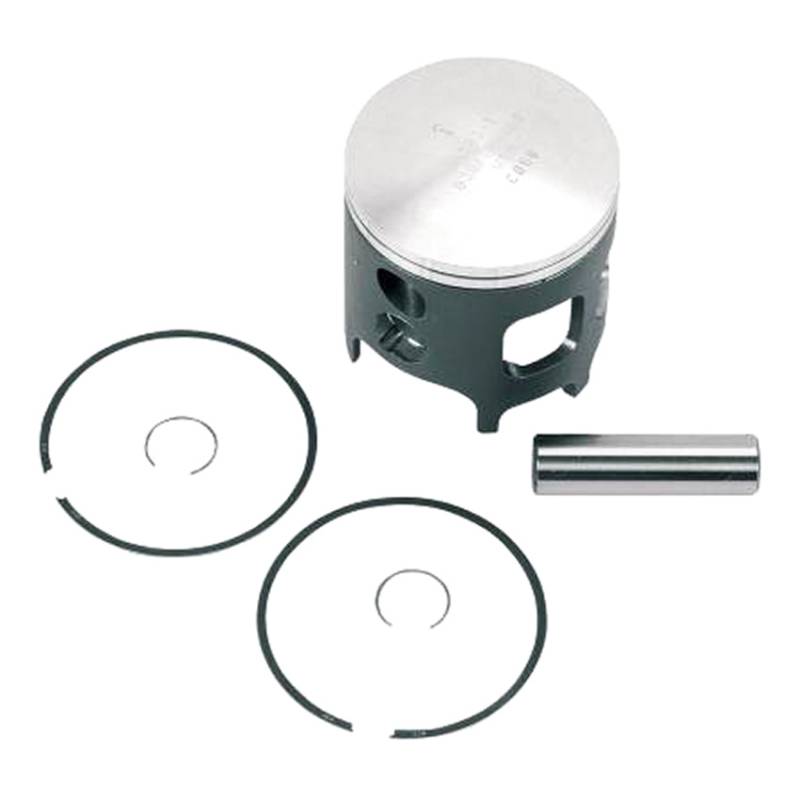

KIT CONTENTS (Single Cylinder):
• (1) Forged Piston — 4.50mm BIG BORE 68.5mm
• (1) Ring Set / (1) Wrist Pin / (2) Circlips
• Twin-cylinder engine — order (2) kits for complete rebuild

BIG BORE NOTE:
• This is a BIG BORE kit — NOT a standard oversize
• Standard bore 64mm + 4.50mm = 68.5mm finished bore
• Requires aftermarket big bore cylinder sleeves bored to 68.5mm
• Stock cylinders cannot be bored this far

APPLICATIONS:
• Yamaha Banshee 350 YFZ350 347cc 2-Stroke Twin-Cyl (1987-2006)
