Warner :
• 5215-103 / 5215103 (Electric PTO Clutch — Upgraded 5215 Series)
• 5210-9 / 52109 (Original Series — Superseded by 5215-103)
Cub Cadet / MTD :
• 717-3036 (Electric PTO Clutch Assembly)
• 917-3036 (Electric PTO Clutch Assembly)
• 1755341 (PTO Clutch — Alternate)
• 1742518 (PTO Clutch — Alternate)
• 717-3497 (PTO Clutch — Cross Reference)
:
• Stens 19-159 / 255-757 (Electric PTO Clutch)
• Xtreme X0159 (Electric PTO Clutch)
Product Specifications:

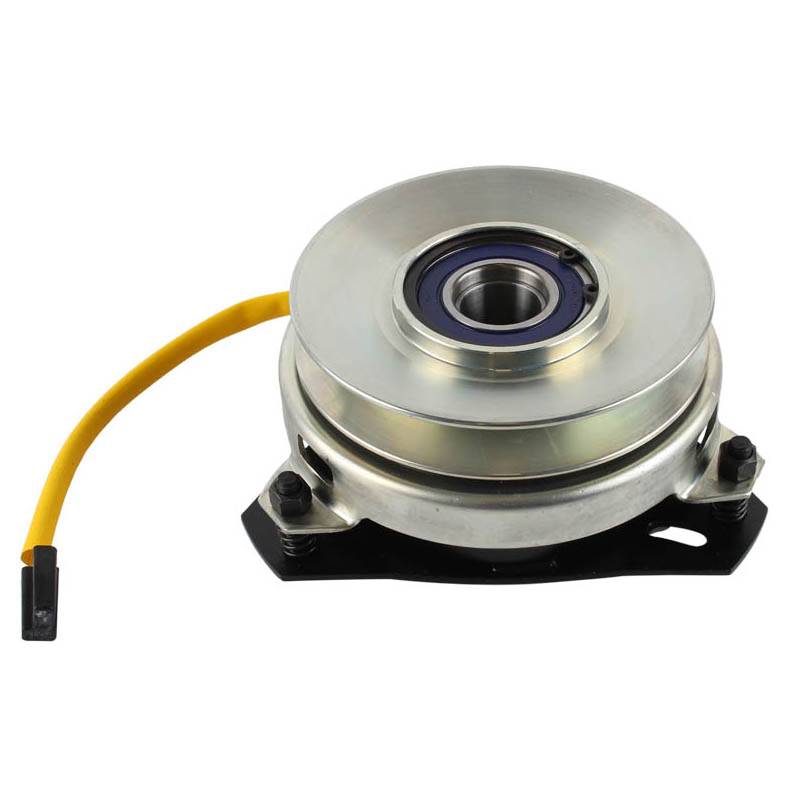

• Type: Electric PTO Clutch (Power Take-Off)
• Pulley Diameter: 5.43 inches (138mm)
• Crankshaft Bore: 1 inch (25.4mm)
• Torque Rating: 105 Ft-Lbs
• Rotation: Counter-Clockwise (CCW)
• Belt Width: 1/2 inch or 5/8 inch
• Weight: 12 lbs (5.4 kg)
• Height: 3.5 inches
• Coil Temperature: -40°F to 370°F Operating Range
• Bearing: Sealed Ball Bearing
• Feature: Cool Coil Technology — Maintenance-Free
• Application: Cub Cadet 805-1730 Lawn Tractors
