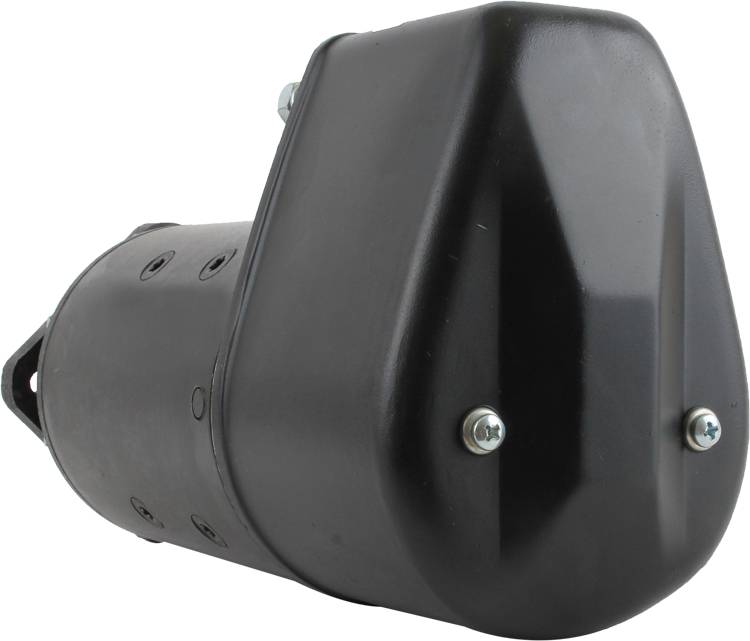

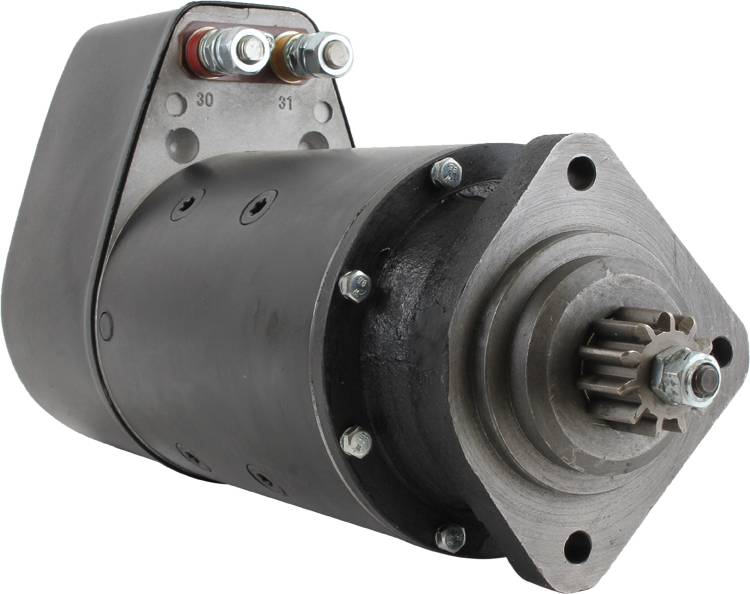

New Starter Fits Deutz Marine Engine F10l413 F12l413 F12l513 0001510017 116-3556

BOSCH PART NUMBERS:
• 0001510017, 0 001 510 017
• 0001510014, 0 001 510 014
• 0986011590, 0 986 011 590
• SR922X
• 0001510021, 0 001 510 021
• 0001510024, 0 001 510 024
• 0001510008, 0 001 510 008

DEUTZ / KHD PART NUMBERS:
• 0118 3697, 01183697
• 0116 3556, 01163556, 116-3556
• 0118 3039, 01183039
• 116-4274, 1164274
• 1162509, 116-2509
• 1162508, 116-2508
• 3040116, 03040116
• 3045094
• E2R24X9H7622, E2R-24X9-H7622
• E8R24X9H7622, E8R-24X9-H7622

MAHLE / LETRIKA / ISKRA PART NUMBERS:
• Mahle MS73
• 11131872, 11.131.872
• IS1210
• AZG4681
• 11.132.022, 11132022
• AZG4815
• IS0287
• 11.130.287, 11130287
• AZL3624

OTHER PART NUMBERS:
• Lucas LRS00959
• Lucas LRS959
• Lucas S0861
• Prestolite 861043
• Magneti Marelli 943252291
• Liebherr 6290033
• Liebherr 6290069
• IH K41593
• Faun 1701051
• Wilson 91-15-6947, 91156947

SPECIFICATIONS:
• Type: Bosch QB type direct drive (DD)
• Voltage: 24 Volt
• Power: 9.0 kW
• Rotation: Clockwise (CW)
• Pinion: 11 teeth, 40.7 mm (1.602 in) OD
• Flange: 89 mm, three 11 mm unthreaded mounting holes spaced 90 / 90 / 127 mm
• Pinion position: 48 mm from the flange
• Battery stud: M12
• Overall length: 458 mm
• Weight: 64.1 lb (29.14 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
