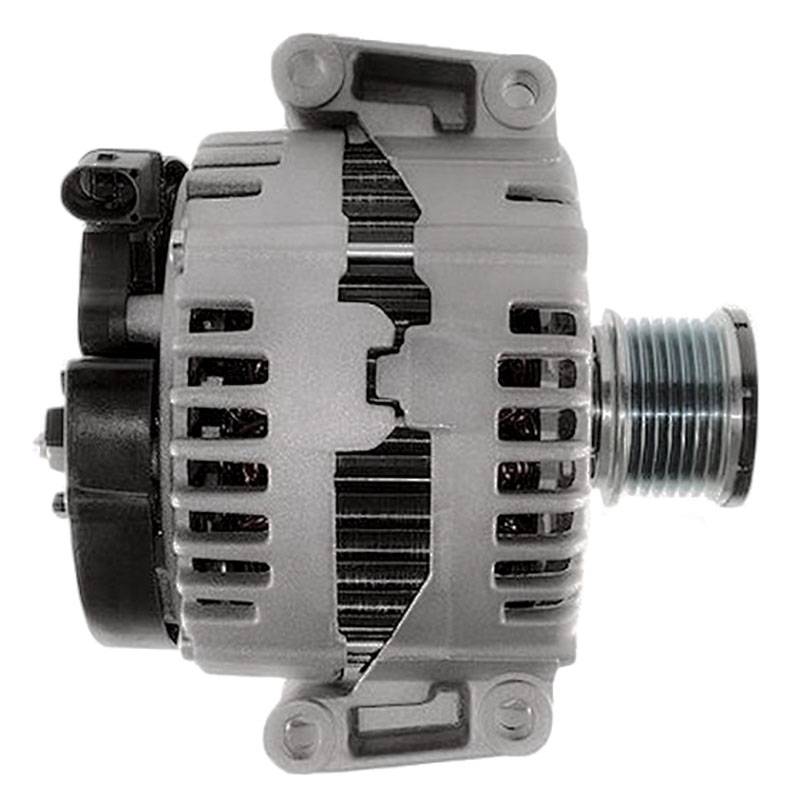

New 12V 220A Alternator Compatible With Mercedes Bosch E350 3.0L 2987Cc 2009 2010 2011 2012 2013 By

11445N*1
BOSCH PART NUMBERS:
• 0 121 813 020, 0-121-813-020, 0121813020
• 0 121 813 120, 0-121-813-120, 0121813120
BOSCH SERVICE EUROPE PART NUMBERS:
• 0 986 048 960, 0-986-048-960, 0986048960
MERCEDES-BENZ PART NUMBERS:
• 0141541302, 014-154-13-02
• A0141541302, A014-154-13-02
• 014-154-13-02-80, 014154130280, A014154130280
WILSON PART NUMBERS:
• 90-15-6595, 90156595

SPECIFICATIONS:
• Type: Alternator
• Voltage: 12V
• Amperage: 220A
• Series: H10P Type
• Pulley: 7 groove serpentine clutch, 54.9 mm OD
• Fan / regulator: Internal / internal
• Regulator plug clock: 1:00
• Mount: Pad, ears 9.3 / 8.4 mm unthreaded, 8.6 x 10 mm slotted, 70 mm thick
• B+ terminal: M8-1.25
• COM / N/C terminals: Spade
• Ground: Negative
• Weight: 19.8 lb / 9 kg
• Engine: 3.0L V6 diesel
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $691.95
Sale: $395.40
Save: 43%
Save: $296.55
Qty:
Free Shipping!

Description

MERCEDES-BENZ 3.0L V6 DIESEL (2987CC):
• MERCEDES BENZ E350 V6 3.0L 2987CC 2011-2013
• MERCEDES BENZ GL350 V6 3.0L 2987CC 2010-2012
• MERCEDES BENZ ML320 V6 3.0L 2987CC 2009
• MERCEDES BENZ ML350 V6 3.0L 2987CC 2010-2011
• MERCEDES BENZ R350 V6 3.0L 2987CC 2010-2012
• MERCEDES BENZ S350 V6 3.0L 2987CC 2012-2013

MERCEDES-BENZ BY MODEL:
• Mercedes-Benz E350 BlueTEC 3.0L V6 turbo diesel 2011-2013
• Mercedes-Benz GL350 BlueTEC 3.0L V6 turbo diesel 2010-2012
• Mercedes-Benz ML320 3.0L V6 turbo diesel 2009 with the 220 amp alternator
• Mercedes-Benz ML350 3.0L V6 turbo diesel 2010-2011
• Mercedes-Benz R350 3.0L V6 turbo diesel 2010-2013 with the 220 amp alternator
• Mercedes-Benz S350 3.0L V6 turbo diesel 2012-2013

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 220A
• Series: H10P Type
• Pulley: 7 groove serpentine, clutch (freewheel) pulley
• Pulley OD: 2.161 in / 54.9 mm
• Serpentine grooves OD: 1.972 in / 50.1 mm
• Fan: Internal
• Regulator: Internal
• Regulator plug clock: 1:00
• Mounting ears 1 and 3: 9.3 mm unthreaded
• Mounting ear 2: 8.4 mm unthreaded
• Mounting ear 4: 8.6 x 10 mm slotted
• Mounting ears thickness: 2.756 in / 70 mm
• B+ terminal: M8-1.25
• COM terminal: Spade
• N/C terminal: Spade
• Polarity: Negative ground
• Weight: 19.8 lb / 9 kg
• Engine: 3.0L V6 diesel only; gas 3.5L engines use a different alternator
• ML320 and R-Class diesels built with the 180 amp alternator use a different part
• Condition: New aftermarket
