OEM PART NUMBERS:
• Mando: AC155614 / M56750
• Pleasurecraft Marine: RA097006
• 20130204
SPECIFICATIONS:
• Type: Alternator (Mando Type)
• Voltage: 12V
• Amperage: 55 Amp
• Fan: External (EF)
• Regulator: Internal (IR)
• Pulley: 1-Groove V-Pulley (V1)
• Rotation: Bi-Directional
• SAE J1171 Marine Ignition Protection Certified

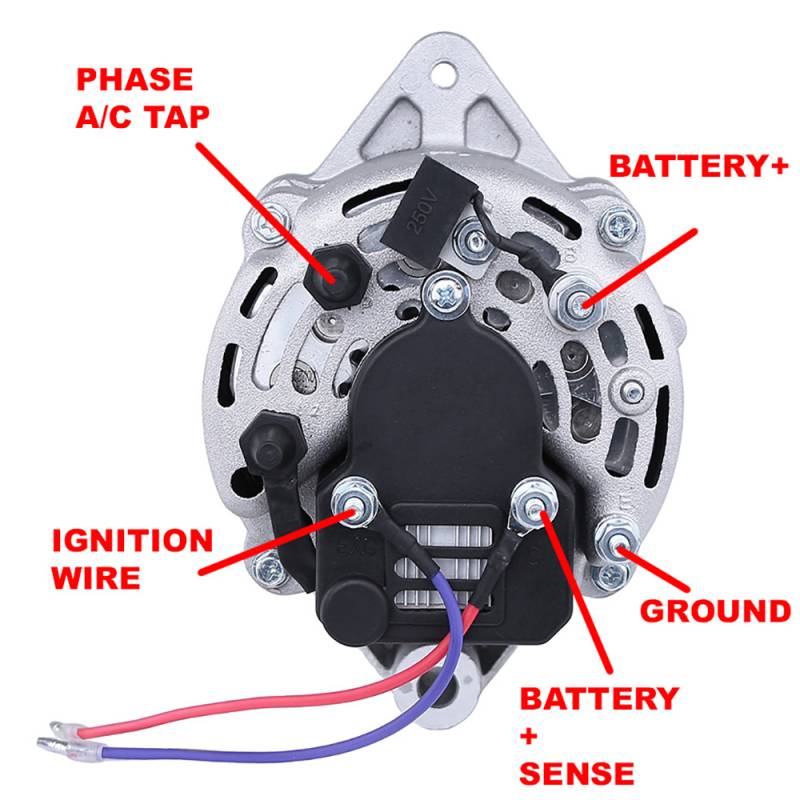

• Output Stud: 1/4-20
• Polarity: Negative
• Mounting Ear 1: 5/16-18 Threaded
• Mounting Ear 2: 9.5mm Unthreaded
• Weight: 11.17 lbs / 5.08 kg
• Condition: New
MARINE INBOARD APPLICATIONS (1985+):
• Pleasurecraft Marine Inboard Engines (1985-Present)
• Lucas Marine Inboard Engines (1985-Present)
• Mando Marine Inboard Engines (1985-Present)
