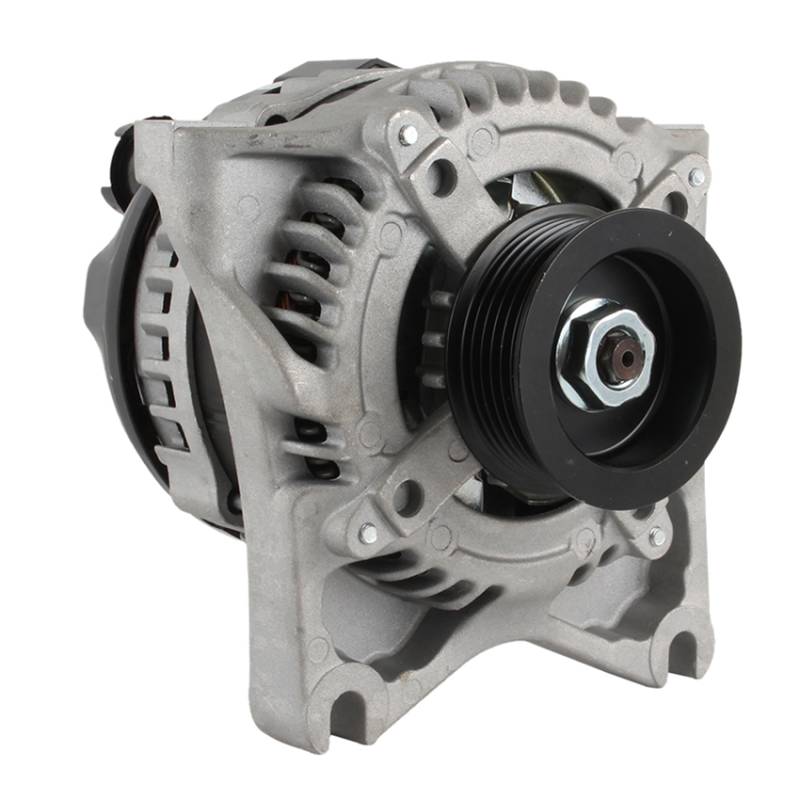

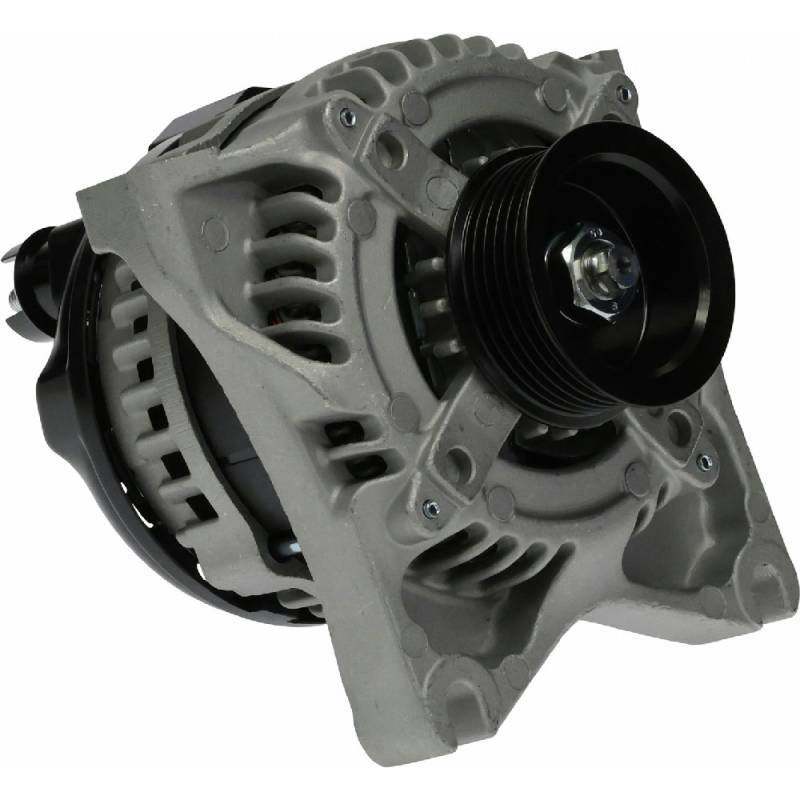

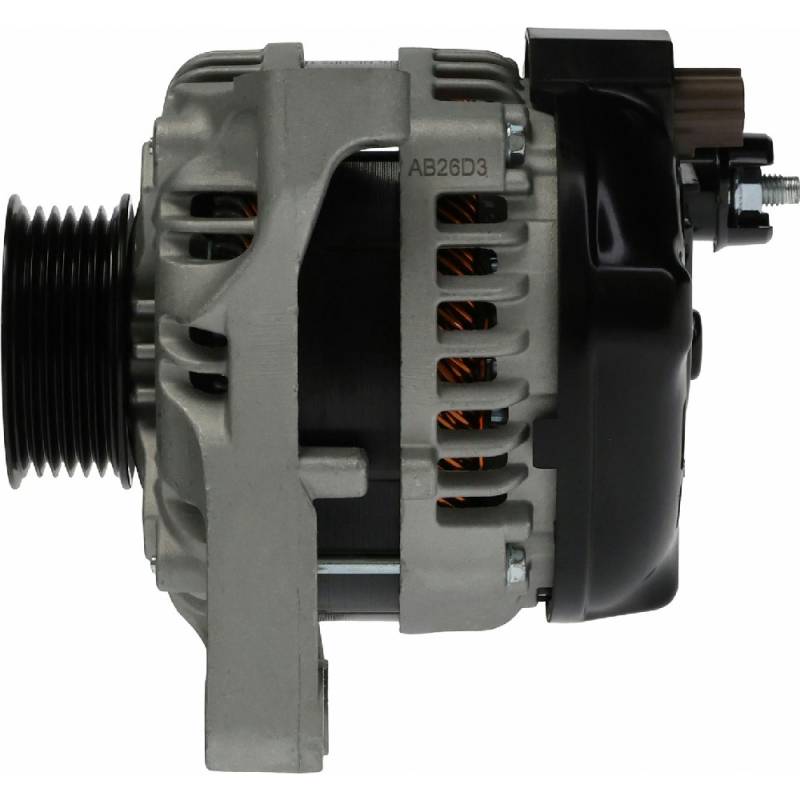

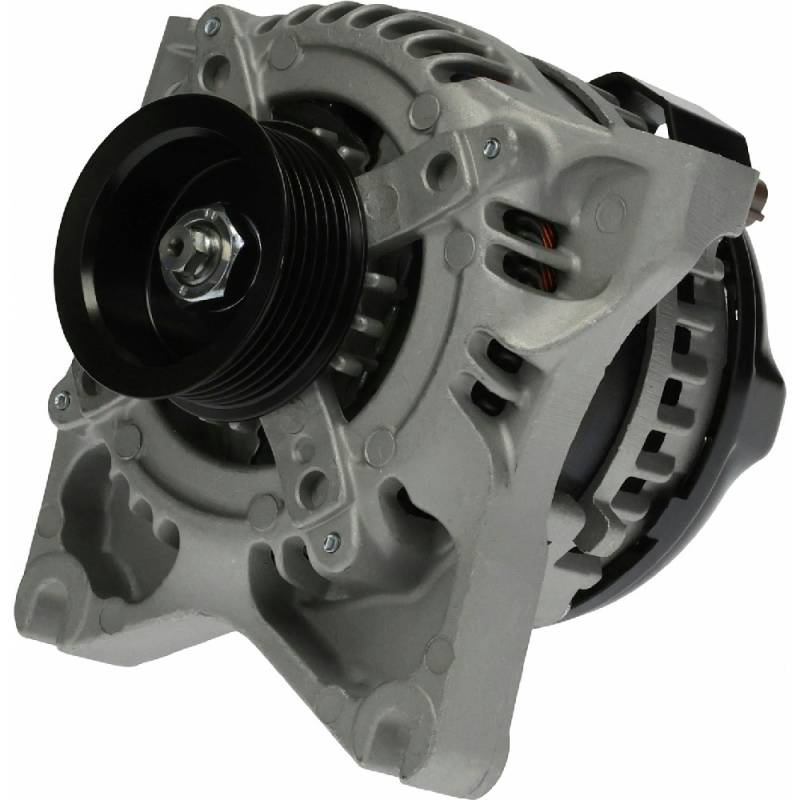

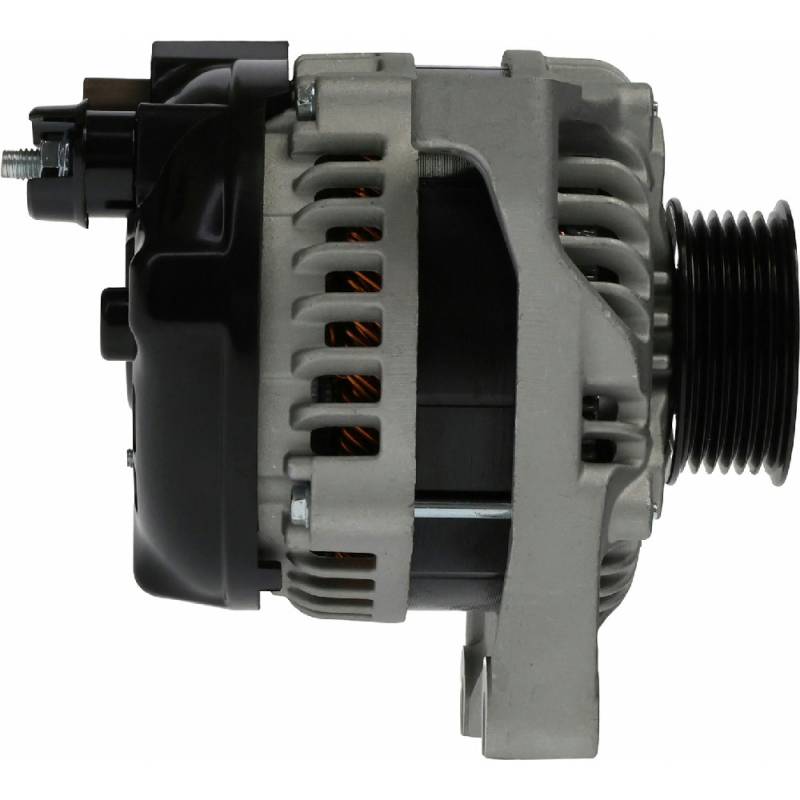

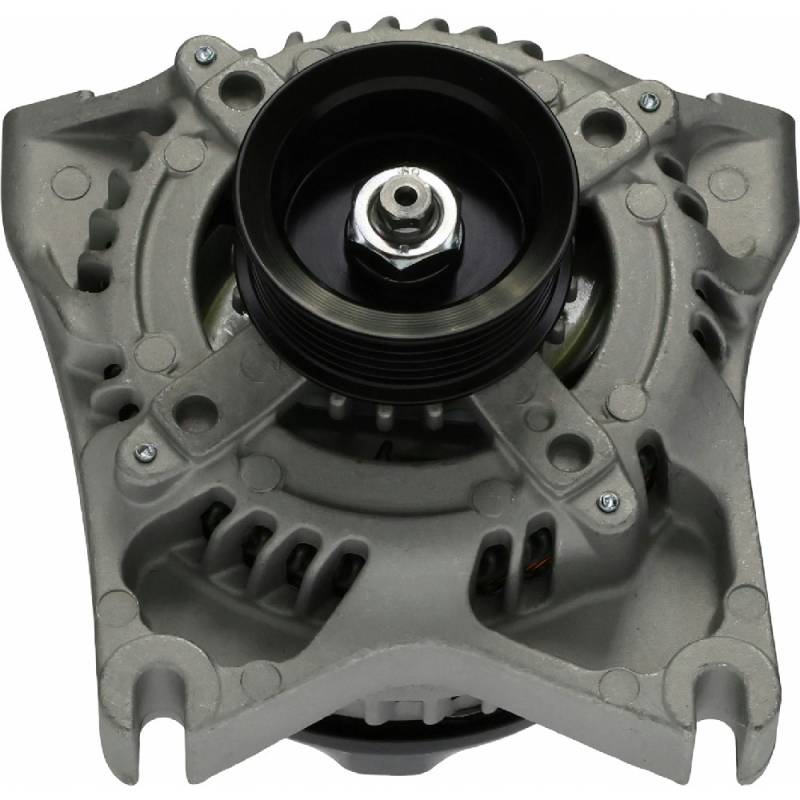

New 150 Amp Alternator Compatible With 2009-2010 Ford Mustang Gt 4.6L V8 Sohc 3-Valve 281Ci Bullitt

11428N*1
OEM PART NUMBERS:
• Ford: 9R3T-10300-DB / 9R3T10300DB
• Ford: 9R3Z-10346-D / 9R3Z10346D
• Denso: 104210-2021 / 1042102021 / 104210-202
• Motorcraft: GL-960 / GL960
• Bosch Reman: AL7778X / AL7778N

CROSS REFERENCES:
• AND0522 / 400-52400 / 400-52400R
• 290-5590 / 12915 / 90-29-5731
• Lester: 11428

SPECIFICATIONS:
• Type: Denso Hairpin Alternator
• Voltage: 12V
• Amperage: 150A
• Rotation: CW
• Pulley: 6-Groove Serpentine (S6, 64.4mm OD)
• Fan: Internal
• Regulator: Internal (IR/IF)
• Plug: AS-RC-LI (smart charging, PCM controlled)
• Plug Clock: 10:00 / Orientation: Rear
• B+ Terminal: M8-1.25
• Polarity: Negative
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $545.62
Sale: $311.78
Save: 43%
Save: $233.84
Qty:
Free Shipping!

Description

FORD MUSTANG GT (2009-2010):
• 2009-2010 Mustang GT Coupe 4.6L (281ci) V8 SOHC 3-Valve ~315HP
• 2009-2010 Mustang GT Convertible 4.6L V8 SOHC 3V ~315HP
• 2009 Mustang Bullitt Coupe 4.6L V8 SOHC 3V ~315HP
• S197 platform — last generation of 4.6L Modular V8
• Automatic transmission applications

ENGINE: Ford 4.6L (281ci) Modular V8 SOHC 3-Valve ~315HP. Cast iron block, aluminum heads. VCT (Variable Cam Timing). Final production years before 5.0L Coyote V8 replaced it in 2011.

TYPE: Denso hairpin alternator. 12V, 150A, CW, IR/IF. 6-groove serpentine (S6, 64.4mm OD). 10:00 plug clock, rear plug orientation. AS-RC-LI smart charging plug (PCM controlled). Negative polarity.

Shipping Information

  • Item Requires Shipping
  • 14.5 lbs.
  • W9.0000” x H9.0000” x L9.0000”
  • Free Shipping!
