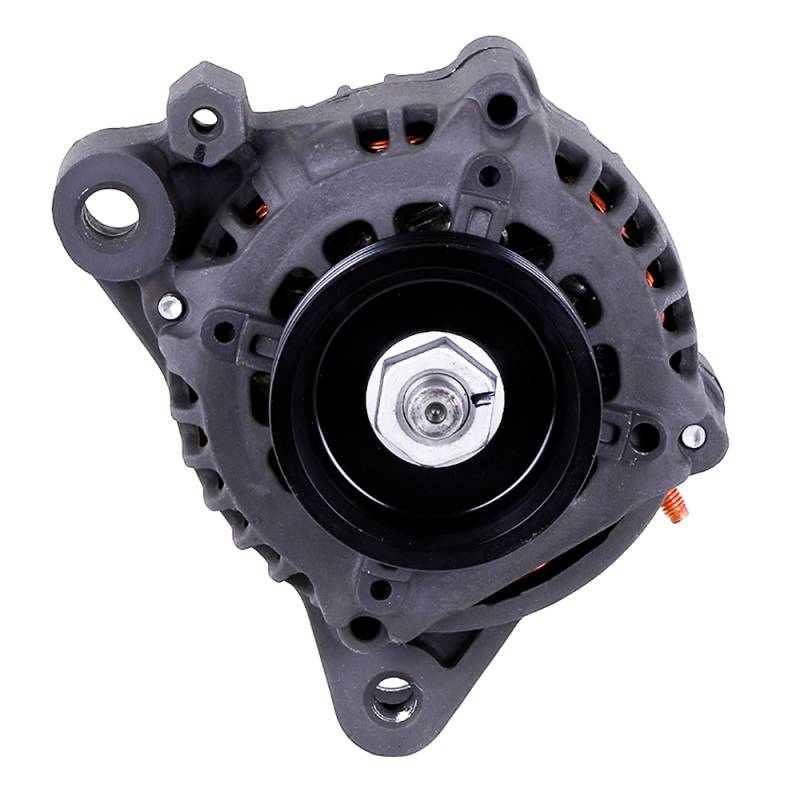

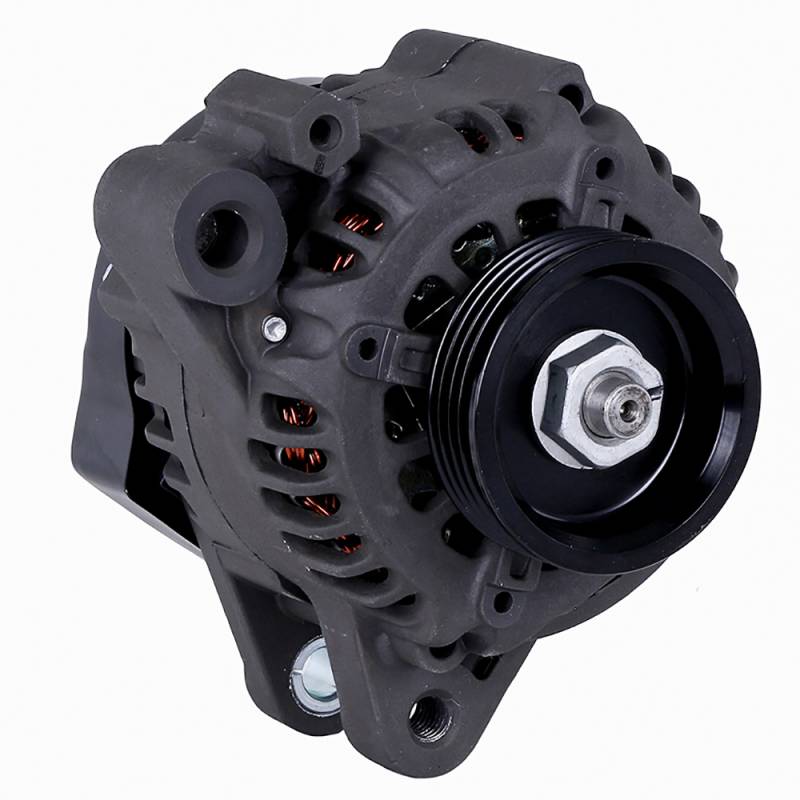

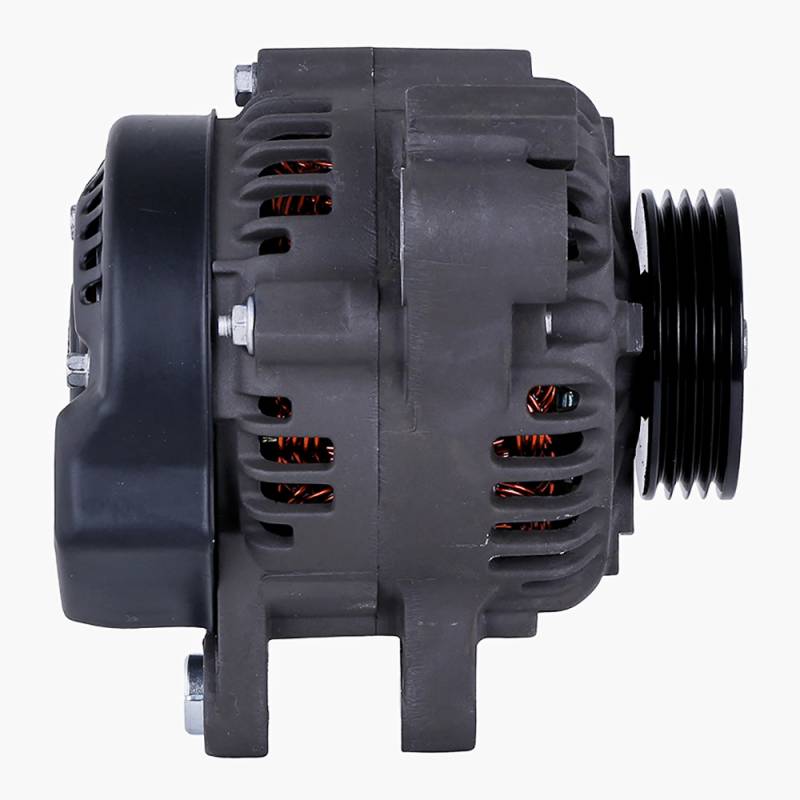

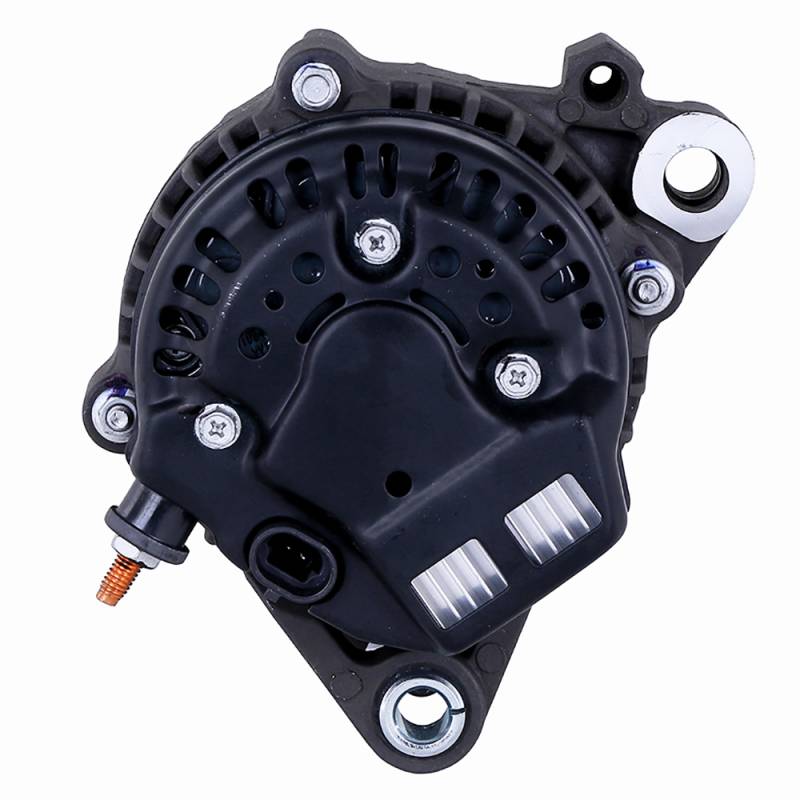

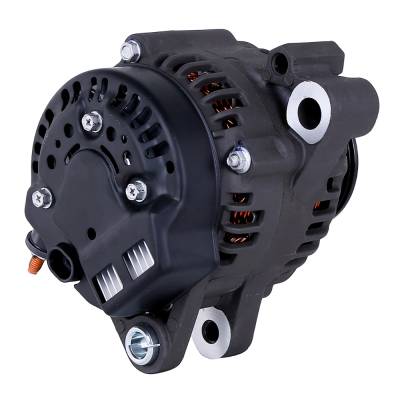

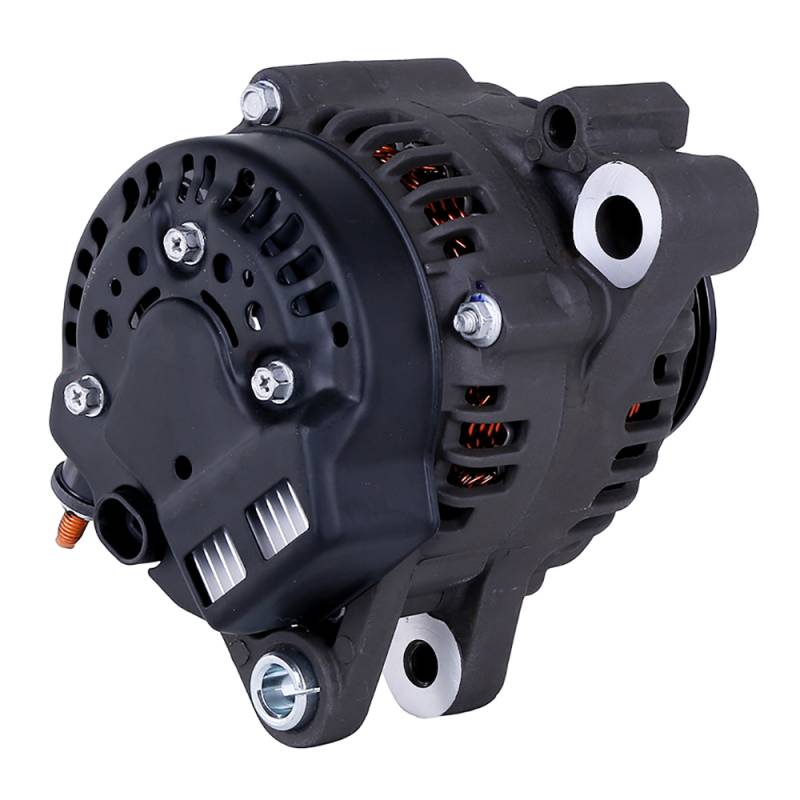

12V 55A Alternator Compatible With Mercury 150Hp Pro Xs Fourstroke 150L 150Xl Outboard 3.0L 4-Stroke

SKU: AND0626*1

OEM PART NUMBERS:
• Mercury Marine: 8M0057693 / 8M0062515 / 8M0065239
• Mercury Marine: 8M0031390
• Mercury Marine: 146-06147

SPECIFICATIONS:
• Item Description: Alternator
• Unit Type: Denso IR/IF
• Voltage: 12V
• Amperage: 55A
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: 4-Groove Serpentine
• Pulley OD: 64mm
• Clock Position: 7
• Marine Certified: SAEJ1171
• Weight: 14 lbs
• Condition: New

MERCURY MARINE OUTBOARD APPLICATIONS:
• 150L / 150XL 4-Stroke 3.0L I4 SOHC EFI 150HP (2012-2020+)
• 150L / 150XL / 150CXL SeaPro 3.0L I4 SOHC EFI 150HP (2016-2020+)
• 150L / 150XL Pro XS 3.0L I4 SOHC EFI 150HP (2019-2020+)
• 135HP 4-Stroke 3.0L Inline-4 SOHC EFI (SN 2B131942 & Up)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $364.25

Sale: $208.14

Save: 43%

Save: $156.11

Description
Details
Shipping
Reviews

Description

MERCURY MARINE 150HP 4-STROKE OUTBOARD (2012-ON):
• 150L 4-Stroke 3.0L Inline-4 SOHC EFI 150HP Outboard (2012-2020+)
• 150XL 4-Stroke 3.0L Inline-4 SOHC EFI 150HP Outboard (2012-2020+)
• 150L SeaPro 3.0L Inline-4 SOHC EFI 150HP Outboard (2016-2020+)
• 150XL SeaPro 3.0L Inline-4 SOHC EFI 150HP Outboard (2016-2020+)
• 150CXL SeaPro 3.0L Inline-4 SOHC EFI 150HP Outboard (2016-2020+)
• 150L Pro XS 3.0L Inline-4 SOHC EFI 150HP Outboard (2019-2020+)
• 150XL Pro XS 3.0L Inline-4 SOHC EFI 150HP Outboard (2019-2020+)
• 102mm × 92mm Bore × Stroke, Multi-Port EFI, 5000-6000 RPM

MERCURY MARINE 135HP 4-STROKE OUTBOARD:
• 135HP 4-Stroke 3.0L Inline-4 SOHC EFI Outboard (SN 2B131942 & Up)

ENGINE DETAILS:
• Engine: 3.0L (3000cc / 183 ci) Inline 4-Cylinder
• Valvetrain: 8-Valve SOHC w/ Roller Finger Followers
• Bore × Stroke: 102mm × 92mm (4.0" × 3.6")
• Fuel System: Multi-Port Electronic Fuel Injection (EFI)
• Starting: Electric Start
• Full Throttle RPM: 5000-6000
• Engine Weight: 455 lbs (20" shaft)
