BOMAG REVERSIBLE VIBRATORY PLATES (HATZ 1B40):
• Bomag BPR 50/55 D reversible vibratory plate with the Hatz 1B40 462cc diesel 2015-2024
• Bomag BPR 60/65 D reversible vibratory plate with the Hatz 1B40 462cc diesel 2015-2024
• Bomag BPR series reversible vibratory plates: soil and asphalt compaction, Boppard, Germany
AMMANN PLATE COMPACTORS:
• Ammann APR 30/20 (APR 3020) with the Hatz 1B30 347cc diesel 2015-2024
• Ammann APR 30/50 with the Hatz 1B30 347cc diesel 2015-2024
• Ammann APR 30/60 with the Hatz 1B30 347cc diesel 2015-2024
• Ammann APR 40/60 with the Hatz 1B30 347cc diesel 2015-2024
• Ammann APR 40/60 with the Hatz 1B40 462cc diesel 2015-2024
• Ammann APR 49/20 (APR 4920) with the Hatz 1B40 462cc diesel
• Ammann APR 59/20 (APR 5920) with the Hatz 1B40 462cc diesel 2015-2024
MIKASA REVERSIBLE COMPACTORS:
• Mikasa MVH-208DSZ with the Hatz 1B30 diesel
• Mikasa MVH-308DSZ-PAS with the Hatz 1B30 diesel
• Mikasa MVH-408DSZ-PAS with the Hatz 1B50 diesel
OTHER COMPACTORS AND ROLLERS:
• Weber CR6 MDM reversible plate compactor with the Hatz 1B40 Stage V
• BBA B30-180 with the Hatz 1B40 Stage V
• Batmatic CR5570 plate compactor with the Hatz 1B40
• Batmatic VR22 E double drum vibratory roller with the Hatz 1B40
• Euro Shatal PR6514-75 plate compactor with the Hatz 1B50
• Mecalac MBR71 single drum roller with the Hatz 1B50 T
GENSETS AND LIGHT TOWERS:
• Endress ESE 608 DHG DI Duplex genset with the Hatz 1B50
• Paclite PL2000 LED V6 light tower with the Hatz 1B30
HATZ 1B SERIES DIESEL ENGINES:
• Hatz 1B40 462cc single cylinder 88 x 76 mm air-cooled 4-stroke direct injection diesel, about 10.2 HP
• Hatz 1B40V 462cc single cylinder air-cooled diesel
• Hatz 1B50 517cc single cylinder 93 x 76 mm air-cooled 4-stroke direct injection diesel, about 11.6 HP
• Hatz 1B40 and 1B50: 20.5:1 compression, built by Motorenfabrik Hatz, Ruhstorf, Germany
• Used in compactors, gensets, pump sets, light towers and other Hatz powered machines

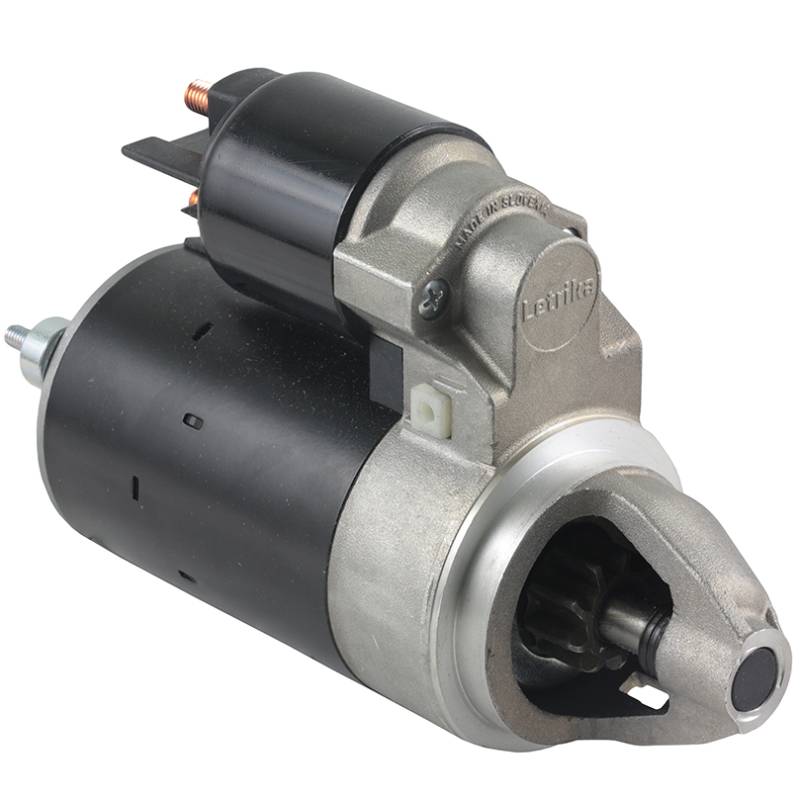

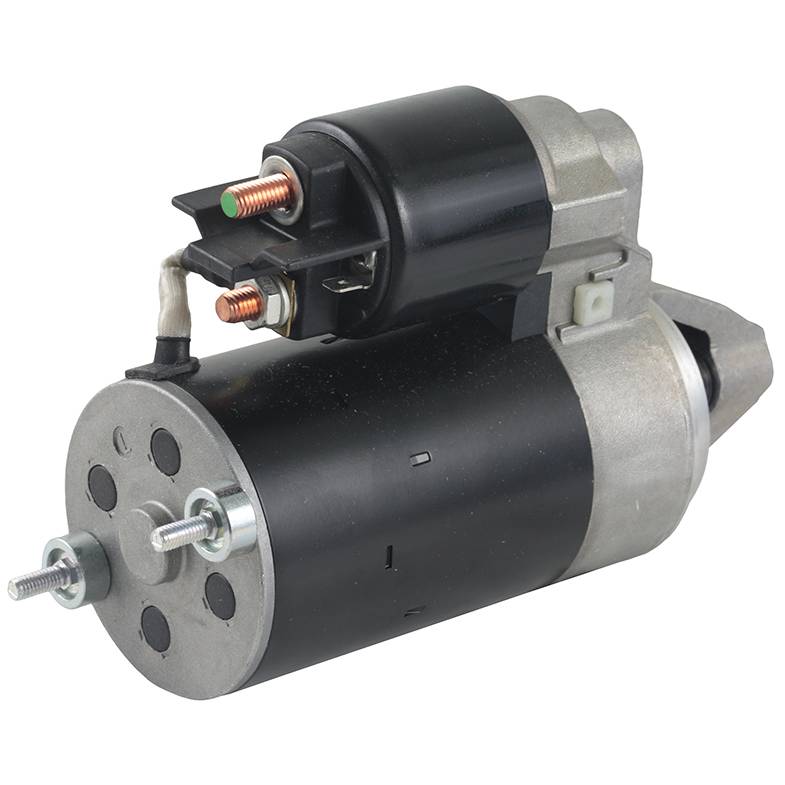

SPECIFICATIONS:
• Voltage: 12 volt
• Type: PMGR (permanent magnet gear reduction)
• Power: 1.0 kW
• Rotation: CCW
• Pinion: 9 tooth, module 2.54
• Gear OD: 28.7 mm / 1.13 in
• Spigot: 66 mm, offset drive end bracket
• Dust-proof, M8 B+ stud
• Weight: 8.15 lb
• PMGR 9 tooth CCW: 8 tooth units are a different part
• Condition: New aftermarket
