Top End Rebuild Kit 83.50Mm .5Mm Over Compatible With Tiger Shark Ts-R 770 Ts-L 770 Ts 770 1998-1999

OEM PART NUMBERS:
• Tiger Shark / Arctic Cat: 3008-412 / 3008412
• Tiger Shark / Arctic Cat: 3008-416 / 3008416
• Tiger Shark / Arctic Cat: 3008-413 / 3008413

SPECIFICATIONS:

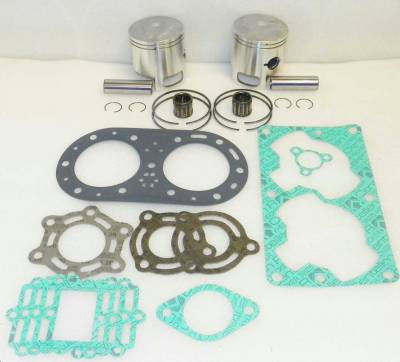

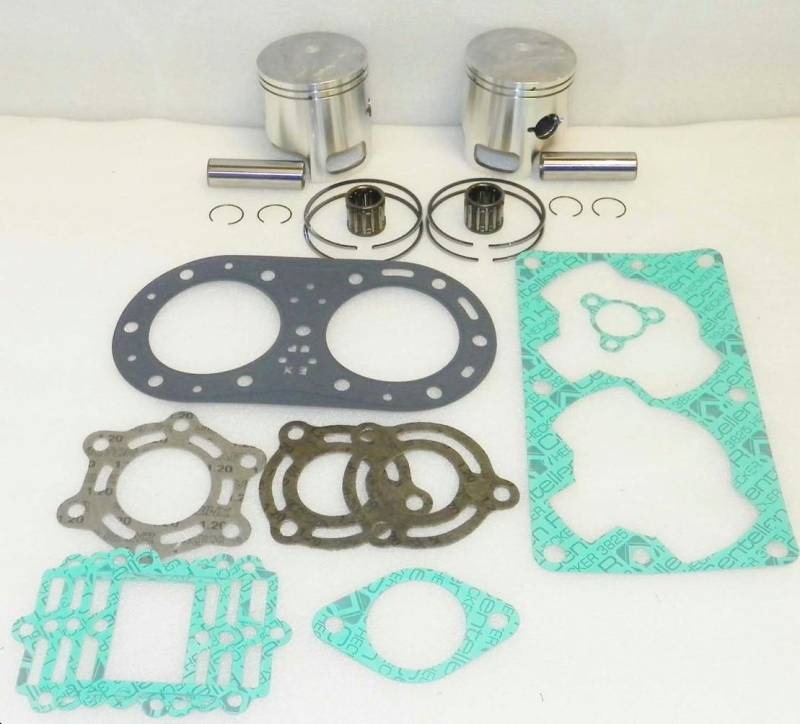

• Kit Type: Top End Rebuild Kit (pistons, rings, wrist pins, bearings, circlips + all gaskets)
• Bore Size: 83.50mm (+.50mm Over — 2nd of 4 oversizes)
• Standard bore: 83.00mm / 2nd increment of 4: STD 83.00 / +.25 / +.50 / +.75 / +1mm 84.00
• Engine: Tiger Shark / Arctic Cat 768cc 2-Cylinder 2-Stroke Liquid-Cooled ~80HP
• Pistons per engine: 2 / Clearance: .004-.0045"
• Tiger Shark = Arctic Cat subsidiary, all models discontinued 1999
• Source: Aftermarket / Weight: 5 lbs

TIGER SHARK 770 APPLICATIONS:
• Daytona 770 Tiger Shark 768cc 2-Cyl (1996-1997)
• Monte Carlo 770 Tiger Shark 768cc 2-Cyl (1996-1997)
• TS 770 / TS-L 770 / TS-R 770 Tiger Shark 768cc 2-Cyl (1998-1999)

PRODUCT NOTICE:
