Platinum Piston Kit 1Mm Over 85Mm Compatible With 1996-1997 Yamaha Wave Blaster 760 1997-2000 Gp 760

OEM PART NUMBERS:
• Yamaha: 64X-11631-00-91 / 64X116310091
• Yamaha: 65U-11631-00-89 / 65U116310089
• Yamaha: 65U-11631-02-90 / 65U116310290
• Yamaha: 65U-11631-01-90 / 65U116310190
• Yamaha: 65U-11631-01-89 / 65U116310189
• Yamaha: 65U-11631-00-00 / 65U116310000

SPECIFICATIONS:
• Type: Platinum Piston Kit (1mm Oversize Bore)
• Piston Finish: Platinum — Anodized Top, Graphite Coated Skirts
• Standard Bore: 84.0mm / Oversize: 85.0mm (1mm Over)
• Fits: 760cc 2-Cylinder AND 1200cc 3-Cylinder (same bore)
• Weight: 2 lbs / Condition: New

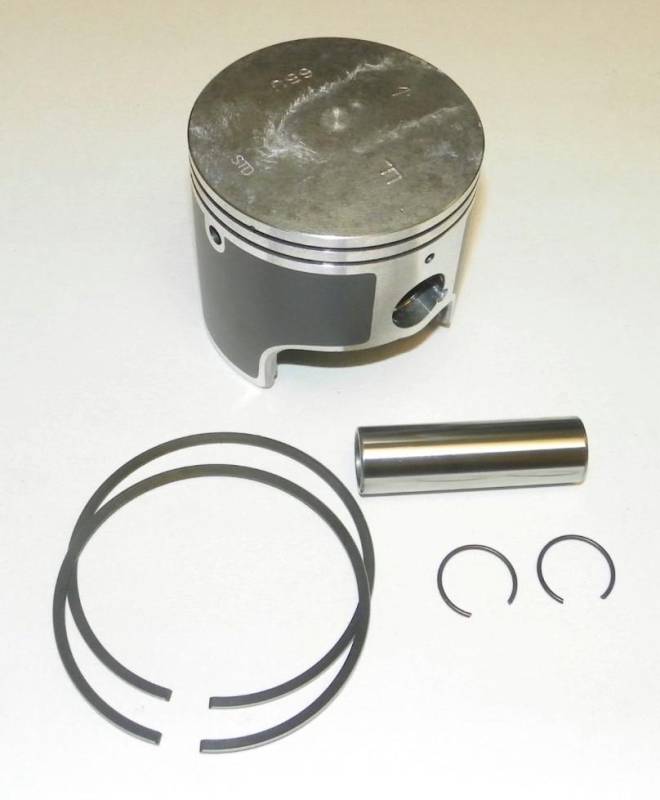

KIT CONTENTS (Single Cylinder):
• (1) Platinum Piston — Anodized Top, Graphite Coated
• (1) Ring Set / (1) Wrist Pin / (1) Bearing / (2) Circlips
• Order (2) for 760cc 2-cyl / (3) for 1200cc 3-cyl

BORE SIZE CHART (Yamaha 760/1200):
• Standard: 84.00mm
• 0.25mm Over: 84.25mm
• 0.50mm Over: 84.50mm
• 0.75mm Over: 84.75mm
• 1.00mm Over: 85.00mm (010-826-07PK) — THIS KIT

760cc PWC APPLICATIONS:
• Wave Blaster 760 (1996-1997) / Wave Raider 760 (1996)
• Wave Runner 760 (1997-1998) / Wave Venture 760 (1997)
• GP 760 (1999-2000) / XL 760 (1998-1999)

1200cc PWC & JET BOAT APPLICATIONS:
• GP 1200 (1997-1999) / XL 1200 (1998) / SUV 1200 (1999-2004)
• Exciter 135/270 (1998-1999) / LS 2000 (1999-2003)
• LX 2000 (2002) / AR 210 (2003-2005) / LX 210 (2003-2005)

PRODUCT NOTICE:
