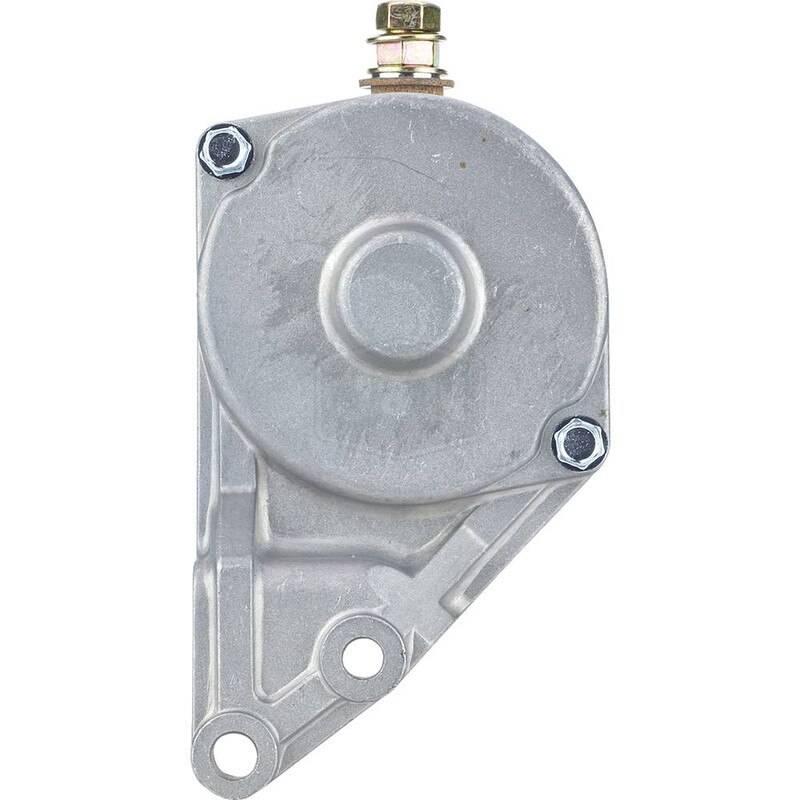

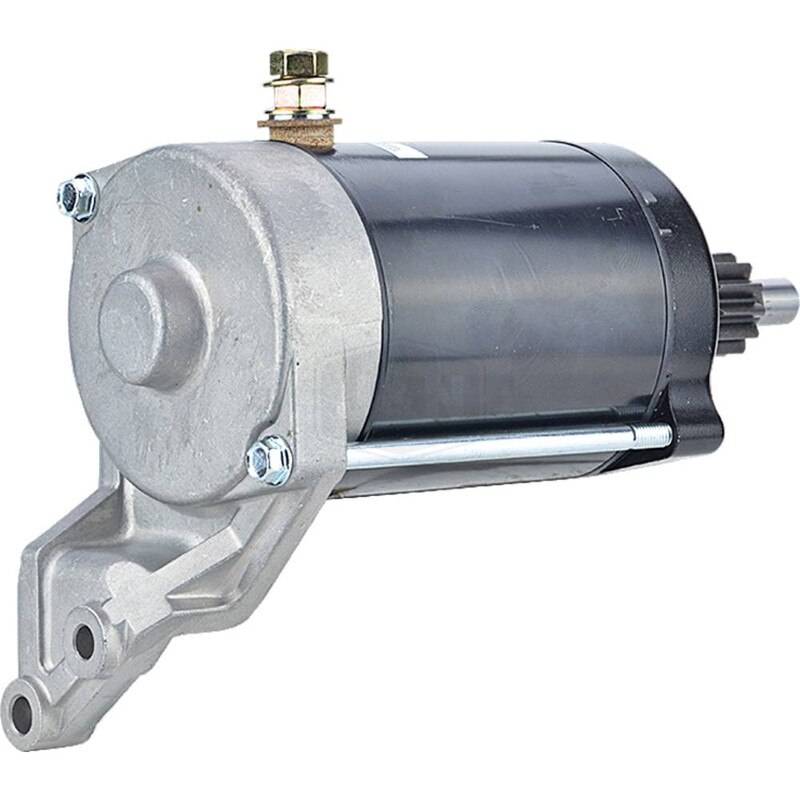

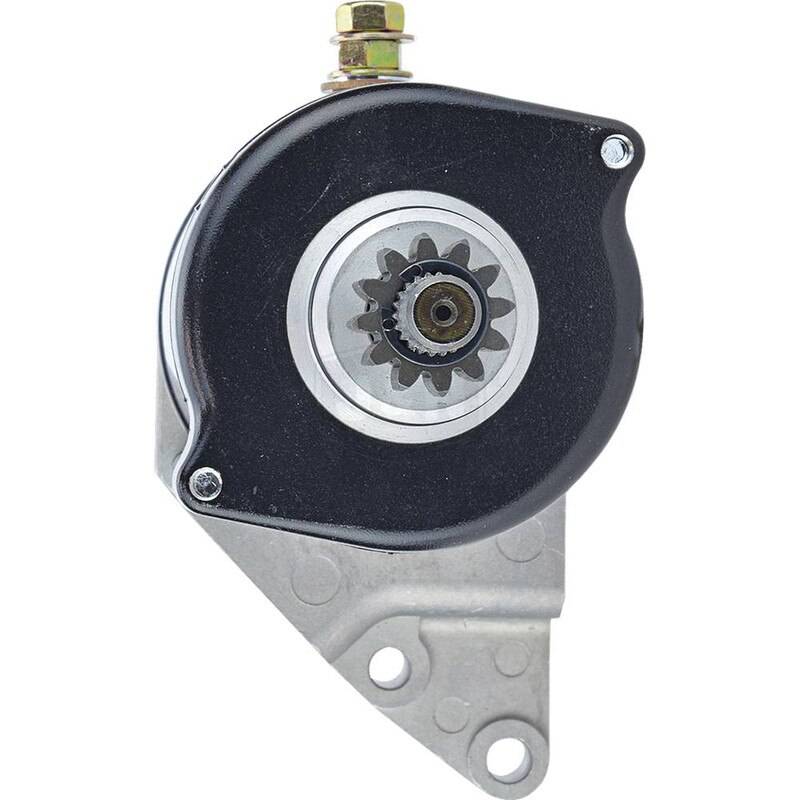

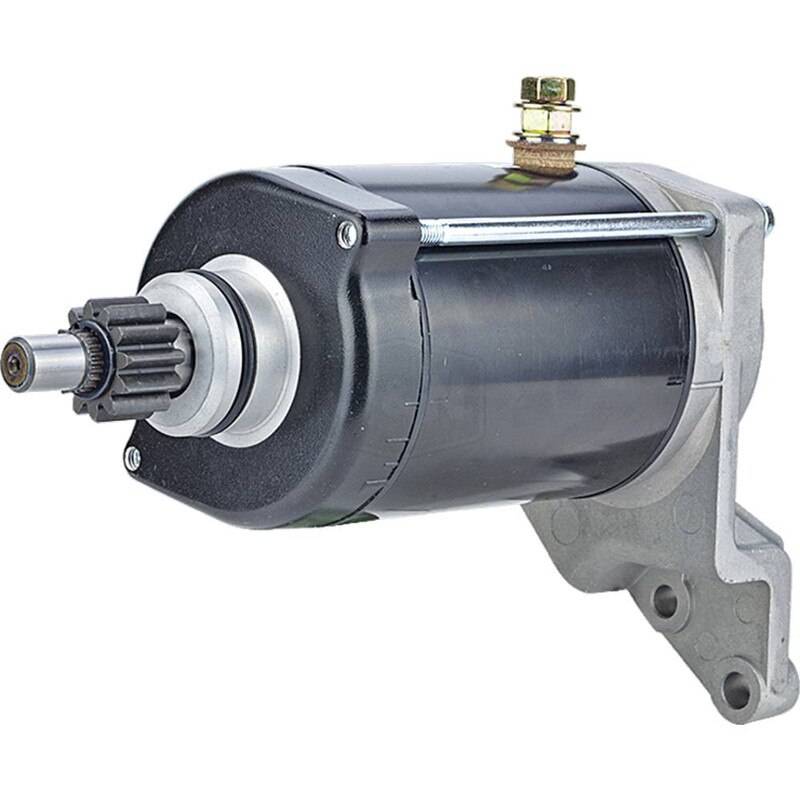

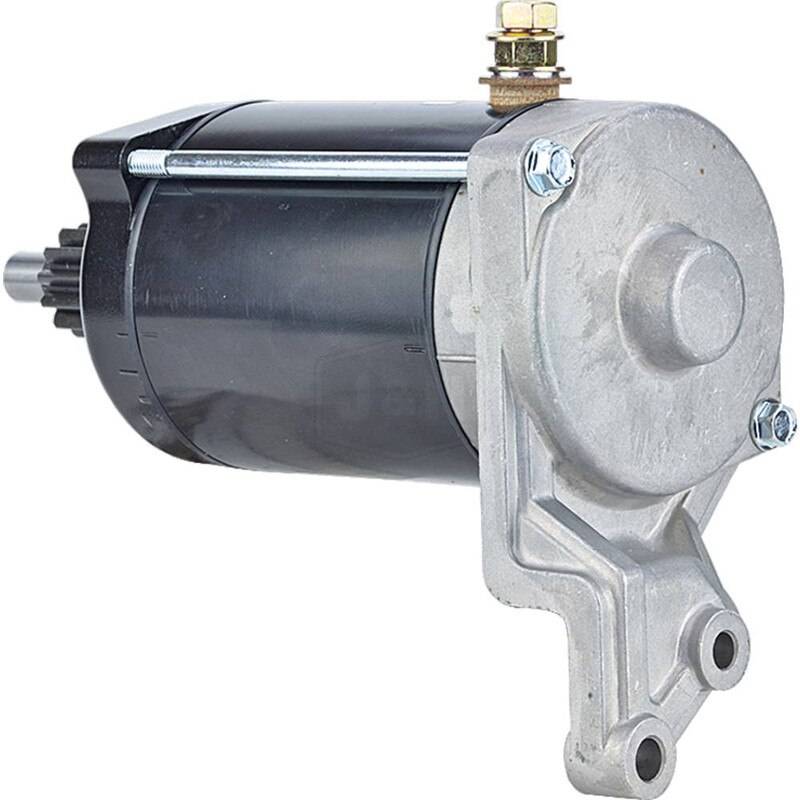

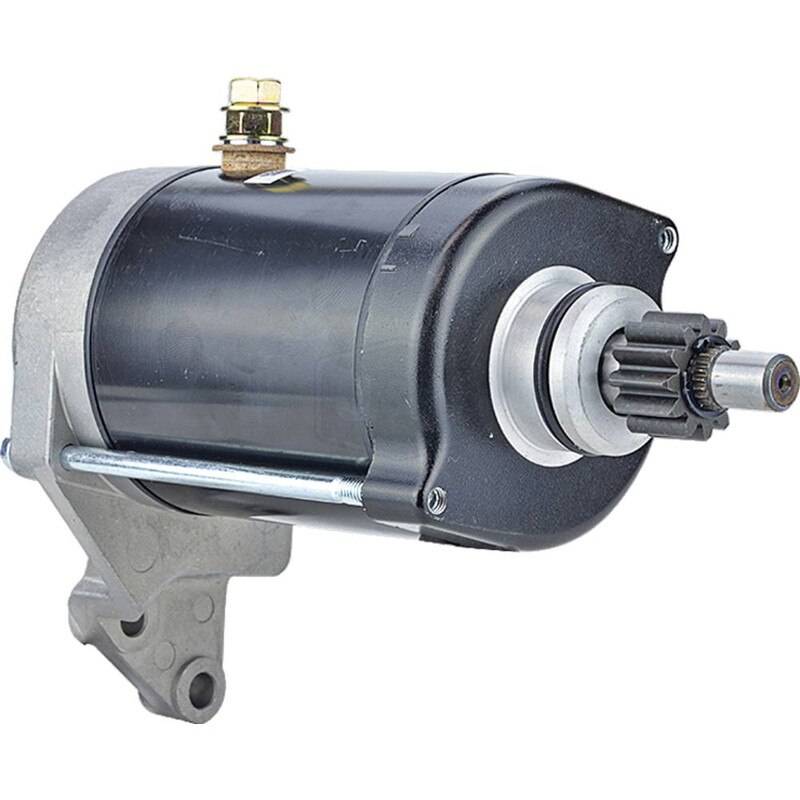

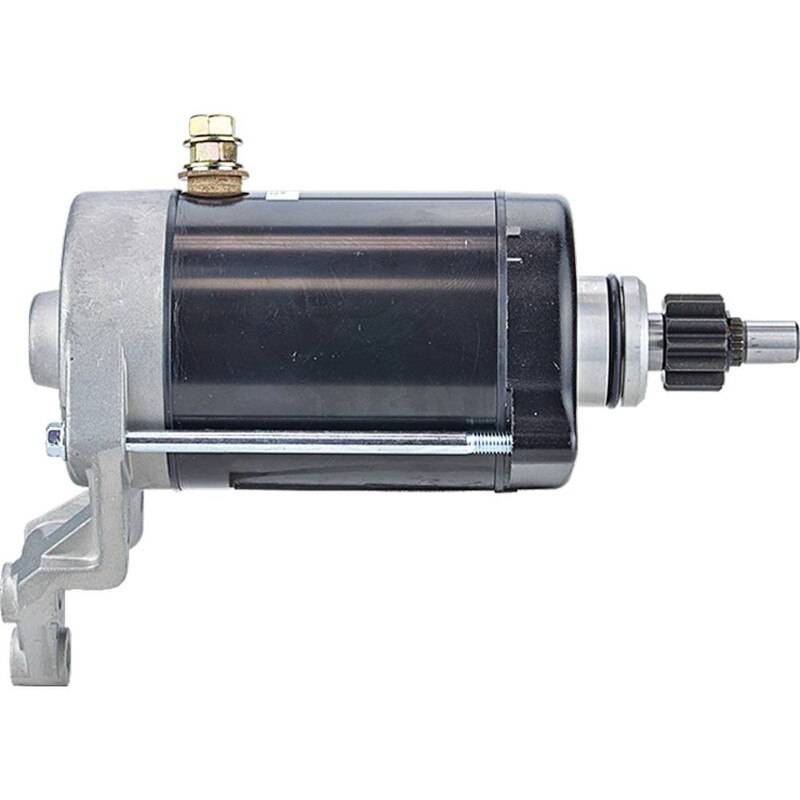

Starter Compatible With Mitsuba Sm13547 Yamaha Road Star Xv1600 Xv1700 1999-2007 1602Cc 1670Cc

18767N*3
YAMAHA OEM PART NUMBERS (1999-2003 Models):
• 4WM-81890-00-00
• 4WM-81890-01-00
• 4WM818900000
• 4WM818900100

YAMAHA OEM PART NUMBERS (2001-2007 Models):
• 5MB-81890-10-00
• 5MB-81890-11-00
• 5MB818901000
• 5MB818901100

MITSUBA PART NUMBERS:
• SM13547

SPECIFICATIONS:
• Voltage: 12V
• Rotation: Clockwise (CW)
• Type: PMDD (Permanent Magnet Direct Drive)
• Manufacturer Type: Mitsuba
• Teeth: 22
• Gear OD: 0.876" / 22.25mm
• Length: 6.87" / 174.5mm
• Weight: 6 lbs

FITS YAMAHA ROAD STAR MODELS:
• XV1600A Road Star (1999-2003)
• XV1600AS Road Star Midnight (2000-2003)
• XV1600AT Road Star Silverado (1999-2003)
• XV1700A Road Star (2004-2007)
• XV1700AM Road Star Midnight (2004-2007)
• XV1700AT Road Star Silverado (2004-2007)
• XV1700ATM Road Star Midnight Silverado (2004-2007)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $201.04
Sale: $114.88
Save: 43%
Save: $86.16
Qty:
Free Shipping!

Description

YAMAHA XV1600 ROAD STAR (1602cc) 1999-2003:
• XV1600A Road Star 1602cc (1999, 2000, 2001, 2002, 2003)
• XV1600AS Road Star Midnight 1602cc (2000, 2001, 2002, 2003)
• XV1600AT Road Star Silverado 1602cc (1999, 2000, 2001, 2002, 2003)

YAMAHA XV1700 ROAD STAR (1670cc) 2004-2007:
• XV1700A Road Star 1670cc (2004, 2005, 2006, 2007)
• XV1700AM Road Star Midnight 1670cc (2004, 2005, 2006, 2007)
• XV1700AT Road Star Silverado 1670cc (2004, 2005, 2006, 2007)
• XV1700ATM Road Star Midnight Silverado 1670cc (2004, 2005, 2006, 2007)

ENGINE SPECIFICATIONS:
• Type: Air-Cooled 48-Degree V-Twin
• 1602cc (1999-2003): Bore x Stroke 95mm x 113mm
• 1670cc (2004-2007): Bore x Stroke 97mm x 113mm
• Compression Ratio: 8.3:1
• Power: ~63 HP @ 4000 RPM (1670cc)
• Torque: ~99 ft-lb @ 2250 RPM (1670cc)
• Valve Arrangement: Pushrod, 2 Valves Per Cylinder
• Carburetor: 40mm Mikuni CV with TPS
• Transmission: 5-Speed
• Final Drive: Belt Drive

MOTORCYCLE WEIGHT/DIMENSIONS:
• Dry Weight: ~735 lbs (323 kg)
• Wheelbase: 66.5 inches (1689mm)
• Seat Height: 27.9 inches (709mm)
• Fuel Capacity: 20 Liters
