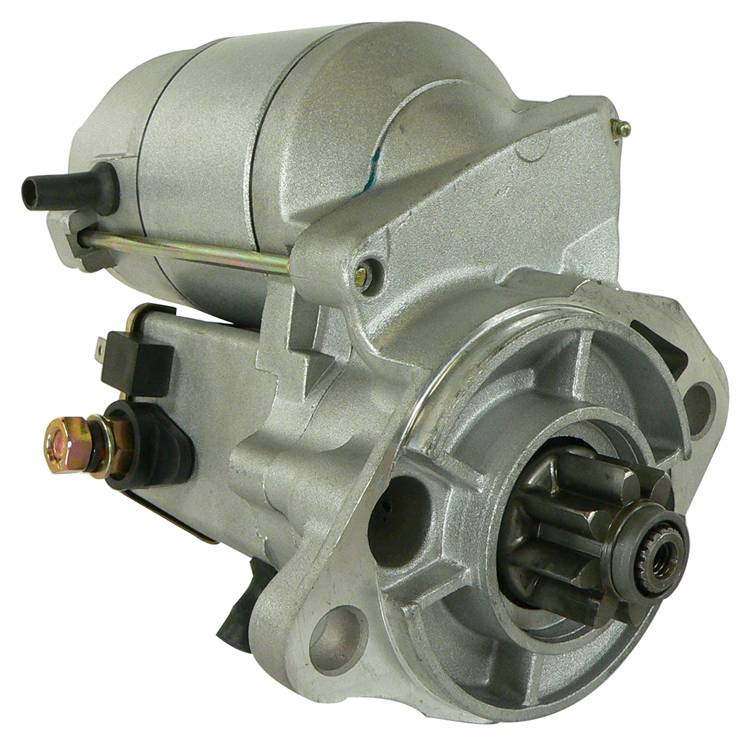

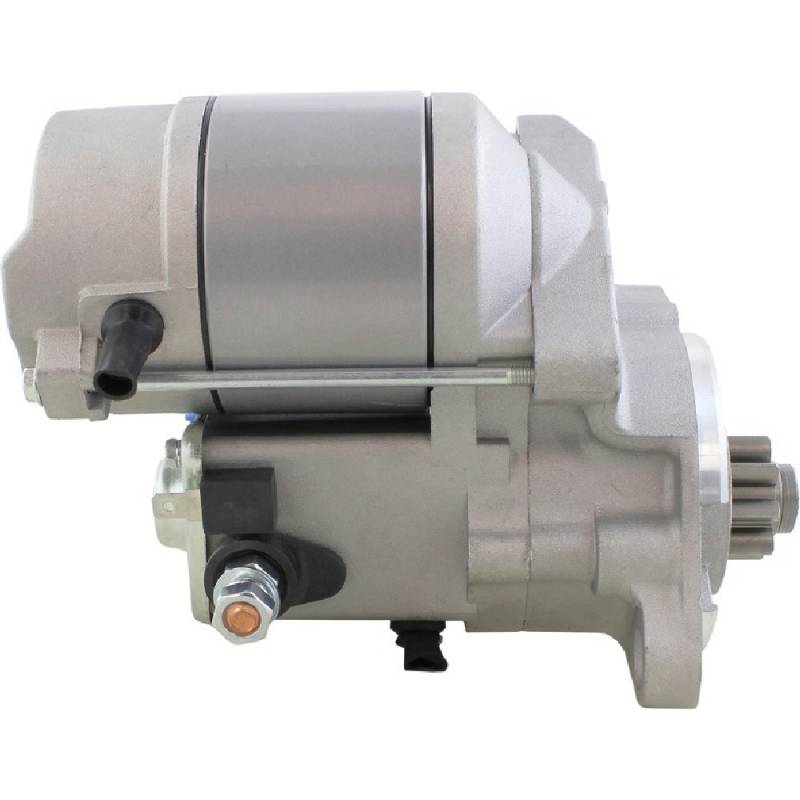

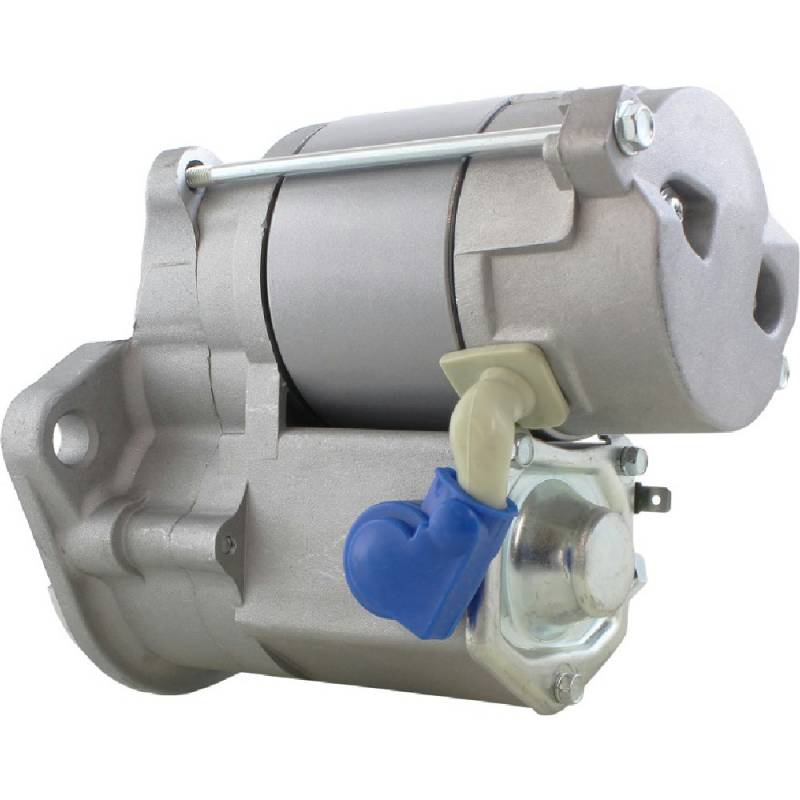

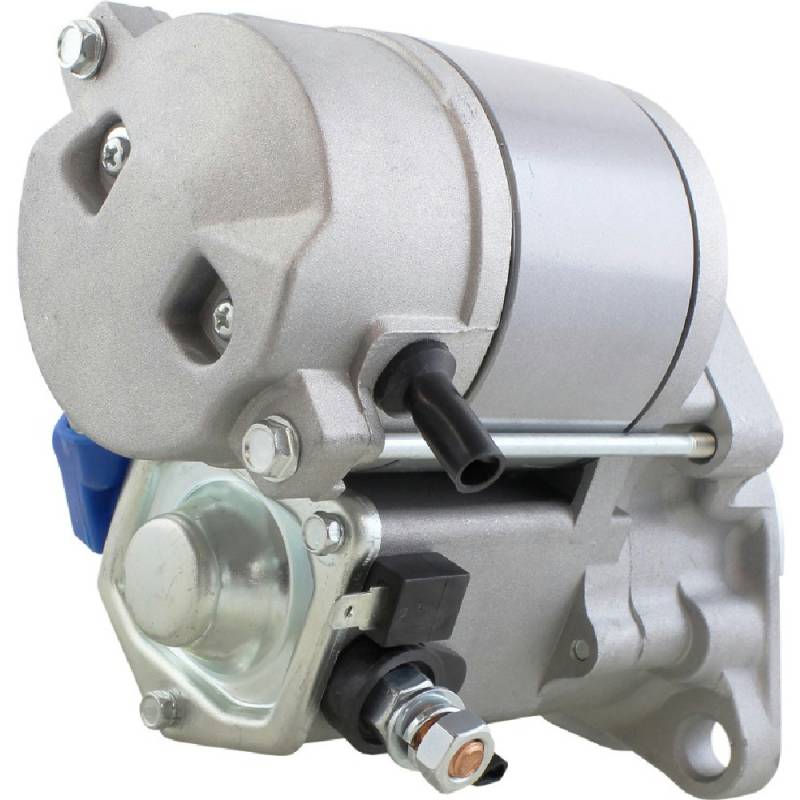

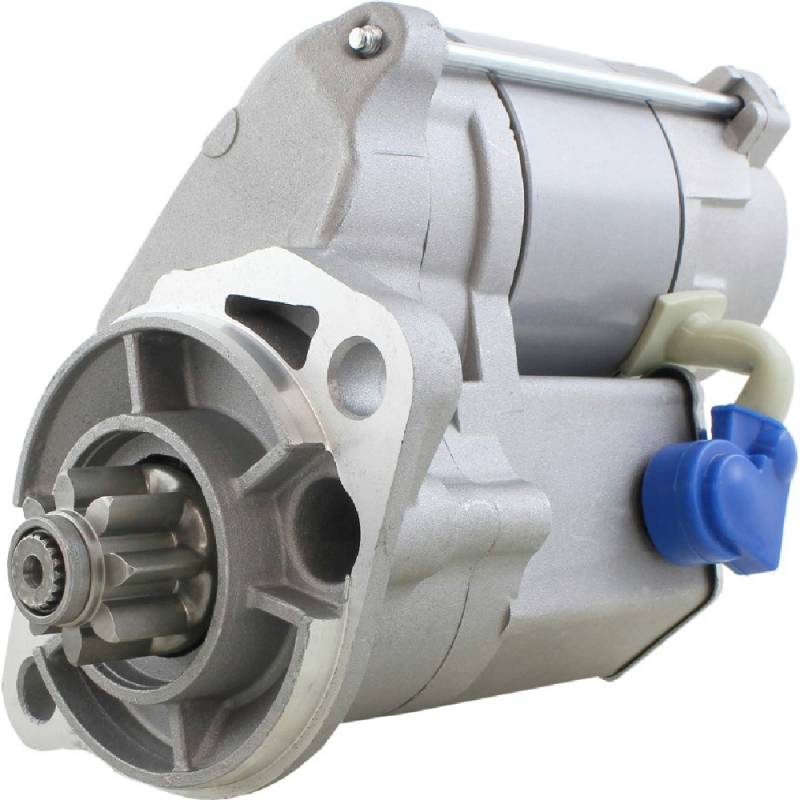

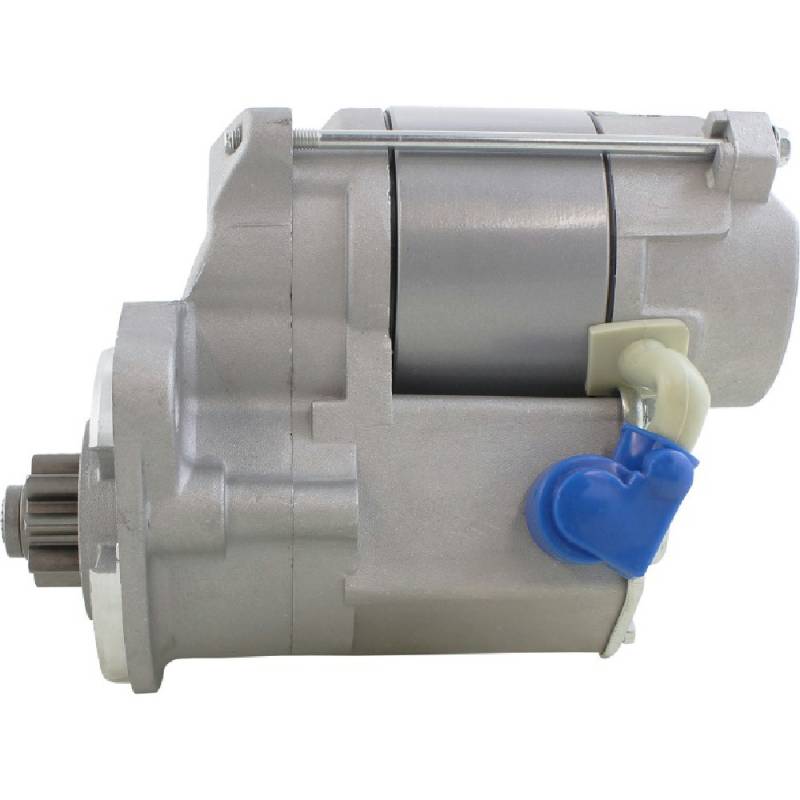

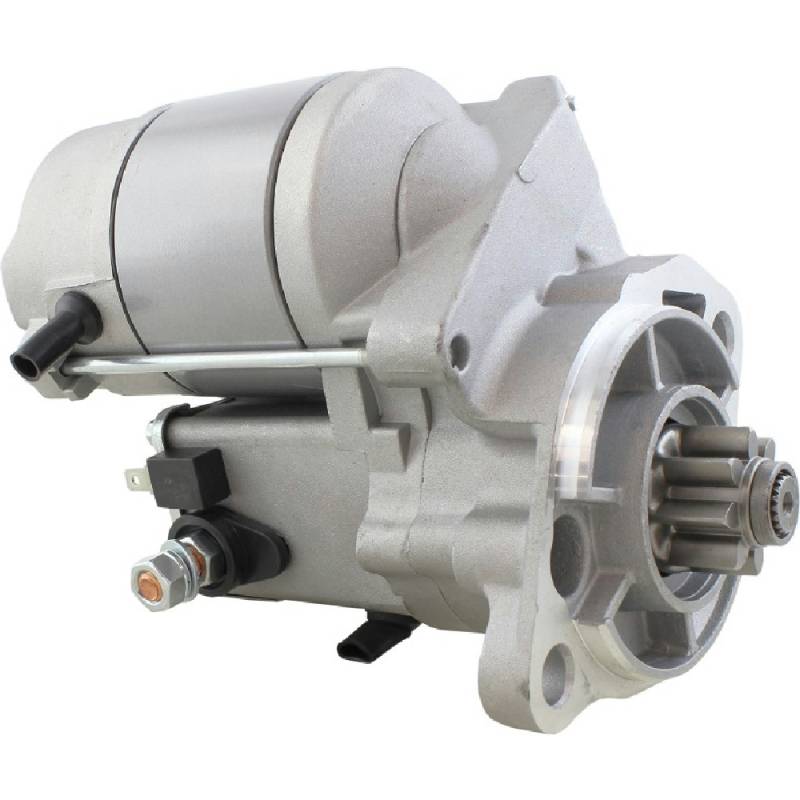

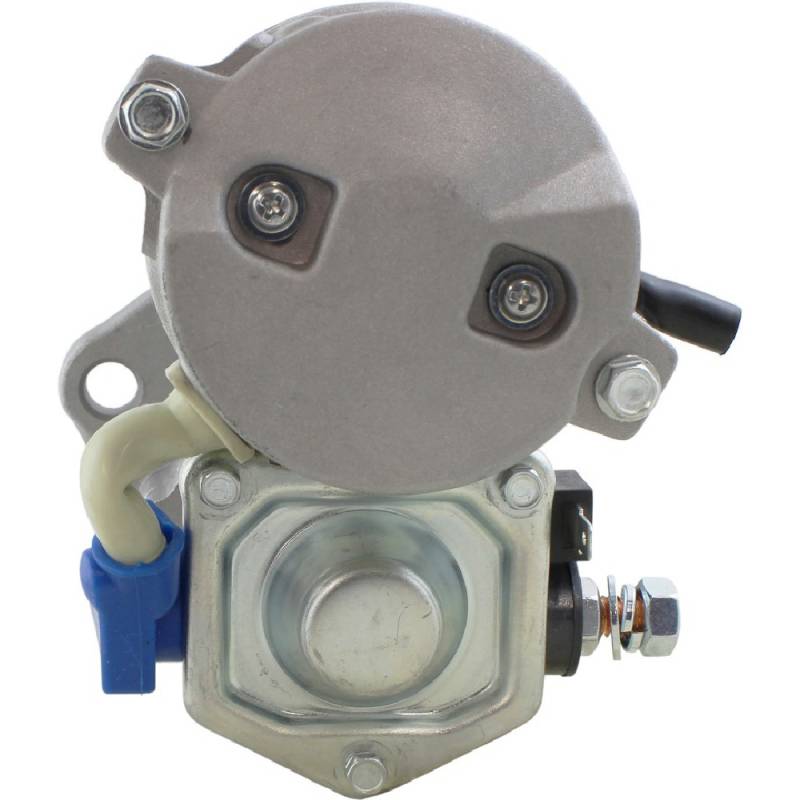

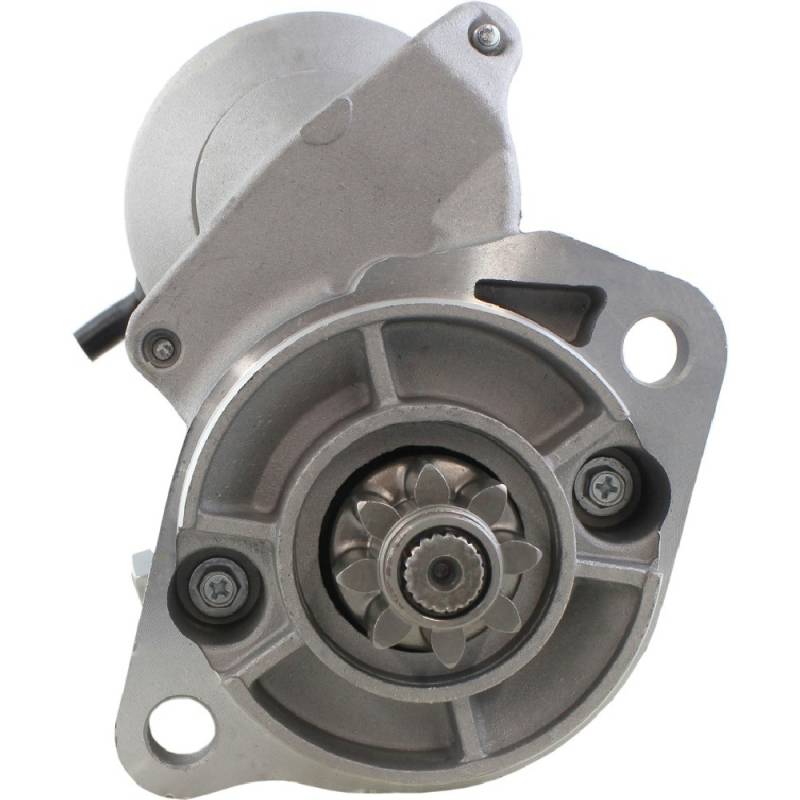

New Starter Compatible With Kubota Tractor L3540gst L3540hst L3830dt-F L3830f-F 228000-9800

SKU: 19161N*1

KUBOTA PART NUMBERS:
• T1150-16800, T115016800
• T1150-16801, T115016801
• T1150-16802, T115016802
• 77700-06122, 7770006122
• RC411-53200, RC41153200

DENSO PART NUMBERS:
• 228000-9800, 2280009800
• 228000-8691, 2280008691
• 228000-9801, 2280009801
• 9722809-980, 9722809980

LUCAS PART NUMBERS:
• LRS04072, LRS4072

MAHLE PART NUMBERS:
• MS1160
• IS9588

WILSON PART NUMBERS:
• 71-29-19161, 712919161

SPECIFICATIONS:
• Type: Denso offset gear reduction (OSGR)
• Voltage: 12 Volt
• Power: 1.4 kW
• Rotation: Clockwise (CW)
• Pinion: 8 teeth, 32.9 mm (1.295 in) OD
• Registry: 82.5 mm
• Mounting: 2 unthreaded 11 mm holes, 105 mm centers
• Battery terminal: M8 stud
• Weight: about 8.7 lb (3.2 to 3.9 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $300.83

Sale: $171.90

Save: 43%

Save: $128.93

Description
Details
Shipping
Reviews

Description

⚠️ 12 VOLT 1.4 KW 8 TOOTH CW DENSO OSGR STARTER, NEW:
• 12V, 1.4 kW, clockwise, Denso offset gear reduction (OSGR)
• 8 tooth pinion, 32.9 mm (1.295 in) gear OD, 82.5 mm registry
• Two unthreaded 11 mm mounting holes on 105 mm centers, M8 battery stud
• About 8.7 lb, new
• A 9 tooth starter or a 10 tooth 2.0 kW starter is a different unit

KUBOTA L3540 / L3940 / L4240 COMPACT TRACTORS:
• Kubota L3540GST with the D1803-M 2007-2013
• Kubota L3540HST with the D1803-M 2007-2013
• Kubota L3540HSTC with the D1803-M 2007-2013
• Kubota L3540GST-3 with the D1803-M-E3
• Kubota L3540HST-3 with the D1803-M-E3
• Kubota L3540HSTC-3 with the D1803-M-E3
• Kubota L3940DT with the V2003-M 2007-2013
• Kubota L3940GST with the V2003-M 2007-2013
• Kubota L3940HST with the V2003-M 2007-2013
• Kubota L3940HSTC with the V2003-M 2007-2013
• Kubota L3940DT-3 with the V2003-M-E3
• Kubota L3940GST-3 with the V2003-M-E3
• Kubota L3940HST-3 with the V2003-M-E3
• Kubota L3940HSTC-3 with the V2003-M-E3
• Kubota L4240DT with the V2203-M 2007-2013
• Kubota L4240GST with the V2203-M 2007-2013
• Kubota L4240HST with the V2203-M 2007-2013
• Kubota L4240HSTC with the V2203-M 2007-2013
• Kubota L4240DT-3 with the V2203-M-E3
• Kubota L4240GST-3 with the V2203-M-E3
• Kubota L4240HST-3 with the V2203-M-E3
• Kubota L4240HSTC-3 with the V2203-M-E3

KUBOTA L3830 / L4330 / L4630 COMPACT TRACTORS:
• Kubota L3830DT with the D1803-M 2003-2007
• Kubota L3830F with the D1803-M 2003-2007
• Kubota L3830GST with the D1803-M 2003-2007
• Kubota L3830HST with the D1803-M 2003-2007
• Kubota L4330DT with the V2203-M 2003-2007
• Kubota L4330GST with the V2203-M 2003-2007
• Kubota L4330HST with the V2203-M 2003-2007
• Kubota L4330HSTC with the V2203-M 2003-2007
• Kubota L4630DT with the V2203-M 2003-2007
• Kubota L4630GST with the V2203-M 2003-2007
• Kubota L4630GSTC with the V2203-M 2003-2007
• Kubota L4630HST with the V2203-M 2003-2007

KUBOTA STANDARD L SERIES TRACTORS:
• Kubota L3400DT with the D1703 2004-2010
• Kubota L3400F with the D1703 2004-2010
• Kubota L3400HST with the D1703 2004-2010
• Kubota L4400DT with the V2203-M-E2A 2004-2010
• Kubota L4400F with the V2203-M-E2A 2004-2010
• Kubota L4400H with the V2203-M-E2A 2004-2010
• Kubota L3800DT with the D1803 2011-2014
• Kubota L3800F with the D1803 2011-2014
• Kubota L3800H with the D1803 2011-2014
• Kubota L4600DT with the V2203-M-E3 2011-2014
• Kubota L4600F with the V2203-M-E3 2011-2014
• Kubota L4600H with the V2203-M-E3 2011-2014
• Kubota L4701DT with the V2403-CR 2014-2022
• Kubota L4701F with the V2403-CR 2014-2022
• Kubota L4701H with the V2403-CR 2014-2022
• Kubota L3200H
• Kubota L3700SU

KUBOTA TRACTOR LOADER BACKHOES:
• Kubota L39 TLB with the D1803-M-E2 2003-2009
• Kubota L45 TLB with the V2203-M 2009-2015
