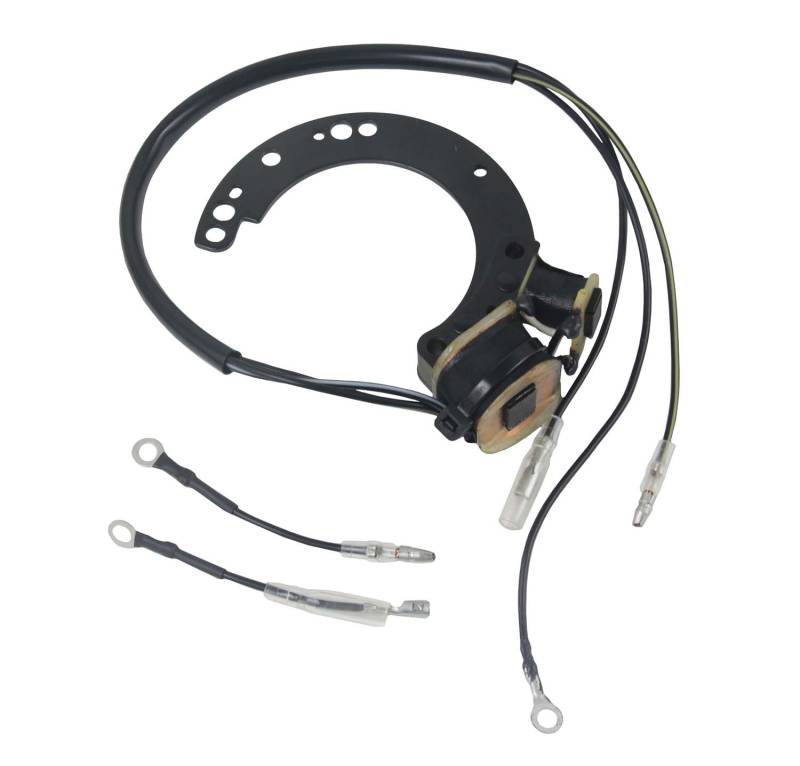

Stator Compatible With Mercury 86617A14 86617A17 Marine Outboard 15Hp 20Hp 25Hp 1994-1997 3 Pin

MS-008*2
MERCURY OEM PART NUMBERS:
• 86617A14 (Primary)
• 86617A17

SPECIFICATIONS:
• Unit Type: Mercury Marine Stator
• Connector Type: 3 Pin
• Cylinders: 2 Cylinder
• Engine Type: 2-Stroke
• Years: 1994-1997
• HP Range: 15, 20, 25

SERIAL NUMBER RANGES:
• 15HP: 0G044365 to 0G437999
• 20HP (1994-1996): 0G044027 to 0G437999
• 20HP (1997-1998): 0G438000 to 0G760299
• 25HP/Jet 20: 0G044027 to 0G437999

COMPATIBLE SWITCH BOXES:
• 114-4952A30
• 18495A30

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $230.13
Sale: $131.50
Save: 43%
Save: $98.63
Qty:
Free Shipping!

Description

MERCURY MARINE OUTBOARD APPLICATIONS (1994-1997):

Mercury 15HP Models:
• 15HP 2-Stroke 2 Cylinder 1994-1996
• 15XD 1994-1996
• S15 1994-1996
• Serial Range: 0G044365 to 0G437999

Mercury 20HP Models:
• 20HP 2-Stroke 2 Cylinder 1994-1997
• Sea Pro 20HP 1996-1997
• Serial Range: 0G044027 to 0G760299

Mercury 25HP Models:
• 25HP 2-Stroke 2 Cylinder 1994-1997
• Serial Range: 0G044027 to 0G437999

Mercury Jet Models:
• Jet 20HP 1994-1997
• Jet 25HP 1994-1997

APPLICATION NOTES:
• 3 Pin Connector Configuration
• 2-Stroke 2-Cylinder Engines
• Use with Switch Box 114-4952A30, 18495A30
• Direct Fit OEM Replacement

Details

Shipping Information

  • Item Requires Shipping
  • 1.1 lbs.
  • W7.0000” x H3.0000” x L7.0000”
  • Free Shipping!
