Charge Coil Assembly Compatible With 1990-2020 Yamaha Superjet Wave Runner Iii Vxr 650 700 Fx1 Wave

004-148*3
Replaces Part Numbers

62T-85520-01-00 / 62T855200100
62T-85520-00-00 / 62T855200000


Specifications

Type: Charge Coil / Stator Charging Coil
Resistance: 497-608 Ohms
Engine: 650cc / 700cc 2-Stroke
Weight: Approx. 2 lbs


Applications

SuperJet 650/700, Wave Runner III 650/700, VXR 650, LX 650
FX1 700, VXR Pro 700, Wave Blaster 700, Wave Raider 700
Wave Venture 700, XL 700 (1990-2020)

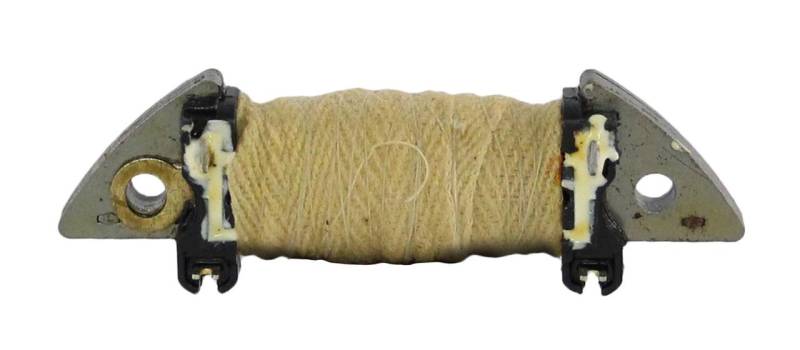

Stator Charge Coil for Yamaha SuperJet Wave Runner III XL700
Replacement charge coil for Yamaha OEM 62T-85520-01-00. The charge coil is mounted on the stator plate behind the flywheel and generates the voltage pulse that powers the ignition. When worn or damaged, resistance values fall outside the 497-608 ohm specification range, resulting in weak spark or ignition failure. Common in high-hour watercraft exposed to heat and moisture. This replacement provides reliable ignition performance for Yamaha 650cc and 700cc 2-stroke PWC. Plug-in replacement with factory-matched terminals.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $61.01
Sale: $34.86
Save: 43%
Save: $26.15
Qty:
Free Shipping!

Description

Applications

Yamaha Jet Ski 650cc/700cc 2-Stroke (1990-2020):
SuperJet 650 (1990-1993), SuperJet 700 (1995-2020)
Wave Runner III 650 (1990-1993, 1995), Wave Runner III 700 (1994-1997)
VXR 650 (1991-1995), VXR Pro 700 (1993-1994), LX 650 (1991-1993)
FX1 700 (1994-1995), Wave Blaster 700 (1993-1996)
Wave Raider 700 (1994-1997), Wave Venture 700 (1995-1998)
XL 700 (1999-2004)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.5 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
