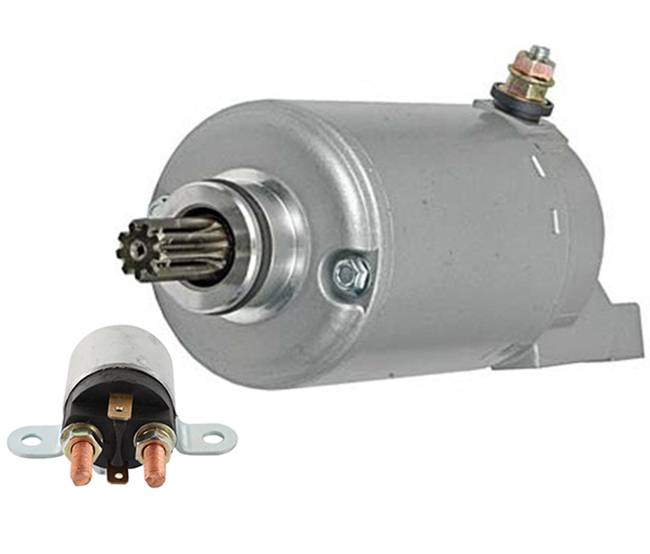

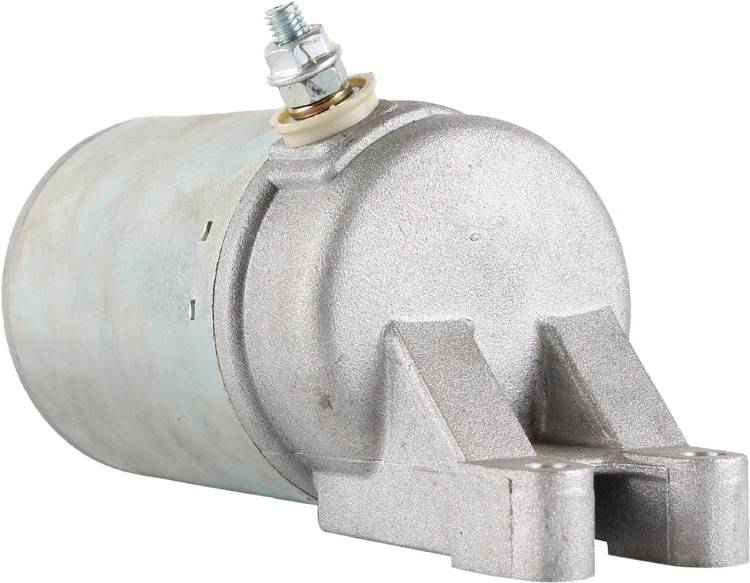

New 12V Pmdd Starter And Solenoid Relay Compatible With Bombardier Traxter 500 Max Xl Xt Autoshift

OEM PART NUMBERS - STARTER:
• Bombardier / Can-Am: 420-296-125 / 420296125
• Bombardier / Can-Am: 711-296-120 / 711296120
• Bombardier / Can-Am: 711-296-125 / 711296125
• Denso / Nippondenso: 228000-9810 / 2280009810
• John Deere: C420-296-125 / C420296125

OEM PART NUMBERS - STARTER RELAY:
• Bombardier: 710-000-252 / 710000252
• Denso: 182800-3760 / 1828003760

STARTER SPECIFICATIONS:
• Unit Type: Denso
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Power: 0.7kW / 0.94HP
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 14mm / 0.551in
• Mounting Holes: Dual 6mm ID Unthreaded
• Battery Stud: M6-1.0 Threaded
• Weight: 3.59 lbs / 1.63 kg
• Condition: New

BOMBARDIER / JOHN DEERE APPLICATIONS:
• Bombardier Traxter 500 / Foot Shift / Autoshift / Autoshift XT 498cc (1999-2003)
• Bombardier Traxter 500 5-Speed 498cc (2004-2005)
• Bombardier Traxter Max 500 / Max XT 500 498cc (2003-2005)
• Bombardier Traxter XL 500 / XT 500 498cc (2001-2005)
• John Deere Buck 500 / Trail Buck 500 Rotax 498cc (2004-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
