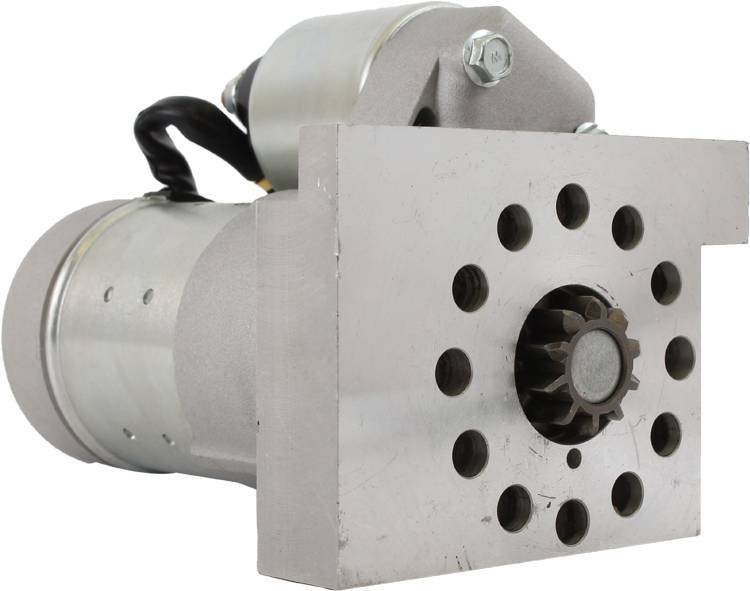

New 12V Starter Compatible With Mini Chevrolet 4.3L V6 327 305 Sbc Small Block V8 153 168 Tooth

19695*1
HITACHI PART NUMBERS:
• PSL100, PSL-100
• S114-823, S114823
• S114-823C
• S114-823S, S114-823T

ALSO REPLACES ON THE SAME PAD MOUNT:
• Delco 10MT / SD300 direct drive
• Delco PG260 gear reduction

SPECIFICATIONS:
• Type: Hitachi permanent magnet planetary gear reduction (PMGR)
• Voltage: 12 Volt
• Power: 1.2 kW (1.61 HP)
• Rotation: Clockwise (CW)
• Reduction: about 6:1
• Pinion: 10 teeth, 28 mm (1.102 in) OD
• Mounting: twelve 10 mm unthreaded holes, 153 or 168 tooth flywheel
• Compression: up to 12:1
• Weight: about 8 lbs (3.7 kg)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $196.72
Sale: $112.41
Save: 43%
Save: $84.31
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 1.2 KW 10 TOOTH CW HITACHI PSL100 MINI STARTER:
• 12V, 1.2 kW, clockwise, permanent magnet planetary gear reduction, 10 tooth pinion, 28 mm gear OD
• Twelve 10 mm block holes for 153 or 168 tooth flywheel patterns and 12 clocking positions
• About 8 lbs, up to 12:1 compression, automatic or manual

CHEVROLET SMALL BLOCK V8:
• 262, 265, 267, 283, 302, 305, 307
• 327, 350, 383 stroker, 400

CHEVROLET BIG BLOCK V8:
• 396, 402, 427, 454

CHEVROLET 90° V6 4.3L:
• 1985-2002 Astro, 1995-2002 Blazer
• 1985-1998 C / K pickups

CHEVROLET CARS, 1955-1986:
• Bel Air, Biscayne, Impala, Caprice
• Chevelle, Malibu, El Camino, Monte Carlo
• Nova, Camaro, Corvette

CHEVROLET / GMC TRUCKS, 1960-1986:
• C10, K10, C20, K20 pickups
• Suburban, Blazer, GMC Jimmy

PERFORMANCE:
• Street rods, race cars, engine swaps and GM crate engines with the standard SBC / BBC pad mount

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.1 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • Free Shipping!
