HITACHI PART NUMBERS: • S13-204, S13204
• S13-404, S13404
• S13-205, S13205
• S13-205A, S13205A
• S13-205G, S13205G
• 2506958
• 136958
YANMAR PART NUMBERS: • 129900-77010, 12990077010, YM129900-77010, YM12990077010
• 129900-77011, 12990077011
• 129900-77020, 12990077020
• 129900-77040, 12990077040, YM129900-77040
EQUIPMENT MAKER PART NUMBERS: • John Deere AT211995
• Kohler 363154
• Yale 580062748, 5800627-48, 220103475
• Ingersoll Rand 22255566, 2225566
• Hyster 1599845, 1599846, 28000171, 3114929
• Doosan 300510-00011, 30051000011, A408129
• Wacker Neuson 1000325567, 1000012910
OTHER PART NUMBERS: • Wilson 91-25-1178, 91251178, 91-25-1178N
• Lucas LRS01565, LRS1565, LES0195
• Letrika IS9614
• Elpar 011903689, 011903689A
• Valeo 600051, 602005
• Bosch 0399501105
• Remy DRS1013
KOMATSU / YANMAR PART NUMBERS: • YM129910-77020, 129910-77020, 12991077020
• 129910-77021, 12991077021
• 129910-77022, 12991077022
• 129910-77023, 12991077023

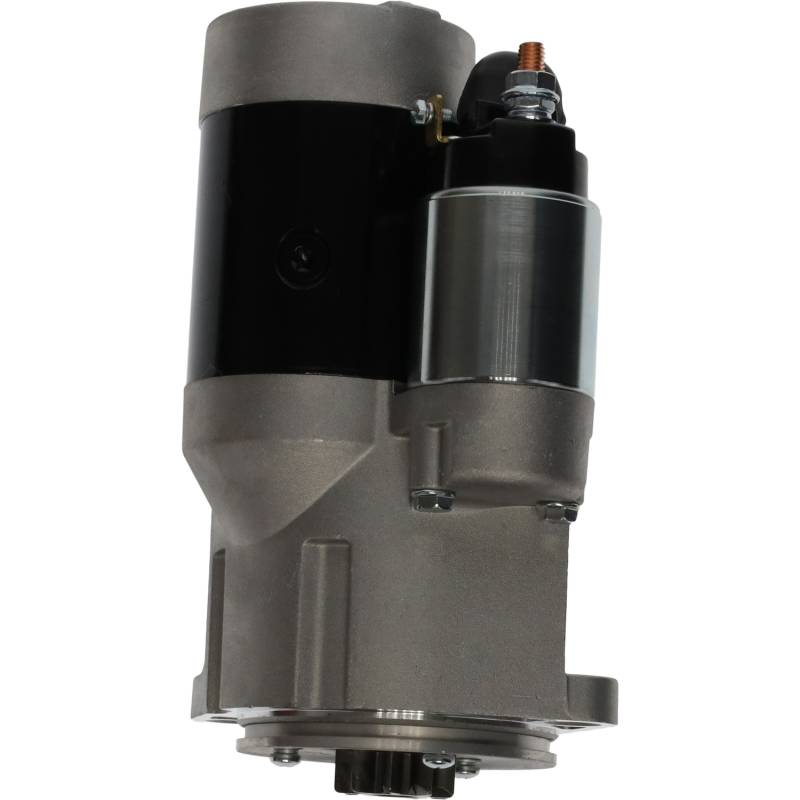

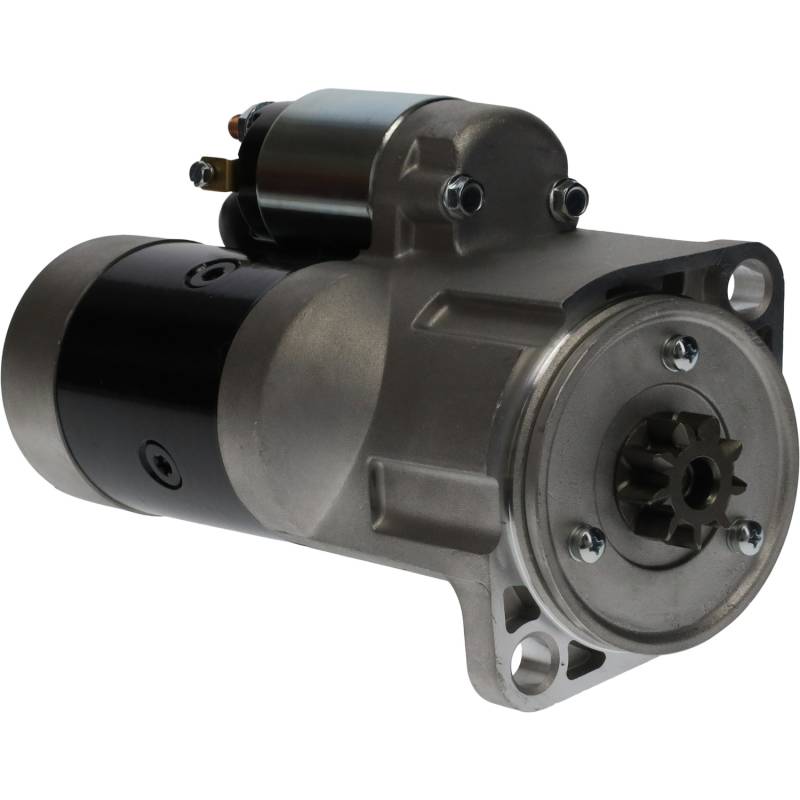

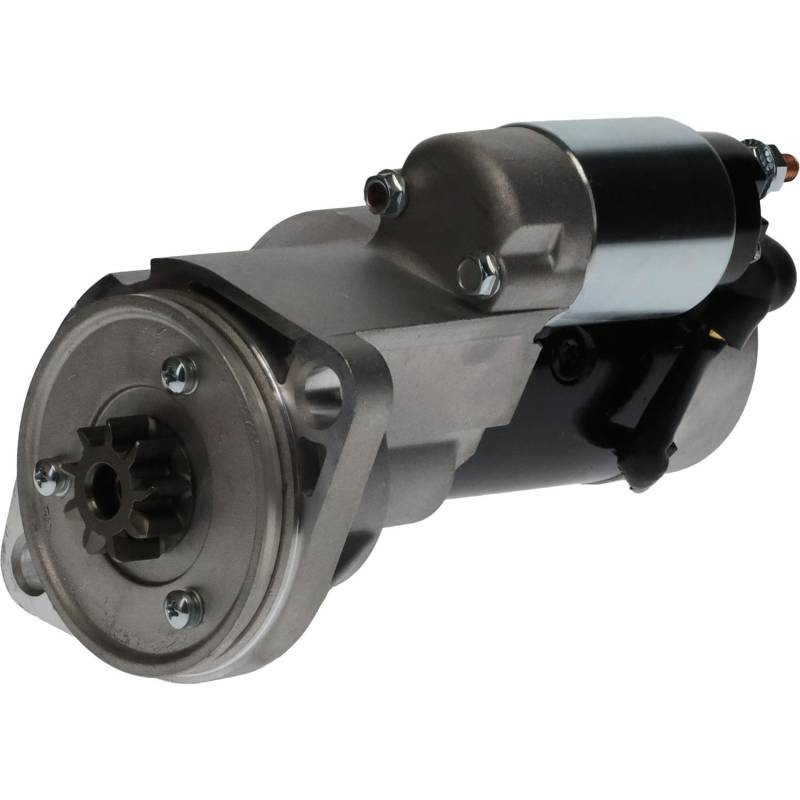

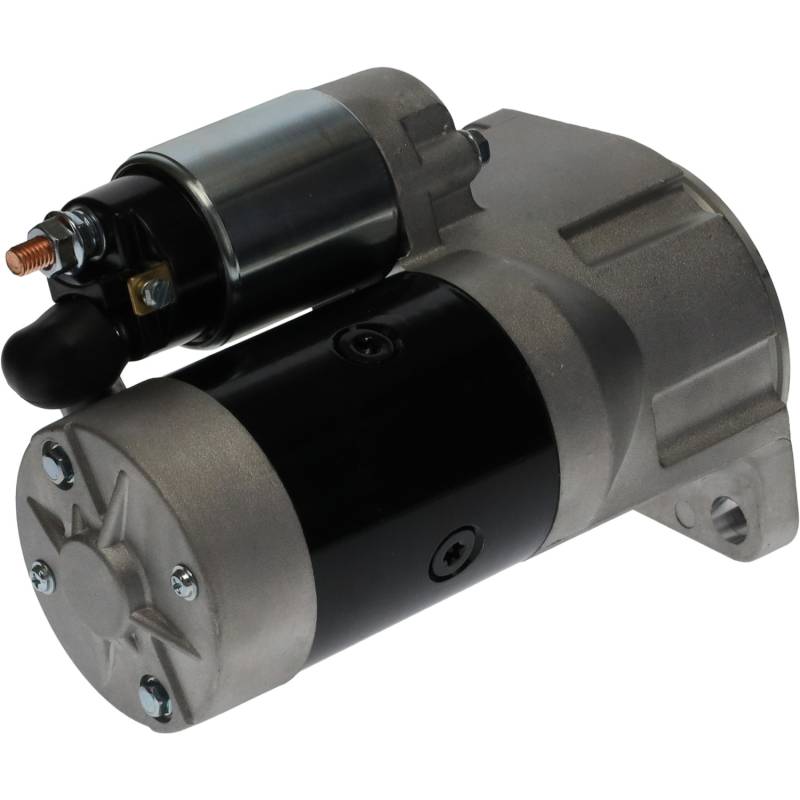

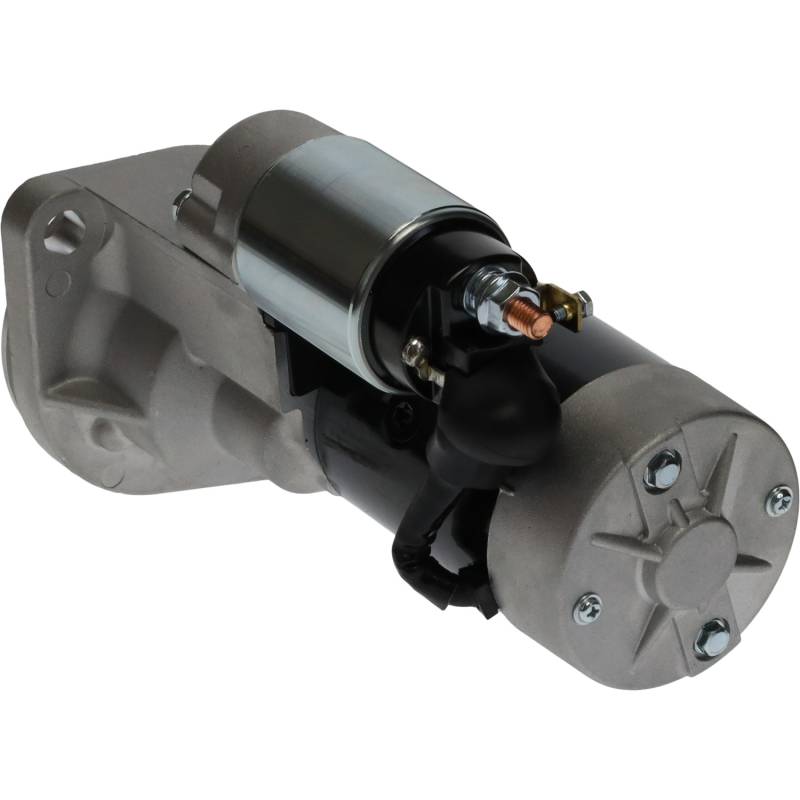

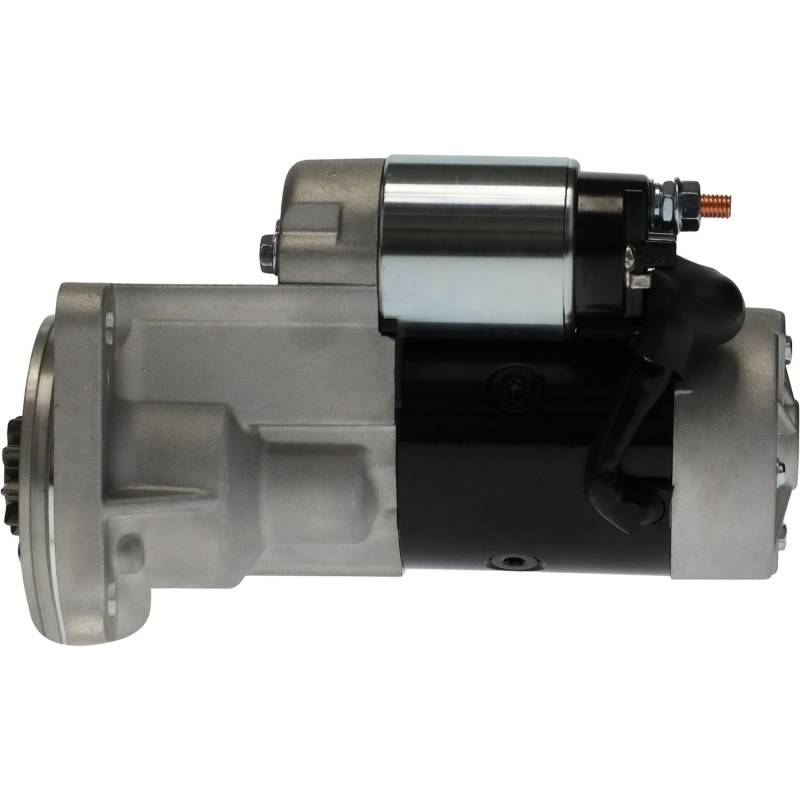

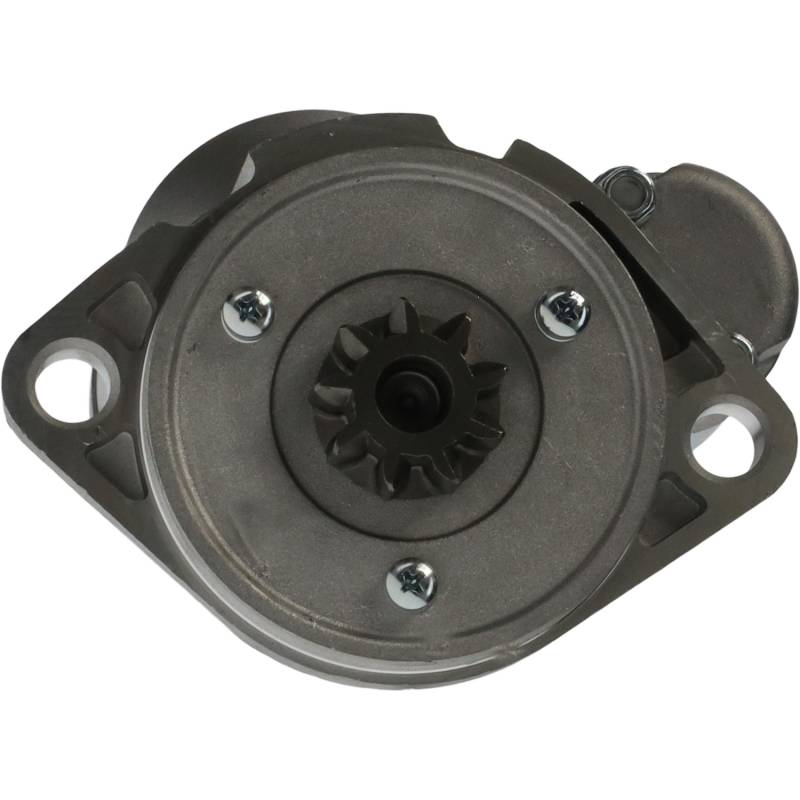

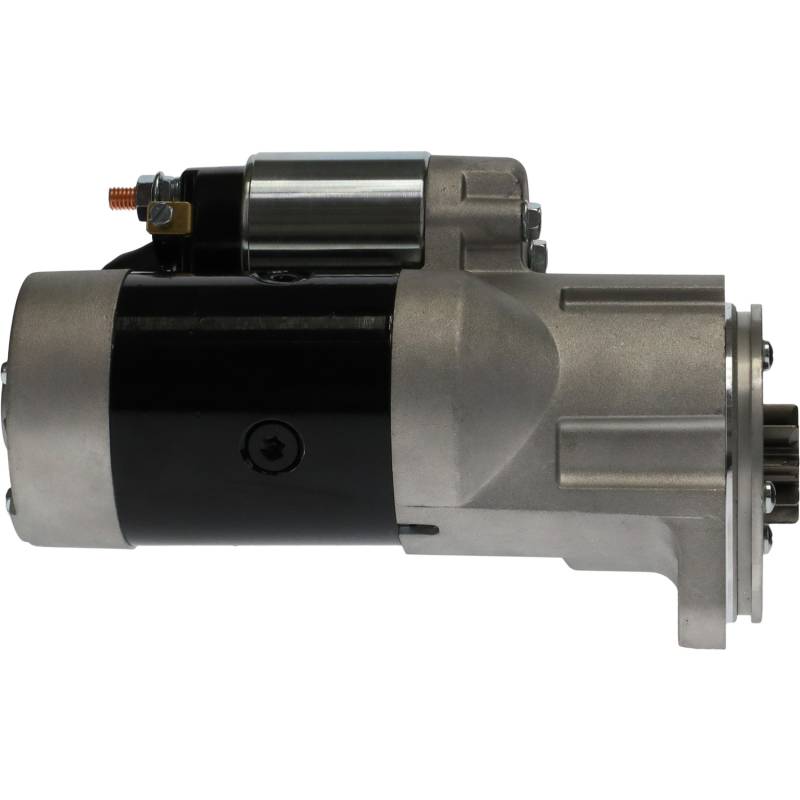

SPECIFICATIONS: • Type: OSGR (offset gear reduction) starter
• Voltage: 12 volt
• Power: 2.3 kW (3.1 hp), listed 2.2-2.3 kW
• Rotation: clockwise (CW), viewed from the pinion
• Pinion: 9 tooth, 35.1 to 35.4 mm (1.382 to 1.394 in) gear OD
• Mounting: 2 ears, 13.0 mm unthreaded holes, 120 mm (4.724 in) center to center
• Registry OD: 75.3 mm (2.965 in)
• Length: 213.5 mm (8.406 in)
• Weight: 10.76 to 12.32 lb (4.88 to 5.59 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
