OEM PART NUMBERS:
• Mercury Marine: 84-819514A15 / 84819514A15
• PIC / RAM: 9807-100 / 9807100
• Eaton / Wilson: 47-35-9003 / 47359003
• RAM / BBB: 28-9807-100 / 289807100
COMPATIBLE TILT TRIM MOTOR NUMBERS (verify before ordering):
• Mercury Marine: 99186, 99186-1 / 991861, 99186T, 826729A10
• API Marine: PT475N, PT475TN, PT475TN-2 / PT475TN2
SPECIFICATIONS:

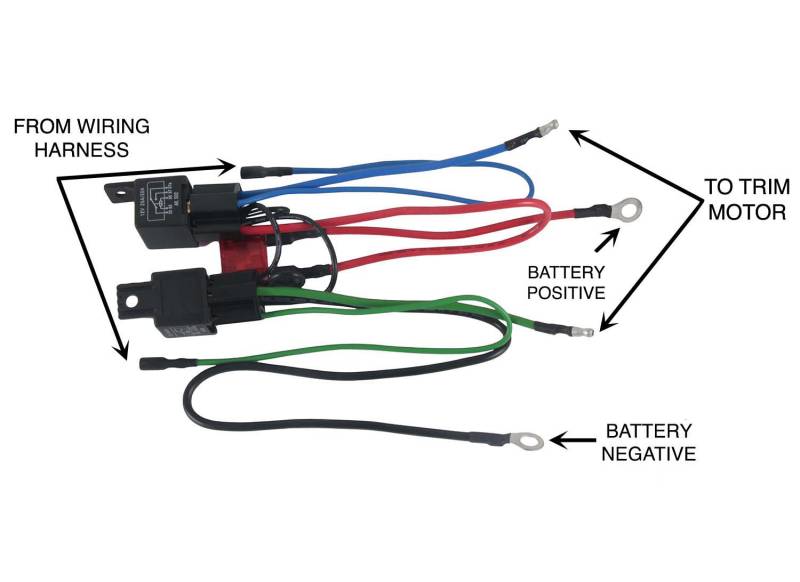

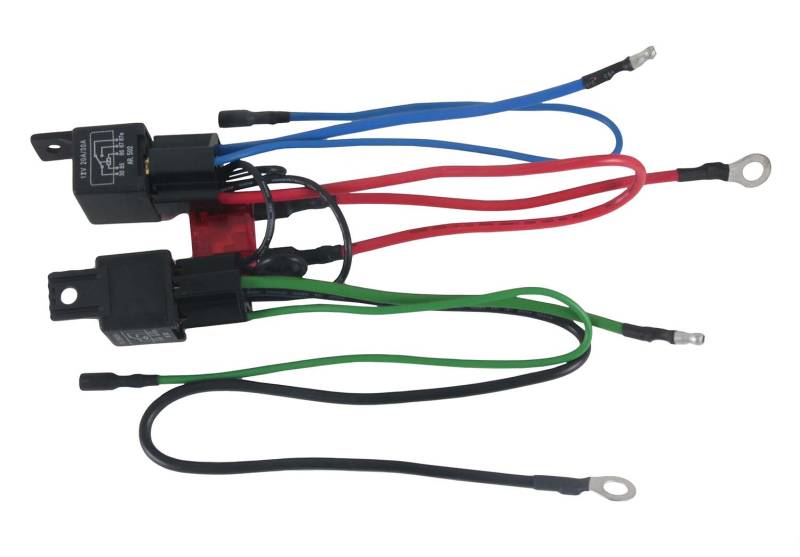

• Type: 3-Wire to 2-Wire Conversion Wiring Harness
• Fuse: 30A Included
• Relays: 2x 12V 20A/30A Included (Part 553908)
• Amperage Rating: 30 Amps
• Connector Type: 2/3 Wire
• Terminals: Female Bullet — Blue and Green Wires
• Weight: 0.6 lbs
• Condition: New
APPLICATIONS:
• Mercury/Mariner 35-225HP 2-Stroke Outboard (1985-1992)
• Design 1, 3-Ram, Side Fill Integral Trim/Tilt System
• Replaces Round Prestolite and Square Eaton 3-Wire Systems
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
