OEM / Cross Reference Numbers:
DELCO REMY:
• 10459234
• 1105500
AC DELCO:
• 321-744
GENERAL MOTORS (GM):
• 1105500
ANDRE NIERMANN:
• 025500
DIXIE:
• A-1586
NSN (NATO Stock Number):
• 2920-01-149-8606

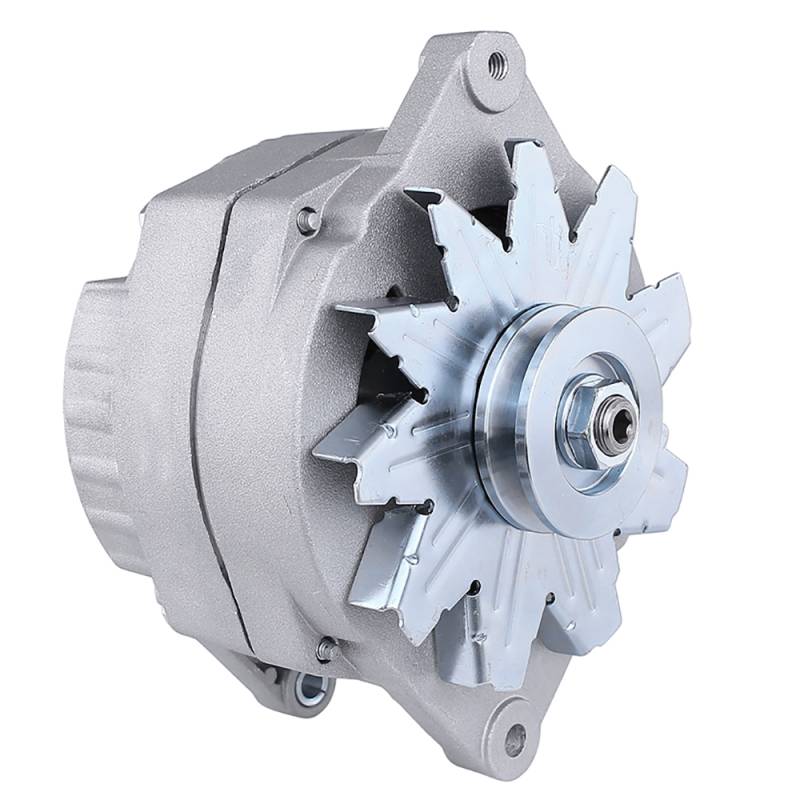

SPECIFICATIONS:
- Voltage: 12V
- Amperage: 100 Amps
- Rotation: Clockwise (CW)
- Alternator Type: Delco 27SI / Type 100
- Regulator: Internal
- Fan Location: External

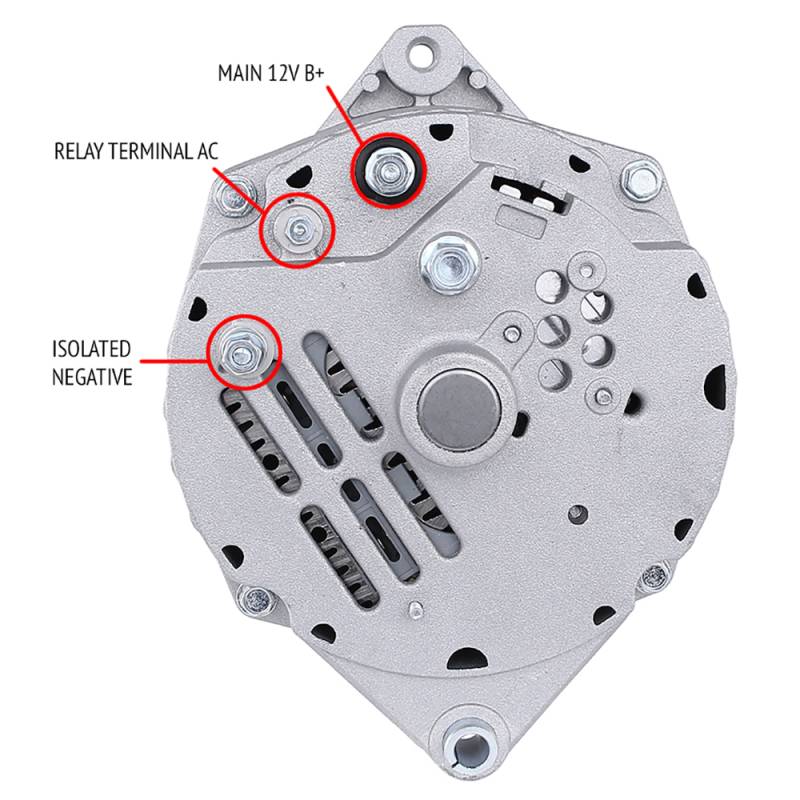

- Polarity: Insulated Ground (Negative)
- Regulator Clock Position: 1:00
- Pulley: 1-Groove V-Belt
- Pulley O.D.: 2.622 in (66.6mm)
- Case O.D.: 6.65 in (169mm)
- Mount Type: J180
- Mtg Ear 1: 5/8-16 Threaded (0.787 in / 20mm thick)
- Mtg Ear 2: 0.407 in Unthreaded (0.787 in / 20mm thick)
- Mtg Ear 3: 0.407 in Unthreaded (1.0 in / 25.4mm thick)
- B+ Terminal: M6-1.0
- Weight: 17.12 lbs (7.78 kg)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
