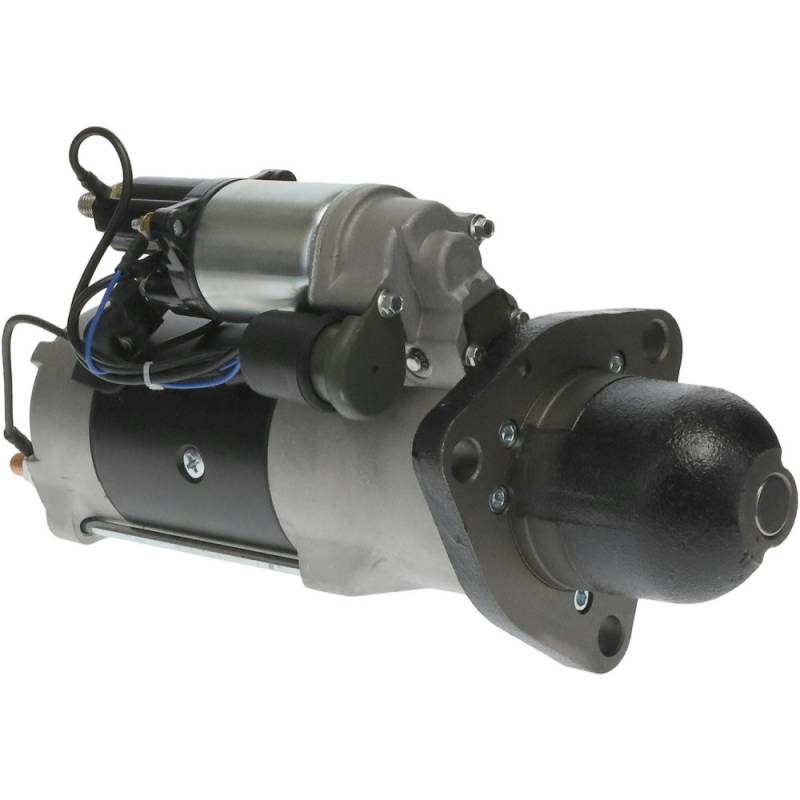

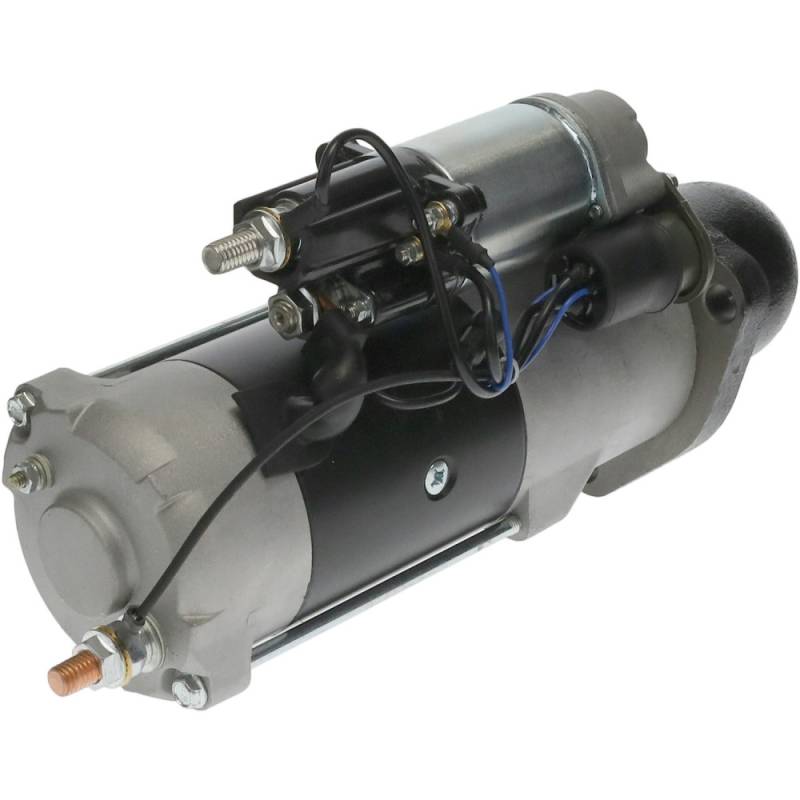

New Starter Compatible With International 2554 2564 2574 2575 2674 2675 Series 428000-1211

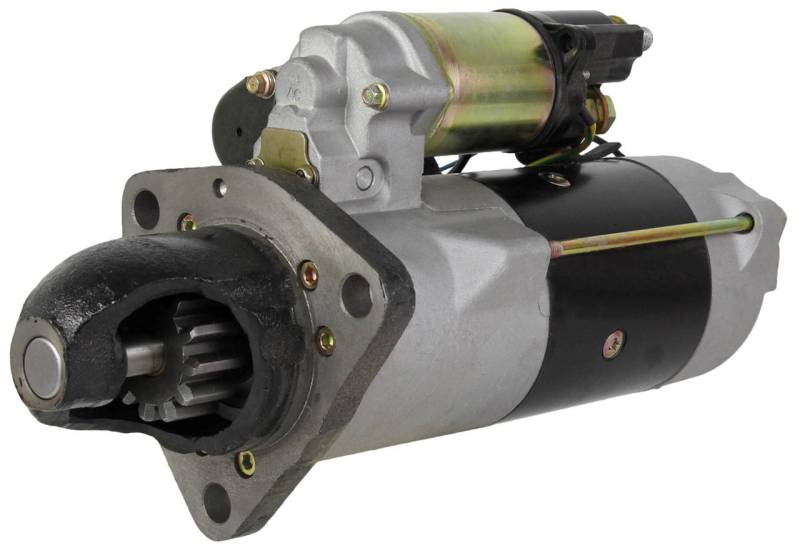

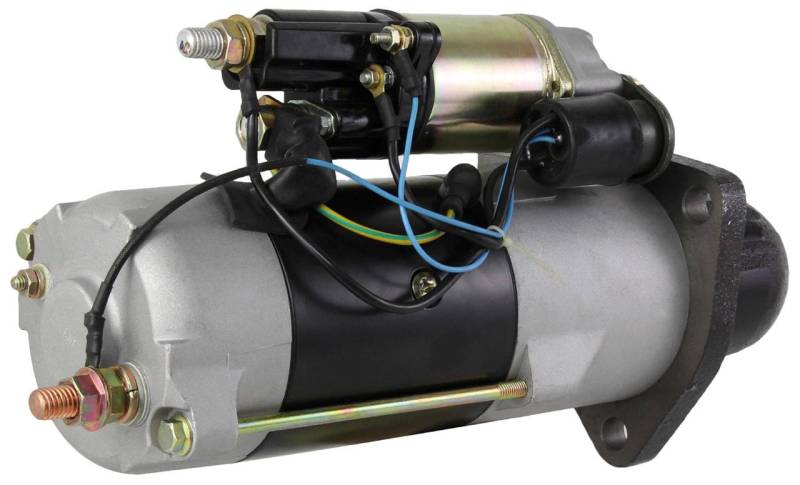

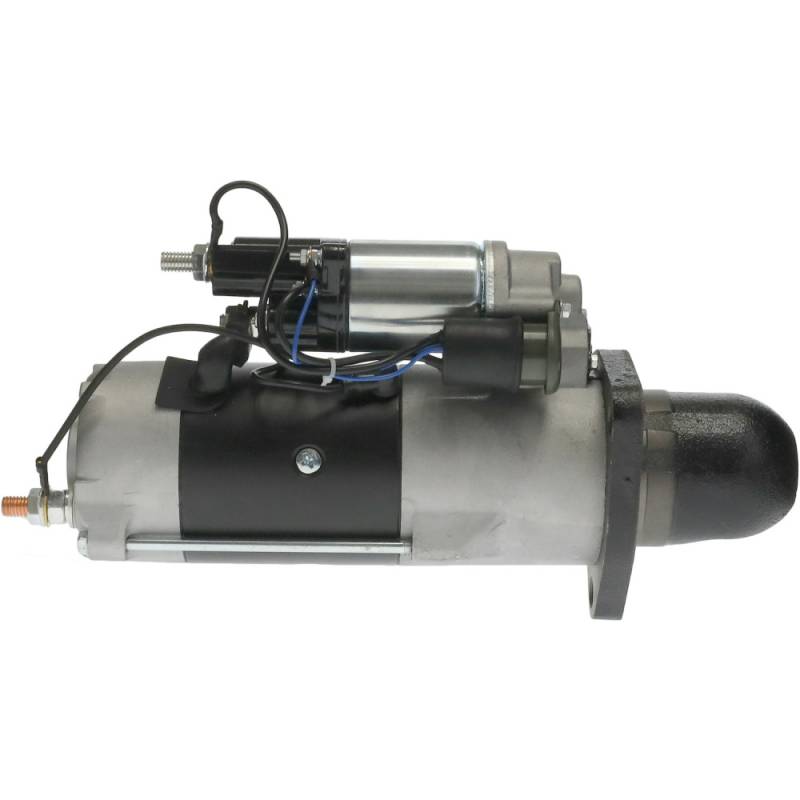

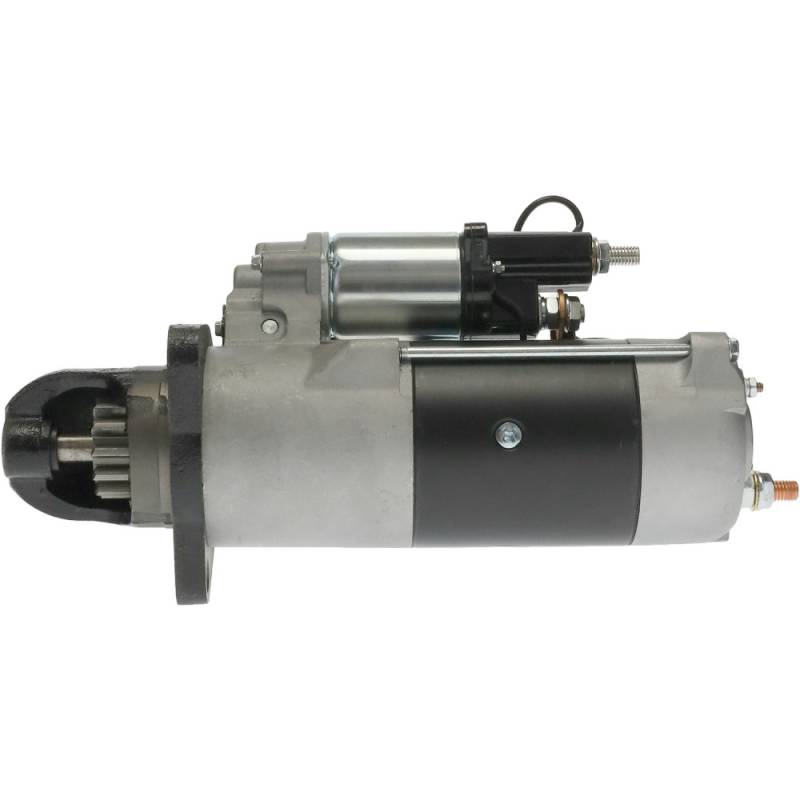

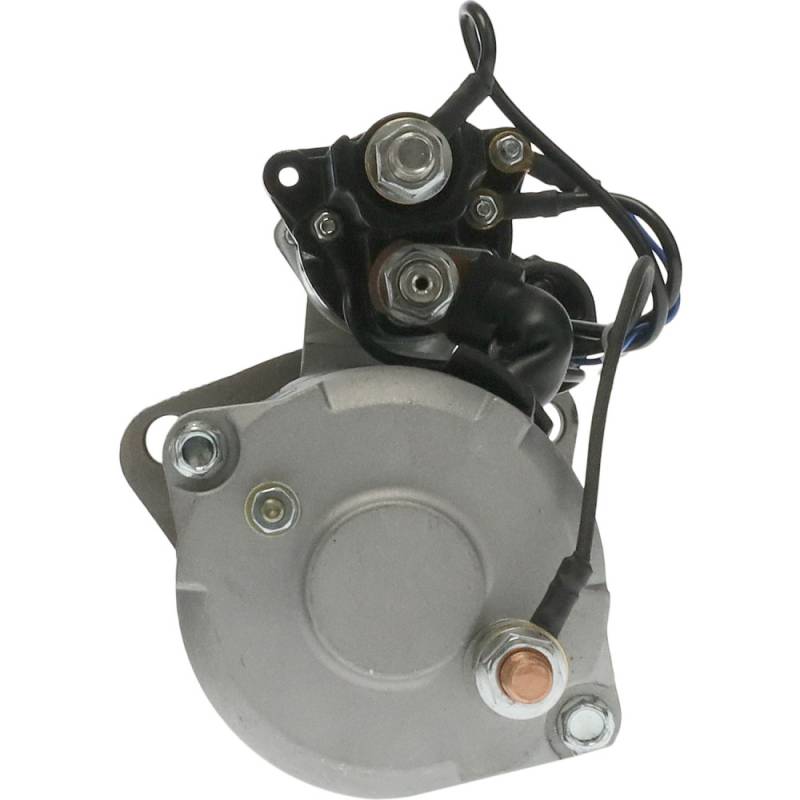

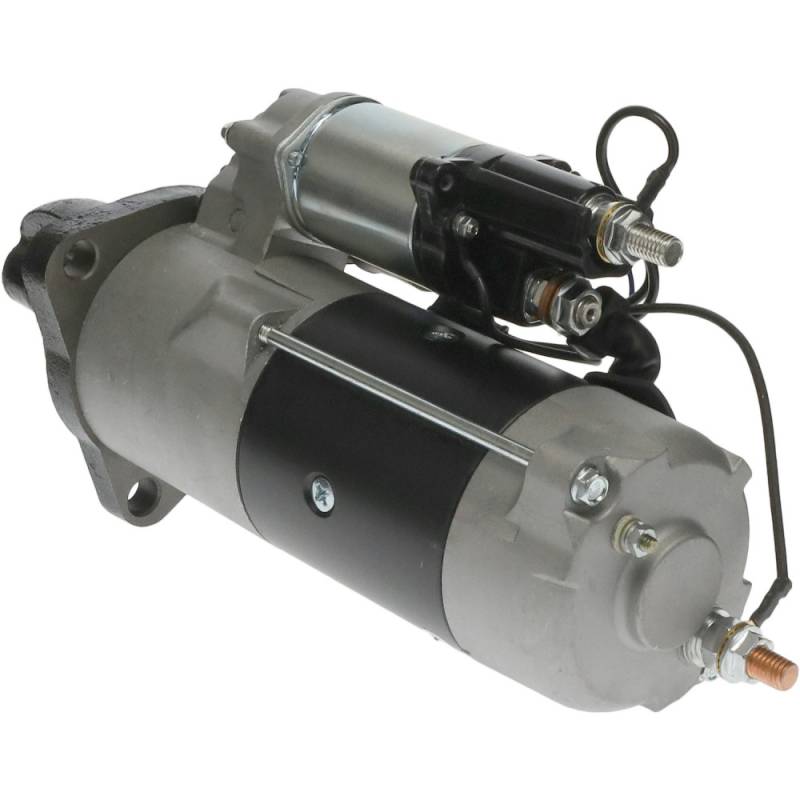

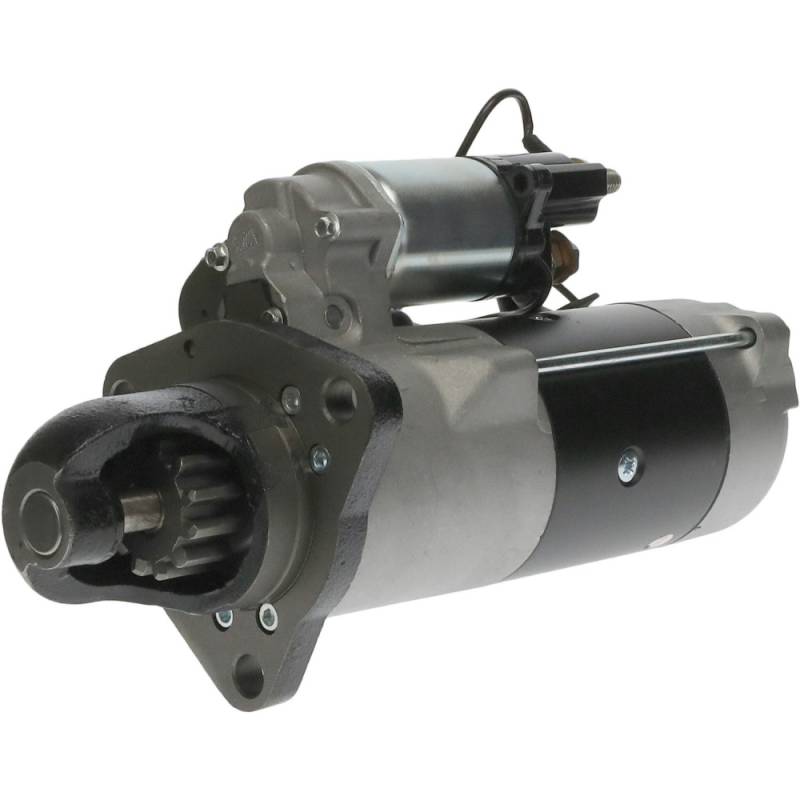

⚠️ 12 VOLT 5.0 KW DENSO P5.0 PLANETARY STARTER, 12 TOOTH, NEW:
• 12 volt, 5.0 kW, Denso P5.0 planetary gear reduction (PLGR), 12 tooth pinion, clockwise (CW)

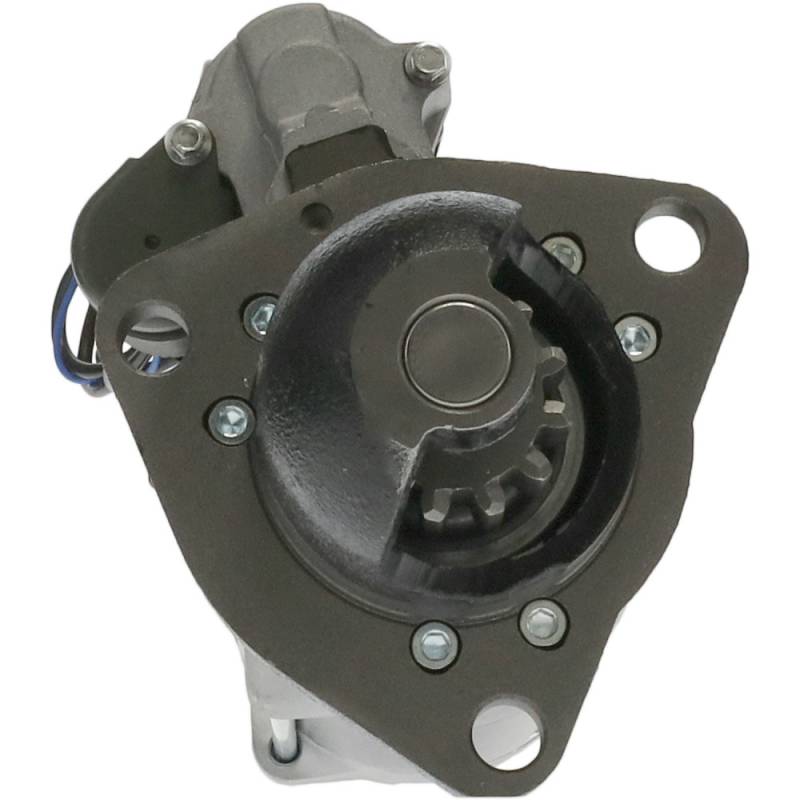

• SAE #3 three bolt flange mount, solenoid at 52 degrees, about 40 lb
• Takes the place of 11 tooth Delco 39MT, 40MT and 42MT starters on the same trucks
• The 10 tooth Denso R5.0 offset gear starter is a different, lighter body: count the teeth before ordering

INTERNATIONAL 9100 / 9900 HEAVY-DUTY:
• International 9100 / 9900 with the Caterpillar 3176 10.3L 1990-1999
• International 9100 / 9900 with the Caterpillar 3406 14.6L 1993-2001
• International 9100 / 9900 with the Caterpillar C10 10.3L 1997-2003
• International 9100 / 9900 with the Caterpillar C12 12.0L 1997-2003
• International 9100 / 9900 with the Caterpillar C15 2000-2007
• International 9100 / 9900 with the Caterpillar C16 15.8L 1999-2003
• International 9100 / 9900 with the Cummins ISM 10.8L 1997-2007
• International 9100 / 9900 with the Cummins L10 10.0L 1988-1996
• International 9100 / 9900 with the Cummins M11 10.8L 1993-2000
• International 9100 / 9900 with the Cummins N14 14.0L 1996-2003
• International 9100 / 9900 with the Cummins Signature 600 15.0L 1997-2003
• International 9100 / 9900 with the Detroit Diesel Series 60 1992-2003

INTERNATIONAL 8100 / 8600 HEAVY-DUTY:
• International 8100 / 8600 with the Caterpillar 3176 10.3L 1990-1999
• International 8100 / 8600 with the Caterpillar 3406 14.6L 1993-1999
• International 8100 / 8600 with the Caterpillar C10 10.3L 1997-2003
• International 8100 / 8600 with the Caterpillar C12 12.0L 2003-2005
• International 8100 / 8600 with the Cummins ISM 10.8L 1998-2007
• International 8100 / 8600 with the Cummins L10 10.0L 1988-1996
• International 8100 / 8600 with the Cummins M11 10.8L 1994-2000
• International 8100 / 8600 with the Cummins N14 14.0L 1991-2000
• International 8100 / 8600 with the Detroit Diesel Series 50 / Series 60 1992-1998
• International 8100 / 8600 with the International DT-466 7.6L 1990-1992
• International 8100 / 8600 with the International DT-530 8.7L 1993-2007
• International 8100 / 8600 with the International DT-570 9.3L 2004-2007

INTERNATIONAL SEVERE SERVICE 5000 / 5900 AND 7100 / 7700:
• International 5000 / 5900 Severe Service with the Caterpillar 3406 14.6L 1993-1999
• International 5000 / 5900 Severe Service with the Caterpillar C10 10.3L 1997-2003
• International 5000 / 5900 Severe Service with the Caterpillar C12 12.0L 1997-2003
• International 5000 / 5900 Severe Service with the Caterpillar C15 2000-2007
• International 5000 / 5900 Severe Service with the Cummins ISM 10.8L 2000-2007
• International 5000 / 5900 Severe Service with the Cummins L10 10.0L 1988-1999
• International 5000 / 5900 Severe Service with the Cummins M11 10.8L 1993-1999
• International 5000 / 5900 Severe Service with the Cummins N14 14.0L 1997-1999
• International 5000 / 5900 Severe Service with the International DT-530 8.7L 1997-2003
• International 7100 / 7700 Severe Service with the Caterpillar C10 10.3L 2003-2004
• International 7100 / 7700 Severe Service with the Caterpillar C12 12.0L 2003-2004
• International 7100 / 7700 Severe Service with the Caterpillar C15 2005-2007
• International 7100 / 7700 Severe Service with the Cummins ISM 10.8L 2003-2007
• International 7100 / 7700 Severe Service with the International DT-466 7.6L 1990-1992
• International 7100 / 7700 Severe Service with the International DT-530 8.7L 2003-2007
• International 7100 / 7700 Severe Service with the International DT-570 9.3L 2004-2007

INTERNATIONAL MEDIUM / HEAVY TRUCKS:
• International 2300 / 2375 with the Cummins L10 10.0L 1988-1996
• International 2300 / 2375 with the Cummins N14 14.0L 1993-2000
• International 2300 / 2375 with the International DT-530 8.7L 1993-1996
• International 2554 / 2564 with the International DT-466 7.6L 1988-1992
• International 2574 / 2575 with the Caterpillar C12 12.0L 1997-2000
• International 2574 / 2575 with the Cummins ISM 10.8L 1997-2000
• International 2574 / 2575 with the Cummins L10 10.0L 1988-2000
• International 2574 / 2575 with the Cummins N14 14.0L 1993-2000
• International 2674 / 2675 with the Caterpillar 3176 10.3L 1993-1999
• International 2674 / 2675 with the Caterpillar C10 10.3L 1997-2000
• International 2674 / 2675 with the Cummins L10 10.0L 1988-2000
• International 2674 / 2675 with the Cummins M11 10.8L 1997-2000
• International 2674 / 2675 with the Cummins N14 14.0L 1993-2000
• International 4000 / 4900 with the Caterpillar 3406 14.6L 1997-1999
• International 4000 / 4900 with the Cummins N14 14.0L 1997-1999
• International 4000 / 4900 with the International T444E 7.3L 1988-1992
• International 4000 / 4900 with the International DT-466 7.6L 1988-1992
• International 4000 / 4900 with the International DT-530 8.7L 1997-2003

INTERNATIONAL 3000 / 3900 SERIES BUS:
• International 3000 / 3900 bus with the International T444E 7.3L 1988-1992
• International 3000 / 3900 bus with the International DT-360 1985-1993
• International 3000 / 3900 bus with the International DT-466 7.6L 1988-1992

VOLVO VNL / VNM / VHD / ACL:
• Volvo VNL with the Cummins M11 10.8L 1994-2004
• Volvo VNL with the Cummins N14 14.0L 1994-2003
• Volvo VNL with the Detroit Diesel Series 60 1994-2003
• Volvo VNM with the Cummins M11 10.8L 1997-2003
• Volvo VNM with the Cummins N14 14.0L 1997-2003
• Volvo VNM with the Detroit Diesel Series 60 1997-2003
• Volvo VHD with the Cummins M11 10.8L 2001-2003
• Volvo ACL42 / ACL64 with the Cummins M11 10.8L 1994-2000
• Volvo ACL42 / ACL64 with the Cummins N14 14.0L 1994-2002
• Volvo ACL42 / ACL64 with the Detroit Diesel Series 60 1994-2000
