OEM PART NUMBERS: • Caterpillar: 0R2697, 0R4267, 3T-5831 / 3T5831, 3T2782, 3T2783, 3T2784, 3T8452, 6T0643, 6V0889, 7N6056, 7T9162, 9G6096, 9G6097
• Cummins: 3604658RX
• Delco: 10461103, 10479342, 1109555, 1109781, 1109788, 1109789, 1109833, 1109834, 1109836, 1990233, 1990234, 1990291, 1993753

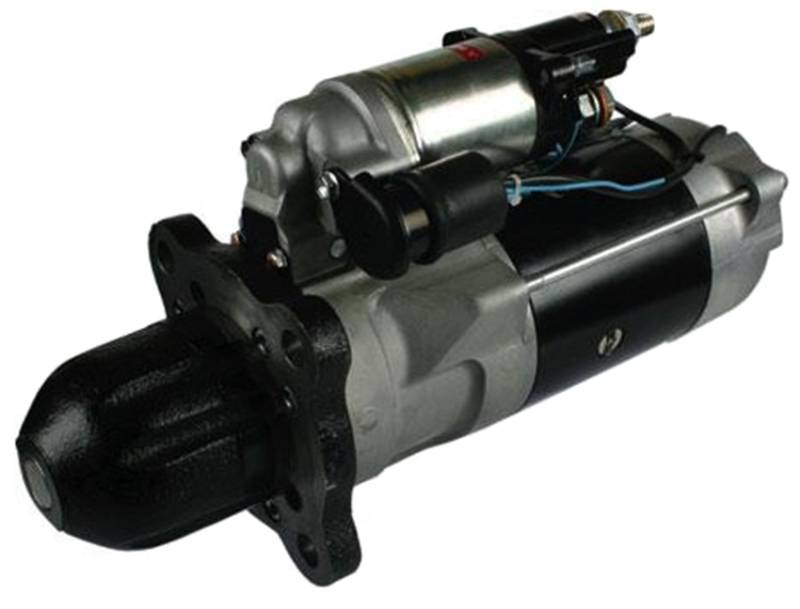

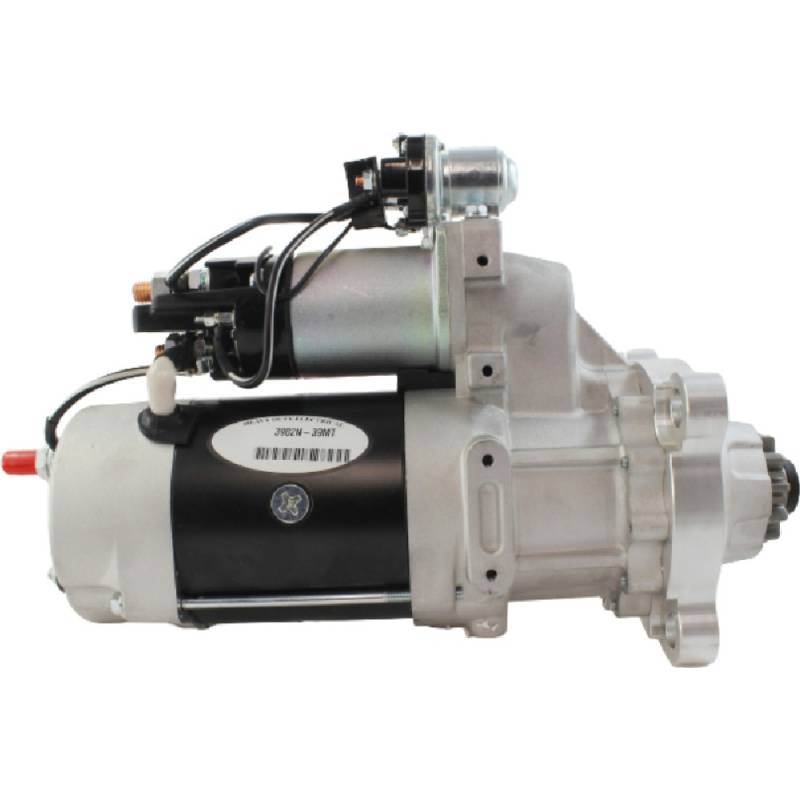

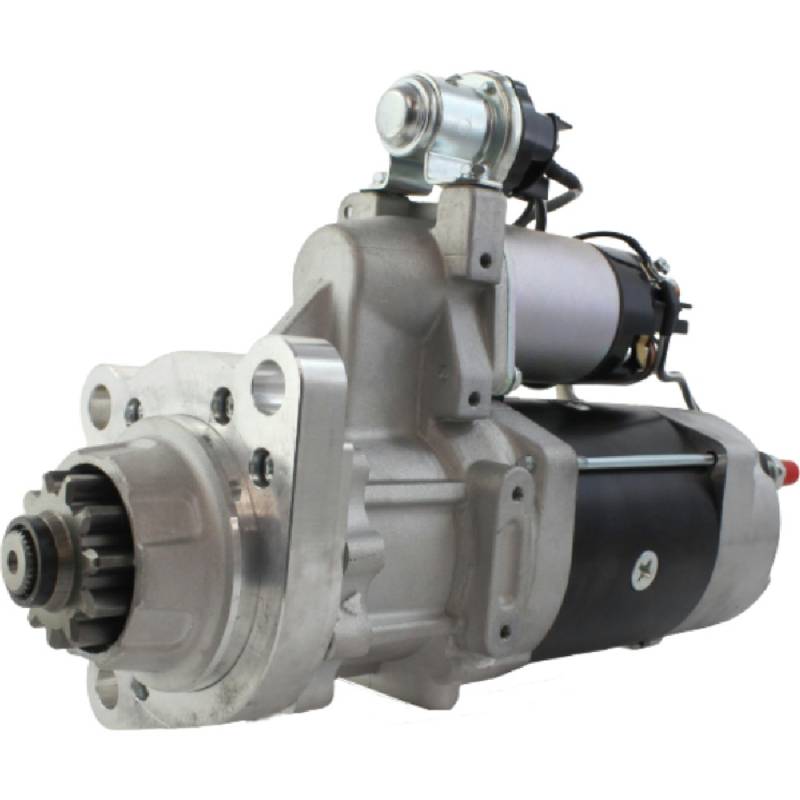

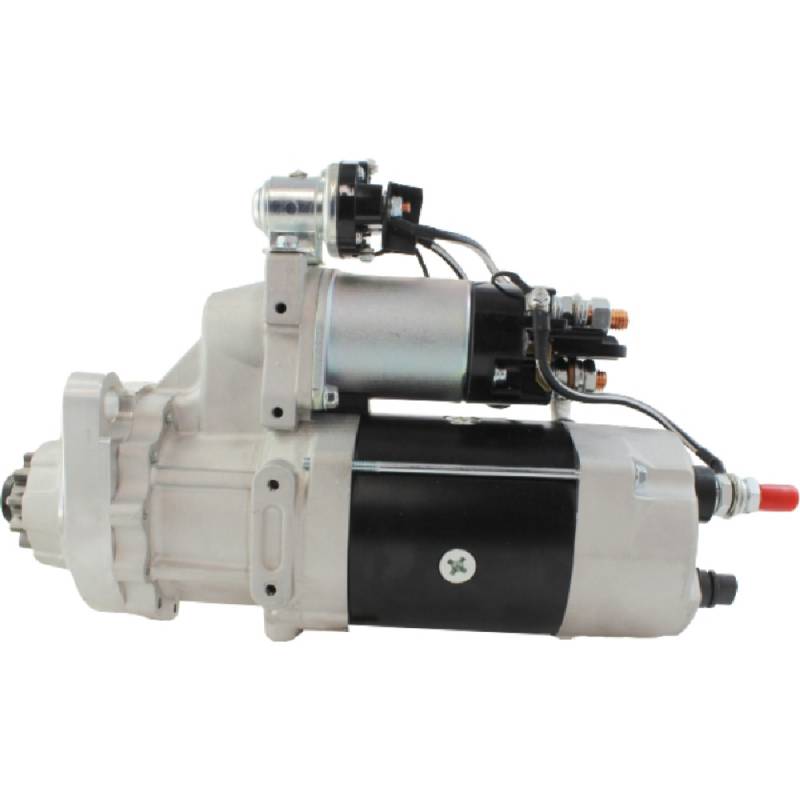

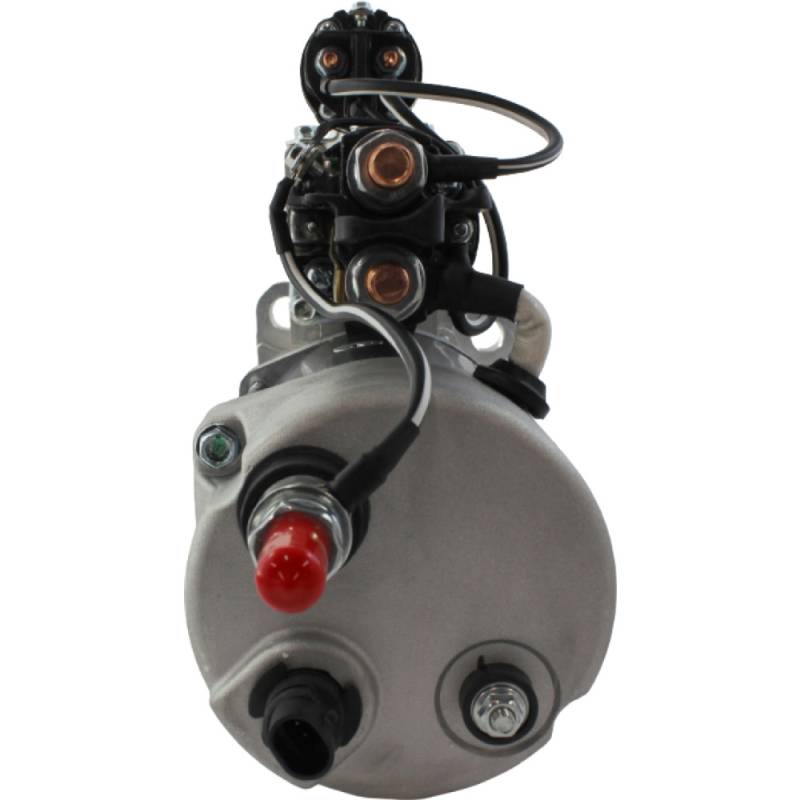

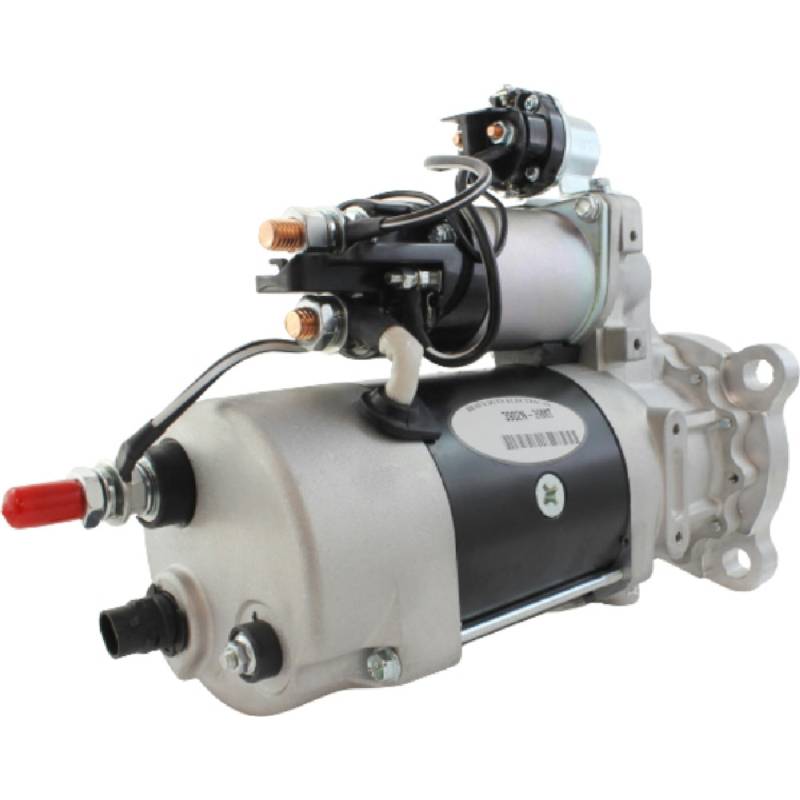

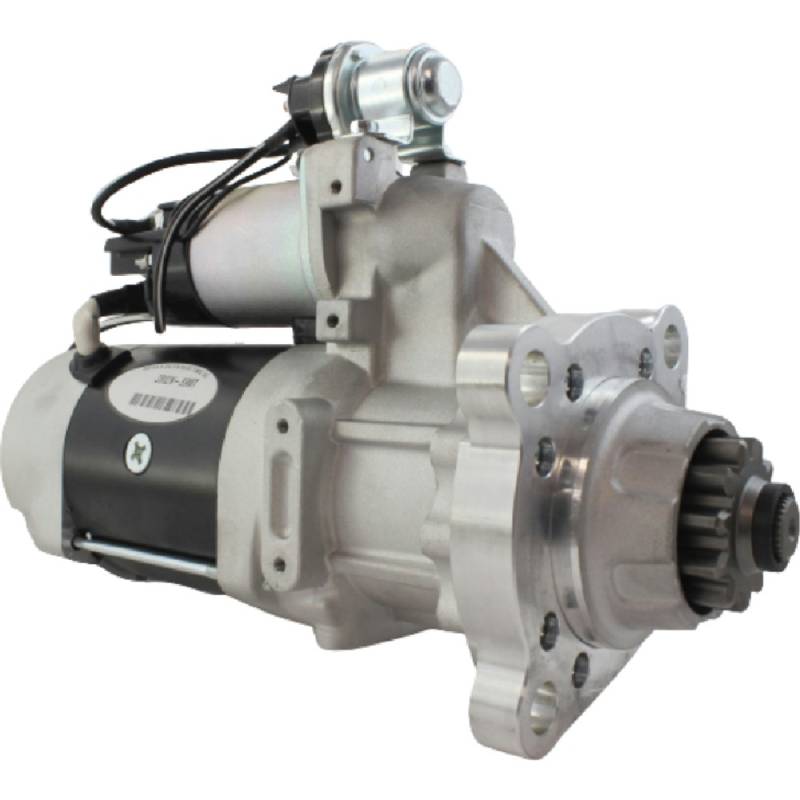

SPECIFICATIONS: • Type: Starter
• OE Manufacturer: Delco
• Design: PLGR, Planetary Gear Reduction
• Family: 39MT
• Voltage: 24V
• Power: 8.3 kW
• Weight: 33 lbs, against 75 lbs for the original
• Rotation: Clockwise

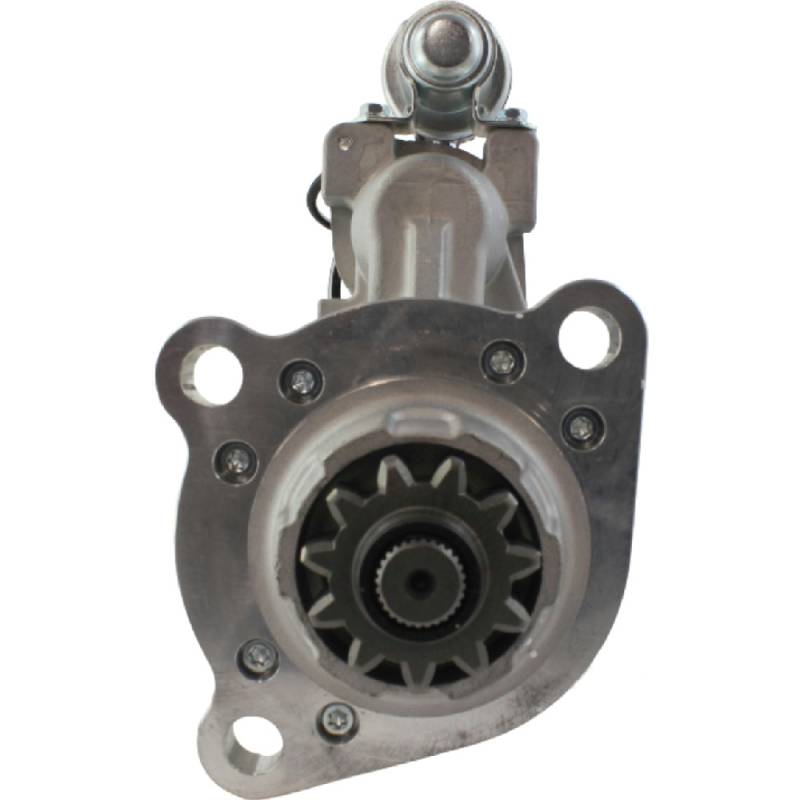

• Teeth: 11
• Mount: SAE 3, Three Bolt Holes
• Flange: Re-Clockable
• Nose: Open Nose
• Case: Insulated
• Magnetic Switch: Integrated Relay
• Condition: New
APPLICATIONS: • Caterpillar 776B, 776C, 776D, 777B, 777C and 777D haul truck
• Caterpillar D8L, D9L, D9N, D10, D10N and D11N track-type tractor
• Caterpillar 583K, 589, 591 and 594H pipelayer
• Caterpillar 3508, 3512 and 3516 industrial and marine engine
• 33 lbs against 75 lbs for the original, 24V 8.3kW PLGR 11 tooth starter
