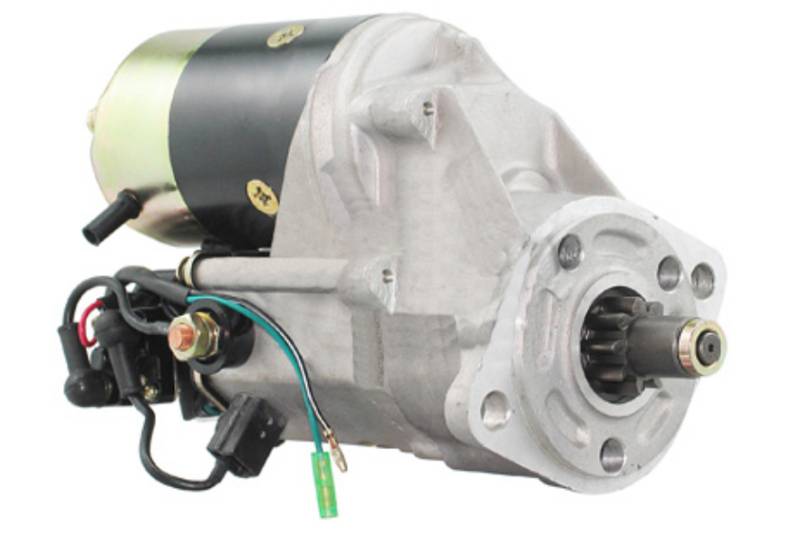

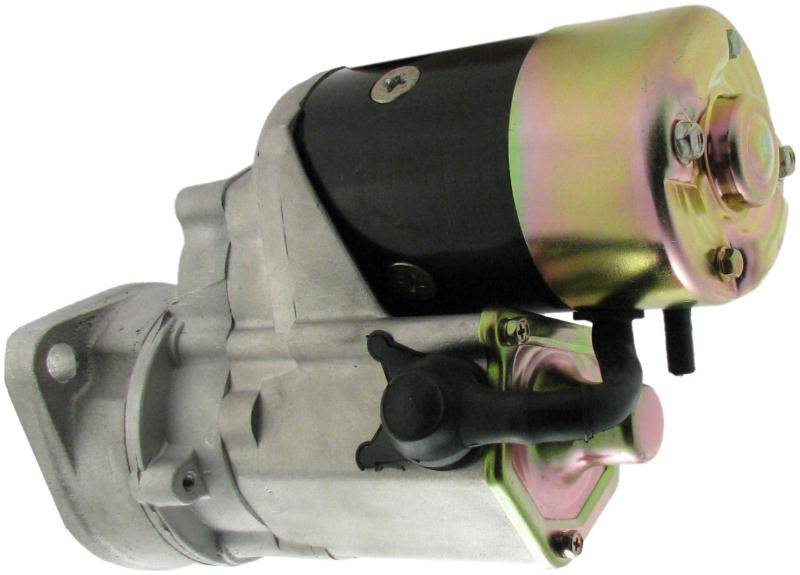

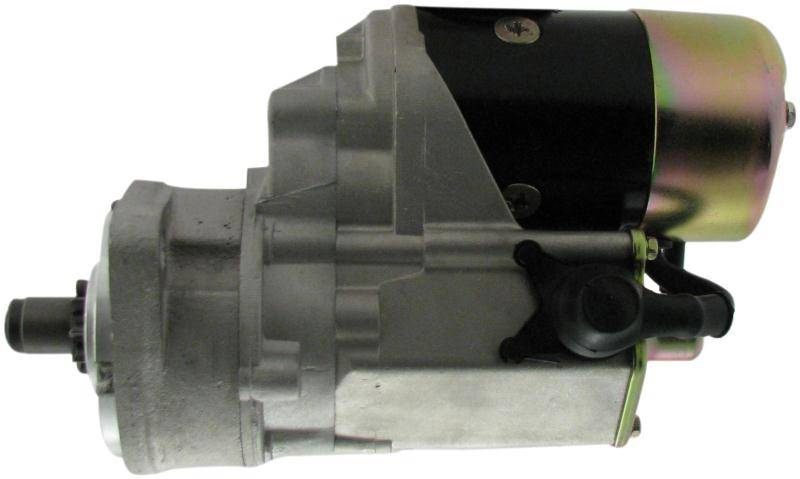

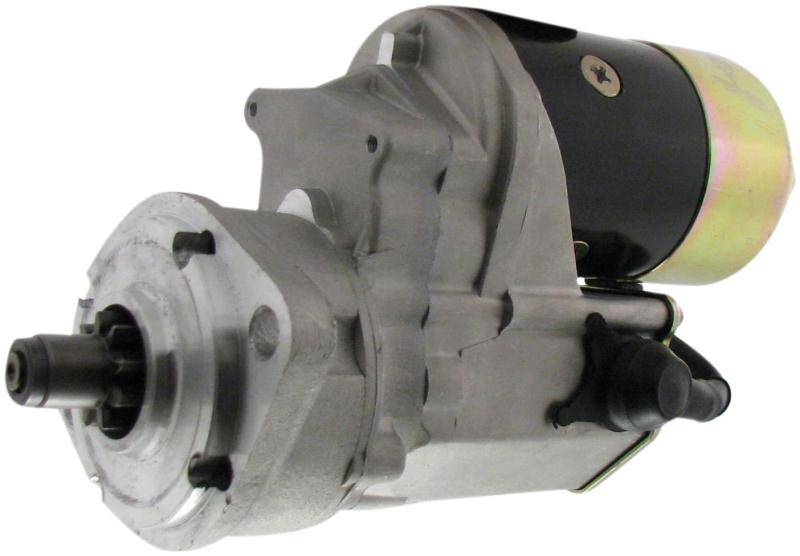

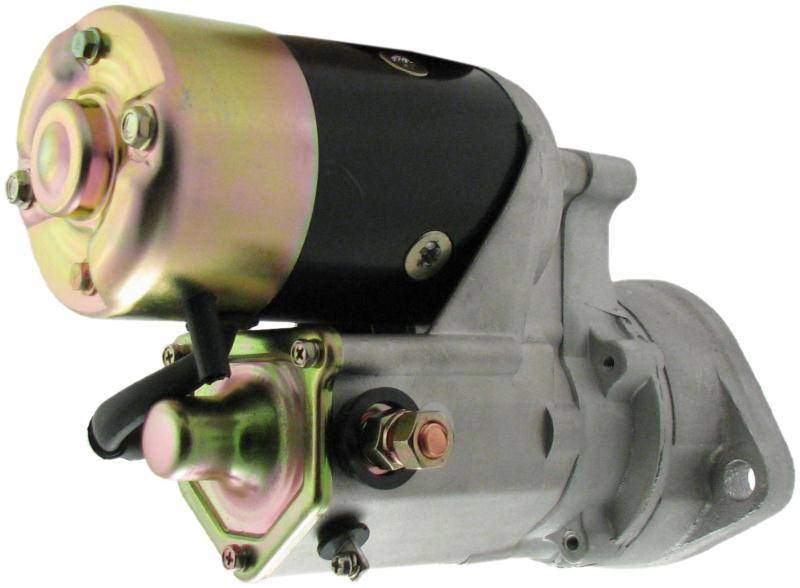

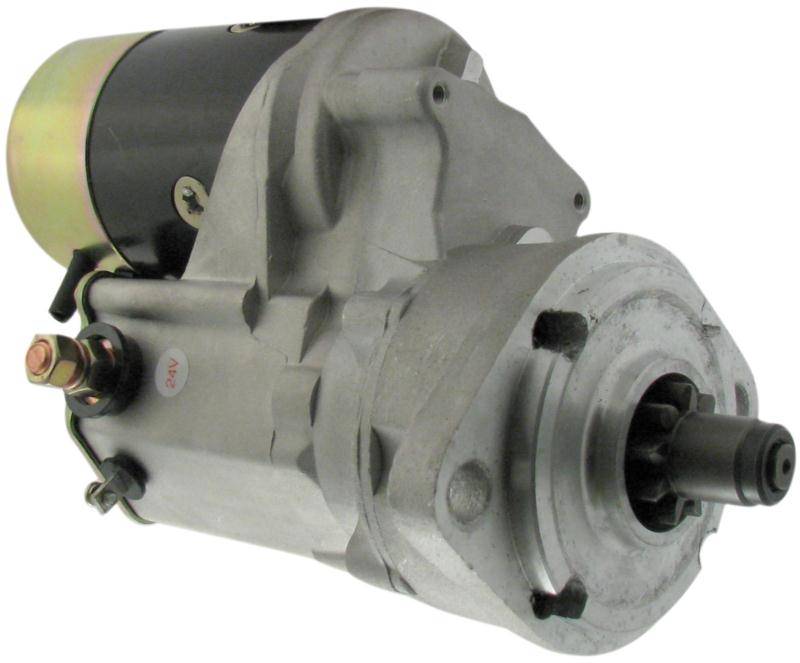

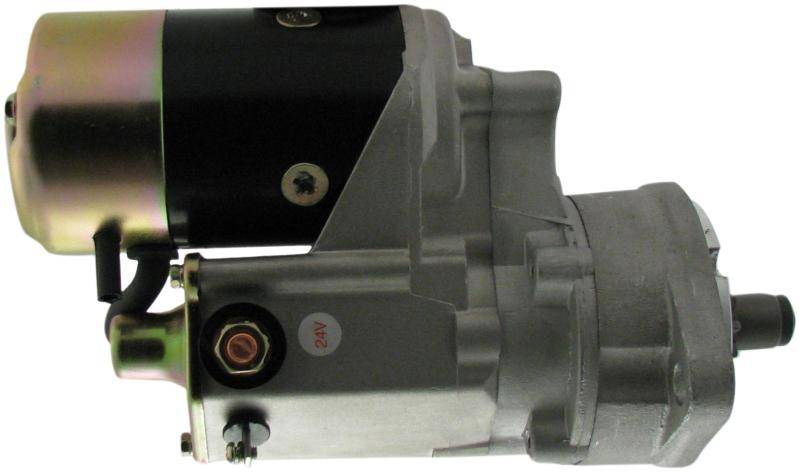

24V Starter Compatible With Isuzu Engine 4Ba1 4Bb1 4Bd1 C330 C330m 5811000131 9821001430

246-25235A2
HITACHI PART NUMBERS:
• S25-120, S25120
• S25-120A, S25120A

ISUZU PART NUMBERS:
• 5-81100-128-0, 5811001280
• 5-81100-128-1, 5811001281
• 5-81100-128-2, 5811001282
• 8-97029-863-0, 8970298630
• 8-97029-863-1, 8970298631
• 8-97029-863-2, 8970298632
• 8-97029-863-3, 8970298633
• 8-97029-863-4, 8970298634
• 8-97029-863-5, 8970298635
• 8-97029-863-6, 8970298636
• 8-97029-863-7, 8970298637
• 8-94446-770-0, 8944467700
• 8-94454-559-0, 8944545590
• 8-94366-525-0, 8943665250
• 8-94366-525-1, 8943665251
• 8-94255-439-3, 8942554393
• 9-94255-439-0, 9942554390
• 8-94171-772-0, 8941717720
• 8-97078-926-1, 8970789261

JCB PART NUMBERS:
• 714/24400, 71424400
• 714/25200, 71425200
• 714/29900, 71429900
• 714/35900, 71435900

NIKKO PART NUMBERS:
• 0-21000-4933, 0210004933
• 0-21000-4934, 0210004934
• 0-21000-4935, 0210004935
• 0-23000-0030, 0230000030
• 0-23000-0031, 0230000031
• 0-23000-0032, 0230000032
• 0-23000-0240, 0230000240
• 0-23000-0241, 0230000241
• 0-23000-1700, 0230001700

LUCAS PART NUMBERS:
• LRS01910, LRS1910

SPECIFICATIONS:
• Type: Denso R type offset gear reduction (OSGR)
• Voltage: 24 Volt
• Power: 4.5 kW
• Rotation: Clockwise (CW)

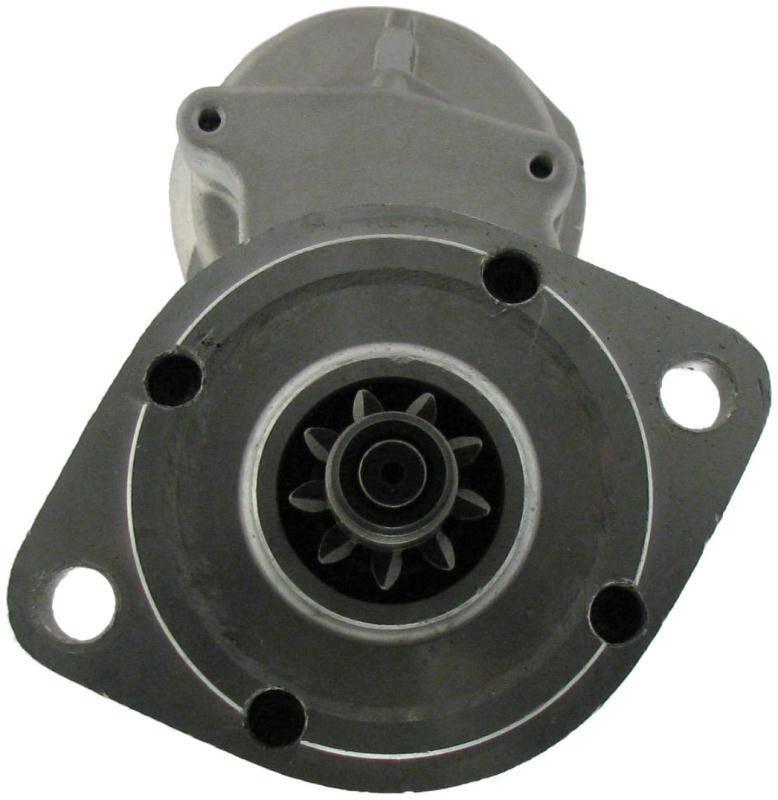

• Pinion: 9 teeth, 35 mm gear OD
• Mounting: 2 unthreaded mounting ears
• Relay: universal safety relay
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $468.04
Sale: $267.45
Save: 43%
Save: $200.59
Qty:
Free Shipping!

Description

⚠️ 24 VOLT 4.5 KW 9 TOOTH CW OSGR STARTER, HITACHI / ISUZU 4B / KOBELCO / JOHN DEERE / JCB:
• 24V, 4.5 kW, clockwise, Denso R type offset gear reduction (OSGR)
• 9 tooth pinion, 35 mm gear OD, 2 unthreaded mounting ears
• Universal safety relay, new
• Any 11 tooth starter (Komatsu 4D95LE, Isuzu 6BD1 / 6BG1) is a different unit

HITACHI EXCAVATORS:
• Hitachi EX100 excavator Isuzu 4BD1T 1983-2001
• Hitachi EX100-2 excavator Isuzu 4BD1 1988-1994
• Hitachi EX100M-2 excavator Isuzu 4BD1 1988-1996
• Hitachi EX120 excavator Isuzu 4BD1 1988-2003
• Hitachi EX120-2 excavator Isuzu 4BD1T
• Hitachi EX120-3 excavator Isuzu 4BD1T
• Hitachi EX150 excavator Isuzu 4BD1T 1988-1998

ISUZU INDUSTRIAL ENGINES:
• Isuzu 4BA1 industrial engine 1979-1983
• Isuzu 4BB1 industrial engine 1979-2003
• Isuzu 4BC1 industrial engine 1979-1986
• Isuzu 4BC2 industrial engine 1984-1987
• Isuzu 4BD1 industrial engine 1986-2006
• Isuzu C330 industrial engine 1988-1990
• Isuzu C330M industrial engine 1988-1990

KOBELCO WHEEL LOADERS:
• Kobelco LK350 wheel loader Isuzu 4BD1T 1983-2001
• Kobelco LK350 II wheel loader Isuzu 4BD1T

JOHN DEERE EXCAVATORS:
• John Deere 135C RTS excavator Isuzu CC-4BG1TC 4.3L

JCB EXCAVATORS:
• JCB JS130 tracked excavator Isuzu 4BG1T (A4BG1T-S1)
• JCB JS130W wheeled excavator Isuzu 4BG1T
• JCB JS145W wheeled excavator Isuzu 4BG1T
• JCB JS160W wheeled excavator Isuzu 4BG1T

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 16.0 lbs.
  • W12.0000” x H10.0000” x L16.0000”
  • Free Shipping!
