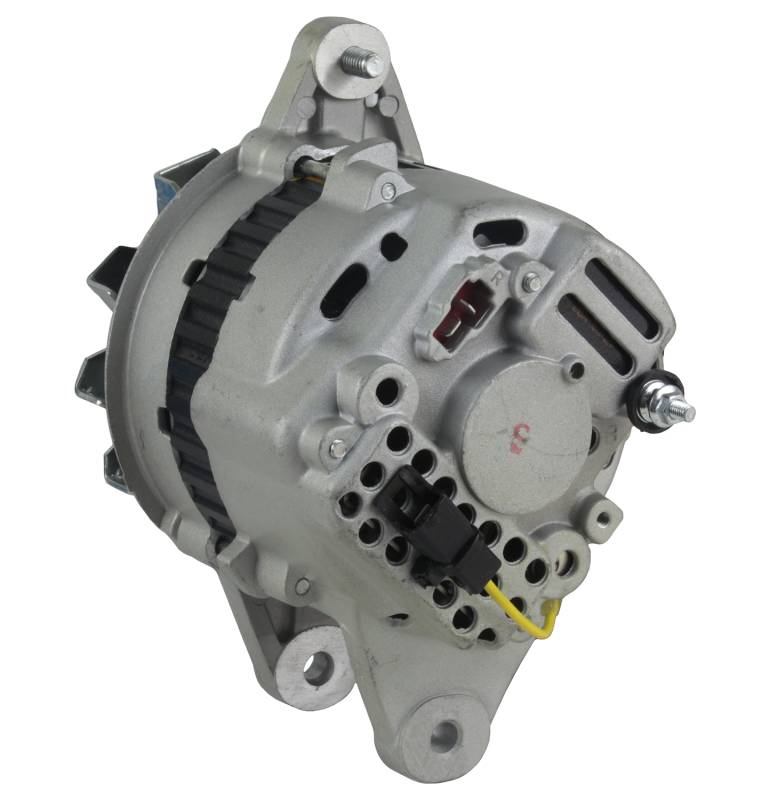

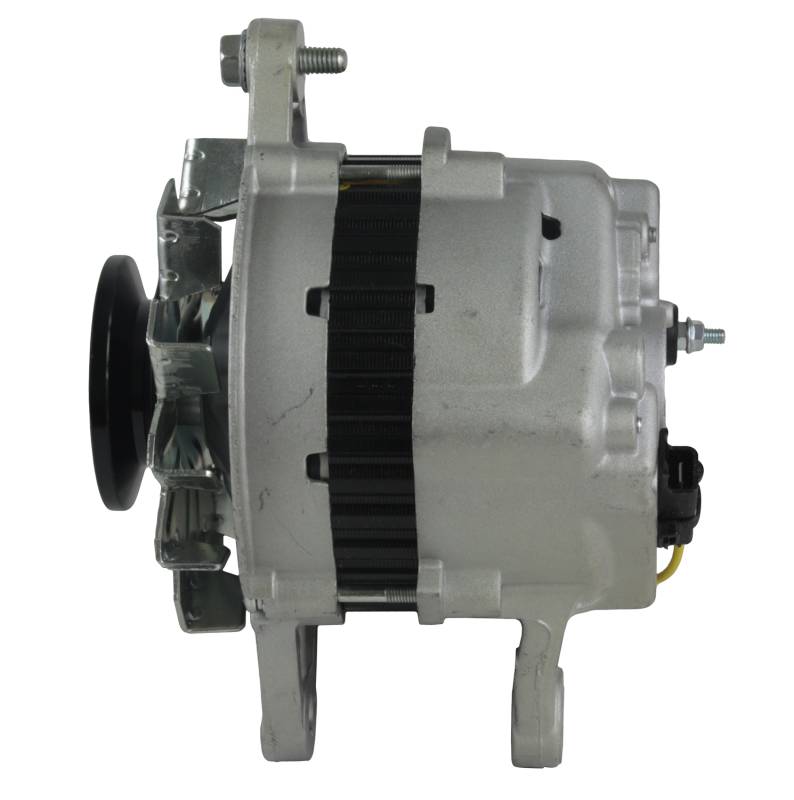

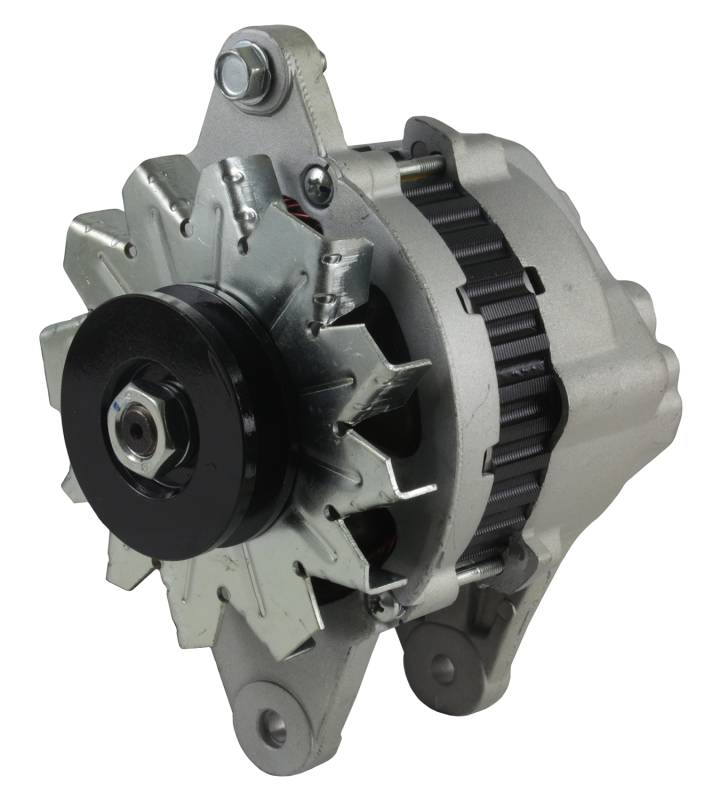

55A Marine Alternator Compatible With Mitsubishi Inboard K3m K4e K4f L2e L3e Engine Westerbeke

OEM PART NUMBERS:
• Westerbeke: 030594 / 049246 / 30594 / 49246
• Mitsubishi: A2T25271 / A002T25271 / A002T25271ZC
• Mitsubishi Industrial: MM409650
• Quicksilver: 8M6007495

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 55A
• Rotation: CW (Clockwise)
• Regulator: Internal (IR)
• Fan: External (EF)
• Pulley: Single V-Groove (V1)
• B+ Terminal: M5-0.8 Threaded Stud
• P-Terminal: Rear Mounted
• Weight: 12 lbs
• Condition: New

APPLICATION:
• Westerbeke BCD: 4.4 BCD 60Hz, 4.5 BCD 50Hz, 6.0 BCD 60Hz (1986-1989)
• Westerbeke WMD: 3.3 WMD 50Hz, 4.4 WMD 60Hz, 5.8 WMD 50Hz, 6.0 WMD 50Hz, 7.7 WMD 60Hz (1980-1984), 8.0 WMD 60Hz, 9.4 WMD 50Hz, 11.0 WMD (1980-1987), 12.5 WMD 60Hz (1980-1987)
• Westerbeke BTD: 6.0-15.0 BTD 50/60Hz (1984-2001)
• Westerbeke BTDA: 8.0 BTDA (2000-2007), 9.4 BTDA 50Hz, 12.5 BTDA 60Hz (1988-2000)
• Mitsubishi Inboard: K3M/K3M-61EM, K4E/K4E-61DM/K4E-61EM, K4F/K4F-61WM/K4F-62WM, L2E/L2E-62WM, L3E/L3E-62WM (1982-On)

55A Marine Alternator — Mitsubishi K3M K4E K4F L2E L3E Inboard Engine
New 55-amp alternator for Mitsubishi K3M, K4E, K4F, L2E, and L3E marine inboard engines from 1982 onward. Replaces A2T25271, MM409650, Westerbeke 030594 and 049246, and Quicksilver 8M6007495. Also fits all Westerbeke marine diesel generator sets. Single V-groove pulley.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
