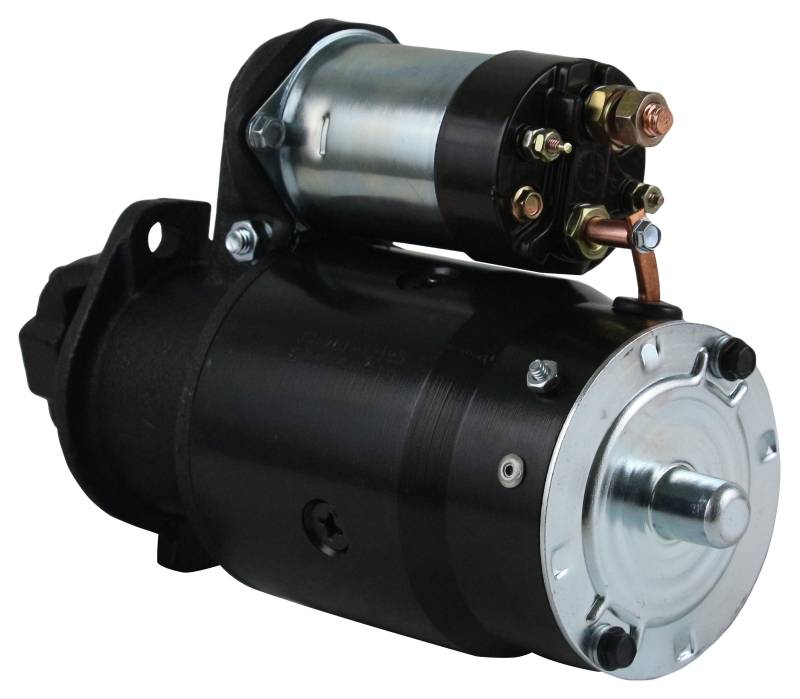

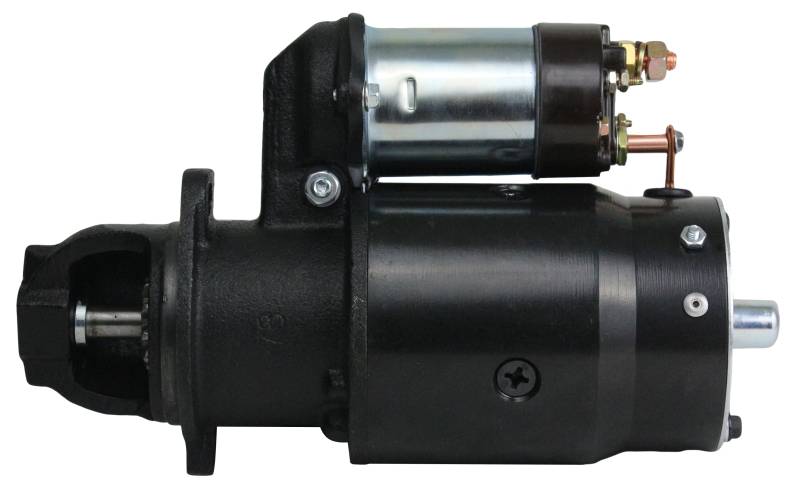

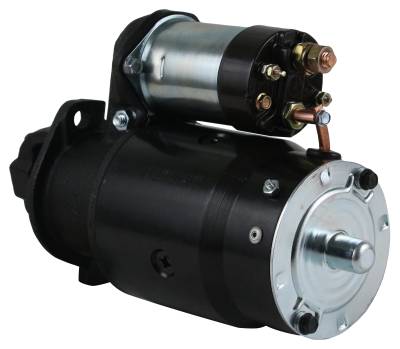

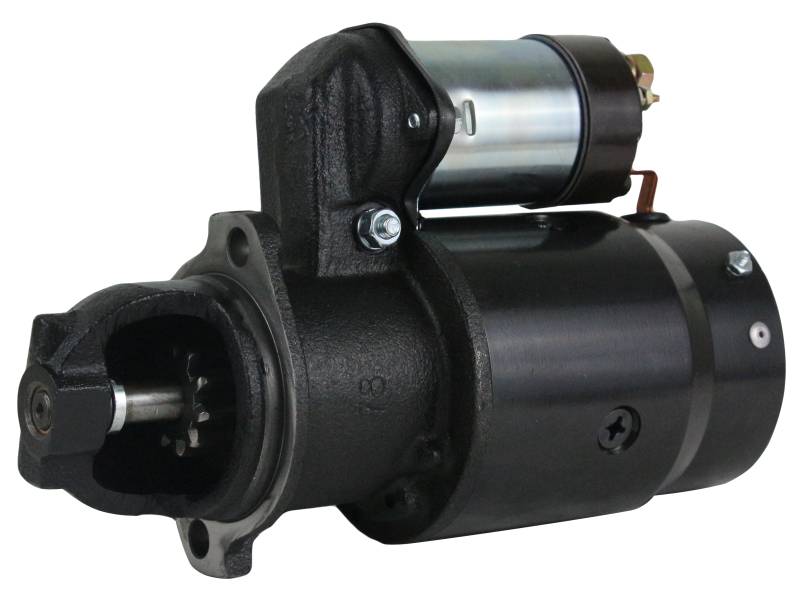

New Direct Drive Starter 12 Volt Compatible With Caterpillar T25 T30b T30c T35b T35c T40b T40c Tc30

(0) Reviews: Write first review
4946A2
OEM PART NUMBERS:
• Caterpillar: 308855 / 7N8405
• Delco: 1108388 / 1109420 / 1998295 / 10461617 / 12301299
• Delco: 323-655 / 323-698
• Elpar Industries: 011103623
• Hyster: 3004022
• Towmotor: 350725
• Yale: 2200073-76 / 220007376 / 2200071-44
• Wilson Heavy Duty: 91-01-4216 / 91-01-4231
• Industry Cross References: 140-699 / 140-700 / 140-700A / SR9976X / 410-12022 / 4942 / 4946
• Industry: 201-10108 / NTS1322 / LRS01055 / S9913 / 44-4736 / SYSN0013

STARTER SPECIFICATIONS:
• Model: Delco 10MT Family
• Type: DD (Direct Drive)
• Voltage: 12V
• Teeth on Drive: 10
• Rotation: Clockwise (CW)
• Gear Outer Diameter: 1.571 in / 39.9 mm
• Mounting Ears: 0.500 in (12.7 mm) Unthreaded
• Weight: 24 lbs / 10.89 kg
• Condition: New Aftermarket Replacement

APPLICATION SUMMARY:
• Caterpillar Lift Trucks T-Series / V-Series / 540S-670S / 760P-960P (1969-1981)
• Terex Lift Trucks 540 / 600 / 670 / T-Series / V-Series (1972)
• Towmotor Lift Trucks 540-670 / 540S-670S / T-Series / V-Series (1969-1980)
• Continental Gas Engines F-163 / F-209 / F-227
• Hyster Forklifts (via OEM 3004022 cross-reference)
• Yale Forklifts (via OEM 2200073-76 cross-reference)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $487.43
Sale: $278.53
Save: 43%
Save: $208.90
Qty:
Free Shipping!

Description

CATERPILLAR LIFT TRUCKS — T-SERIES F-163 (1969-1981):
• T25 Caterpillar Continental F-163 Gas/LPG (1979-1981)
• T30 Caterpillar Continental F-163 Gas (1969-1972)
• T30B / T30C Caterpillar Continental F-163 (1979-1981)
• T35B / T35C Caterpillar Continental F-163 (1979-1981)
• T40 Caterpillar Continental F-163 Gas (1969-1972)
• T40B / T40C Caterpillar Continental F-163 (1979-1981)
• T45B / T45C Caterpillar Continental F-163 (1979-1981)
• T50 Caterpillar Continental F-163 Gas (1969-1972)
• T50B / T50C Caterpillar Continental F-163 (1979-1981)
• T55B / T55C Caterpillar Continental F-163 (1979-1981)
• T60 Caterpillar Continental F-163 Gas (1969-1972)
• T60B / T60C Caterpillar Continental F-163 (1979-1981)
• TC30 Caterpillar Continental F-163 (1979-1981)

CATERPILLAR LIFT TRUCKS — T-SERIES F-227:
• 540S / 600S / 670S Caterpillar Continental F-227 (1971-1980)
• T70C / T80C / T90C Caterpillar Continental F-227 (1979-1981)
• T100C / T120C Caterpillar Continental F-227 (1979-1981)
• 760P / 860P / 960P Caterpillar Lift Truck (1969-1972)

CATERPILLAR LIFT TRUCKS — V-SERIES:
• V30 / V40 / V50 / V60 Caterpillar Continental F-163 (1969-1972)
• V30B / V35B / V40B / V45B / V50B / V55B / V60B Caterpillar Continental F-163 (1979-1980)
• V41 / V51 Caterpillar Continental F-163 Gas (1969-1972)
• V41 / V51 Caterpillar Continental F-227 (1979-1981)
• V55B / V60B Caterpillar Continental F-227 (1979-1981)

TEREX LIFT TRUCKS — 1972:
• 540 / 600 / 670 Terex Continental F-227 Gas (1972)
• 760-P / 860-P / 960-P Terex Continental F-227 Gas (1972)
• T-30 / T-40 / T-50 / T-60 Terex Continental F-163 Gas & LPG (1972)
• V-30 / V-40 / V-41 / V-50 / V-51 / V-60 Terex Continental F-163 Gas (1972)
• V-30 / V-40 / V-41 / V-50 / V-51 / V-60 Terex Continental F-227 Gas (1972)

TOWMOTOR LIFT TRUCKS — 1969-1980:
• Model 540 / 600 / 670 Towmotor Continental F-209 (1969-1972)
• Model 760P / 860P / 960P Towmotor Lift Truck (1969-1972)
• Model 540S / 600S / 670S Towmotor Continental F-227 (1971-1980)
• T30 / T40 / T50 / T60 Towmotor Continental F-163 (1969-1972)
• V30 / V40 / V41 / V50 / V51 / V60 Towmotor Continental F-163 (1969-1972)

HYSTER & YALE COMPATIBILITY:
• Hyster Forklift Applications (via OEM 3004022 cross-reference)
• Yale Forklift Applications (via OEM 2200073-76 / 220007376 / 2200071-44 cross-reference)

CONTINENTAL GAS ENGINE DETAILS:
• F-163: 163ci / 2.7L 4-Cylinder Continental Gas/LPG
• F-209: 209ci / 3.4L 4-Cylinder Continental Gas
• F-227: 227ci / 3.7L 4-Cylinder Continental Gas
