150A High Output Alternator Compatible With 2008-2014 Toyota Sequoia 2007-2014 Tundra 5.7L 4.6L V8

OEM PART NUMBERS:
• Denso: 104210-5090 / 1042105090
• Denso: 104210-5091 / 1042105091
• Toyota: 27060-0S020 / 270600S020
• Bosch: AL3336X

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Rotation: CW (Clockwise)
• Type: Denso SC Hairpin
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 8-Groove Solid Serpentine (S8)
• Pulley OD: 55mm
• Case OD: 134mm
• Plug Code: 917
• Regulator Clock: 2:00
• Stud Size: M6-1.0
• Polarity: Negative Ground
• DE Mounting Holes: 10.5mm ID Unthreaded
• SRE Mounting Holes: 12.5mm ID Unthreaded
• Weight: 13.59 lbs / 6.18 kg

APPLICATION:
• Toyota Tundra V8 5.7L 5663CC (2007-2014)
• Toyota Tundra V8 4.6L 4608CC (2010-2014)
• Toyota Sequoia V8 5.7L 5663CC (2008-2014)
• Toyota Sequoia V8 4.6L 4608CC (2010-2012)

DESCRIPTION:

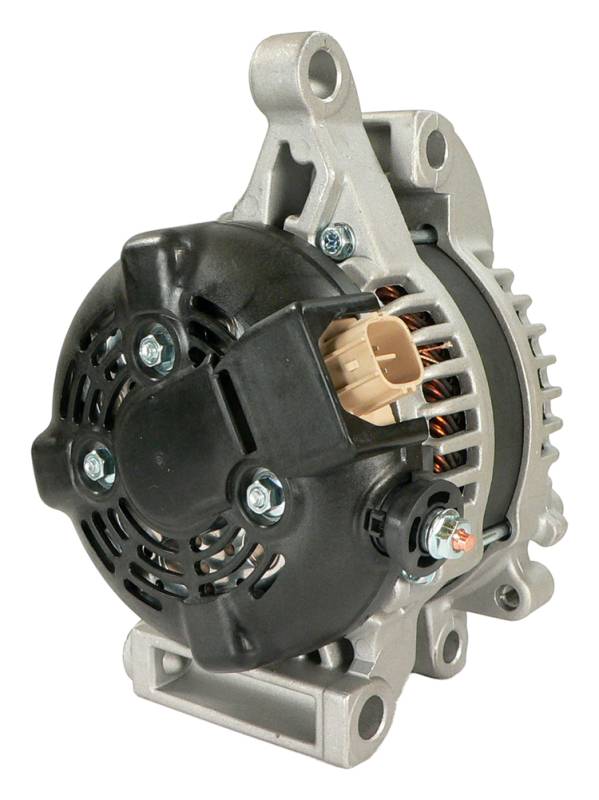

150 Amp High Output Alternator - Toyota Sequoia / Tundra V8
High-output 150 amp OEM replacement alternator for Toyota Sequoia (2008-2014) and Tundra (2007-2014) with V8 4.6L 1UR-FE or 5.7L 3UR-FE DOHC engines. Denso SC hairpin stator construction provides maximum charging capacity for demanding full-size truck and SUV applications with heavy electrical loads. Features clockwise rotation, internal regulator, internal fan, and 8-groove solid serpentine pulley with 55mm OD. Plug code 917 at 2:00 clock position with M6-1.0 stud. Replaces Denso 104210-5090, 104210-5091, and Bosch AL3336X
