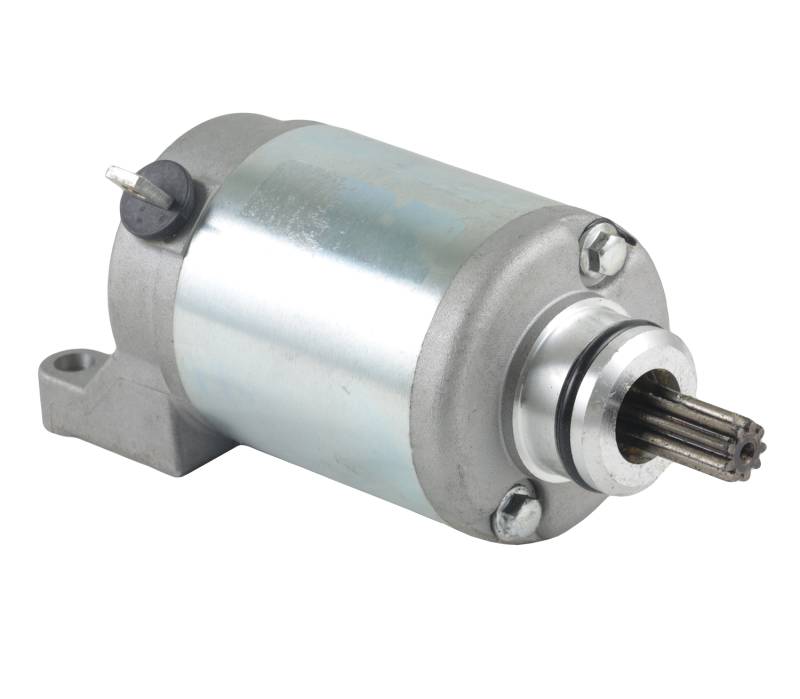

Starter Motor Compatible With Bombardier Can-Am Rally 175 200 176Cc Rotax Atv 2003-2007 Aprilia

OEM PART NUMBERS:
• Bombardier / Can-Am: 420-296-390 / 420296390
• Bombardier / Can-Am: 711-296-390 / 711296390
• Aprilia: AP0296390 / AP0295625
• 228000-8820 / 2280008820

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Unit Type:
• Voltage: 12V / Power: 0.6kW / 0.8HP
• Rotation: CW (Clockwise) / Teeth: 9
• Gear OD: 11.3mm / 0.445in
• Mounting: Ear 1: 6mm Unthreaded / Ear 2: 7mm Unthreaded
• Battery Tab: M5-0.8
• Weight: 2.095 lbs / 0.95 kg
• Condition: New

BOMBARDIER / CAN-AM ATV APPLICATIONS:
• Rally 175 Rotax 176cc 4-Stroke (2003-2004)
• Rally 200 Rotax 176cc 4-Stroke (2003-2007)

APRILIA SCOOTER APPLICATIONS:
• Scarabeo 125/150/200 Rotax 4-Stroke (1999-2004)

PRODUCT NOTICE:
