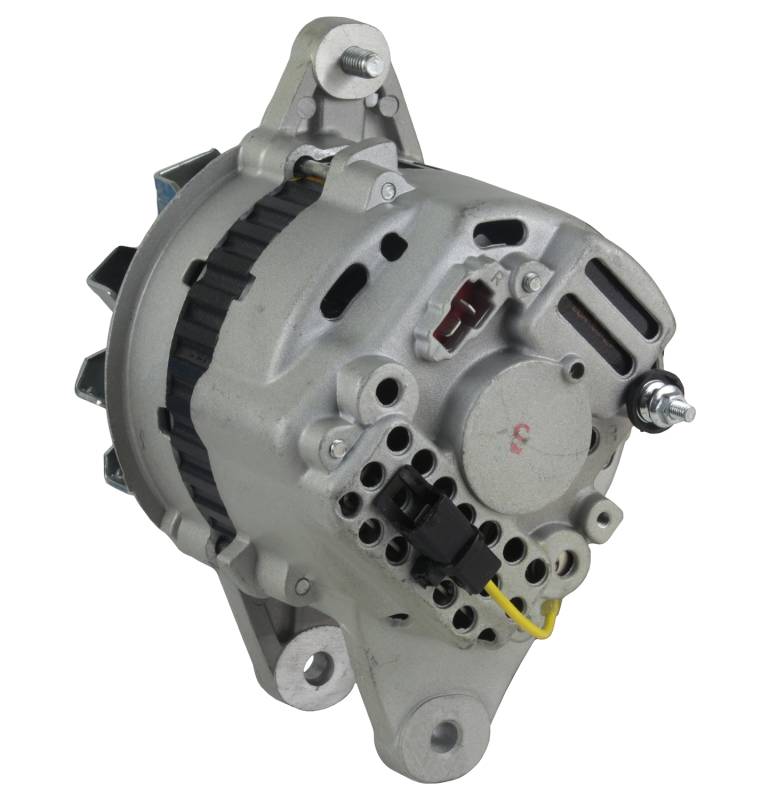

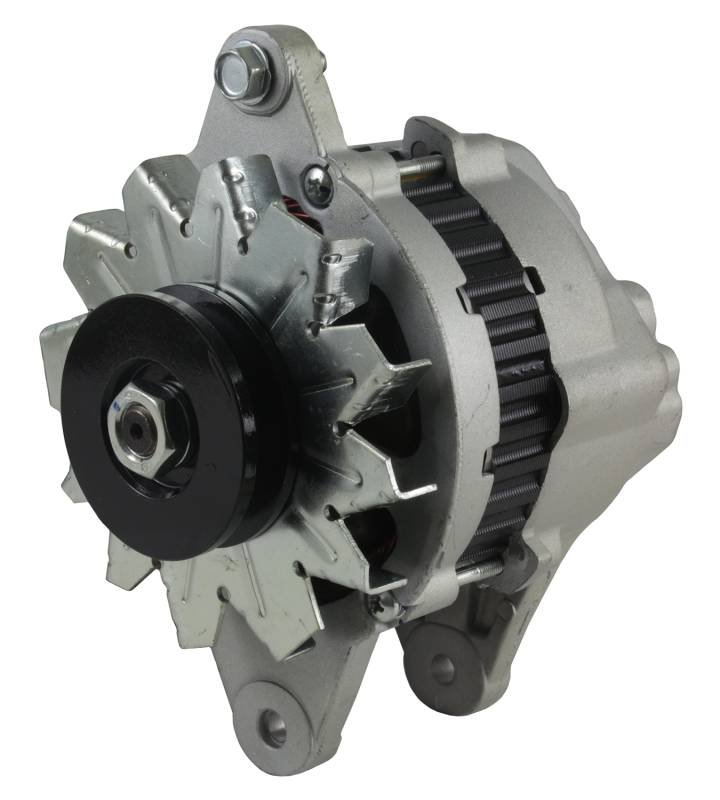

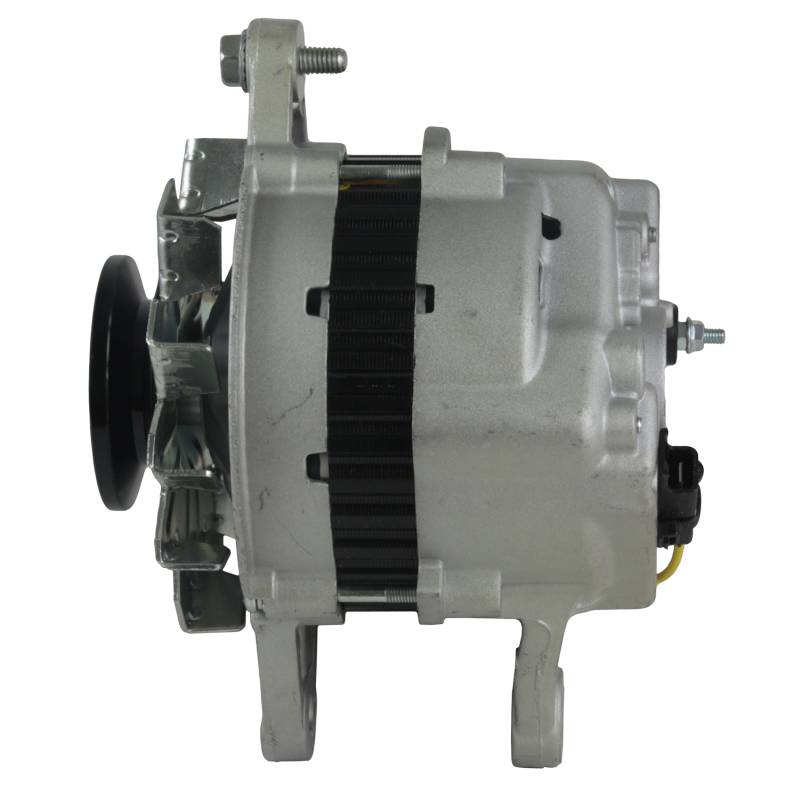

Marine Alternator 55A Compatible With Westerbeke 3.3 5.8 7.7 Wmd 4.5 6.0 Bcd 6.0 Btd Generator 12V

OEM PART NUMBERS:
• Westerbeke: 030594 / 049246 / 30594 / 49246
• Mitsubishi: A2T25271 / A002T25271 / A002T25271ZC
• Mitsubishi Industrial: MM409650
• Quicksilver: 8M6007495

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 55A
• Rotation: CW (Clockwise)
• Regulator: Internal (IR)
• Fan: External (EF)
• Pulley: Single V-Groove (V1)
• B+ Terminal: M5-0.8 Threaded Stud
• P-Terminal: Rear Mounted
• Weight: 12 lbs
• Condition: New

APPLICATION:
• Westerbeke BCD: 4.4 BCD 60Hz, 4.5 BCD 50Hz, 6.0 BCD 60Hz (1986-1989)
• Westerbeke WMD: 3.3 WMD 50Hz, 4.4 WMD 60Hz, 5.8 WMD 50Hz, 6.0 WMD 50Hz, 7.7 WMD 60Hz (1980-1984), 8.0 WMD 60Hz, 9.4 WMD 50Hz, 11.0 WMD (1980-1987), 12.5 WMD 60Hz (1980-1987)
• Westerbeke BTD: 6.0-15.0 BTD 50/60Hz (1984-2001)
• Westerbeke BTDA: 8.0 BTDA (2000-2007), 9.4 BTDA 50Hz, 12.5 BTDA 60Hz (1988-2000)
• Mitsubishi Inboard: K3M/K3M-61EM, K4E/K4E-61DM/K4E-61EM, K4F/K4F-61WM/K4F-62WM, L2E/L2E-62WM, L3E/L3E-62WM (1982-On)

Marine Alternator — Westerbeke WMD BCD 6.0 BTD Generator 55A 12V
Marine alternator for Westerbeke WMD and BCD generators from 1980 to 1989. Also fits all BTD and BTDA series. Replaces Quicksilver 8M6007495, Mitsubishi A2T25271, MM409650, and Westerbeke 030594 and 049246. 55 amps, 12 volts, clockwise rotation, external fan.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
