EQUIPMENT PART NUMBERS: • Atlas Copco 2913163700
• Bomag 057 109 03, 05710903
• Faun 4159015
• Liebherr 620 06 62, 6200662, 620 08 27
• Volvo 22175635
BOSCH / DEUTZ PART NUMBERS: • Bosch 0 001 231 005, 0001231005
• Bosch 0 001 263 051, 0001263051
• Deutz (KHD) 0116 3626, 01163626
• Deutz (KHD) 0118 2235, 01182235
HELLA / MARELLI / LETRIKA PART NUMBERS: • Hella 8EA 726 149-001, CS501
• Magneti Marelli 943252215
• Letrika (Iskra) IS0842, 11.131.755, AZF4515

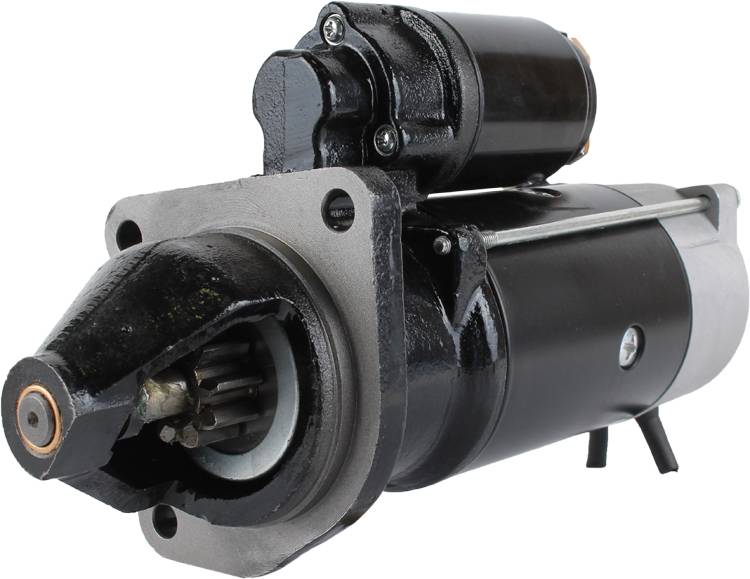

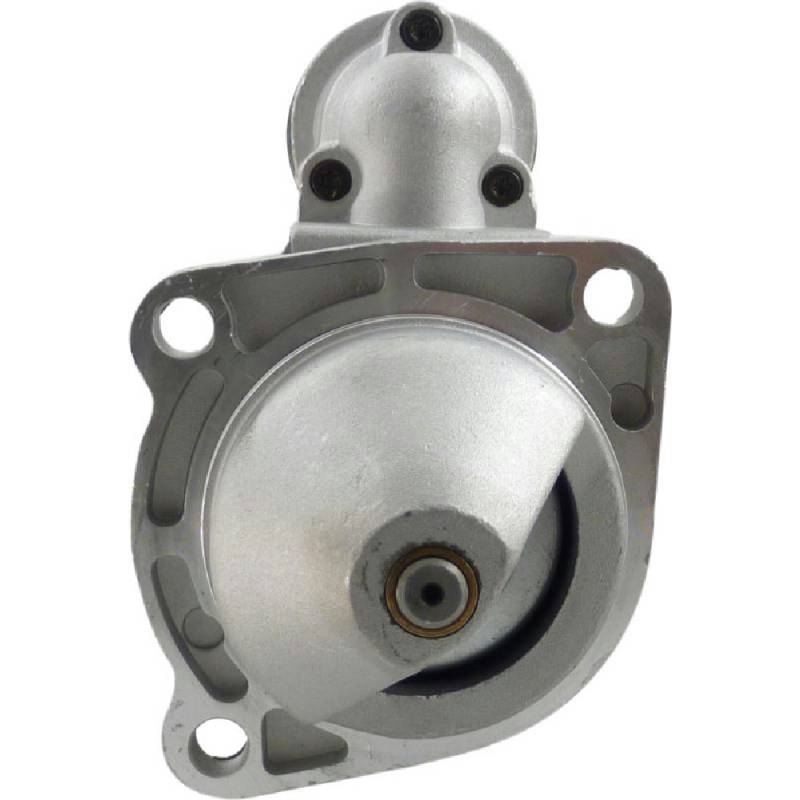

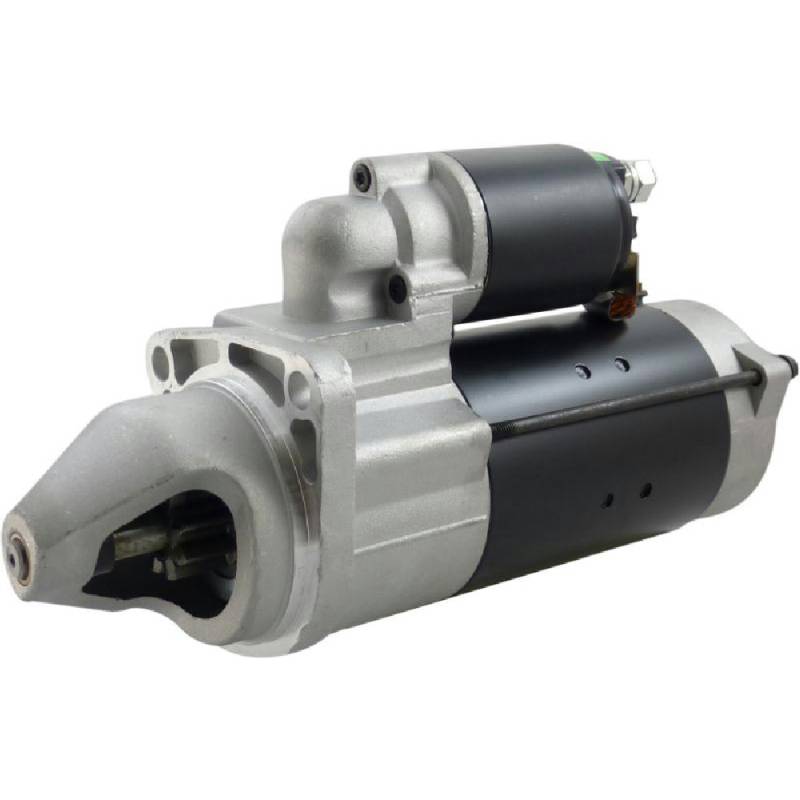

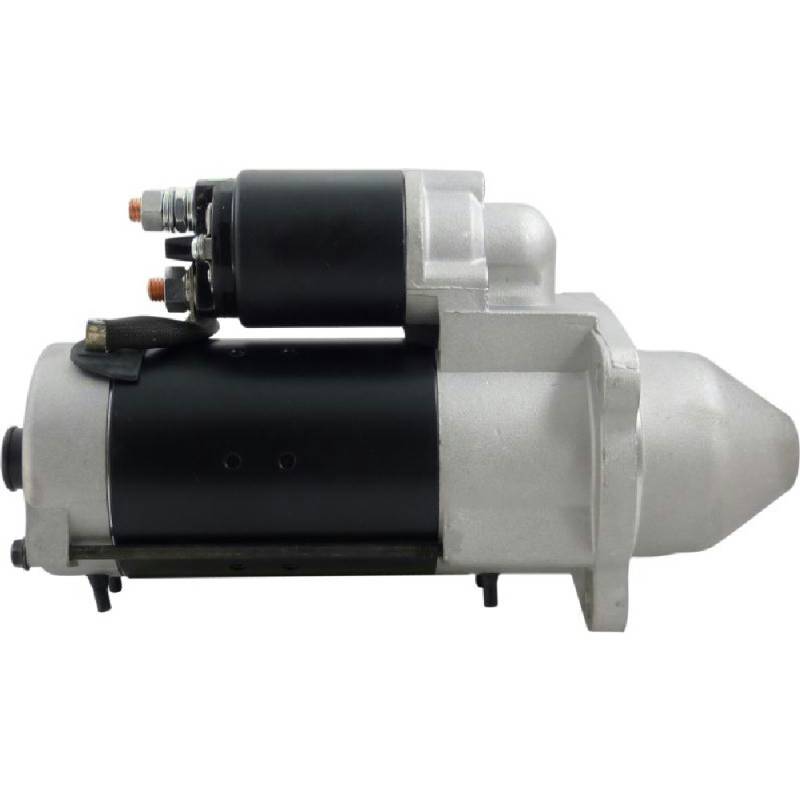

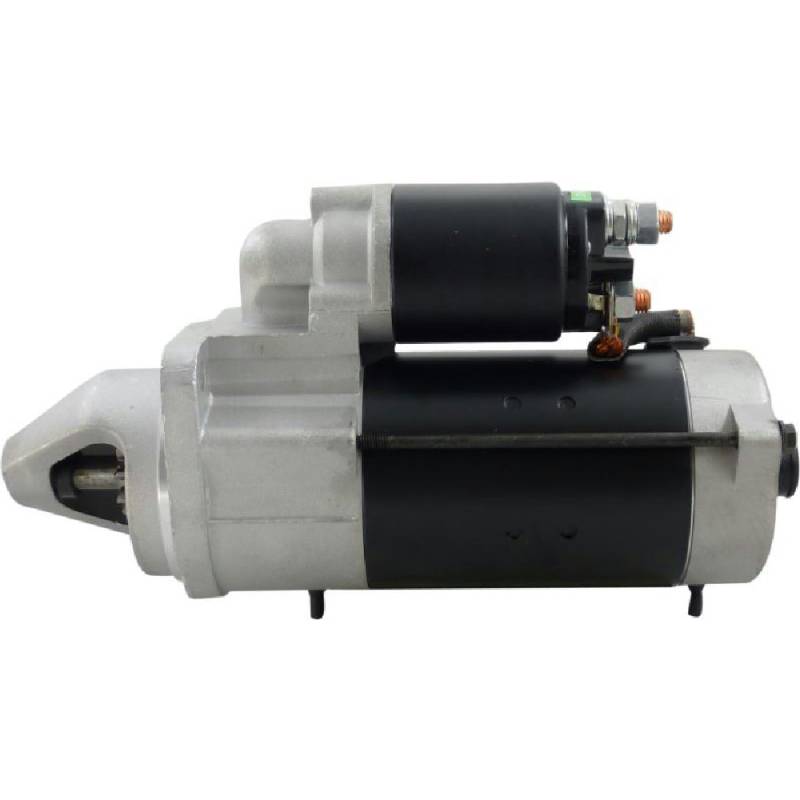

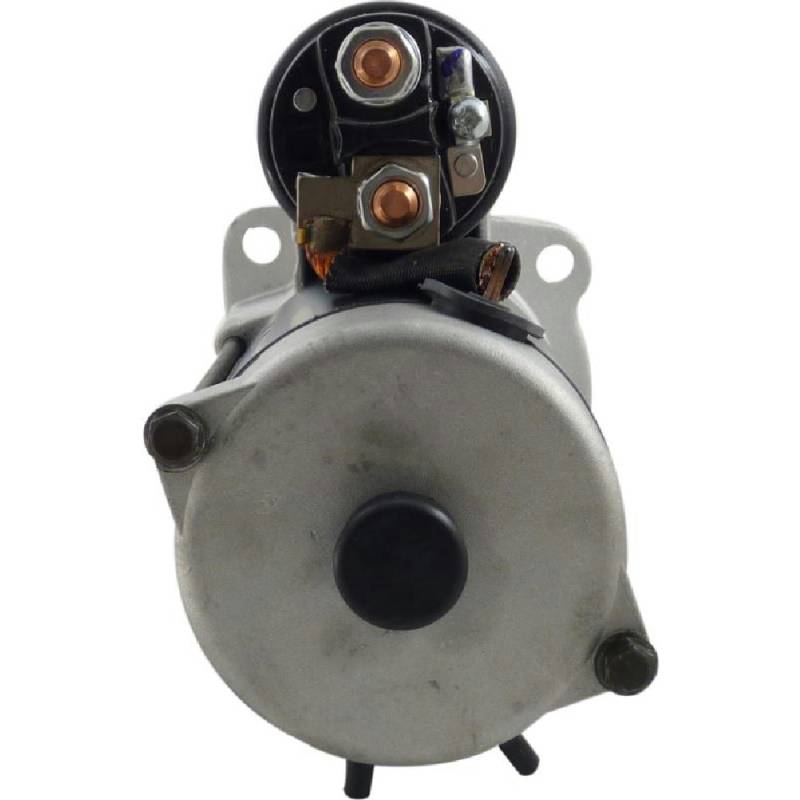

SPECIFICATIONS: • Type: Letrika / Bosch planetary gear reduction (PLGR)
• Voltage: 24 Volt
• Power: 4.0 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, module 3, 34.8 mm (1.37 in) OD
• Span over two teeth: 14.36 mm
• Mounting: 3 unthreaded 10.9 mm holes
• Design: dust-proof
• Weight: about 20 lbs (9.2 kg)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
