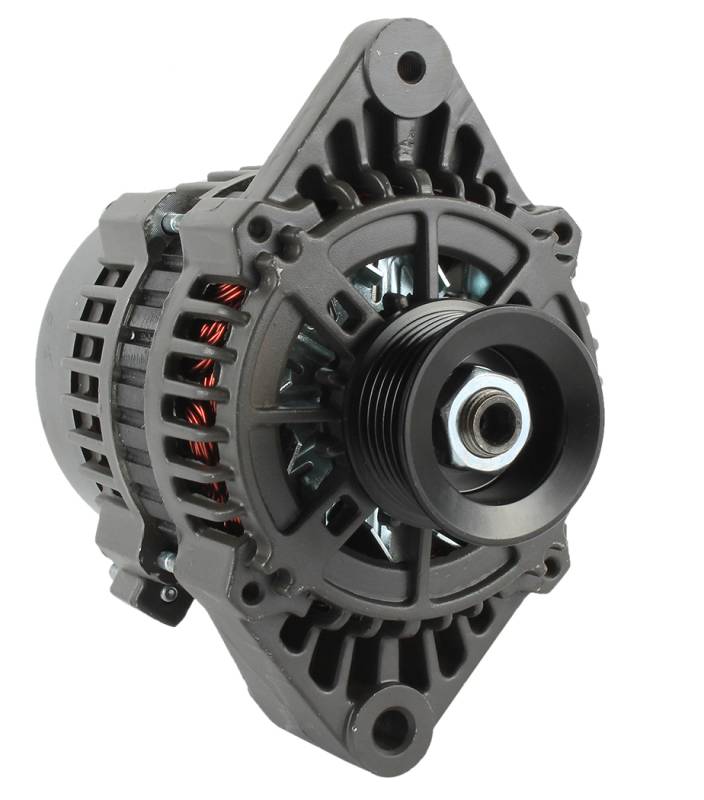

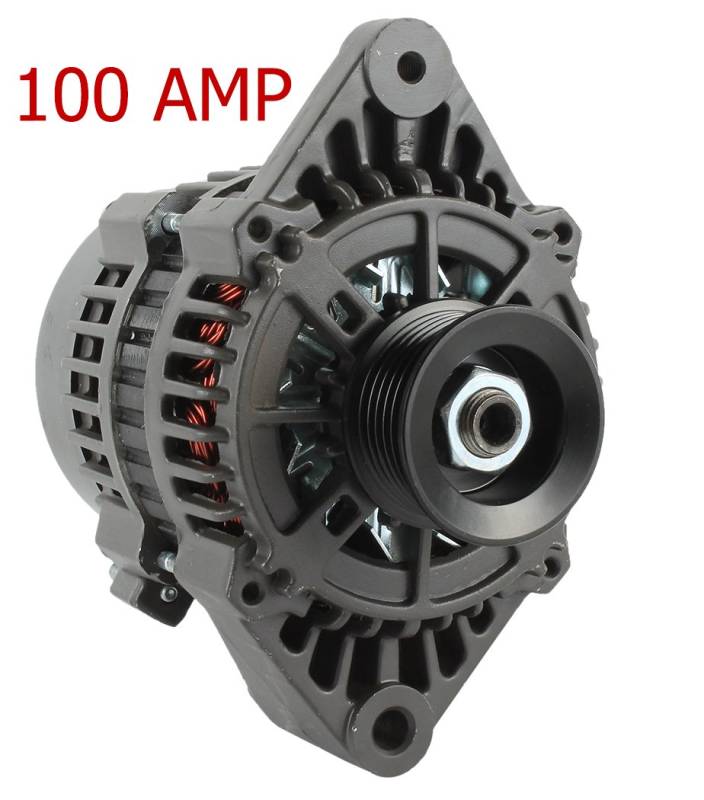

OEM Grade High Output 100 Amp Marine Alternator Compatible With 1999-2008 Crusader 305 350 364 454

OEM PART NUMBERS:
• 19020606 / 19020617 / 19020615 / 8400027
• Pleasurecraft (PCM): RA097007 / RA097007A / RA097007B / RA097007C
• 20115014TBA
• Indmar: 575011 / S575011
• MES - Marine Electric Suppliers: 3212M
• ProTorque: PH300-0041 / PH3000041 / PH300-0042 / PH3000042
• Mercury / Quicksilver: 8M6007461 / 8M6007463
• Sierra Marine: 18-5984 / 18-6453
• Arco Marine: 20820 / 20821 / 20822
• API Marine: 20112
• 9-19108
• Aftermarket: 8467 / 8467N

SPECIFICATIONS:
• Type: Alternator — 7SI Series High Output Marine
• Voltage: 12V
• Amperage: 100A (High Output)
• Rotation: Clockwise (CW)
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Pulley: 6-Groove Serpentine (S6)
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.3mm Unthreaded (50mm Thick)
• B+ Terminal: M6-1.0
• Weight: 12 lbs
• Ignition Protected: Yes (Marine SAE J1171)
• Condition: New

VEHICLE APPLICATIONS:
• Crusader 305/5.0L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 350/5.7L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 364/6.0L V8 8-Cyl Inboard Gasoline (1999-2008)
• Crusader 454/7.4L V8 8-Cyl Inboard Gasoline (Various)
• Crusader 496/8.1L V8 8-Cyl Inboard Gasoline (2001-2008)
• Pleasurecraft (PCM) 305CI/5.0L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 350CI/5.7L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 364CI/6.0L V8 Inboard Gasoline (2003-2007)
• Pleasurecraft (PCM) 496CI/8.1L V8 Inboard Gasoline (2001-2007)
• Marine Power Various Models V8 Gasoline Inboard (1997-2008)
• Indmar LCR 320 V8 Inboard — Malibu, Supra, Moomba (Various)

OEM Grade HIGH OUTPUT MARINE ALTERNATOR — 100A 12V 7SI Crusader PCM:
OEM-grade 100-amp 7SI marine alternator for Crusader and Pleasurecraft (PCM) V8 inboard gasoline. 12V CW, 6-groove S6 serpentine, M8-1.25 and 10.3mm mounting ears, M6-1.0 B+, 12 lbs, SAE J1171 ignition protected. Replaces 19020606 / 19020617 / 8400027, PCM RA097007 / RA097007A / RA097007C, Indmar 575011, 20115014TBA, Sierra 18-5984, 9-19108.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
