BRIGGS & STRATTON MODEL 40 OPPOSED TWIN, 14 HP (655 CC):
• Briggs & Stratton 400707 vertical shaft
• Briggs & Stratton 400417, 400437, 400447 horizontal shaft
• Briggs & Stratton 400777, 40A777 vertical shaft
BRIGGS & STRATTON MODEL 40 OPPOSED TWIN, 16 HP (655 CC):
• Briggs & Stratton 401407, 401417 horizontal shaft
• Briggs & Stratton 401707 vertical shaft
• Briggs & Stratton 402415, 402417, 402431, 402437, 402445, 402447 horizontal shaft
• Briggs & Stratton 402707 vertical shaft
• Briggs & Stratton 404437 horizontal shaft
BRIGGS & STRATTON MODEL 42 AND 46 OPPOSED TWIN, 18-20 HP (693-745 CC):
• Briggs & Stratton 422432, 422435, 422437, 422442, 422445 horizontal shaft
• Briggs & Stratton 422707, 422777 vertical shaft
• Briggs & Stratton 42A707, 42A777, 42B707, 42D707, 42D777
• Briggs & Stratton 42E707, 42E777
• Briggs & Stratton 460777, 461707, 462707, 463707
• Briggs & Stratton 204332
BRIGGS & STRATTON OPPOSED TWIN ENGINES (AIR COOLED 14-18 HP):
• Air cooled opposed twin 14 HP horizontal 1996-1998
• Air cooled opposed twin 14 HP vertical 1996-1998
• Air cooled opposed twin 16 HP horizontal 1996-1998
• Air cooled opposed twin 18 HP horizontal
• Engine series 204332, 400707, 401707, 402437, 404437, 40A777
• Engine series 422432, 422435, 422437, 422442, 422445, 422707, 422777
• Engine series 42A707, 42A777, 42B707, 42D707, 42D777
• Engine series 42E707, 42E777, 460777, 461707, 462707, 463707
SIMPLICITY AND ALLIS-CHALMERS:
• Simplicity 6116 with the Briggs & Stratton 401707 16 HP 1979-1981
• Simplicity 5116 with the Briggs & Stratton 401707 16 HP 1981-1985
• Simplicity 6216 with the Briggs & Stratton 402707 16 HP 1981-1987
• Simplicity 6516 with the Briggs & Stratton 402707 16 HP 1988-1989
• Simplicity 6218 with the Briggs & Stratton 422707 18 HP 1981-1983
• Allis-Chalmers 816GT with the Briggs & Stratton 401707 16 HP 1979-1982
• Allis-Chalmers 616 Special with the Briggs & Stratton 401707 16 HP 1981-1983
• Allis-Chalmers T-816 with the Briggs & Stratton 402707 16 HP 1982-1985
• Allis-Chalmers T-818 with the Briggs & Stratton 422707 18 HP 1982-1983
BOLENS:
• Bolens G16XT and H16XT with the Briggs & Stratton 402437 16 HP 1981-1983
• Bolens 1600G with the Briggs & Stratton 402437 16 HP 1983-1987
• Bolens 1600H with the Briggs & Stratton 402437 16 HP 1983-1989
• Bolens 1402G with the Briggs & Stratton 400437 14 HP 1986-1993
• Bolens G16YT with the Briggs & Stratton 402707 16 HP 1982-1984
• Bolens 3016G and 3016H with the Briggs & Stratton 402707 16 HP 1984-1985
• Bolens 3014H with the Briggs & Stratton 400707 14 HP 1987
• Bolens 3114G and 3114H with the Briggs & Stratton 400707 14 HP 1988-1989
• Bolens 3118G with the Briggs & Stratton 422707 18 HP 1986-1987
• Bolens 3018G 1988-1989 and 3018H 1988-1990 with the Briggs & Stratton 422707 18 HP
SNAPPER, FORD AND ARIENS:
• Snapper LT16 with the Briggs & Stratton 402437 16 HP 1984-1988
• Snapper YT16 with the Briggs & Stratton 402437 16 HP 1989-1990
• Ford YT-16 and YT-16H with the Briggs & Stratton 402707 16 HP 1984-1993
• Ford YT-18H with the Briggs & Stratton 422777 18 HP 1989-1993
• Ariens HT16 with the Briggs & Stratton 402707 16 HP 1982-1995
• Ariens HT18 with the Briggs & Stratton 422707 18 HP 1986-1995
CRAFTSMAN LAWN AND GARDEN TRACTORS:
• Craftsman 917.25372 with the Briggs & Stratton 402417 16 HP 1981-1982
• Craftsman 917.25481 with the Briggs & Stratton 422437 18 HP 1981-1982
• Craftsman 917.25581 and 917.25583 with the Briggs & Stratton 400707 14 HP 1985-1986
• Craftsman 917.25591 with the Briggs & Stratton 422437 18 HP 1985-1989
• Craftsman 917.25432 1987-1988 and 917.25436 1988 with the Briggs & Stratton 402707 16 HP
• Craftsman 917.25471 with the Briggs & Stratton 400707 14 HP 1989
• Craftsman 917.25472 with the Briggs & Stratton 422707 18 HP 1989
• Craftsman 917.25445 and 917.25973 with the Briggs & Stratton 422707 18 HP 1990
• Craftsman 917.25593 with the Briggs & Stratton 422437 18 HP 1991
• Craftsman 917.25592 1991-1992 and 917.25849 1992 with the Briggs & Stratton 422707 18 HP
• Craftsman 917.25486, 917.25589, 917.25597 with the Briggs & Stratton 422707 18 HP 1993
• Craftsman 917.25077, 917.25756, 917.25771 with the Briggs & Stratton 422707 18 HP 1994
• Craftsman 917.25256 1995, 917.25656 and 917.25657 1996 with the Briggs & Stratton 42A707 19 HP
• Craftsman 917.25147 with the Briggs & Stratton 460777 20 HP 1996
• Craftsman 917.27081 and 917.27082 with the Briggs & Stratton 42E707 19.5 HP 1998-2000
• Craftsman 944.60919 and 944.60989 with the Briggs & Stratton 42E707 19 HP 1999
• Craftsman 917.27083 1999-2000, 917.27093 2000, 917.27181 and 917.27182 2001 with the Briggs & Stratton 461707
MURRAY AND MTD:
• Murray 39004 with the Briggs & Stratton 422707 18 HP 1982-1988
• Murray 38206 with the Briggs & Stratton 402707 16 HP 1985-1986
• Murray 39013 with the Briggs & Stratton 402707 1986-1990
• Murray 38211 with the Briggs & Stratton 400707 14 HP 1987-1989
• Murray 38222 with the Briggs & Stratton 422707 18 HP 1987-1990
• Murray 42201 and 42814 with the Briggs & Stratton 400707 14 HP 1994
• Murray 46250, 46800, 46900, 46170 with the Briggs & Stratton 422707 18 HP 1994
• Murray 46370 and 46371 with the Briggs & Stratton 422707 18 HP 1994-1996
• Murray 4316 with the Briggs & Stratton 402707 16 HP 1995-1996
• MTD 810 and 820 with the Briggs & Stratton 401707 16 HP 1979-1980
• MTD 824 and 826 with the Briggs & Stratton 401707 16 HP 1981-1986
• MTD 834 and 836 with the Briggs & Stratton 422437 18 HP 1981-1986
INGERSOLL, CASE, ROPER, JACOBSEN AND SEARS:
• Ingersoll 114YT with the Briggs & Stratton 400707 14 HP 1985-1990
• Ingersoll 116YT with the Briggs & Stratton 402707 16 HP 1984-1990
• Ingersoll 1014 with the Briggs & Stratton 400707 14 HP 1987
• Case 116 XC with the Briggs & Stratton 402707 16 HP 1984-1985
• Roper YT14 with the Briggs & Stratton 400707 14 HP 1988
• Roper YT16 1984-1988 and YTH16 1986-1990 with the Briggs & Stratton 402707 16 HP
• Roper GT18 with the Briggs & Stratton 422437 18 HP 1984-1988
• Roper GT250 with the Briggs & Stratton 422707 18 HP 1987-1989
• Jacobsen YT-14 with the Briggs & Stratton 400707 14 HP 1987-1989
• Sears GT/16 with the Briggs & Stratton 401417 16 HP 1978
• Sears GT-16 Twin with the Briggs & Stratton 401707 16 HP 1978-1979
CUB CADET, JOHN DEERE AND TORO:
• Cub Cadet 580 (1982-1984), 582 (1979-1984), 1604, 1605, 1606, 1610 (1985-1986) with the Briggs & Stratton 16 HP
• John Deere 116 (1982-1985), 116H (1983-1985) with the Briggs & Stratton 402707; John Deere 65, 66, 68 riding mowers
• John Deere walk-behind commercial 32, 36, 48, 52 inch models with 16 HP Briggs & Stratton engines
• Toro 216-5 tractor 16 HP (1985-1987)
SPECIFICATIONS:

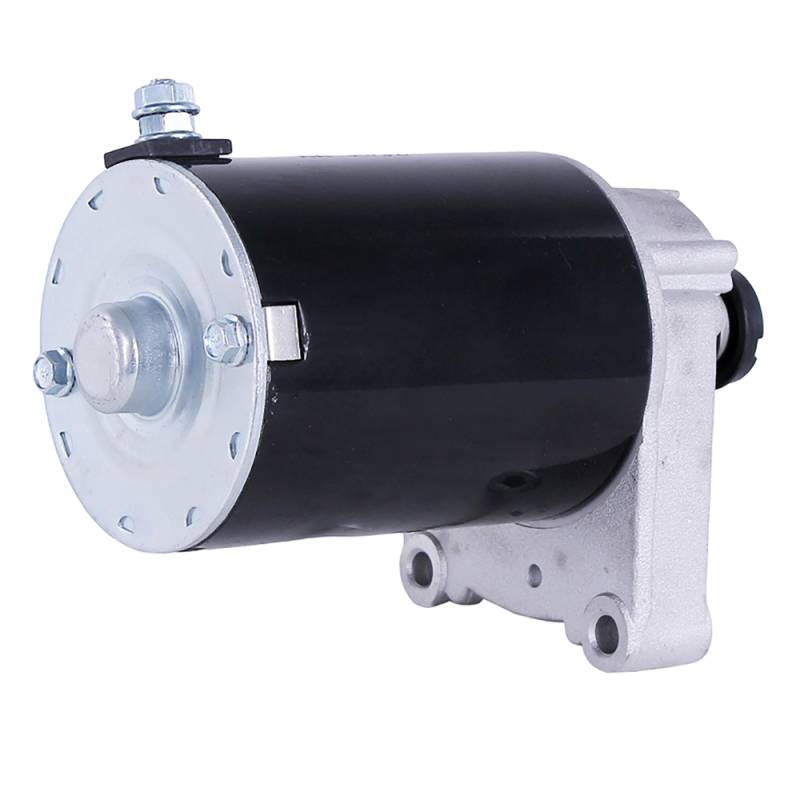

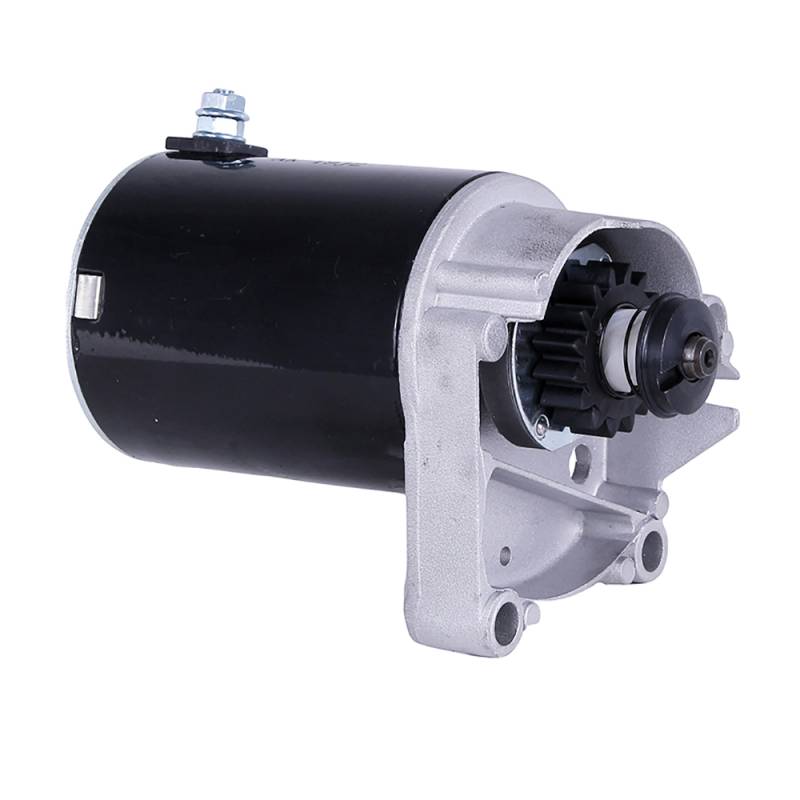

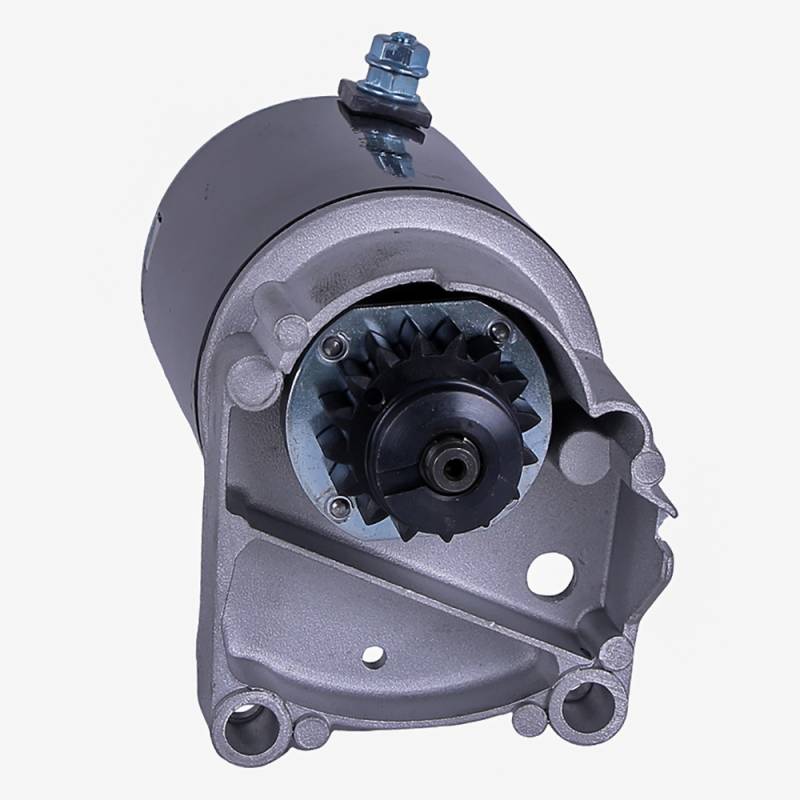

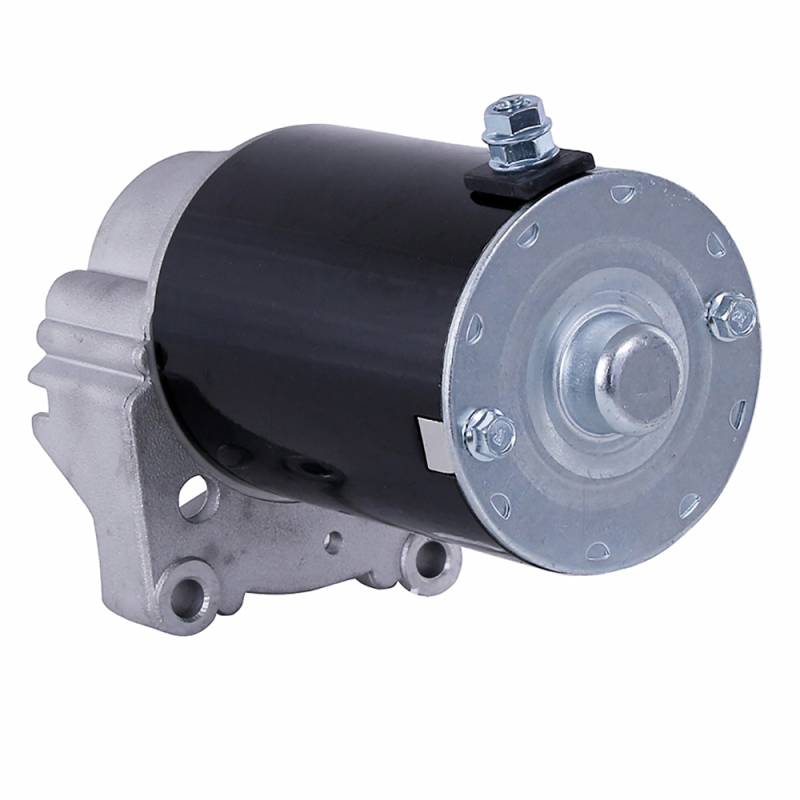

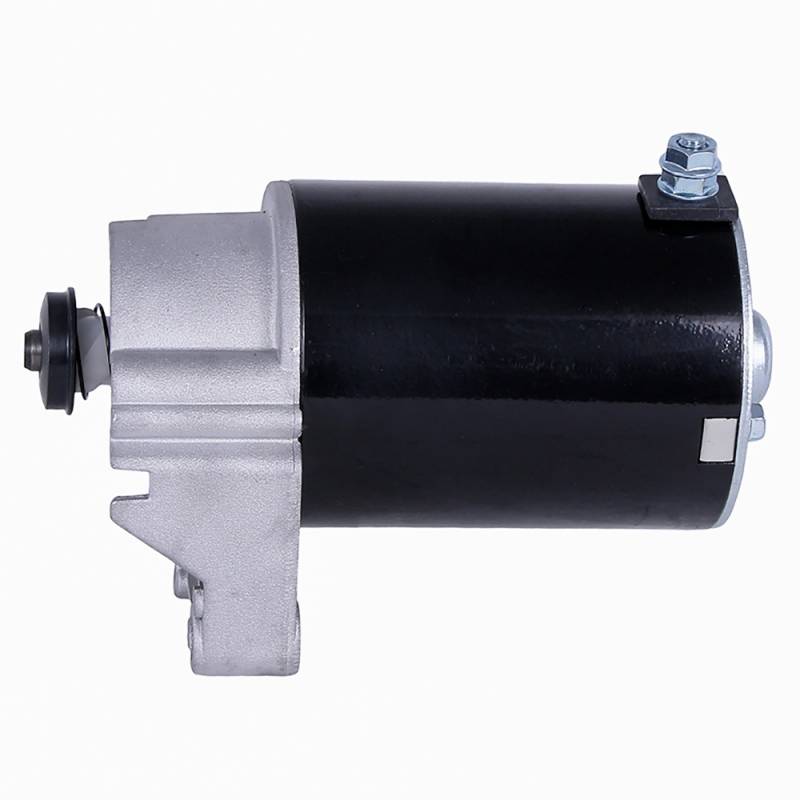

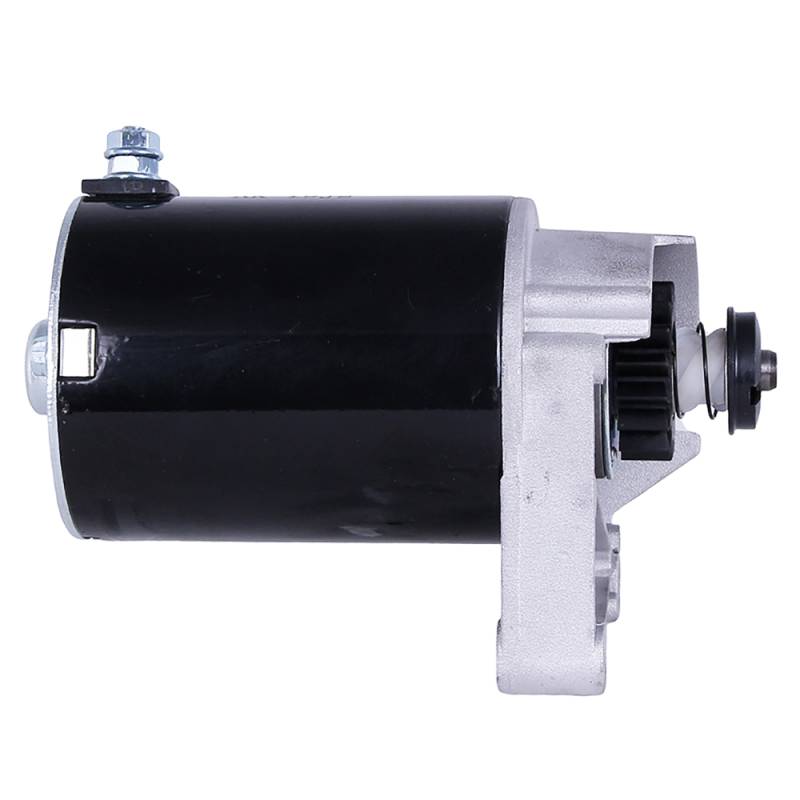

• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 96.5 mm (3.8 in)
• Mounting: three unthreaded ears, 9.5 mm, 8.5 mm and 8.5 mm ID

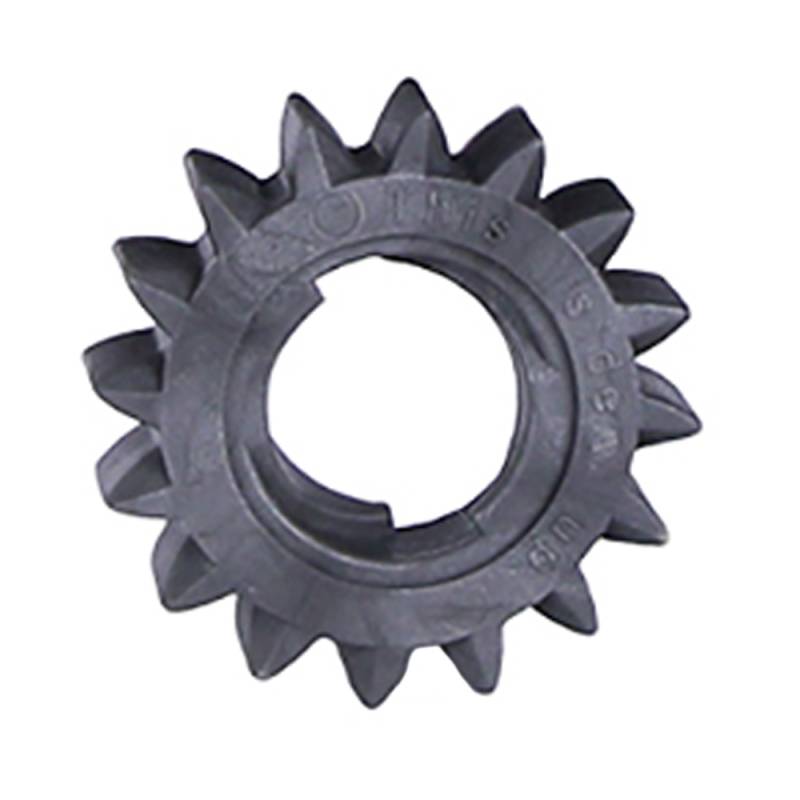

• Includes: extra 16 tooth plastic gear
• Flywheel: for plastic flywheel ring gears only, not for steel ring gears
• Engines: Briggs & Stratton air-cooled opposed twin, 14 to 18 HP
• Weight: 2.35 kg (5.18 lb)
• Condition: New aftermarket
