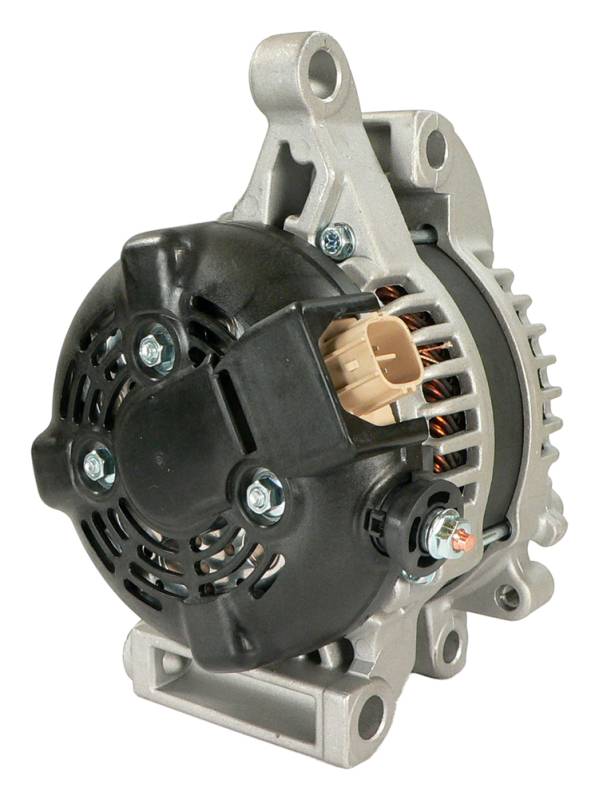

12V 150 Amp Alternator Compatible With 2007-2014 Toyota Tundra 5.7L 4.6L V8 Sequoia Cw Denso

OEM PART NUMBERS:
• Denso: 104210-5090 / 1042105090
• Denso: 104210-5091 / 1042105091
• Toyota: 27060-0S020 / 270600S020
• Bosch: AL3336X

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Rotation: CW (Clockwise)
• Type: Denso SC Hairpin
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 8-Groove Solid Serpentine (S8)
• Pulley OD: 55mm
• Case OD: 134mm
• Plug Code: 917
• Regulator Clock: 2:00
• Stud Size: M6-1.0
• Polarity: Negative Ground
• DE Mounting Holes: 10.5mm ID Unthreaded
• SRE Mounting Holes: 12.5mm ID Unthreaded
• Weight: 13.59 lbs / 6.18 kg

APPLICATION:
• Toyota Tundra V8 5.7L 5663CC (2007-2014)
• Toyota Tundra V8 4.6L 4608CC (2010-2014)
• Toyota Sequoia V8 5.7L 5663CC (2008-2014)
• Toyota Sequoia V8 4.6L 4608CC (2010-2012)

DESCRIPTION:
12V 150A Alternator - Toyota Tundra / Sequoia V8 5.7L 4.6L
Direct OEM replacement 150 amp high-output alternator for 2007-2014 Toyota Tundra and 2008-2014 Sequoia equipped with V8 5.7L 3UR-FE (5663CC) or V8 4.6L 1UR-FE (4608CC) engines. This Denso SC hairpin stator alternator delivers high-output 150 amp charging with clockwise rotation, internal voltage regulator, and internal fan cooling. Features 8-groove solid serpentine pulley with 55mm outer diameter, 134mm case diameter, and plug code 917 at the 2:00 clock position. M6-1.0 stud size. Replaces Denso 104210-5090, Toyota 27060-0S020, and Bosch AL3336X

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
